Vibrating Table Dealers in Delhi

• Weight: 100-1000kg
• Driven Type: Electric
• Material: Metal
• Surface Finshing: Polished
• Resistivity: Rust Resistant
• Application: Industrial

Vibrating Table is widely used in various industries for vibrating cement concrete. We are engaged in offering high quality Vibrating Table in different specifications. The Vibrating Table is precisely designed using top notch quality metal and other components by the experienced engineers using modern technology. Known for its efficiency and high durability, our Vibrating Table ensures easy installation and demands zero maintenance owing to its high grade fabrication. Also, it is anti-corrosive in nature.

Proper compaction of cement concrete while casting specimens for compression testing is essential to achieve a better and more consistent mixture. Concrete Vibrating Table is ideally suit for this purpose. The Concrete Vibrating Table we manufacture and export has stops along its edges to prevent moulds from sliding off the table during operation. The maximum load capacity is 140kg. The variable pitch pulley arrangement permits the frequency to be varied steplessly between 60 cycles/second and 43 cycles/second. Suitable for Operation on 415 volts, 3 phase, 50Hz, AC supply Dimension 500 mm. x 500 mm Features Low maintenanceRobustRust ResistanceEasy to operateEconomicalSafe

• Type: Vibration Testers
• Certification: ISI Certified, ISO 9001:2008 Certified
• Feature: Easy To Use, Proper Working, Superior Finish
• Condition: New
• Warrenty: Lifetime Buyback Warranty
• Brand Name: Paramount
• Country of Origin: India

The vibration tester is designed to scientifically simulate the vibrations and jolts subjected to various filled containers during the transportation, in the laboratory. The vibration test provides means to determine in advance, under standard laboratory conditions, how a filled package will fare during Transit. This test is used to assess the performance of containers only, in terms of its strength and the protection that it provides to the content, when subjected to the vibrations during the transportation. Paramount Vibration Table i9™ is an advanced ergonomically designed Equipment with sturdy mechanism to get Accurate & Reliable Results. It is based on ASTM D-999, TAPPI T-817-pm, and 7028 (part II) Guidelines. The packages (containers) intended for transportation of goods is required to fulfil the primary function of Physical protection to the content within it. Normally the transportation is by road, rail, sea and air- in singular or in various combinations of these modes. Due to these the package is subjected to the various vibrations and jolts of varying intensities. The Equipment is smartly designed to simulate these conditions closely in the laboratory.

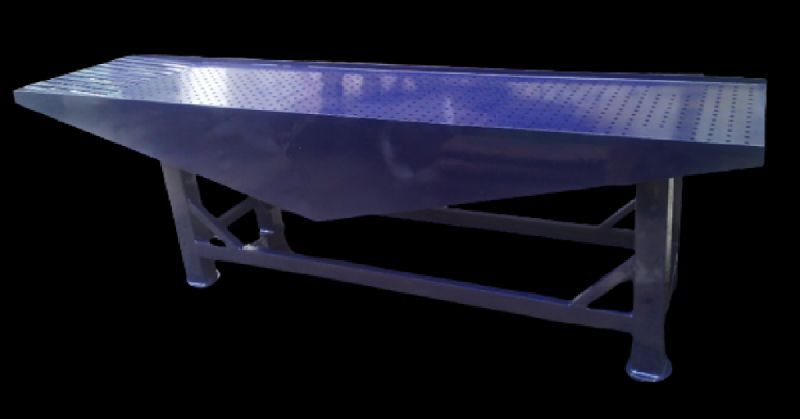

We are engaged in the manufacturing of superior quality Vibrating Table. The Vibrating Table provided by us, is available with single or three phase motor with 2 year guarantee. Known for high performance and longer working life, our Vibrating Tables are high in demand in the market. Specifications : Total Size : 10 feet x 2.5 feetElectric Motor : 2HP, 3 PhaseWeight : 500 Kg. approx

• Type: Vibrating Table
• Weight: 100-1000kg
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Country of Origin: India
• Automation Grade: Automatic

• Type: Automatic
• Certification: CE Certified
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1 Year

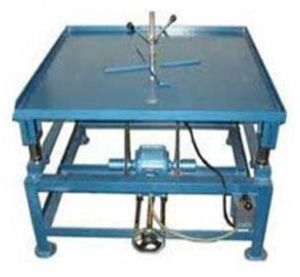

Located in Delhi(India), ours is the name trusted for meeting the exact requirements of the clients. Listed amidst the renowned Suppliers of Vibrating Table, we successfully deliver the finest range of products the clients. It is used for compacting concrete cubes and cylinders   Specifications : Sizes - 75cmx75cm & 100cmx100cm. To carry out a load of 140kg. The unit consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm and has stops along its edges to prevent moulds form walking off the table during vibration. A cross arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied step Lesley between a maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency a switch is provided for starting the motor. Suitable for operation on 440 Volts, 3 phase, 50 cycles, A.C.Supply.

• Warranty: 1year
• max weight: 0-200 kg
• Power: 1-2 kw
• Material: Iron
• Automation Grade: Automatic
• Vibrating Range: >5 mm
• Frequency: 50 Hz

• Country of Origin: India
• Application: Industrial
• Material: Iron
• Size: 10 X 2.5 feet
• Max Weight: 400-800 kg
• Capacity: 3000-4000 per day manufacturing
• Motor Capacity: 2 HP with 2800 RPM

• Country of Origin: India
• Type: Automatic
• Color: Blue
• Voltage: 220V
• Power: 1-2kw
• Warranty: 1 Year

Proper compaction of cement concrete while casting specimens for compression testing is desirable to achieve a better and more consistent mixture. Vibrating table is ideally suited for this purpose. The table to is 500 mm x 500 mm and has stops along its edges to prevent moulds from sliding off the table during operation.The maximum load capacity is 140 kg. The variable pitch pully arrangemant permits the frequency to be varied steplessly between 600 cycles/sec. and 430 cycles/sec. Suitable for operation 415 volts,3 phase. 50 Hz. A.C. supply.

• Max Weight:: 0-200 kg
• Vibrations:: 3600 vibrations down to 2600 vibrations per minute
• Application:: Industrial
• Vibration (per min.):: 3600 vibrations down to 2600 vibrations per minute
• Size:: 75cm x 75cm
• Is It Portable:: Non Portable

Our organization assures distribution of wholesale as well as retail consignments of the goods as per the jointly decided period. The material required for preparing quality-centralized product range is sourced from the trusted places and that too after complete quality confirmation. Features Precision engineered High productivity Smooth operation

The vibrating table is used for compacting concrete cubes and cylinders. Salient Features Specifications : It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied steplessly between a maximum of 3600 vibrations down to 2600 vibrationsper minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor, suitable for operation on 440 volts, 3 phase, 50 cycles, A.C.supply. Note : Vibrating Tables of table top size 75cm x 75cm as well as 100cm x 100cm are also available.

• Weight: 200-400 kg
• Voltage: 220V
• Automation Grade: Semi Automatic
• Material: Iron
• Phase: Three Phase
• Capacity: 2600 Vibrations/Min.
• Frequency: 50/60 Hz

We are the premier manufacturer and exporter of best quality Vibrating Table. The Vibrating Table is used in various industries such as automobile, chemical etc. Vibrating Table is manufactured in different sizes and load conditions catering to the different needs of the customers. Attributes Accurate dimensionLow maintenanceLatest technologyCompaction of bulk materials in containersHigh quality electromagnetic vibratorHigh durability Application Automobile industryElectronic industryChemical industryPharmaceutical industryDies and Moulds Manufacturing Units
