Viscometer Bath Dealers in Delhi

• Application: Laboratory
• Temperature Range: 10°C to 100°C
• Temperature Range: -80°C to -20°C
• Power: 230V
• Automation: Automatic
• White: White

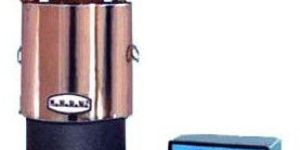

The Kinematic Viscometer Bath is controlled by digital temperature indicator cum controller. For temperature range above ambient to 100 degree C, +/-0.5 degree C stirring is done by FHP electric motor stirrer. The Inner chamber of Kinematic Viscometer Bath is made of Stainless Steel and for front view toughened glass is provided. We are a name of repute in manufacturing and supplying Kinematic Viscometer Bath of superior quality at reasonable rates. Supplied with : Tube holder and S.S cover Features : Protected Low maintenance Robust Rust free Easy to operate Cost-effective Sizes : 12" x 9" x 12"(to accommodate 4 viscometer) 12" x 12" x 12"(to accommodate 6 viscometer) 18" x 12" x 12"(to accommodate 8 viscometer)

Jindal viscometer bath is a table top model with double walled construction is ideally suited for petroleum experiments or research work requiring very precisely controlled temperature with an accuracy of 0.1°C of digital temp. Controller.The inner chamber is made of thick stainless steel sheet & is 100% leak proof and the welding itself is ground properly to give a smooth inside working surface. The bath shall consist of tuffened glass windows for inspection of the specimens. The outer wall consists of thick mild steel sheet which is duly powder coated. The inner chamber is insulated from the outer atmosphere with high grade glass wool to ensure constant temperature and minimum loss of heat.A stirrer is provided for continuous stirring of the medium to ensure uniform temperature throughout. The heating mechanism comprises of sets of heaters corresponding to faster and slower heating. The later are meant for very precise control of temperature.The temperature is controlled from ambient +5°C to 100.0°C ± 0.1°C by a highly accurate microprocessor based PID temperature indicator cum controller. The bath is designed to operate on 220V Single Phase AC Supply. Model with 110V also available.  Available Chamber sizes To accommodate 4 viscometers To accommodate 6 viscometers To accommodate 8 viscometers

This viscometer bath is used to maintain the correct constant Temperature for estimating kinemetic Viscosity of Oils & Petroleum product. In this type of bath various Viscometers may be fixed as an internal part of bath. The bath is rectangular in shape. Inside tank made of Stainless steel sheet. On two sides toughened glass provided for full visibility of objects. The bath is controlled by an electronic relay and contact thermometer. Temperature Range 5°C above room temperature to 100°C. Accuracy +/-0.1°C. Stirring is done by a F.H.P. elect. motor stirrer. It is supplied with Viscometer tube holders and S.S. cover. Kinematic Viscometer Bath of chamber Size 12” * 9” * 12” deep for 4 Viscometer with Digital Temp. Indicator & Controller Kinematic Viscometer Bath of chamber Size 12” * 12” * 12” deep for 6 Viscometer with Digital Temp. Indicator & Controller Kinematic Viscometer Bath with REFRIGERATION SYSTEM, Temp Range: 0° to 100°c. Kinematic viscometer to accommodate 3 glass viscometer tubes with round glass vessel. Digital temperature controller with indicator. Suitable up to 120ºC Temp. accuracy ± 0.1ºC Salient Features Optional Accessories:- Viscometer U Tube BS/U Size A, B, C, D, E, F, G & H Viscometer U Tube Reserve Flow (for opaque liquid)Size 2, 3, 4, 5, 6, 7, 8, 9, 10 & 11 Viscometer Cannon Fenske Direct Flow BS / IP / CF Viscosity range. Size : 25, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 & 600 Viscometer Cannon Fenske Reverse flow. Size : 100, 150, 200, 250, 300, 350, 400, 450, 500 & 600 Viscometer Suspended Level BS/IP/SL (S). Size : 3, 4, 5, 6, 7, 8 & 9 Spare Viscometer Holder Electronic Stop Watch Stop Clock Table Model Lighting attachment

• Application: Laboratories
• Weight: 50-100 Kg
• Condition: New
• Application: Laboratory
• Power Source: Electric
• Warranty: 5years

The structure of the Kinematic Viscometer Bath that we offer is modified to suit the needs of the buyers in the most desirable manner. Its efficient performance for a longer unobstructed period makes it a valuable deal. We are one of the reliable Manufacturers, Exporters, and Suppliers of Kinematic Viscometer Bath from Delhi, India. We can dole it out in custom specifications and befitting designs.   Features : Precise Constant Temp. Viscosity Bath Useful for estimation of Viscosity of Petroleum & its Product Better mineral / Glasswool Insulation to avoid Heat loss during Test Silent Circulation Pump / FHP electronic motor of S. Steel shaft for uniform liquid circulation inside the chamber Bath Polish 304 grade steel sheet corrosion resistant long life operation Kanthal A-1, tubular immersion heater fitted on the top of the Bath for better accuracy Two side toughened glass window provided for visibility of object inside the bath Bath is having 4/6 Holes for Holding viscometer tube of different sizes Full feature with Digital Temp. Controller Cum indicator or Microprocessor Based PID Temp. Controller Cum Indicator. Provision for Illumination are provided in the Viscometer Bath   Applications : Useful for Viscosity of Petroleum & its Products for Industries / Research Department / calibration etc.

• Color: Blue
• Brand: Universal
• Chamber size: 12" × 9" × 12"

• Temperature Range ::
• Ambient to 100°C: Temperature Stability :
•  : +-0.5°C Or Better
• Housing Material ::
• CRC / Mild Steel duly power Coated: Duty Cycle :
•  : Continuous
• Digital Setting ::
• 0.1°C: Digital Resolution :
•  : 0.1°C
• Interior ::
• Polish S.S. 304 grade sheet: Insulation :
•  : Glass/ Mineral wool
• Power Consumption ::
• 220/230V AC +-10% 50Hz: Optional :
•  : All S. Steel body 304 grade instead of MS/ CRC Painted

This Viscometer bath is used to maintain the correct constant  temperature for estimating Kinematic Viscosity  of Oil and Petroleium Products in this type of Bath various viscometer may be fixed as an internal part of the bath. The bath is rectangular shape. Inside tank is made of Stainless Steel. The bath is controlled by an Digital Temperature Controller cum indicator. Temperature Range 5 °C above room temperature to 100 °C-0.1°C. Stirring is done by a FHP electric motor stirrer. Heating is done by means of tubler type heater fitted on top of the bath. It  is supplied with viscometer tube holders and s. steel cover. Different  size & accommodation are available as under without Viscometer tube. Kinematic Viscometer Bath chamber size : 12” x 9” x 12” deep to accommodate 6 Viscometer.

This bath is designed and developed under the strict supervision of our experienced professionals in accordance with the international quality standards. Our offered bath is thoroughly checked on various parameters to ensure zero-defect. This bath is widely used in national laboratories and pharmaceutical industries.   Features: Intelligent signal sampling for accurate data measuring and parameter reading Accurate viscometer for improving experimental efficiency High precision digital display Ideal for controlling the temperature accuracy Durable glass bath for optimum heat preservation Desktop based all-in-one design for easy operations and portability Electric stirrer for ensuring uniform temperature of bath Easy cleaning and drying of viscometer tubes Other Information: The accompanying absolute kinematic viscosity bath are utilized to measure supreme thickness of consistency reviewed clearing bitumen (IS:73:2006) at 60°C as per IS:1206 (part II) (like ASTM D 2171), which utilizes a vacuum slender viscometer. Complete absolute viscosity testing equipment adjusting to IS: 1206 (part II) method for testing tar and bitumen materials: determination of absolute viscosity with the accompanying segments: Consistent Temperature Bath - a suitable shower for drenching of no less than 2 vacuum fine viscometer tubes with a computerized temperature controller. The precision of the temperature in the shower will be + 0.1oc all through the shower. Vacuum System - capable of keeping up a vacuum inside + 0.05 cm of the coveted level the systemwill comprise of vacuum pump, dampness trap, vacuum c o n t ro l l e r, d ra i n va lve, a l l i n t e rc o n n e c t i n g tubing/channeling, and some other frill as required to finish the vacuum framework. Thermometer for Bath - mercury in glass, run 37.8 to 82°c, and graduations of 0.2°c Timing Device - a stop watch is fit of perusing up to 1 second. Cannon - manning vacuum viscometers - viscometer holder and silicone stopper. Size 12 and size 13 (one every) [size 12 is suitable for testing VG-10 and size 13 is suitable for testing VG-20, VG-30, and VG-40 bitumen.

Kinematic Viscometer Bath are an ideal companion In Industries of food, Automobile chemical, Petroleum, Pharma where determination of kinematic viscosity of lubricating oils, gear oils fuel, petroleum products and edible oils are concerned.

We are offering sun lab tek- kinematic viscometer bath. full feature with digital temp. Controller cum indicator or microprocessor based pid temp. Controller cum indicator polish 304 grade steel sheet corrosion resistant long life operation two side toughened glass window provided for visibility of object inside the bath precise constant temp. Viscosity bath useful for estimation of viscosity of petroleum & its product better mineral / glasswool insulation to avoid heat loss during test silent circulation pump / fhp electronic motor of s. Steel shaft for uniform liquid circulation inside the chamber bath bath is having 4/6 holes for holding viscometer tube of different sizes

IS: 1206 part IIIIt consists of water bath made of M. steel. Chamber size 12" x 9"x12" for accommodate 4-viscometer tube having the illuminator at rear side. The temperature is controlled by electric relay. It is supplied with one no. of mercury type thermometer and 4 no. of manometer stand.Note Bath can be fitted with P.I. D. controller at extra cost. SPP-1042 Vacuum Pyknometer (Plastic Body) without Pump SPP-1043 Vacuum Pump, 700mm/hg SPP-1048 Loss of Heating/Thin film Oven This dual-purpose oven is designed to determine Loss in weight of bitumen and flux oils (loss on heating test) Effect of heat and air on asphaltic materials (thin film test) Its salient features are The unit is heavily insulated and has a double glass door for viewing the test chamber thermometer and samples. Temperature is controlled at 1630C ( 10C) by means of a variable temperature controller and thermostat. Two rotating platform are supplied with each oven: one accepts 9 standard penetration cups for the loss on heating test, the other accepts two1 40 mm diameter test pans for the thin film test. The platforms are rotated at 5 to 6 rpm by an external motor Chamber dimensions 350 x 350 x 350 mm.

This Viscometer bath is used to maintain the correct constant temperature for estimating Kinematic Viscosity of Oil and Petroleum Products in this type of bath various viscometers may be fixed as an internal part of the bath. The bath is rectangular shape.Inside tank is made of Stainless Steel Sheet. Two sides toughed glass window provided for full visibility of objects inside the bath. The bath is controlled by an electronic relay and contact Thermometer Or Digital Temperature controller cum indicator.Temperature range 50C above room temperature to 1000C. Accuracy plus minus 0.10C. Stirring is done by a FHP electric motor stirrer.Heating is done by means of tubuler type heater fitted on top of the bath.It is supplied with viscometer tube holders and stainless steel cover. Different size & accomodation are available as under without Viscometer tube.

  This viscometer bath is used to maintain the correct constant temperature for estimating kinematic viscosity of oils and petroleum products. The tank is made out of high grade SS. This tank is fitted with toughned Glasses in the front & rear sides to give a clear view of specimens kept inside. Temperature is controlled by precision contact thermometer or Digital electronic temperature controller from 5°C above room temp. up to 99°C with an accuracy of ± 0.1°C. All controls are provided on front side panel for easy operation. A FHP motor driven stirrer provided for circulation of water in the bath. Suitable to operate on 220 V A, 50 Hz mains. Available in following two chamber sizes:1) 12"x9"x12" (can accomodate 4 viscometers)2) 12"x12"x12"(can accomodate 6 viscometers)

  TCB-7 – high quality viscometer bath, small footprint, stainless steel robust case. Seven viscometer positions arranged in two rows. TheTCB-7 is supplied complete with leveling feet, viscometer hole covers and thermostatic controller.

Suitable for a wide range of applications such as oxidation stability testes an oils The bath is constructed double walled inside made of Stainless Steel outside of mild Steel painted in epoxy Powder Coating & insulated with 50mm Mineral Wool on five sides. The temp. is controlled by Microprocessed PID controller cum Indicator from 50 ºC to 250 ºC with an accuracy of +/- 0.1ºC . Control panel is provided on the side of oil bath consisting two neon lights.. The bath is complete with High Speed Stirrer and speed regulator, perforated and removable diffuser shelves, with wire and plug, but without thermometers. One rack to hold 6 nos sample . it will have glass window from front and and at back there is also glass window with illumination at back side vertically. to work on 220V 50Hz SHALL BE SUPPLIED WITH Variation range of Bath Temperature      : +/- 0.1 °C max Power supply                                                : 230 V, 50 Hz.
