FEATURES Wireless embedded communication design, manufacture and integrate innovative, practical and easy to implement wireless solutions. These solutions provide our customers a fast track to either incorporate wireless technology within their current products or to simply design a new product range with built in wireless technology. The coordinator (Transmitter) will transmit the data to the all end devices of different short address, MAC address without the routers.   PECIFICATIONS The Wireless Embedded Communication Trainer two in number having the following feature:  Communicated wirelessly at 2.4GHz,/2.5GHz, range 100 ~ 300 ft, various baud rates, Data rate of 250 kbps and 8 bit data.  It has various output devices like:  Six Seven Segment Displays.  Stepper Motor Controller Interface.  LCD Display Interface.  8×8 LED Interface Block.  Status LED’s 12 Nos.  It has various Input devices like:  Four Data Switches.  Relay.  Opto.  Real Time Clock.  Switch Array.  At24C16 Serial EEPROM.    It has various analog I/O devices like:  8 Channel ADC Interface.  1 Channel DAC Interface.

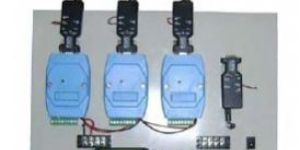

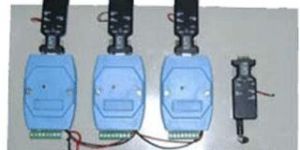

Our company is engaged in exporting and supplying of Zigbee Embedded Network Trainer. Wireless embedded communication design, manufacture and integrate innovative, practical and easy to implement wireless solutions. These solutions provide our customers a fast track to either incorporate wireless technology within their current products or to simply design a new product range with built in wireless technology. Using the Zigbee Embedded Network Trainer, user can transmit the data wirelessly from the coordinator (connected to the PC) to the two end devices node (connected to the Trainers) or vice versa. So that user will able to run different experiments in both communication trainers wirelessly. The coordinator (Transmitter) will transmit the data to the all end devices of different short address, MAC address without the routers. This all can be done using the manager software, which is used to detect different end devices of different short addresses. So just select the end device node where user want to transmit data. Communications between the host (Transmitter) and Trainer (Receiver) is in ASCII format. The wireless industrial serial terminal provides a fully compliant wireless coordinator, Router and End device function via a standard interface. Features Suitable for home/building automation, industrial control and monitoring, low power wireless sensor networks, PC peripherals, set-top boxes and remote controls, consumer electronics etc. High performance and low power consumption. Operates on battery power input of 3~5V. Excellent receiver sensitivity and robustness to interface. Used as coordinator, router or end devices. Application Wireless sensor networks, particularly IEEE802.15.4/Zigbee systems. Home and commercial building automation. Internet of things. Wireless sensor network. Industrial control and monitoring system. Setup boxes and remote controls. Consumer electronics Specifications The Wireless Embedded Communication Trainer two in number having the following feature : Communicated wirelessly at 2.4GHz,/2.5GHz, range 100 ~ 300 ft , various badurates, Data rate of 250 kbps and 8 bit data. It has various output devices like : Six Seven Segment Displays Stepper Motor Controller Interface LCD Display Interface 8x8 LED Interface Block Status LEDs 12 Nos It has various input devices like : Four Data Switches Relay Opto Real Time Clock Switch Array At24C16 Serial EEPROM It has various analog I/O devices like : 8 Channel ADC Interface 1 Channel DAC Interface

Power Supply : +5 to +6 V dc.

Type : Network Trainer

Warranty : 6 Months

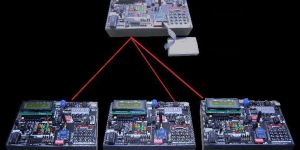

FEATURES Zigbee Development Board is well suited for demonstration, evaluation and software development targeting IEEE 802.15.4 and Zigbee compliant application with CC2530. The user can develop the application using IAR Embedded Work Bench (support Zigbee Development) along with CC Debugger. This debugger is used for debugging and program download. The coordinator (Transmitter) will transmit the data to the all end devices of different short address, MAC address without the routers.   Zigbee Development Board is easy to implement wireless solution. These solutions provide our customers a fast track to either incorporate wireless technology within their current products or to simply design a new product range with built in wireless technology. The coordinator (Transmitter) will transmit the data to the all end devices of different short address, MAC address without the routers. This all can be done using the manager software, which is used to detect different end devices of different short addresses. So just select the end device node where user want to transmit data. EXPERIMENTS  Describes the PEER to PEER Topology, where user needs two development kits with Zigbee module. It is a wireless serial port transparent transmission experiment, the completion of the binding modules and between the two modules through serial port.  Wireless message transparent transmission experiment.  Wireless Flashing of LED on Co-ordinator transparent transmission experiment.  Wireless Flashing of LED’s in transparent transmission experiment on both side.  Describes the mesh topology, where user has need three development kits with Zigbee module. The application of this experiment is to control the light using two switches. Package Contents  1 Coordinator.  1 Debugger.  3 End Devices.  Software CD (Evaluation version of IAR Workbench).  User Manual.

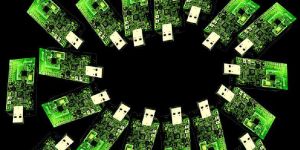

MAIN FEATURES: The VPL-WSNT-14 is a powerful set of IEEE 802.15.4 nodes and sensor boards for medium size  deployments. It will let the user implement complex networking configurations as well as acquiring data from state-of-the-art sensors. It also includes a standalone 802.15.4 - Ethernet Bridge able to cope with a large number of nodes and to easily configure the nodes and the network itself. Note: Specifications can be changed and added without notice in our constant efforts for improvement.

DESCRIPTION VPL-WSNT-14 is a powerful set of IEEE 802.15.4 nodes and sensor boards for medium size  deployments. It will let the user implement complex networking configurations as well as acquiring data from state-of-the-art sensors. It also includes a standalone 802.15.4 – Ethernet Bridge able to cope with a large number of nodes and to easily configure the nodes and the network itself.   MAIN FEATURES: The VPL-WSNT-14 is a powerful set of IEEE 802.15.4 nodes and sensor boards for medium size  deployments. It will let the user implement complex networking configurations as well as acquiring data from state-of-the-art sensors. It also includes a standalone 802.15.4 – Ethernet Bridge able to cope with a large number of nodes and to easily configure the nodes and the network itself.

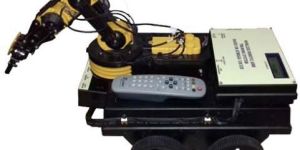

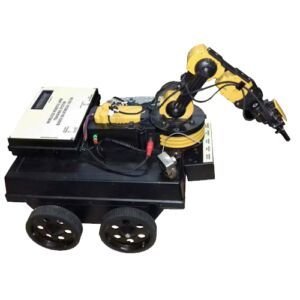

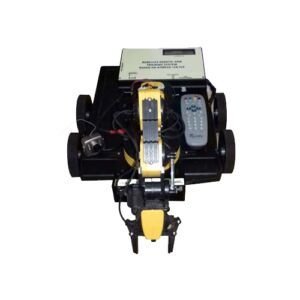

This unit is an Educational Robotic Arm based on ATmega328. It provides knowledge about mechanical design  concepts and features like color sensor interfacing, wireless control, audiovideo camera interfacing,various sensors  etc. This Robotic Arm driven by RC servo motors, consists of 5 degree of freedom viz rotating base, shoulder, elbow,  wrist, and the gripper. DC motors at its base makes it a moving Robotic Arm. This Educational Robot with 5 Axis moving Arm is an ideal platform to enhance education, training, skills &  development amongs our young minds. Arduino is a prototype platform based on an easy-to-use hardware and software. It consists of a circuit board, which can  programmed (referred to as a micro controller and a ready made software called Arduino IDE which is used to write and upload the computer code to the board.   Moving Robotic Arm*Command the gripper to open and close*Wrist motion: 120°*Extensive elbow range: 300°*Base rotation: 270°*Base motion: 180°*Vertical reach: 15″*Horizontal reach: 12.6″*Lifting capacity: 100g.*Search light on the gripper*Safety gear audible indicator on all five gear boxes to prevent any potential injury or gear breakage during     operation. Wireless remote control 16 x 2 character LCD interface DC motor interface & control Servo motor interface Color sensor interface Light Sensor interface TSOP Sensor interface IR Sensor interface Fire Sensor interface Clap sensor interface Onboard battery charger PC based programming Audio-Video Camera

Wireless communication design, manufacture and integrate innovative, practical and easy to implement wireless  solutions. In this technology, wireless sensor network are currently being employed in a variety of applications  ranging from media to military and from home to industry. It is used to monitor physical or environmental  conditions like temperature, pressure or motion to cooperatively pass their data through the nework to the main  location. Using the Wireless Sensor Network System, user can select any one of the three or more end devices  (connected to the data acquisition module) from the coordinator (connected to the PC) wirelessly. And the sensor output are transmitted to the PC wirelessly. Here we have designed the system based on IEEE 802.15.14 with a complete set of coordinators, End device, intelligent end device with real time sensors, signal conditioners etc. The system consists of the following subcomponents:1) Programmable Coordinator2) Programmable Intelligent End Devices3) Non Intelligent End Device with sensors4) Humidity & Temperature sensor5) Pressure Sensor6) Soil Moisture Sensor TECHNICAL SPECIFICATION a. Programmable Coordinator & gateway ( at 2.4 Ghz range ) Zig Bee Coordinator : the coordinators designed around advance processors and must act as gateway with other wireless connectivity etc. Zigbee 2.4 Ghz with external antenna Coordinator based on ARM 7 LPC2148 Supporting various Network Topology with RF data rate 250 kbps/80 kbps On board relays with isolated Output & one Buzzer for alarm activation On boards 20X4 LCD display for display for end device status Data entry using 4X4 Hex Keypad digital Input On Board USB Communication Facility for switch selection for radio configuration, with / without processors With configurable device software, for GUI based, along with testing utility, RF data rate 250 KBPS On Board Power supply (5V, 3.3V) With software selectable Data rate, with input / output range 100Ft /300Ft. for support of 2.4 Ghz. With power supply 2.8V. b. Programmable Intelligent End Devices The end devices enclosed with plastic encl for filed applications The Programmable Intelligent End Device with USB interface, with ARM LPC 2148 Processor etc. Zigbee 2.4 Ghz Mhz with external antenna Supporting various Network Topology with RF data rate 250 kbps/80 kbps On board 6V relays with isolated Output & one Buzzer On board 16X2 LCD display. Can Connect with any digital Sensor* 05V or with analog sensors On Board Power supply (5V, 3.3V) c. Non Intelligent End Device with sensors Zigbee 2.4 Ghz with external antenna. On Board Configuration facility with USB End Devices to connect with sensor* in range 0 to 3.3 V analog or digital Board on Power supply (5V, 3.3V) Field deployable ready to use External Power for Zigbee In Build features of Zigbee for 2.4 GHz:Supporting various Network Topology with RF data rate 250 kbps

Jar with Scale Capacitive Transducer Sockets at different places for observing / measuring the signals 3.5 digit DPM for indication 220V Built in IC regulated power supply Enclosed in an attractive ABS plastic cabinet with cover for savety of components. Detailed instruction manual

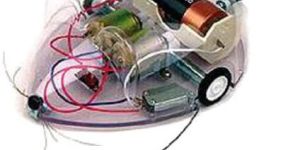

The VPL’s, Wall-hugging Mouse is a fun and easy-to-build kit that’s great for new robot enthusiasts. The mouse has no electronics, and a simple wire bumper along its side directs current to one of two motors to keep the mouse  moving along the wall. The wall hugging mouse races along a wall in a zig-zag manner. When the bump sensor makes contact with the wall, the mouse moves to the right. When the bump sensor is not touching the wall, the mouse moves to the left. This simple behavior allows the robot to skillfully follow a wall. The sensor and switches are pre-assembled. The thin, clear body can be painted from the inside for an attractive finish that won’t easily scratch. To assemble the mouse you will need a screwdriver, a modeling knife, diagonal cutters, and long nose pliers. How It Works The Wall Hugging Mouse uses a simple two-motor system to scurry along the wall. When motor B is on and motor A is off, the mouse steers left towards the wall.  The sensor wire comes into contact with the wall it activates a  micro switch that turns motor A on and motor B off causing it to steer away from the wall. When the mouse steers away from the wall the sensor rod loses contact with the wall turning the micro switch off and turning motor A off and motor B back on again. Because this kit has two independent motors for differential drive, it can also serve as a base for your own project. There is ample space for adding your own electronics, and you can readily modify the plastic base.

We offer a huge assortment of VPL Trainer Kit (VPL-PTSPLC). The kit is capable of being used to demonstrate the design, construction and application of electro-pneumatic components and circuits. The kit is designed to satisfy the following objectives Design and function of a Electro Pneumatic system Basic Function and identification of Electro-pneumatic components and their symbols Direct and indirect manual controls, stroke dependant controls, time dependant controls. Functional diagrams Systematic design of Electro Pneumatic Sequence Controls Modern trainer with components which allows improved student performance in practical situations Empower students to design their own circuits. The kit contain following components Plates & Stand : The powder coated plate is the base for all of the components. They fit securely and safely onto the plate. The plate with components is fitted on a stand with wheels. Double-acting cylinder assy. : - 2 Nos Design Piston cylinder, Operating pressure : 10 bar Manifold assy. : Manifold with six ports. A common manifold for plastic tubing allows supply of compressed air to the control via six Individual ports (for plastic tubing PUN 4mm/6mm). Filter regulator with gauge assy : Filter control valve with pressure gauge, start-up valve, quick push-pull connectors and quick couplings, mounted on a support. The filter with water separator removes dirt, pipe sinter, rust and condensed water. The pressure control valve regulates the supply air pressure to the set operating pressure and compensates pressure fluctuations. The filter bowl has a condensate drain valve. 5/2 Solenoid valve, Single, with LED, NC : The status is indicated by an LED on the housing. The valve is equipped with a manual override. The electrical connections feature polarityreversal protection for the LED and the suppressor circuit with silencer and push pull connector. Pneumatic technical data : Design type is spool valve, pilot controlled, with return spring Pressure range 250 x 800 kPa (2.5 x 8 bar) Electrical technical data: Power consumption 1.5 W 5/2 Solenoid valve, double, with LED : 1 No. The status is indicated by LEDs on the housings. The valve is equipped with two manual overrides. The electrical connections feature polarity  reversal protection for the LEDs and the suppressor circuits with silencer and push pull connector Pneumatic technical data Design spool valve, with pilot control Pressure range 150 x 800 kPa (1.5 x 8 bar) Electrical technical data : Power consumption 1.5 W 5/2 Pilot Operated valve : These valve are used in application requiring air operated control. It is actuated by the signal and returns to normal position by spring force. 3/2 Push button valve : These valves are commonly used for mechanical actuation to change direction of flow of air for control/automation. 5/2 Timer operated valve : It is designed to provided a solution for automatic changing for direction of flow of air for control/automation. Specification Fully automatic Multi voltage : 230V AC/50Hz Adjustable interval time Small compact design 5/3 Hard lever valve : These valves are commonly used for manually changing the direction of flow of air for control of cylinder tools. Their compact design and high flow, lower operating force make them versatile in use. Siemens PLC Compressor (Optional)

Stroke Length : Maximum 70 mm

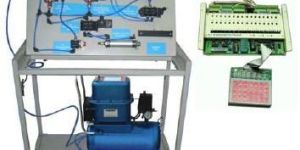

We offer a huge assortment of VPL Trainer Kit (VPL-PTPLC). The kit is capable of being used to demonstrate the design, construction and application of electro-pneumatic components and circuits. The kit is designed to satisfy the following objectives Design and function of a Electro Pneumatic system  Basic Function and identification of Electro-pneumatic components and their symbols Direct and indirect manual controls, stroke dependant controls, time dependant controls. Functional diagrams Systematic design of Electro Pneumatic Sequence Controls Modern trainer with components which allows improved student performance in practical situations Empower students to design their own circuits. The kit contain following components Plates & Stand : The powder coated plate is the base for all of the components. They fit securely and safely onto the plate. The plate with components is fitted on a stand with wheels. Double-acting cylinder assy. : 2 Nos Design Piston cylinder, Operating pressure : 10 bar Stroke length : Maximum 70 mm Manifold assy. : Manifold with six ports. A common manifold for plastic tubing allows supply of compressed air to the control via six Individual ports (for plastic tubing PUN 4mm/6mm). Filter regulator with gauge assy : Filter control valve with pressure gauge, start-up valve, quick push-pull connectors and quick couplings, mounted on a support. The filter with water separator removes dirt, pipe sinter, rust and condensed water. The pressure control valve regulates the supply air pressure to the set operating pressure and compensates pressure fluctuations. The filter bowl has a condensate drain valve. 5/2 Solenoid valve, Single, with LED, NC : The status is indicated by an LED on the housing. The valve is equipped with a manual override. The electrical connections feature polarityreversal protection for the LED and the suppressor circuit with silencer and push pull connector. Pneumatic technical data : Design type is spool valve, pilot controlled, with return spring Pressure range 250 x 800 kPa (2.5 x 8 bar) Electrical technical data: Power consumption 1.5 W 5/2 Solenoid valve, double, with LED : - 1 No. The status is indicated by LEDs on the housings. The valve is equipped with two manual overrides. The electrical connections feature polarity  reversal protection for the LEDs and the suppressor circuits with silencer and push pull connector Pneumatic technical data Design spool valve, with pilot control Pressure range 150 x 800 kPa (1.5 x 8 bar) Electrical technical data : Power consumption 1.5 W 5/2 Pilot Operated valve : These valve are used in application requiring air operated control. It is actuated by the signal and returns to normal position by spring force. 3/2 Push button valve : These valves are commonly used for mechanical actuation to change direction of flow of air for control/automation. 5/2 Timer operated valve : It is designed to provided a solution for automatic changing for direction of flow of air for control/ automation. Specification Fully automatic Multi voltage : 230V AC/50Hz Adjustable interval time Small compact design 5/3 Hard lever valve : These valves are commonly used for manually changing the direction of flow of air for control of cylinder tools. Their compact design and high flow, lower operating force make them versatile in use. Programmable Logic Controller 16 input signals (24V) and 16 outputs for controlling the process on D-type sub connector. ZIF on front panel to load programs from EPROM and adaptor. Descriptive user manual with number of examples including description & fundamentals of PLC. Analog output : 12 bit Analog input : 16 channels (single ended) 8 channels (differential) RS232C port available for uploading & downloading of files from PC. Powerful commands like AND, OR, ANI, ORI, SET, RST, LD, LDI, OUT, TIMER, COUNTER, ANB, ORB, IL, ILC, etc. directly executable Execution or programs are posible even without hand held unit Standard EPROM module which is affixed on ZIF socket to store the programmes provided with the trainer. Operating voltage : 220V, 50Hz AC, ±10% at 50°C. Compressor (Optional) Rated voltage : 220V Rated frequency : 50Hz Motor power : 1.5HP Speed : 2800 RPM - No load speed

Color : Metallic

Frequency : 50Hz

Driven Type : Electric

Warranty : 1Year

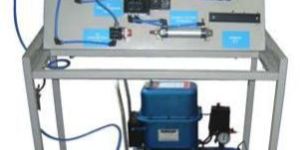

We offer a huge assortment of VPL Trainer Kit (VPL-PTK). The kit is capable of being used to demonstrate the design, construction and application of electro-pneumatic components and circuits. The kit consists of the following : Consisting of a single stage single cylinder Air Compressor with a maximum working pressure of 5 kg/cm2 coupled with 1 HP single phase, 200/220 volts AC mains through a V belt drive both mounted on a 55 liters capacity storage tank. The unit supplied with pressure switch, automatic venting for no load starting, oil separator, suction filter, safety valve, pressure gauge, water drain valve, air delivery valve etc. Pneumatic system to conduct the following experimental capabilities : Study of Pneumatic system and its elements- FRL Unit- Pressure Relief valve- Directional Control Valves- Flow Control Valve. Direct operation of a Single Acting Cylinder (SAC). Direct operation of a Double Acting Cylinder (DAC). Impulse Pilot operation of a single acting cylinder. Maintained Pilot operation of a Single Acting Cylinder. Operation of Single Acting Cylinder controlled from two different positions using shuttle valve. Operation of a Double acting cylinder with quick return using quick exhaust valve. Controlling of the speed of DAC using metering in and metering out circuit. Automatic operation of DAC in single cylinder- Using limit switch and memory valve. Automatic operation of DAC in Multi cycles- Using limit switches and memory valve.

Frequency : 60Hz

Driven Type : Battery

Warranty : 1Year

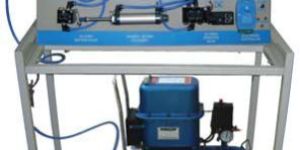

We offer a huge assortment of VPL Trainer Kit (VPL-PTEC). The kit is capable of being used to demonstrate the design, construction and application of electro-pneumatic components and circuits. The kit is designed to satisfy the following objectives Design and function of a Electro Pneumatic system Basic Function and identification of Electro-pneumatic components and their symbols Direct and indirect manual controls, stroke dependant controls, time dependant controls. Functional diagrams Systematic design of Electro Pneumatic Sequence Controls Modern trainer with components which allows improved student performance in practical situations Empower students to design their own circuits. The kit contain following components Plates & Stand : The powder coated plate is the base for all of the components. They fit securely and safely onto the plate. The plate with components is fitted on a stand with wheels. Double-acting cylinder assy. : - 2 Nos Design Piston cylinder, Operating pressure : 10 bar Stroke length: Maximum 70 mm Manifold assy. : Manifold with six ports. A common manifold for plastic tubing allows supply of compressed air to the control via six Individual ports (for plastic tubing PUN 4mm/6mm). Filter regulator with gauge assy : Filter control valve with pressure gauge, start-up valve, quick push-pull connectors and quick couplings, mounted on a support. The filter with water separator removes dirt, pipe sinter, rust and condensed water. The pressure control valve regulates the supply air pressure to the set operating pressure and compensates pressure fluctuations. The filter bowl has a condensate drain valve. 5/2 Solenoid valve, Single, with LED, NC : The status is indicated by an LED on the housing. The valve is equipped with a manual override. The electrical connections feature polarityreversal protection for the LED and the suppressor circuit with silencer and push pull connector Pneumatic technical data : Design type is spool valve, pilot controlled, with return spring Pressure range 250 ¡V 800 kPa (2.5 ¡V 8 bar) Electrical technical data: Power consumption 1.5 W 5/2 Solenoid valve, double, with LED : - 1 No. The status is indicated by LEDs on the housings. The valve is equipped with two manual overrides. The electrical connections feature polarity V reversal protection for the LEDs and the suppressor circuits with silencer and push pull connector. Pneumatic technical data Design spool valve, with pilot control Pressure range 150 x 800 kPa (1.5 x 8 bar) Electrical technical data : Power consumption 1.5 W 5/2 Pilot Operated valve : These valve are used in application requiring air operated control. It is actuated by the signal and returns to normal position by spring force. 3/2 Push button valve : These valves are commonly used for mechanical actuation to change direction of flow of air for control/automation. 5/2 Timer operated valve : It is designed to provided a solution for automatic changing for direction of flow of air for control/ automation. Specification Fully automatic Multi voltage : 230V AC/50Hz Adjustable interval time Small compact design 5/3 Hard lever valve : These valves are commonly used for manually changing the direction of flow of air for control of cylinder tools. Their compact design and high flow, lower operating force make them versatile in use. VPL Electronic Controller : The VPL Electronic Controller module has been designed to control any application. It can be applied to remote I/O system. With its user-friendly interface, user can quickly and easily build any control application without any programming skills. It has digital outputs which has to be used to control different actuators. CPU : 8 bit Microcontroller Digital outputs Serial interface

Frequency : 50Hz

Driven Type : Battery

Warranty : 2Years

We offer a huge assortment of VPL Trainer Kit which includes VPL Trainer Kit (VPL-PTEC), VPL Trainer Kit (VPL-PTPLC), VPL Trainer Kit (VPL-PTSPLC), VPL Trainer Kit (VPL-PTK) and PL Trainer Kit (VPL-HTEC). The VPL Trainer Kit, we offer, finds applications in educational institutes & different industries for training and development purposes. We are an eminent VPL Trainer Kit Exporter & Supplier in India.

Frequency : 50Hz

Driven Type : Electric

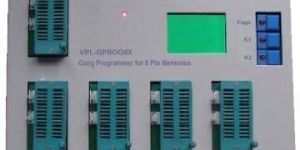

We are one of the leading Exporters and Suppliers of VPL Programmer (GPROG8X). VPL Programmer (GPROG8X) is an advanced volume production programmer for 8 pin series of memories having online and off-line operation feature. Performance Descriptions Supports for 1 Master and 8 slaves. It is real 1 TO 8 Duplicators. Online programming and off-line programming for production purpose.   Online Operation : USB interface, you can program the master IC. It is useful for production of samples and R&D purpose. No need to make the master on any other programmer. Off-line Mass Production : one can use for production purpose and can copy 8 ICs simultaneously. High Speed Operation : SST25VF080 28 seconds (full process) Supports a variety of 8 pin series of memory : 24CXXX, 25 series of all, all the series of all. LCD Display : Dynamic directed various operational processes, as well as the operation results. Synchronized three-color indicator light direct copy of the results for each instructions on the results of simultaneous buzzer. A key to trigger the operation of the process : Just click on a button to complete the order, the use of very simple and convenient. Each DIP socket supports two ICs, so that the volume is much narrower. Ultra small and beautiful. Counters : the number of successful copies of the IC count. Can be Software Upgrade : add greatly facilitate the future use of the device libraries the problems encountered. The metal shell. Dimensions length 220mm x width 135mm x High 24mm. Support Devices : Almost to support a full range of 24Cxx, 24LCxxx, 25Fxxx, 25Xxxx, 25VFxxxx .

We are a credible Exporter and Supplier of VPL Programmer (GPROG-16X). VPL Programmer (GPROG-16X) is a most powerful and versatile Gang copier efficient to copy any of the Serial EEPROMS of 24 & 93 series. It is a best product recommended for mass production of PC Monitor, Television, EPABX, etc. Features Copying facility from MASTER to 8/16 SLAVES at a time. Supports 24/93 Series Serial EEPROMs Best suited for mass production of TV, PC Monitor, EPABX etc. 16 x 2 LCD Display (backlit) 4 keys to perform Program, Verify, Blank Check, Checksum & Select. Inbuilt power supply GPROG-16X can do maximum of 8 SMD IC's at a time. Can be Software Upgrade : add greatly facilitate the future use of the device libraries the problems encountered. Most recent 25 series include A25L80P, EON25T80, F25L008A, W25X80 to name just few of them.

We are actively involved in exporting and supplying VPL IC Tester (UICTM). VPL IC Tester (UICTM) is a universal IC tester with membrane ASCII keypad. It is a table-top version, designed as a powerful tool for manufacturers, servicing engineers, R&D personnel to test a wide range of IC's of Digital, Analog, CPUs and RAMs. Features Tests Digital and Analog ICs from 3 to 40 Pins. Built in self-diagnostic functions to ensure error free testing of IC. 16 character x 2 line backlit LCD display and sealed Membrane type Alpha Numeric keyboard Automatic testing of variety of ICs. 2 nos. of potential free 40 pin ZIF sockets for testing analog and digital ICs. Single step mode enables the user to test the IC step by step. Audio alarm to user whenever it is required Specifications IC Pack : Digital ICs up to 40 pins and analog ICs up to 20 pins in DIP package. IC Type : Tristate, open collector & bidirectional TTL/CMOS digital ICs also analog ICs as per list. Test By : Truth table comparison for digital ICs. Functional test of output for various input conditions for analog ICs. ZIF : Two 40 pin DIP ZIFs for analog and digital ICs. Key : Membrane type Alpha Numeric 50 Keys Keyboard. Display : 16 character x 2 line backlit LCD Supply Voltage : 180V to 270, 50Hz single phase Range of ICs that can be tested Digital : TTL, CMOS ICs including SSI, MSI, LSI, Functions including Gates, Buffers, Drivers, Flip-flops Counters, Shift registers, Latches, Multiplexers, Parity generators, Analog switches, CPUs, Microcontrollers, Peripherals, Static RAMs, Non volatile rams, Serial EPROMs etc. Linear : Transistor Arrays, Timers, Analog switches, Optocouplers, Display drivers, Line drivers, and Latch drivers, 7 segment display, LCD display, from 16 character by 1 row Upto 40 characters by 2 rows, Real time clocks, Analog to Digital converters upto 16 bit resolution and upto 40 pin Devices. Digital to Analog converters. Op-Amps (8 Pin 14 Pin, 16 pin). Comparators (8 pin, 14 pin, 16 pin) Op-Amp and Comparators (combined) Voltage followers (8 pin, 14 pin) Voltage regulators (Both +ve and ve), DPM ICs, DOT / BAR display drivers, PLLs, VCOs. Waveform Generator, Sample & Holds, PWM Generators. Download

Application : Ic Testing

Weight : 0-200gm

Color : White

Voltage : 0-6VDC

Driven Type : Battery

Warranty : 1yr

We are a highly acclaimed Exporter and Supplier of VPL IC Tester (UICT). VPL IC Tester (UICT) is a universal IC tester, which is a table-top version, designed as a powerful tool for manufacturers, servicing engineers, R&D personnel to test a wide range of IC's of Digital, Analog, CPUs and RAMs. Features Tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/ 54, 40/45, 93/96 series ICs, EPROMs, RAMs, peripheral ICs, microprocessor (8088/8085/Z80/6502), operational amplifiers, voltage comparators, transistor arrays, optocouplers, analog switches, voltage followers, timers, A to D converters, D to A converters and miscellaneous analog ICs. Automatic testing of variety of ICs. Potential free 20 pin ZIF socket for testing analog ICs and 40 pin universal ZIF socket for testing digital ICs are provided. 16 character x2 line LCD dot matrix display and 16 keys keyboard for man to machine communication and easy operation. Single step mode enables the user to test the IC step by step. Self test facility to test the internal modules of the IC tester automatically at power on and also through 'SELF TEST' key of the keyboard. Audio alarm to user whenever it is required Detail IC Pack : Digital ICs up to 40 pins and analog ICs up to 20 pins in DIP package. IC Type : Tristate, open collector & bidirectional TTL/CMOS digital ICs also analog ICs as per list. Test By : Truth table comparison for digital ICs. Functional test of output for various input conditions for analog ICs. ZIF : 20 pin DIP ZIF for analog ICs and 40 pin Universal ZIF for digital ICs. Key : 16 keys Display : 16 character x 2 line Supply Voltage : 230V AC

Type : Digital Ic Tester

Application : Ic Testing

Weight : 200-400gm, 400-600gm

Color : Available In Many Colors

Voltage : 0-6VDC

Driven Type : Electric

Warranty : 1 Year

We are a major Exporter and Supplier of VPL IC Tester (DICT). VPL IC Tester (DICT) is a Digital IC Tester (Portable) that tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/54, 40/45, 93/96 series ICs, EPROMs, RAMs, peripheral ICs, microprocessor (8088/8085/Z80/6502), miscellaneous digital ICs. Features Tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/54, 40/45, 93/96 series ICs, EPROMs, RAMs, peripheral ICs, microprocessor (8088/8085/Z80/6502), miscellaneous digital ICs. Automatic testing of variety of ICs. Potential free 40 pin universal ZIF socket. 16x2LCD/Six Seven Segment Display to show IC number, PASS & FAIL Status, Operations display. It has 12/16/24 keys for its operation. Mains operation Portable size Audio alarm to user whenever it is required

Type : Digital Ic Tester

Application : Ic Testing

Weight : 200-400gm

Color : Available in Many Colors

Voltage : 0-6VDC

Driven Type : Electric

Warranty : 1 Year

We are a major Exporter and Supplier of VPL IC Tester (AICT). VPL IC Tester (AICT) tests most of the ICs in DIP package. The list includes operational amplifiers, voltage, comparators, transistor arrays, optocouplers, analog switches, voltage followers, timers, A to D converters, D to A converters and miscellaneous analog ICs. Features Tests most of the ICs in DIP package. The list includes Operational amplifiers, voltage comparators, transistor arrays, optocouplers, analog switches, voltage followers, timers, A to D converters, D to A converters and miscellaneous analog ICs. Potential free 40 pin universal ZIF socket. Digital Display to show IC number, PASS & FAIL Status, Operations display. It has 12/16 keys for its operation. Battery & Mains operation Handheld size Audio alarm to user whenever it is required.

Type : Digital Ic Tester

Application : Ic Testing

Weight : 200-400gm

Color : Available in Many Colors

Voltage : 0-6VDC

Warranty : 1 Year

VPL Electronic Circuit Simulation Software FEATURES It runs on any machine supporting Java 5 or later; special versions are released for Mac  OS X and Windows. The cross-platform nature is important for students who have a variety of home/dorm computer systems. The drawing interface is based on an intuitive toolbar. Color-coded wires aid in simulating and debugging a circuit. The wiring tool draws horizontal and vertical wires, automatically connecting to components and to other wires. It's very easy to draw circuits! Completed circuits can be saved into a file, exported to a GIF file, or printed on a printer. Circuit layouts can be used as "sub circuits" of other circuits, allowing for hierarchical circuit design. Included circuit components include inputs and outputs, gates, multiplexers, arithmetic circuits, flip-flops, and RAM memory. The included "combinational analysis" module allows for conversion between circuits, truth tables, and Boolean expressions.   Note: Specifications can be changed, added or subtracted without notice in our constant efforts for improvement.

FEATURES: – It uses industry standard Virtex 600. – It communicates with computer through standard Webpack – It has a serial & parallel link which enable user to communicate with PC. – User can develop the circuit/schematic using Xilinx standard Foundation Series Software and any development tool for VLSI design available in the world – It has various on-board interfaces:.       * 16×2 LCD module       * Six Seven Segment Displays       * Stepper Motor Controller Interface       * 8×8 LED Matrix Display       * EWSN Status LED’s 12 Nos       * ADC/DAC Interface       * RS-232 interface       * Parallel JTAG interface – Four Data Switches – Switch Array – AT24C16 Serial EEPROM – 4×4 Keyboard – Power Indicator LED – On board microcontroller with 64K flash, 1K RAM ISP with required software. – It has I/O counter interface to enable it to connect various demo modules. This helps in man to machine interface. – Has a general purpose areas on board to enable it to incorporate additional circuit. PACKAGE CONTENTS * VPL-CPLD Card * Set of cables flat and serial * Application CD ROM * Data sheet of major components * List of experiments for CPLD as listed * On board facility for variable clock generation

Our company is reckoned amidst the leading Exporters and Suppliers of Virtex Trainer Kit. Virtex Trainer Kit uses industry standard Virtex 600. It communicates with computer through standard Webpack. It has a serial & parallel link which enable user to communicate with PC. Features It uses industry standard Virtex 600 It communicates with computer through standard Webpack It has a serial & parallel link which enable user to communicate with PC. User can develop the circuit/schematic using Xilinx standard Foundation Series Software and any development tool for VLSI design available in the world. It has various on-board interfaces : 16x2 LCD module Six Seven Segment Displays Stepper Motor Controller Interface 8x8 LED Matrix Display EWSN Status LED's 12 Nos. ADC/DAC Interface RS-232 interface Parallel JTAG interface Four Data Switches Switch Array AT24C16 Serial EEPROM 4x4 Keyboard Power Indicator LED On board microcontroller with 64K flash, 1K RAM ISP with required software. It has I/O counter interface to enable it to connect various demo modules. This helps in man to machine interface. Has a general purpose areas on board to enable it to incorporate additional circuit Package Contents VPL-CPLD Card Set of cables flat and serial Application CD ROM User's manual : detailed information on components and usage Data sheet of major components List of experiments for CPLD as listed On board facility for variable clock generation

Type : Trainer Kit

Certification : CE Certified

Color : Metallic

Frequency : 50Hz

Driven Type : Electric

  Learn VHDL the Direct way with our low-cost, interactive VHDL simulator. DirectVHDL is built around a VHDL interpreter that allows you to edit and simulate your VHDL design without complicated setup or compilation procedures. DirectVHDL simply loads and simulates in one step.   DirectVHDL includes the following: VHDL Workspace An easy-to-use manager that serves as a starting point to launch the VHDL editor and simulator.
VHDL Editor An advanced editor providing syntax coloring and syntax-error detection. Perfect for beginners, this editor highlights syntax errors as you type!
VHDL Simulator Allows you to simulate and debug your design with a graphical waveform viewer.
VHDL Tutorial Provides an easy introduction to the VHDL language. Requirements
Windows Windows 95, 98, Me, NT 4.0, or 2000, 15 MB hard disk space, 64 MB RAM.
