X Ray Baggage Scanner Dealers in Delhi

• Range: 2 meter
• Application: Mall
• Brand Name: Time Watch
• Battery Charging Type: Plugged in Charging
• Metal Detector Type: Hand-held Metal Detector
• Model Name/Number: TWAT6550B

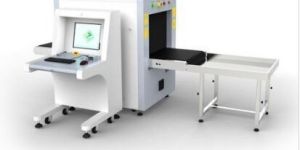

Offering X Ray Baggage Scanner. Baggage Scanning Machine is a most common equipment used for security reasons now a days. It is used to check luggage in detail and also in short time. When a bag enters into the tunnel of scanner, sensors on both side senses it and send a message to X-Ray Generator which generates X-Ray. The X-rays passes through the bag and make an image on the screen.The heart of an X-ray generator is the X-ray tube. Like any vacuum tube, the X-ray tube contains a cathode, which directs a stream of electrons into a vacuum, and an anode, which collects the electrons and is made of copper to evacuate the heat generated by the collision. When the electrons collide the target, about 1% of the resulting energy is emitted as X-rays, with the remaining 99% released as heat. Due to the high energy of the electrons that reach relativistic speeds the target is usually made of tungsten even if other material can be used particularly in XRF applications. A cooling system is necessary to cool the anode; many X-ray generators use water or oil recirculating systems.When baggage is placed on the conveyor, it is moved into the machine by the operator. There is an infrared transmitter and receiver assembly to detect the baggage when it enters the tunnel. This assembly gives the signal to switch on the generator and signal processing system. The signal processing system processes incoming signals from the detector and reproduce an image based upon the type of material and material density inside the baggage. This image is then sent to the display unit.The colour of the image displayed depends upon the material and material density : organic material such as paper, clothes and most explosives are displayed in orange. Mixed materials such as aluminum are displayed in green. Inorganic materials such as copper are displayed in blue and non-penetrable items are displayed in black (some machines display this as a yellowish green or red). The darkness of the color depends upon the density or thickness of the material.The material density determination is achieved by two-layer detector. The layers of the detector pixels are separated with a strip of metal. The metal absorbs soft rays, letting the shorter, more penetrating wavelengths through to the bottom layer of detectors, turning the detector to a crude two-band spectrometer.

X Ray baggage scanner can be used in public events, political rallies, functions, Malls, Hotels and Offices.To and fro freight, taxes and operator charges shall be extra.For any global requirement, Original Equipment Manufacturer (OEM) of Government Certified X-Ray Baggage Scanner Machines for Rent, Hire and Purchase.

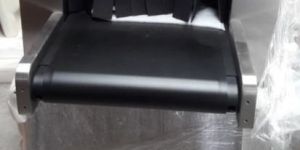

ø  x-rax-ray sensor single energy l-shaped photodiode array detector ø  damp proof advanced protecting technique to make the machine more durable ø  tunel  size 500*300 mm ø  conveyor type belt conveyor ø  conveyor speed 0.2-0.23 m/s ø  conveyor max.load. 40kgdose per inspection

• Country of Origin: Made In India
• Weight: 150 Kg Approx
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric
• Certfication: CE Certified
• Brand Name: ULTRASHINE
• Range: 2 meter
• Application: MALL, Corporate, Government, AirPort, Metro, FACTORIES, SHOWROOM, Hotel etc
• Brand Name: ultrashine
• Features: X ray baggage scanner machines
• Alarm mode: Sound
• Battery Charging Type: Rechargable Batteries
• Tunnel Size :: 500 (W) ×300 (H) mm
• Conveyor Speed:: 0.22m/s
• Conveyor Max Load:: 150 kg
• Single inspection dosage:: <1.01μG
• Film Safety:: Guarantee ISO1600 Film
• Leakage radiation:: <0.1µGy/h
• Steel Penetration:: 40mm
• Spatial Resolution:: 1.0mm Horizontal and Vertical
• Wire Resolution:: 40AWG
• Power Requirement:: 220V AC (±10%) 50±3Hz

• Condition: New
• Application: Luggage X Ray Use
• Country of Origin: India
• Driven Type: Automatic
• Usage/Application: Hotel
• Conveyor Height: 716 mm (28.2 in)
• Conveyor Capacity: 200 kgs distributed load (440 lbs)

Supplying high quality and durable X-Ray Baggage Scanners has yielded us prominent place in market. Obtained from trusted vendors, our X-Ray Baggage Scanners are high in demand among the buyers. They give efficient performance and have long service life. Owing to our efficient logistics system, our products are delivered on time. Look for us to get our X-Ray Baggage Scanners at the most affordable prices.

Standard with color 19” SVGA monitor. High resolution, flicker-free, .28 dot pitch, low rad. monitor, 1280 x 1024. Single energy color is based on object density. Larger monitors or 15” flat screen monitor available. Tunnel Size: 15.4″ wide (39 cm) x 8.0″ high (20.3 cm) x 15.5” long (40 cm) L-shaped detector for 100% package screening. Material Penetration: 4 mm (0.16”) steel. Contrast Sensitivity: Over 2 million color tones standard. Resolution: 38-40 AWG wire. Processing: Automatic push button photodiode scan.

size 64cm   Inner Vision 6040Inner Vision 6040 is X Ray Baggage Inspection System equipped wiht high resolution dual energy soild state detector which produce sharp and clear real time image of bag being scan. The Inner Vision 6040 has tunnel size of 64cm width and 42 height with small footprint suite for screeing requirement at Airport, Railway Station, Banks, Government Offices, Prisons, Military establishment and temples.

• Model Name/Number: X-Ray baggage scanner
• Size: Large
• Material: Metal
• Noise: No

• Application: Hotels/ Industries/ Airports/ Malls
• Brand Name: Essl
• Model Name/Number: 6550C
• Size: Tunnel Size W660mm x H510mm
• Tunnel Opening: Tunnel Size W660mm x H510mm
• X Ray Voltage: Tube Voltage 150 Kv
• Packaging Size: 680KG+105KG (Console desk) VIEW

• size: 600 (W) mm X 400 (H) mm.

ORWIND 6040 is the multi-energy X-ray baggage scanners manufactured by KritiKal SecureScan with tunnel size 600 (W) mm X 400 (H) mm. ORWIND 6040 is an ideal X-ray baggage scanning system for checkpoints and small baggage scanning in high security premises such as Airports,

• Application: Airports, Railway, etc
• Voltage: 220 V
• Frequency: 50-60 Hz
• Power Source: Electric

We make available the optimum quality X-Ray Baggage Scanner to the clients. X-Ray Baggage Scanner, offered by us, is a part of every security solution. Security installation in a place is not complete without our X-Ray Baggage Scanner. X-Ray Baggage Scanner, offered by us, is easy to install and remains in operation for a long time. With the installation of the X-Ray Baggage Scanner there is no chance of any object passing the security system unscanned. Applications Corporate housesAirportsRailway stationsGovernment rallies

The X-Ray Baggage scanner are manufactured with one of the highest quality standards in the world and products in various range are designed to cater various requirements and specially for screening of registered baggage small cargo at airports and other security hold areas. The low bed height facilitates easy loading of heavy baggage.

• Range: Baggage scanner
• Application: Hotel
• Brand Name: Loop Scano
• Weight: 450kg
• Features: Baggage Scanner
• Alarm mode: Sound
• Battery Charging Type: Plugged in Charging
• Country of Origin: Made in India
• Brand Name: Loop Scano
• Metal Detector Type: Hand-held Metal Detector
• Model Name/Number: LS200 ( 6550 )
• Tunnel size(mm): 615(L)*418(W)
• Conveyor Speed(m/s): 0.22
• Conveyor height(mm) : 680
• Conveyor Max Load(kgs): 150
• X ray dose per each inspection: Typical 2.0 μGy/h, guarantee 2.5 μGy/h
• X ray leakage : Typical1.0 μGy/h, guarantee 1.5 μGy/h
• Penetration: Typical 32mm, guarantee 30mm
• Wire Resolution: Typical AWG40, guarantee AWG38
• Penetration Resolution: Typical AWG32, guarantee AWG30
• Spatial resolution:: Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm;
• Power Consumption: 0.8KVA
• Noise: < 60dB
• Film Safety: Guarantee ASA/ISO1600 Film
• Anode Voltage: 140 KV
• Anode Current: 500μA(0.5mA)
• Generate angle: 80 degree upward
• Generate direct: from bottom to top
• Cooling / Duty Cycle: Oil Cooling /100%
