Zenith Worldwide Kirti Nagar, Delhi

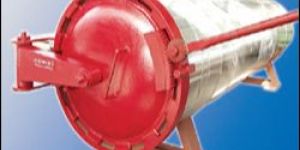

ZENITH valcunizer is equiped with Pressure Guage, safety valves, non returnable valves, temperature guage etc.

UV, Hybrid & Conventional Ink High swelling resistance with UV inks and chemicals. Specially designed compound will help you clean easily. Hold its diamentional properties for longer period. Advanced molecular locking technology to hold the shape and diamention of the rollers with continues application of uv, Hibrid and conventional inks. The surface texture of the roller will remain in affected for a longer period and, the cleaning will be very easy.

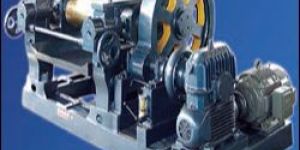

The basic desining and construction of the Zenith Mixing Mill has been subjected to continuous improvements. which have permitted them to keep pace with the day-to day needs of the industry. Available in sizes varying form 6” x 16” to 26” x 84” for compounding, warming, sheeting of various grades and types of rubber and other material.

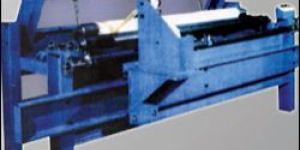

“ZENITH” three roll builder machines are specially developed for making printing rollers from rubber sheet.

Three Roll Builder “ZENITH” three roll builder machines are specially developed for making printing rollers from rubber sheet.

After a long experiment of almost 18 months in collaboration with Rubber Technologists from Germany, we "ZENITH - INDIA" have developed a new Rubber Compound for Inking and Dampening Rollers for printing machines. This compound is being manufactured from German raw-material & we are launching this product after getting positive response from our Domestic & International customers who had tested the rollers made from this compound.   High Chemical and Solvent Resistance. Uniform wetting of the Printing Plate. Maintains the required hardness for a longer period of time. Resistance to shrinking, swelling & abrasion. Resistance to hardening even when exposed to isopropyl alcohol and substitutes. Facilitates more rapid attainment of the ink water balance. Excellent resilience , with grinding tolerance of less than 5 microns. Achieves fine film thickness on its surface and on plate, resulting optimum fountain Solution on plate ie. ultimately on pa per to reduce paper stretching. Quick and easy to clean.

STRIP BUILDER ZENITH strip builder offers synchronized consistent rubber application for large or small rollers. Machines are designed for efficient performance. Designed with provision of cold feed and hot feed extruders with built-in electrical,pneumatic controls and other application equipments. Roller covering extruder plant complete with movable carriage holding the cylinder to be covered.

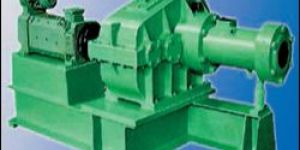

Hot feed screw type extruders are heavy-duty machines built to suit individual needs. They are made in many different type and sizes to meet the production requirements for straining extruding, tubing, slab production or contoured shapes. The extruder’s size depends upon the hourly output required and method of feeding with a complete line of equipment is available to meet with all customers need. The Cold feed Extruders have been developed for processing cold rubber compound. Since these machines in addition to extruding profiles also plasticize rubber; they differ from hot feed extruders, they have longer screws; heavier gears boxes and higher drive power. According to present stage of development cold feed extruders can be used for extruding almost all rubber compounds, which are process able on hot feed extruders. Feeding is normally in the form of strips or pellets. Machines with longer screw diameters are often fed directly with wig-wag stored slabs.

Features : BED The basic bed is heavily steel fabricated, machined to a single frame on which whole machine with gearbox and motor is fitted, DRIVE Worm is driven with belt and reduction gearbox arrangement etc.

We manufacture a wide variety of Rollers for Steel Industry. Using Ultra-modern & latest machinery, we manufacture rubberized Rollers for Cold Rolled Steel & Continuous Galvanizing Line. We are the largest suppliers of rubber coated rollers to Jindal, Hissar produced at our Unit in Neemrana, Rajasthan. We are producing very specialized rollers for steel industry and supplying to JINDAL HISSAR. As per our best knowledge there is no other company which provides such critical application rollers in north India. After being satisfied with the performance of our rollers which were supplied to these customers we have decided to enter other steel industries located in different part of the country who require high quality products.   The Steel Rollers manufactured by us has the following USP:- Have developed compound for high speed to heavy load application. We manufacture Rollers exactly as per sample, specification and drawings provided. All operation of Roller manufacturing is done in one Roof thereby ensuring Quality control and timely delivery. Capable of manufacturing Roller upto Dia 1.6 mtr Length 8 mtr and weight 30 tons. Our Roller coverings are designed to offer increased service life, fewer roller changes and minimal maintenance when compared to other alternatives. We are manufacturers of high quality rubber roller mainly for critical application and use different types of polymer like HYPALONE, VITON, NBR, HNBR, NBR PVC, CSM (NEOPRENE), NATURAL AND SILICON.   Zenith Rolls undergo from more than 25 quality testing Equipments as per requirement. ( For detail refer to Our Product >> Compound)       Services we offer   New core design & fabrication Rubber Covering Crowning Grooving Regringing Core Repair Ultrasonic test & Balancing Engineering service Extensive Support     pacity   We have manufactured roller upto following sizes : Length : 8000mm Dia : 2000mm Weight : Upto 30 tonne We manufacture more than 100 new rollers per month. And the Roller size accuracy upto 5 microns is maintained. Shore hardness of Rubber & run out standards are properly adhered to for each & every roller.

ZENITH manufactures rollers for paper industry based on roller operating parameters. Roll technology involves the manufacture, covering & servicing of large metal rolls (Up to 9 mtr. Long, 1.8 MM in Dia & 60 Tons WT). Over which clothing (Wire & Felt) products & between which paper web moves from wet slurry to finished paper. Many rolls are used in each paper making machine. Zenith covered products provide a surface that gives mechanical properties necessary to process the paper sheet that delivers the desired paper qualities by the producer. Our roll qualities are based on parameters like application, chemistry, speed, temperature, pressure, Roll geometry, deflection, balance & coefficient of friction. Our products include: Rubber Covering Re-Grinds New Core Design & Fabrication Core Repair Ultra sonic test & Balancing machine Crowning Grooving Engineering Services Extensive Field Support

              ROLL GRINDER MACHINE ZRG-3 ZRG-4 ZRG-5 ZRG-6 ZRG-7 ZRG-9/10 Max .Length b/w centers 3 Mtr. 4 Mtr. 5 Mtr. 6 Mtr. 7 Mtr. 9-10 Mtr. Minimum Diameter 100 mm 200 mm 200 mm 300 mm 300 mm 300 mm Maximum Diameter 750 mm 1000 mm 1000 mm 1400 mm 1400 mm 2000 mm Power reqd.(head+spindle+slide) 10+15+2 27 h.p 15+!5+2 33h.p 20+15+2 37-42 42 47-55 55 wheel (grade) 120 120 120 120 120 120 casting grade 20 20 20 20 20 20 spnidle bushes bronze bronze bronze bronze bronze bronze wheel head speed ( rpm ) 50 - 750 50 - 750 50 - 750 50 - 750 50 - 750 50 - 750 work head speed (rpm) 5 to 60 5 to 60 5 to 60 5 to 60 5 to 60 5 to 60

Advantages of using ZENITH'S EURO ULTIMEX Euro Excel & Euro Crystal (with advance molecular locking technology) Made from unique combination of oil-resistant rubbers and polymeric plasticizers. All Ultimex covered rolls have got TIR less than 5microns which assures you of higher Print quality (less dot gain) and longer plate and bearing life. High abrasion resistance. Good tensile strength, better dimensional and hardness stability. Resistant to oil, abrasion and requires less frequent setting. Low heat build -up at high speed offset machines. Extremely good nap for proper emulsion of ink and water. Grinding tolerance of less than 5 microns. Excellent resilience.

ZENITH manufactures rollers for paper industry based on roller operating parameters. Roll technology involves the manufacture, covering & servicing of large metal rolls (Up to 9 mtr. Long, 1.8 MM in Dia & 60 Tons WT). Over which clothing (Wire & Felt) products & between which paper web moves from wet slurry to finished paper. Many rolls are used in each paper making machine. Zenith covered products provide a surface that gives mechanical properties necessary to process the paper sheet that delivers the desired paper qualities by the producer. Our roll qualities are based on parameters like application, chemistry, speed, temperature, pressure, Roll geometry, deflection, balance & coefficient of friction. Our products include: Rubber Covering Re-Grinds New Core Design & Fabrication Core Repair Ultra sonic test & Balancing machine Crowning Grooving Engineering Services Extensive Field Support

steam Boilers are of 23 pass smoke tube Vertical Fully SemiAutomatic design with proven performance. The Boilers are manufactured as per latest Indian Boiler Regulations International codes as class-l equipment. The boilers are fitted with high combustion efficiency fuel firing equipment resulting in optimum thermal efficiency to achieve economical running cost of the boilers. The range of the product makes the selection to the nearest size of equipment to save on Capital Cost. Our Offer for One No. Zenith Horizontal Packaged Oil or Gas Fired Boiler Model Znb – 20 Having Evaporation Capacity of 200 Kg Hr From and at 100 Deg When Fired with LDO LPG and Suitable for A working Pressure of 7.0 Kg Sq. cm (100 Psi )

eliminates the problem of ghosting in a lithographic printing press. provides smooth, relatively uniform coating of ink to the ink-receptive area of the plate cylinder in a lithographic printing press. improves the quality of the image printed by a lithographic printing press. suitable for high speed sheetfeed off set printing. .

Zenith has designed its high performance Multi Drilling Machine for Drilling holes in Suction and Blind Drill rolls. These rollers are extensively used in paper mills all over the world as they are more efficient in draining of water than any other technique. Today most of the Paper manufacturing Companies across the world is using Blind Drill Rollers and we think that every paper mill roller manufacturer must have this machine to be able to manufacture such Rollers. Some of the salient features of the Machine are as follows :- Fully automatic with PLC controlled. Capable of drilling holes in rollers upto 8 to 10 meters as per standard. ( the drilling length can be increased or decreased as per requirement) Working diameter upto 1800mm Capable of drilling holes upto 3 - 5 mm diameter in size. The depth of the drilled holes is upto 6 -10mm as per standard. However the drilling depth can be increased if required. There are 175 drills to 300 in one line. Additional drills can be added if required. Roller with diameter 1800 mm can be drilled in 10 to 12 hour time. Roller weight carrying capacity upto 50 tons Power required to run this machine is about 30HP/ 22 kW

The basic desining and construction of the Zenith Mixing Mill has been subjected to continuous improvements. which have permitted them to keep pace with the day-to day needs of the industry. Available in sizes varying form 6” x 16” to 26” x 84” for compounding, warming, sheeting of various grades and types of rubber and other material. Silent Features No. Of Rolls Two Material of Rolls Chilled Cast Iron hollow ground finished, bored through for even heating & cooling, having surface Hardness of 500 - 550 BHN No. Of Guides Four (Two fixed and two movable) Roller Bearing Spherical Roller Bearing Type of Housing Sealed Housing Housing is made from Graded Cast Iron of High quality casting free from holes & casting defects Column Frame Two Nos. Made of Graded Cast Iron as per housing material Nip Adjustment Nip adjustment at two roller ends is done manually using two separate screw attached to the housing through shear plates/fuses (0-10 mm) Friction Gears High precision-machined sets made of forged steel Lubrication System Radial Grease Lubrication Pump Base Frame Uni - Bed design with heavy-duty base frame made up of Carbon Steel sections suitable for anti - vibration mounting or fitment with anchor bolts in concrete floorings Transmissions Through a suitable Helical Gearbox Standard Accessories Panel Board consists of Voltmeter, Ammeter, Phase Indicators, On & Off Switches, Emergency Stop with Auto reversal arrangement I Electromagnetic brake for emergency stop actuated by overhead cradle bar operated by limit switches I Gear covers I Safety Trip Rod\ I Material Collection Tray I Shear Discs/ Fuses I Return Water Funnels I Glass see through tubes I Radial Grease Lubrication Pump.

The basic desining and construction of the Zenith Mixing Mill has been subjected to continuous improvements. which have permitted them to keep pace with the day-to day needs of the industry. Available in sizes varying form 6” x 16” to 26” x 84” for compounding, warming, sheeting of various grades and types of rubber and other material.   Silent Features No. Of Rolls Two Material of Rolls Chilled Cast Iron hollow ground finished, bored through for even heating & cooling, having surface Hardness of 500 - 550 BHN No. Of Guides Four (Two fixed and two movable) Roller Bearing Spherical Roller Bearing Type of Housing Sealed Housing Housing is made from Graded Cast Iron of High quality casting free from holes & casting defects Column Frame Two Nos. Made of Graded Cast Iron as per housing material Nip Adjustment Nip adjustment at two roller ends is done manually using two separate screw attached to the housing through shear plates/fuses (0-10 mm) Friction Gears High precision-machined sets made of forged steel Lubrication System Radial Grease Lubrication Pump Base Frame Uni - Bed design with heavy-duty base frame made up of Carbon Steel sections suitable for anti - vibration mounting or fitment with anchor bolts in concrete floorings Transmissions Through a suitable Helical Gearbox Standard Accessories Panel Board consists of Voltmeter, Ammeter, Phase Indicators, On & Off Switches, Emergency Stop with Auto reversal arrangement I Electromagnetic brake for emergency stop actuated by overhead cradle bar operated by limit switches I Gear covers I Safety Trip Rod\ I Material Collection Tray I Shear Discs/ Fuses I Return Water Funnels I Glass see through tubes I Radial Grease Lubrication Pump.

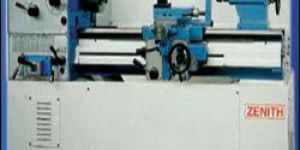

zenith lathe are well suited for all common turning, surfacing and screw cutting with high accuracy. Zenith lathes are designed for continuous lights and heavy jobs. Lathe machines are made with close grain graded casting, many models & size are available. Zenith supply mainly two types of precision lathes, change gear train lathes and all gear head precision lathes.   silent features the bed is made of close-grained cast iron, having unusual strength and long wearing qualities. It is machined and ground to fine finish and is well braced to withstand vibration free operation even under heavy cutting load. head stock the flat seat of headstock over the bed is perfectly matched by precision hand scrapping. The hollow spindle runs in a pair of amply dimensioned split gunmetai adjustable bearing and one thrust ball bearing or heavy duty taper roller bearings. the apron is of double wall designed with independent driven motion for feeds and screws cutting. Simultaneous engagement of feed and screw cutting is prevented by an interlock mechanism. the tailstock is of special and sturdy design. Inverted “v” guides it and flat ways of the bed independent of the saddle guides and has an offsetting drive for taper turning. The body including the base can be clamped to the bed by means of bolt and nut provided. standard back plate for dog chuck, dead centre (hardened and ground), centre equipment sleeve traveling and fixed steady rests. One set of 22-machine cut change gear wheels, oil tray, motor drive arrangements and thread dial gauge.

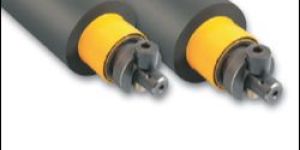

OSCILLATING INKING ROLLERS: Eliminates the problem of ghosting in a lithographic printing press. Provides smooth, relatively uniform coating of ink to the ink-receptive area of the plate cylinder in a lithographic printing press. Improves the quality of the image printed by a lithographic printing press. Suitable for high speed sheetfeed off set printing.

ZENITH GRINDERS - Are well designed. The base is made of seasoned close grain casting to prevent vibration and distortion to achieve consistency in accuracy. Home   About Us Our Products Download Catalog Contact Us Enquiry   Rollers for Printing Industry Read More Rollers for Paper Industry Read More Rollers for Steel Industry Read More Turnkey Projects Read More Machinery Read More Compounds Read More   Exhibitions Read More Rollers for Allied Industry Read More New Entry Read More Press Room Chemicals Read More   Home » Our Products » Machinery » Cylindrical Grinding Machine   Strip Builder Machine Cylindrical Grinding Machine Mixing Mill Roll Grinder Boiler Vulcanzier Lathe Machine Dispersion Kneader Extruder Machine Three Roll Builder Calendering Machine Digital Dynamic Balncing Hydraulic Cylindrical Grinding Machine   HYDRAULIC CYLINDRICAL GRINDER ZENITH GRINDERS - Are well designed. The base is made of seasoned close grain casting to prevent vibration and distortion to achieve consistency in accuracy. Specification Model ZNG – 1000 ZNG – 1250 ZNG – 2000 ZNG – 2500 ZNG - 3000 Admit Between Centre 1000 mm 1250 mm 2000 mm 2500 mm 3000 mm Centre Height 150 mm 155 mm 250 mm 250 mm 250 mm Speed Of Work 3 STEP 3 STEP 3 STEP 3 STEP 3 STEP Head Spindle 35 To 350 mm 35 To 350 mm 35 To 350 mm 35 To 350 mm 35 To 350 mm Table Speed Minimum 50 mm 50 mm 50 mm 50 mm 50 mm Maximum 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm Wheel Head Grinding Wheel Size 16”x5”x11/2” 16”x5”x11/2” 20”x10”x2” 20”x10”x2” 20”x10”x2” Wheel Speed Two Step 1500-1800 rpm 1500-1800 rpm 1200-1500 rpm 1200-1500 rpm 1200-1500 rpm Incriment Of Feed Dail .005 mm .005 mm .005 mm .005 mm .005 mm Swivel Of Wheel Head 45 – 45 Degree 45 – 45 Degree 45 – 45 Degree 45 – 45 Degree 45 – 45 Degree Rapid Approch Head 100 mm 170 mm 170 mm 170 mm 170 mm   POWER REQUIRED : 415 volt 50 HZ or as per customers requirement STANDARD ATTACHMENTS : A coolant pump fitted on a tank. Diamond Dresser 2 Nos., Oil Can, Dead Center 2 Nos., Tool Kit ADDITIONAL ATTACHMENT EXTRA COST : Internal Grinding Attachment, Balancing Stand, Balancing Mandrel, Three Points Steady Rest, Two points, Radius Truing Device, Spare Wheel Flange, Independent Four Jaws Chuck, Magnetic Coolant Pump, Grinding Gauge. Silent Features IBASE The base is made of closed grained casting, heavily ribbed for rigidity. GUID WAYS Made of “TURCITE” (Ant frictional Material), ‘V’ and flat guidways are hand scraped to match corresponding surface of table slide with fine grove for proper lubrication. The slide travels by hydraulic mechanism. WHEEL HEAD The wheel head spindle is made of hardened alloy steel & assembled with high accuracy & long life bearings. Wheel head has rapid approach for operating conveniently fast. WORK HEAD Work head spindle is made of hardened alloy steel and run with high accuracy bearings. The drive to work head is build for stationary and live spindle grinding. The work head can be swiveled for angular grinding. TAIL STOCK Spindle is spring loaded. Tail stock spindle are filled with MT-3 to MT-5 for extra rigidly. Tailstock travels smoothly along the length of table right up to the work head. Clamping of tailstock is by bolts. Spindle (Barrel) can be operated hydraulically by foot paddle. COOLENT SYSTEM Coolant system is provided by electrical pump filled tank. Coolant flow can be controlled by cock valve. ELECTRICAL The machine is supplied suitable for 415 20 volts, 50Hz. Can be supplied with optional power supply on customer demand.

ZENITH GRINDERS - Are well designed. The base is made of seasoned close grain casting to prevent vibration and distortion to achieve consistency in accuracy.   Silent Features IBASE The base is made of closed grained casting, heavily ribbed for rigidity. GUID WAYS Made of “TURCITE” (Ant frictional Material), ‘V’ and flat guidways are hand scraped to match corresponding surface of table slide with fine grove for proper lubrication. The slide travels by hydraulic mechanism. WHEEL HEAD The wheel head spindle is made of hardened alloy steel & assembled with high accuracy & long life bearings. Wheel head has rapid approach for operating conveniently fast. WORK HEAD Work head spindle is made of hardened alloy steel and run with high accuracy bearings. The drive to work head is build for stationary and live spindle grinding. The work head can be swiveled for angular grinding. TAIL STOCK Spindle is spring loaded. Tail stock spindle are filled with MT-3 to MT-5 for extra rigidly. Tailstock travels smoothly along the length of table right up to the work head. Clamping of tailstock is by bolts. Spindle (Barrel) can be operated hydraulically by foot paddle. COOLENT SYSTEM Coolant system is provided by electrical pump filled tank. Coolant flow can be controlled by cock valve. ELECTRICAL The machine is supplied suitable for 415 20 volts, 50Hz. Can be supplied with optional power supply on customer demand.

Hot feed screw type extruders are heavy-duty machines built to suit individual needs. They are made in many different type and sizes to meet the production requirements for straining extruding, tubing, slab production or contoured shapes. The extruder’s size depends upon the hourly output required and method of feeding with a complete line of equipment is available to meet with all customers need. The Cold feed Extruders have been developed for processing cold rubber compound. Since these machines in addition to extruding profiles also plasticize rubber; they differ from hot feed extruders, they have longer screws; heavier gears boxes and higher drive power. According to present stage of development cold feed extruders can be used for extruding almost all rubber compounds, which are process able on hot feed extruders. Feeding is normally in the form of strips or pellets. Machines with longer screw diameters are often fed directly with wig-wag stored slabs.   Silent Features BED The basic bed is heavily steel fabricated, machined to a single frame on which whole machine with gearbox and motor is fitted. WORM / SLEEVE The worm is mill cut and polished. Sleeve is fine machined and polished and ground hardened by Nitrating process along with cooling arrangement with close clearing to achieve longer life of worm and sleeve and efficient traveling of material (i.e. Rubber). BEARINGS Extruder is jacketed with heavy-duty single double taper roller bearings as per Extruder Loads. DRIVE Worm is driven with belt and reduction gearbox arrangement. HEATING / COOLING Cast iron / Steel fabricated body is jacketed for water-cooling or heating of worm and sleeve. NOTE : Technological improvements may result in change in specifications.
