Parag Fans & Cooling Systems Ltd A.B. Road, Dewas, Madhya Pradesh

Tube Axial Flow Fan covering a wide range in wall mounting tubular casing design with Energy Efficient Axial flow Fan impellers having variable pitch angle, dynamically balanced impeller for direct driven Arrangement. Available Sizes: 1 feet to 6 feet ( 300 mm to 1800 mm) Number of Blades: 4 to 12 Air Flow: Up to 1,00,000 CFM (47 m3sec)

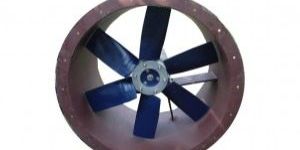

We offer Tube Axial Fan. Tube Axial Fan Tube Axial Flow Fan covering a wide range in wall mounting tubular casing design with Energy Efficient Axial flow Fan impellers having variable pitch angle, dynamically balanced impeller for direct driven Arrangement. Available Sizes: 1 feet to 6 feet ( 300 mm to 1800 mm) Number of Blades: 4 to 12 Air Flow: Up to 1,00,000 CFM (47 m3sec) Fan RPM: Up to 1440 RPM Pressure: 5 to 50 mm of WG

Available Sizes : 2 feet to 40 feet ( 600 mm to 12,000 mm) Number of Blades : Up to 12 Static Pressure : Up to 2 Inches of WG (50 mm) Air Flow : Up to 3,000,000 CFM (1420 m^3 sec) Fan RPM : Up to 1440 Operating Temperature Range: – 40ºC to 120ºC

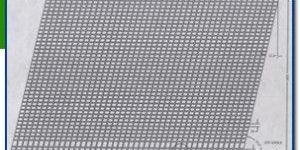

We offer Frp Grids & Fill Hangers. FRP Grids are used to support splash fills in Cross Flow Cooling Towers. The life and effectiveness of splash fills are substantially enhanced due to FRP Grids.’Parag’ FRP Grids have excellent corrosion and chemical resistance with high tensile strength to sustain varying live and dead loads due to change in moisture content at different temperatures. The FRP grids are manufactured using polyester resins and quality glass ravings to meet stringent requirements.’Parag’ FRP Grids are available in different sizes to match splash fills of any Cooling Tower. Custom sizes can be manufactured against specific orders.With our in-house capability to build own moulds, we can offer a wide range of sizes.With our in-house capability to build our own mold, we are able to offer custom sizes to fit specific customer requirements.

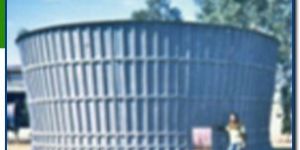

FRP Fans Stacks & Ring a unique lightweight single wall construction and are designed to match ‘Parag’ Fans or Cooling Tower & Air Cooled Condenser fans of any other make. Segments can easily and quickly be assembled on site.

Sizes Available: 6 feet to 40 feet (1800 mm – 12000 mm) in diameter Heights Available: Up to 18 feet (5400 mm) Operating temperature range: –20ºC to +65ºC (–4ºF to + 149ºF) Galvanized Steel Stainless Steel fasteners ‘Parag’ Fan Stacks have been designed for the greatest thermal efficiency, as well as superior strength. The parabolic shape enables high velocity recovery, resulting in maximizing static efficiency and reduced power cost.

We offer Frp Fan Stacks & Rings. ‘Parag’ FRP Fan Stacks have a unique lightweight single wall construction and are designed to match ‘Parag’ Fans or Cooling Tower & Air Cooled Condenser fans of any other make. Benefits Extremely stiff construction reduces transmission of vibrations to structure Segments can easily and quickly be assembled on site Lightweight of segments allows ease of handling Inlet bell shape makes fan performance ideal

Existing metal fan blades are designed with a very low cl cd ratio due to poor aerodynamics. Since ‘Parag’ FRP Axial Flow Fans are designed with very efficient aerodynamic blade profile and high twist & camber characteristics, they provide a 15-35% power savings as compared to the metallic & GRP fans available in the market.

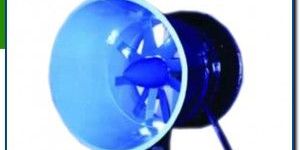

We offer energy efficient axial flow frp fan system. ‘parag’ fans has specially developed 1200mm, 1400mm & 1600mm diameter axial flow frp fan systems comprising of the hub, frp blades, casing, frp impellers, inlet bell, inlet & outlet nose spinners and velocity recovery cones for ‘humidifier’ applications under a joint r & d project with ‘atira’ (ahmedabad textile industry research association) & dsir (department of scientific & industrial research, govt. Of india). These fan systems have provided unparalleled power savings of up to 35% over aluminum fans of various makes.

we offer energy efficient axial flow fans. as a logical extension to our technological advances and innovations, ”parag” offers structurally strong, hollow, seamless, lightweight construction blades with sophisticated aerodynamic profiles. conventional metal aluminum blades offer a lower lift to drag (cl cd) ratio resulting in flow separation and turbulence at the leading edge of the blades causing higher profile loss. ”parag” provides higher blade twist angle and optimum camber offering very high efficiency of the fans. our blade profile, confirming to n.a.c.a. 23012 aerofoil characteristics with high cl cd ratio, greater twist, taper, camber and consistent frp blade shape, can improve total efficiency up to 90% resulting in considerable energy savings or higher air flow for the identical operating conditions (air flow, total pressure and rpm) in a given system.

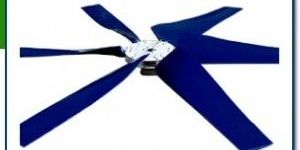

Air Cooled Heat Exchangers is a device built for efficient heat transfer from one fluid to another, whether the fluids are separated by a solid wall so that they never mix, nor the fluids are in direct contact. Air cooled heat exchanger fans & Air cooled condenser fans are used to generate the air that transfers the heat, hence fans are an essential part of heat exchangers. It is very important to select a suitable fan according to the application of the heat exchanger and ‘Parag’ has developed a range of ACC fans particularly for heat exchanger application.

Conventional metal aluminum blades offer a lower lift to drag (Cl Cd) ratio resulting in flow separation and turbulence at the leading edge of the blades causing higher profile loss. ”Parag” provides higher blade twist angle and optimum camber offering the very high efficiency of the fans. Our blade profile, confirming to N.A.C.A. 23012 aerofoil characteristics with high Cl Cd ratio, greater twist, taper, camber and consistent FRP blade shape, can improve total efficiency up to 90% resulting in considerable energy savings or higher air flow for the identical operating conditions (Air Flow, Total Pressure and RPM) in a given system.
