Omkar Industries Belur Industrial Area, Dharwad, Karnataka

Aluminium Bare Round and Rectangular Wire: Aluminium Bare Round and Rectangular Wire are mainly used as connectors in control panels. A recent technological advance in the industry has led to use of aluminium as an alternative to copper. Nowadays industries are changing their design and incorporating aluminium as it is cost effective when compared to copper. Metal Type Electrical Conductivity Grade (EC Grade) Continuous Cast Aluminium Wire Rod ( Conductivity > 61% ) confirming to EN10204,3.1.b and EN485/1/2/4, 515, 573 Round Wire Dimension 7.62 mm ( 1 SWG/ 1 AWG) To 0.508 mm ( 25 SWG) / 0.510 mm (24 AWG)Special size accommodated, subject to condition  Rectangle Wire Dimensions Width: 3.00 mm To 16.00 mmThickness : 0.80 mm To 5.00 mmCross sec area: 3.00 Sq.mm To 80 Sq.mm Special sizes accommodated, subject to condition Specifications/ Standards IS 6160                             Copper Double Paper Covered Round and Rectangular Wire (DPC)Copper double paper covered round and rectangular wire (DPC) are conductors which are an important element in oil cooled transformers, these transformers are vintage styled oil cooled transformer. The DPC conductors have a low thermal index compared to other insulations. Copper DPC round and rectangular wires are mainly used in distribution, power transformers as well as in large power grids.

Copper bare round and rectangular wires are wires without any kind of insulation these are widely used for busbars, alternator, special motors and switch gears. Copper busbars are widely used in distribution panels and circuit breakers. Switchgears on the other hand are used to isolate electrical equipments. Aluminium Bare Round and Rectangular Wire: Aluminium Bare Round and Rectangular Wire are mainly used as connectors in control panels. A recent technological advance in the industry has led to use of aluminium as an alternative to copper. Nowadays industries are changing their design and incorporating aluminium as it is cost effective when compared to copper. Metal Type Electrical Conductivity Grade (EC Grade) Continuous Cast Aluminium Wire Rod ( Conductivity > 61% ) confirming to EN10204,3.1.b and EN485/1/2/4, 515, 573 Round Wire Dimension 7.62 mm ( 1 SWG/ 1 AWG) To 0.508 mm ( 25 SWG) / 0.510 mm (24 AWG)Special size accommodated, subject to condition  Rectangle Wire Dimensions Width: 3.00 mm To 16.00 mmThickness : 0.80 mm To 5.00 mmCross sec area: 3.00 Sq.mm To 80 Sq.mm Special sizes accommodated, subject to condition Specifications/ Standards IS 6160                             Copper Double Paper Covered Round and Rectangular Wire (DPC)Copper double paper covered round and rectangular wire (DPC) are conductors which are an important element in oil cooled transformers, these transformers are vintage styled oil cooled transformer. The DPC conductors have a low thermal index compared to other insulations. Copper DPC round and rectangular wires are mainly used in distribution, power transformers as well as in large power grids.   Metal Type Electrical Conductivity Grade (EC Grade) Continuous Cast Copper Rod. Chemical properties confirming to Cu-Cath-1 of BSEN 1978:1998/ ASTM B-115:2000 and Physical properties confirming to ASTM B49-2009 Round Wire Dimension 7.62 mm ( 1 SWG/ 1 AWG) To 0.508 mm ( 25 SWG) / 0.510 mm (24 AWG)Special size accommodated, subject to condition  Rectangle Wire Dimensions Width: 3.00 mm To 16.00 mmThickness : 0.80 mm To 5.00 mmCross sec area: 3.00 Sq.mm To 80 Sq.mm Special sizes accommodated, subject to condition Insulation Electrical Grade Kraft paper Thermal Class 105’C Insulation Thickness (Round Wire) DPC: 0.100 mm – 0.300 mmMPC: 0.300 mm – 3.000 mm Insulation Thickness (Rectangular ) DPC: 0.300mm – 0.600 mm Specifications/ Standards IS   7404-1/ IS 13730-27IEC 60317-27                         Aluminium Double Paper Covered Round and Rectangular Wire (DPC) are also used in oil cooled low voltage transformers. Use of aluminium is on a rise, as an alternative to copper because of cheap metal price as well as technological advances in producing high quality EC grade high conductive aluminium wire rods.

Copper enamel insulated round and rectangular winding (magnet wires) copper enamel wire (magnet wires) is classed as the sole of the electric motor. The copper enamel wire in a coil form (stator) carries electric current which then generates a magnetic field making the rotor to rotate. Electric motors are used in diverse applications, such as fans, washing machines, blowers, industrial machinery and many more. Electric motors come in different types and in different capacities to suit different industrial and domestic needs. Most popularly used electric motors in the industry are abb motors, marathon electric, weg electric corp, kirloskar, siemens, l&t, crompton greaves ltd, bharat bijlee limited and many more. Rectangular copper enamel wires on the other hand are widely used in alternators as well as in some dry type transformers. High thermal endurance of polyesterimide theic polyesterimide chemical base enamel has excellent flexibility and adhesion properties.

We are offering Aluminum Wire

We are offering Copper Wire

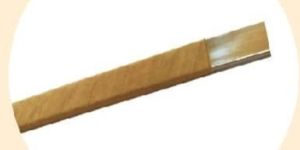

Copper double paper covered round and rectangular wire (DPC) are conductors which are an important element in oil cooled transformers, these transformers are vintage styled oil cooled transformer. The DPC conductors have a low thermal index compared to other insulations. Copper DPC round and rectangular wires are mainly used in distribution, power transformers as well as in large power grids.

Copper Double Fibre Glass Insulated Round and Rectangular Wire (DFGC) have been in use since early 2000. New regulations by the authorities to use dry type transformers instead of the oil cooled transformers in city limits to reduce electrical short circuit disaster, had put industry designers on the drawing board, after several tests at their R&D a new product was introduced to address this issue. This is when Fibre glass conductor was introduced. Fibre glass conductor is a combination of Glass Fibre Yarn and Varnish bonding, Fibre yarn is an insulator lapped on the conductor with a primary insulation of varnish of different class.  These conductors would withstand high temperature with naturally air cooled and is more efficient than conventional conductors.

  Aluminium Double Fibre Glass conductor is been increasingly in use nowadays. Good Electrical, Thermal and mechanical properties of Copper Fibre Glass conductor has inspired designers to try Aluminium instead of copper, and were successful in creating it. Aluminium Double Fibre Glass is feasible, cost effective and has good thermal, electrical and mechanical properties. Aluminium Double Fibre Glass conductors are used in small and medium dry type transformers, power reactor as well as UPS transformers.

Copper Enamel wire (Magnet Wires) is classed as the sole of the electric motor. The copper enamel wire in a coil form (Stator) carries electric current which then generates a magnetic field making the rotor to rotate. Electric motors are used in diverse applications, such as fans, washing machines, blowers, industrial machinery and many more. Electric motors come in different types and in different capacities to suit different industrial and domestic needs. Most popularly used electric motors in the industry are ABB Motors, Marathon Electric, WEG Electric Corp, Kirloskar, Siemens, L&T, Crompton Greaves Ltd, Bharat Bijlee Limited and many more.Rectangular Copper Enamel wires on the other hand are widely used in alternators as well as in some dry type transformers. High thermal endurance of Polyesterimide/ THEIC Polyesterimide chemical base enamel has excellent flexibility and adhesion properties.

Aluminium Enamel wires are widely been used since early 2010. These wires were earlier used in electrical chokes. Nowadays it is also used in low voltage transformers for primary winding. Technological advances in the chemicals industry has led to discover new polyester base enamel to suit base metal like aluminum. The enamels used in aluminium enameled wires possess high adherence properties. These enamels also have high electrical, thermal as well as mechanical properties. The rectangular wires on the other hand have been specifically designed for low voltage transforms, these low voltage transformers are extensively used in online UPS, Stabilizer, Reactor, DC converters, Inductors, Transformer rectifier and many more applications.
