AC Brake Dealers

• Material: Cast Iron
• Phase: 3 Phase
• Weight: 11.600 kg
• Min Drum Diameter: 100 mm
• Technique: Hot Rolled
• Automation Grade: Semi-Automatic

• Type: AC Solenoid Operated Brakes
• Brand Name: BCH
• Operating Voltage: 110, 220, 380, 415, 440VAC, 50Hz
• Torque Capacity: 13.60 Nm,34 Nm / 48 Nm,68 Nm / 102 Nm
• Mounting: Floor Position / Foot Mounting. Side or Vertical Mounting is Not Recommended
• Features: Smooth Functioning, Dimensional Accuracy, fine Finish

We have an extensive supply-chain system that empowers us to ensure a distribution of consignments is done within the postulated time. To ensure quality of the products, we conduct diverse quality tests at all stages and thus our products are quality assured.   More About AC Electromagnetic Brakes that are suitable for AC supply up to 400 to 440 volts, and are available for a wide range of Drum sizes from 100 mm to 380mm Dia. We stand in the midst of prominent Electromagnetic Brakes Suppliers based in India.Since these brakes are in normally closed position, the release of the Brake shoes is affected by energizing the Electro Magnetic coil, which overcomes the spring force and the shoes are moved clear off the drum by lever/arm linkage system so that the drum is free to rotate without any friction.When the power in given to the Electro Magnetic coil the coil gets energized and in turn pulls the plunger down. The plunger in turn operates the arm of the brakes and the brake opens.The design of the brake is such that as the lining keeps wearing out due to normal operation of the brake, adjusts itself on its own to achieve the rated toque. When specified, brake drum or drum coupling both pin bush type and flexible geared type can be supplied along with the brakes.Approx. Rs 4,000 / Piece

“SADB series AC disc brakes are absolutely fail safe in nature, and finds wide range of application, where emergency stop is required. Compact, rugged and uniquely designed bake, works on electro mechanical principal. Main parts consists of Solenoid coil, Riveted Solenoid Plates, Strong springs with stud and Splined Rotor-Hub. When power fails or brake remains in engaged condition for longer period, these brakes are the best buy.

• Type: AC Solenoid
• Material: Metal
• Application: Brake
• Color: Silver
• Warranty: 1 Year
• Size: 5.5 Inch
• Surface: Polished

We are offering a precision-engineered range of AC Solenoid Shoe Brakes. Our heavy-duty AC Solenoid Shoe Brakes are designed and developed using the latest technology and advanced machinery. They are manufactured in conformity with the set industrial norms and standards. We are a renowned AC Solenoid Shoe Brakes Manufacturer and Supplier from Delhi (India). We make them available in various technical grades. Also, we provide customized AC Solenoid Shoe Brakes as per the buyer’s requirements.   Working A.C. solenoid shoe brake (A.C. fail safe brakes) is normally in on condition & when A.C. Power supply is given to the coil, it will attract the armature. The liver fitted with the spring will be actuated and thus the brake opens and allows the prime mover to run freely. When power supply is withdrawn, due to spring pressure, the brake shoes go back to their own position and stop the motion. Specifications Drum diameter : 4” (14-21 Nm) / (5.5” (35-50 Nm) & 7” (70-102 Nm) Coil voltage : 440 VAC Applications Cranes and Hoists Overhead doors Machine tools Conveyor systems Material handling equipment Printing machines steel plants & steel rolling mills Wire drawing machines

As a renowned Supplier of AC & DC Brakes, we bring you a wide range of immaculate quality. Our reliable vendors use only high-grade raw materials to ensure that our product meets the highest quality standards. Their features such as sturdiness and durability make it an interesting proposition. These are widely applied for commercial purposes as well as domestic purposes. Get your hands on the fascinating quality for economical rates.

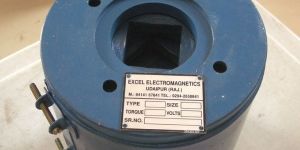

Type 5000 (AC Self Adjusting Fail Safe Brake) :: ::Salient Features :: ::>Suitable For Metric Motor Frames ::>Fast Installation ::>Self Adjusting ::>Fast Acting ::>Negligible Maintenance ::>Higher Brake Torque ::>Manual Release

• Material: Mild Steel
• Country of Origin: India
• Phase: 2
• Brand Name: Vraj Engineering
• Frequency: 50Hz
• Surface Finishing: Paint
• Min. Drum Diameter: 100mm
• Max. Drum Diameter: 380mm

Features: This is a spring loaded normally ON Failsafe Brake Consists of Electromagnetic coil, Plunger, Torque spring and Liner riveted to Brake Shoes Works on 415 V AC, 2 Phase, 50 Hz supply Function is to bring to stop, moving / rotating machinery like motor / gearbox Holds / stops the load in desired place. Instant stop. Robust design. Consumes low power Applications: All Material Handling and Lifting Equipments Hoisting : electric wire rope Hoists and Crabs Cross travel and Long travel : EOT / Gantry / Goliath / Derrick Cranes Winches and Conveyors Lifts and Elevators Brake motors

• Material: Mild Steel
• Power Source: Electric
• Brand: BCH
• Packaging Type: Box
• Frequency: 50 Hz
• Size/Dimension: 5.5 Inch
• Inrush Voltage Current: 465A
• Max Voltage: 415 V
• Inrush Watt: 310W

• Phase: 3
• Brand Name: metro
• Input Voltage: 230 v
• Packaging Type: box
• Shape: round
• Number Of Hole: 2
• Operating Voltage: 415 v

"ORTON" make Thrustor operated brakes are suitable to work on 415V.  3 Phase A.C. supply for a wide range of drum sizes from 100 mm to 400mm dia with braking torque ranging from 6KgM. to 110 KgM.  The mechanism is balanced to give equal shoe clearance throughout the face of drum.  The torque is applied by heavy duty compression springs or weight with thrustor.Thrustor is an electro-hydraulic device designed to exert a constant force to any mechanism to be operated.  This thrust can be effectively used in actuation of any part of mechanism like levers, to achieve the desired result.  The self contained, compact unit needs only 415 V/3 Ph electric supply to actuate it.   FEATURES : 1) Self contained unit-needs no external components or accessories 2) Constant thrust at all positions of working stock. 3) Smooth & Jerk free linear motion. 4) Compact & maintenance free. 5) Lower power inputs & low heat generation 6) Permissible upto 720 operations. 7) Thrustors are totally enclosed with IP-55 degree of protection

AC Brake motors are used for various applications where instantaneous stopping of the driven load is required. The operation of the brake is 'Fail Safe Type' or normally on. The brake is applied when the power to the motor is cut off or power to the motor is switched off or if power failure occurs. AC Brake motor is a combination of an AC induction motor and an EMCO electromagnetic AC brake. The EM brake is mounted on the non driving end of the motor. A cooling fan is mounted after the brake which ensures good heat dissipation and cooling of the brake and motor as well. Uses : Power StationsMining steel IndustriesSmall CranesConveyorMachine Tools Features : Long lifeEasy installationMinimum MaintenanceElectrically releasedSpring applied providing 'Fail-Safe' operation. Technical Specifications : Sizes : 4", 5.5" & 7"Hardened steel lever and spring glandCast iron wheelSpring pinsInexpensive lining replacement

• Operating Voltage: 220/415 V AC
• Frequency: 50 Hz
• Size: 4",5.5" and 7"

Mfrs AC/DC brakes which are very fast operating solenoid actuated spring loaded brakes of Fail Safe design mounted on the shaft extension of the non driving end of the motor Due to the springs pressure the friction disc is held tight between the mounting plate and the floating plate. When the coil/magnet is energized the coil/magnet attracts the floating plate against the springs pressure and the brake is released These types of brakes are largely used on Hoists, Cranes and Winches in Paper, Rubber, Steel, Textile mining and Cement Industries etc.
