Air Conditioning Test Rig Dealers

• Size: 250 x 250 mm
• Height: 1000 mm
• Material: Aluminum body with acrylic frame
• Product Code: ELSHADDAI R/AC - 011

THIS AC TEST RIG IS USED TO CONDUCT EXPERIMENT TO FIND ITS EFFICIENCY

• Voltage: 220V
• Application: Industrial Use
• Power: 0-5 Hp
• Driven Type: Electric
• Duct Size: 200mm x 200mm

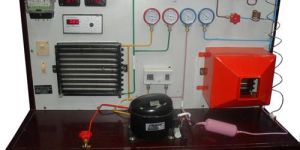

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system. Hermetic compressor of 1Ton Forced air condenser 1500 m3 / h Evaporator with 3-speed fan. Capillary-tube refrigerant regulation system & Adjusting the temperature using remote control  operation.   Experimentation : To study the Vapour Compression air conditioning cycle. To Calculate Co-efficient of performance-(COP) by the use of P-H diagram.  Utilities Required : Electric supply Single Phase, 220 V AC, 50 Hz., 10 Amp.

We serve the clients by offering Air Conditioning Test Rig that works on simple vapor compression refrigeration cycle. Eco-friendly R 134 is used as refrigerants in our Air Conditioning Test Rig. Our Air Conditioning Test Rig is highly useful in conducting experiments on a vapor compression air conditioning unit. The Air Conditioning Test Rig with components mounted on the display board makes it easy for the students to study all the air conditioning process. List of Experiments To evaluate the tonnage capacity of the air conditioning system by enthalpy difference methodTo evaluate actual and theoretical C.O.P. Of the systemTo plot the refrigeration cycle on pH chartsTo plot the psychrometric processes on psychrometric charts Rating Conditions Ambient temperature = 35oCAtmospheric Pressure = 1.01 barSuction Pressure = 70 psigDischarge Pressure = 300 psigEvaporation temperature = 7.7oCDischarge Temperature = 55oC

• Type: Air Conditioning Test Rig
• Weight: 100-400kg, 400-600kg, 600-800kgm, 800-1000kg
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Application: Industrial Use
• Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Driven Type: Electric, Hydraulic
• Motor Power: 10hp, 2hp, 4hp, 6hp, 8hp
• Automation Grade: Automatic, Fully Automatic, Manual, Semi Automatic

• Voltage: 230
• Phase: Single
• Color: Blue and Red
• Brand: STEK
• Material: Steel
• Warranty: 1 Year
• Safety Control: Yes
• Condenser: Yes
• Pressure Gauges: 0-25 Bar

• Capacity: 0.75 TR at rated test conditions*
• Compressor: Rotary type; Hermetically sealed.

description:- the a.c. Test rig works on simple vapour   compression refrigeration cycle using r 134 a  as a refrigerant. the system is fabricated such that student can study all the air conditioning processes.  it is also useful to understand working of all the components of system, their performance and control etc. all the components are mounted on the display board, so that students can observe their working easily.   specifications subject to change without any notification.   list of experiments: to evaluate the tonnage capacity of the air conditioning system by enthalpy difference method. to evaluate actual and theoretical c.o.p. Of the system. to plot the refrigeration cycle on p-h & t-s charts. to plot the psychrometric processes on psychrometric charts.   technical specifications:-

The unit consists of ducting fitted with various air conditioning components. Airflow is generated by an axial flow fan and in the airflow, heaters, cooling coil and steam humidifier connection is provided. Cooling circuit consists of a hermetic compressor; air cooled condenser, thermostatic expansion valve and evaporator (i.e. cooling coil). Measurements of various parameters Torn cooling cycle and heating cycle are provided and students can easily visualize and understand the basic principles of air conditioning.Following experiments can be conducted on the unit : Cooling of atmospheric air. Heating of atmospheric air. Humidification of atmospheric air. Dehumidification and heating of atmospheric air. (Cooling coil acts as dehumidifier at reduced airflow.)Services Required : 440 V, 15 A, 3 Phase supply with earthing connection. Floor space area about 3 m. X 2 m.

We are a one-stop destination and the perfect place for purchasing excellence assured Air Conditioning Test Rig. We have invested a huge amount in the excellent storage space and shipping facilities. We, with complete ease, entertain voluminous requirements of our respected patrons and uphold entire records and transactions of the products delivered.

We are engaged in manufacturing and supplying Air Conditioning Test Rig from Ambala, Haryana. Our Test Rig is widely preferred across the country to accurately measure the cooling capacity of the air conditioner. Customers can obtain Air Conditioning Test Rig in retail or bulk orders from us at most economical rates. Used for : To demonstrate fundamental compression cycle. To find the C.O.P. & cooling capacity To study the effect of heating, cooling, humidification& dehumidification for conditioning of air To study basic component of Air Conditioning systems. To study variation of capacity of the unit with different capillaries To study PH and psychometric chart   Details : To study the By Pass Factor of a cooling coil : Technical Specifications of the Equipment. Compressor :- ISI hermetically sealed compressor (1.5 Ton capacity). Condenser :- Fins and copper tube type Air Cooled condenser of capacity 1 H.P. has been provided in the unit. Condenser Fan motor :- One no forced draft fan motor of suitable capacity along with suitable capacity of fan blade has been provided to draft the air of condenser. Receiver :-  One no heavy duty sheet type receives along with valve fittings has been provided to store the liquid refrigerant to R-22 gas. Rotameter :- To measure the flow rate of R-22 in unit. Evaporator :- A air cooled evaporator is provided. Supply Duct :- A metallic supply duct is fitted containing DBT/WBT sensing probe and supply of steam for humidification. Boiler :- Boiler is fitted to standy to supply steam the effect of humidification. Heating Coil :- Heating coil is fitted inside the duct to study the process of heating. Control Panel Board :- The following controls have been provided on dull sunmica board. Main Switch, Voltmeter, Amp. Meter, Energy meter, Indication lights, Digital Temp Indicator, Suction gauge, Discharge gauge, LP/HP cut out, Expansion valve, capillary tube, Solenoid value, Filter dryer, Thermostat liquid line indicator. Base :- Heavy duty angle iron base has been provided in the unit to accommodate the condensing unit, sunmica board supply dull A/C body.

• Filter Drier: DM 50, (3/8”)
• Capacity: 4KVA

This Laboratory scale working model housed on a M.S. Square tube frame further mounted on a wheels (CI) with nstrumentation panel is used i) To study the Vapour compression Cycle ii) To calculate co-efficient of performance (COP) iii) To evaluate tonnage capacity.

• Voltage: 220 V
• Brand: Ether
• Material: Stainless Steel
• Power Source: Electric
• Item Code: 1598

To study the Volumetric Efficiency of Compressor. Both Single stage compressor and Two stage compressor can be used. The setup consists of 6 channel digital temperature indicator with an energy meter and U Tube Manometer.   Product Code : SAMS R/AC - 002

The A.C. test rig works on simple vapour compression refrigeration cycle using R-134a as a refrigerant. The system is fabricated such that student can study all the air conditioning processes. It is also useful to understand working of all the components of system, their performance and control etc. All the components are mounted on the display board, so that students can observe their working easily.   LIST OF EXPERIMENTS: • To evaluate the tonnage capacity of the air conditioning system by enthalpy difference method. • To evaluate actual and theoretical C.O.P. of the system. • To plot the refrigeration cycle on P-H & T-S charts. • To plot the psychometric processes on psychometric charts.

Air conditioning test rig, We also manufacture the equipments and control systems for sugar industries mainly mill automation, boiler instrumentation, prd stations and embibition water control system.

• Refrigeration and air conditioning lab: Electrolux Refrigerator Test Rig
• Refrigeration and air conditioning lab: Water Cooler Test Rig
• Refrigeration and air conditioning lab: Ice Plant Test Rig
• Refrigeration and air conditioning lab: Split Air Conditioner Test Rig

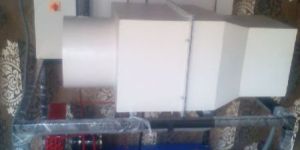

Our company is instrumental in the manufacturing, trading and exporting of optimum quality ductable air-conditioner test rig.this apparatus is made as per the industrial requirements,at our equipped infrastructure using good quality metal.we also make sure to timely deliver the ordered products at the clients' end,via our wide distribution network.offered apparatus is demanded around the globe for hassle-free installation and smooth operation. Specifications:working power supply: ac 220v±10%50hz capacity:

• Model: ALABS-A88-006
• Categories: Refrigeration & Air Conditioning Lab
• Working power supply: AC 220V ±10% 50Hz
• Capacity: <1KW
• Refrigerant type: R22
• Dimension: 1600*660*1890 mm

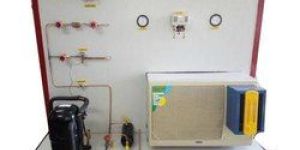

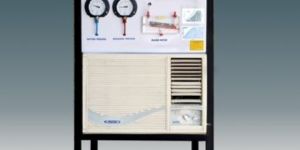

The Window Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning syste
