Air Core Reactor Dealers

• Country of Origin: India
• Frequency: 50hz, 60hz
• Voltage Type: AC
• Voltage: 3.3/3.6/6.6/7.2/11/12 KV
• Application: Detuned/ Tuned Harmonic Fillter
• Brand Name: Treffer
• Reactor Type: Load Type
• Input Voltage: 220V
• Rating: 75/100/150/200/ Kvar

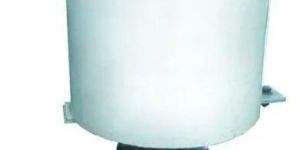

Air cored reactors are manufactured by building the winding on a former with suitable insulations and spacers to hold the winding in strength and to restrain the turns from any movement caused by compressive forces. Reactors are made of Aluminium Copper winding without any core. The reactors can be assembled in vertical as well as horizontal construction.

• Operating voltage: 415V/3300V/6600V/11000, 50/60Hz
• Control voltage: II0VDC/240VAC.50Hz
• Auxiliary supply: 240 V AC
• Insulation: Class H/F
• Duty Cycle: 6 starts per/hr
• Method of Cooling: Natural air cooled
• Enclosure: Floor mounting cubicle with Bottom/Top cable entry in IP 54 grade of protection suitable for indoor
• Finish: Epoxy powder coated

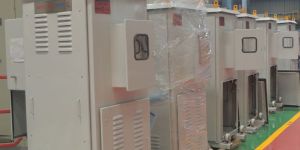

Our company is one of the leading Manufacturers and Suppliers of a wide array of technically advanced Harmonics Free Series Air Core Reactors. We design and fabricate them as per international quality management systems and carry out stringent test to ensure high performance. Buyers can purchase the reactors from us at competitive prices. We offer them in varied specifications and are capable of customizing them as per technical requirements of buyers. More Information A solution to start motors less than 1.5 times of motor full load current. Our starters are step less, reduced voltage start, which ensures a constant low starting current, and incremental voltage torque. This helps in optimizing the power source i.e., transformer or generator size. Optimized power system gives savings capital in cost and savings in revenue expenditure due to increased efficiencies. Our soft starters are designed as per the IS 5553 (part 3)/ IEC 60289/076 working on the principle of Series Reactor for current limiting of 3 phase motor”. Series Reactor Soft Starter shall be of air core design for smooth linear acceleration and high efficiency, Natural Air Cooled [meeting all the specification of standard IS 5553[part3] IEC60289/076] & shall not lead to generation of Harmonics and humming noise during starting process.   Salient Features : Complete motor starting engineering solution as a part of pre-sales service to customer Extremely rugged in construction . Suitable for extreme weather conditions like dust and desert environment Low starting Current Starting of motor in gensets Starting current up to less than 1.5 IFL Starting of motor with limited power Built in bypass for full voltage during running No Harmonics generation - Zero Harmonics No forced cooling required Micro controller Digital Motor protection for Over current, Under current, Stall, Lock, Phase failure , Reverse phase, Asymmetry Protection relay for under voltage / over voltage Virtually no maintenance Easy to install and operate Air Core Technology Product Range Type of AC Motors : Synchronous Motors, Squirrel cage and Slip ring Induction Motor Power : 10KW to 20000 KW Voltage : 415V to 11 KV Applicable Industries : Water board, Irrigation Department,Rubber Mills Sewage treatment plant Paper industry, Textile industry, Mining industry etc.Ordering Information The motor output in Kw, rated voltage, full load current, speed, power factor etc Control supply voltage, Auxiliary supply voltage The motor torque speed characteristic The load torque speed characteristic The inertia of motor rotor as well as machine rotating parts.

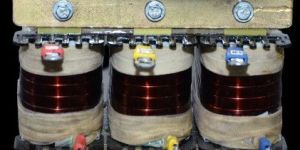

A line reactor (also referred to as a "choke") is a variable frequency drive (VFD) accessory that consists of a coil of wire that forms a magnetic field as current flows through it. This magnetic field limits the rate of rise of the current, thus reducing harmonics and protecting the drive from power system surges and transients. There are two primary types of reactors used in variable frequency drives: AC & DC. When an AC reactor is placed between the power system and the drive, it is referred to as an AC line reactor. When a DC reactor is inserted into the DC link of a variable frequency drive, it is known as a DC link reactor. Oil and gas pumps Irrigation fields Water treatment Steel industry HVAC Machining Extruders

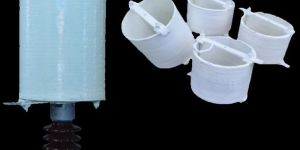

A famed name, the company is entrusted with a task of making available high quality lot of FKH HT Air Core Dry Type HT Reactor. We are a customer-focused firm and bring a solution that makes us capable to make safe and secure payments. Also, our payment procedure is verified and approved by the authority.   MODEL : HT-R   Specification: 50Hz Our reactor windings consist of numerous aluminum or copper conductors connected in parallel. These conductors can be insulated single wires, insulated cables or alumininum profiles separated by fiberglass spacers. The cost-effective solution to be selected, in terms of dimensions and conductor type to be used in each design, depends on the required ratings for the equipment. For encapsulated design, the conductors are mechanically immobilized and encapsulated by epoxy impregnated fiberglass filaments forming cylinders. Depending on the reactor on the reactor ratings, one or more of these cylinders are connected in parallel between aluminum or copper spiders. The individual cylinders are separated by fiberglass spacers forming cooling ducts. F+ 155 C & H-180 C Class   Details : Rating : 75/100/150 Kvar Voltage: 3.6/6.6/7.2/11/22/33 KV Application: Detuned/tuned harmonic filter

TIE AC reactors intended for series connection in a system for limiting current or for load sharing purposes are available in wide range of current rating and inductance value. DC reactors to filter out all harmonics present in DC power systems of high or low system voltages are available. Supressing harmonics of any frequency range with less core loss is an essence in our DC reactor designs.

We have ultra-modern packaging systems available to keep the products safe from physical factors that may damage the product to some extent. Thus, we only use qualitative packaging material. The company is located in Mumbai(India) and affirms to offer the entire array of products to every nook and corner.

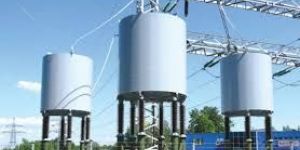

We offer custom designed Air Core Reactors for high voltage, high current, high frequency, or high power applications such as current limiting, shunt reactors, neutral grounding reactors, linear chokes, or tuning. Winding configurations include helix wound, archimedean spiral wound (flat pancake), and multi-layer wound.Air Core Reactors can be supplied either as single-phase coils individually supported on insulators or alternatively as three phase coils stacked vertically.

• Voltage Type: AC
• Country of Origin: Made in India
• Frequency: 50 Hz
• Material: Copper
• Reactor Type: HT
• Input Voltage: Upto 33 Kv
• Certified: CE & ISO Certified

• Features: Epoxy impregnated, fiberglass-encapsulated construction and Robust design & Reliability

Air core reactors are wound on nonmagnetic material coil forms and do not use a magnetic core. This result in lower inductance compared with ferromagnetic core coils. Providing linear response of impedance versus current, they are used in many different applications.

• Application: Electricals Use
• Voltage: AC
• Reactor Type: Load Type / Line Type
• Input Voltage: 3.3kv to 33 kv

Lamco Transformers Pvt. Ltd. is a noteworthy manufacturer and supplier of air core reactor. This air core reactor is manufactured using supreme grade components with the help of cutting edge technology in observance with international quality standards. The entire air core reactor is appreciated in the market for its less maintenance, optimum functionality, ability to withstand harsh conditions, easy installation and longer functional life. Our valuable clients can avail this air core reactor at most reasonable price.

Due to the harmonic content of the output voltage of the convertor units, harmonic current flow in the load circuit. The magnitude of which is determined by firing angle of the particular connection & the total effective inductance in the load circuit. The use of an additional smoothing choke in the armature circuit is thus of an advantage. Short Circuit Current Limiting Reactors suitable for use in series with the generators.

Air cored reactors are manufactured by building the winding on a former with suitable insulations and spacers to hold the winding in strength and to restrain the turns from any movement caused by compressive forces. Reactors are made of Aluminium Copper winding without any core. The reactors can be assembled in vertical as well as horizontal construction.

Copper Aluminium wound Air core reactor used to protect the capacitors from High Inrush currents and suppress the harmonics in the system.

• Voltage Type: AC
• Country of Origin: Made in India
• Brand Name: Usha Capacitors
• Material: Copper
• Reactor Type: Load Type
• Input Voltage: 440 V
• Phase: Three Phase
• Current: 25 A

• Application: Electricals Use
• Voltage: AC
• Frequency: 50hz, 60hz
• Automatic Grade: Automatic
• Warranty: 2yrs
• Phase Type: Double Phase
• Coolling System: Air Cooling

These are used for various applications and are made in shunt or series types. The construction features further categorize them as- Air core type air cooled.

Our reactor windings consist of numerous aluminum or copper conductors connected in parallel.These conductors can be insulated single wires, insulated cables or alumininum profiles separated by fiberglass spacers. The cost-effective Solution to be selected, in terms of dimensions and conductor type to be used in each design, depends on the required ratings for the equipment.For encapsulated design, the conductors are mechanically immobilized and Encapsulated by epoxy impregnated fiberglass filaments forming cylinders.Depending on the reactor ratings, one or more of these cylinders are connected in parallel between aluminum or copper spiders. The individual cylinders are separated by fiberglass spacers forming cooling Ducts. F+155 C & H-180 C Class.

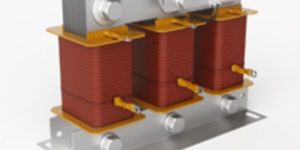

We manufacture Iron Core & Air Core Reactors as per IS 5553 Design & Construction Reactors are designed for 30% overload continuosly & which will not saturate at 150% of rated current. They are designed for continuous operation in an ambient temp 60oC with natural Air Cooling. Temp. class as 'F'. Reactors are fitted with thermal overload protector in one coil. •  Core is made out of CRGO lamination. •  Coils are made with SE/DFG Coper Strip Class 'F' •  Interlayer insulation by Normex Paper. •  Inductors are vacuum impregnated with 'F' Class Varnish followed by over pressure •  Frame parts duly powder coated •  Termination on Epoxy Insulators. Application: •  As tuning of Filter Reactors to be used in series with capacitors for reducing or blocking harmonics •  As Line Reactors in series with DC drive to suppress the spikes in supply voltage •  As filters chokes in DC supply.

• Frequency: 50-60 Hz
• Voltage Type: AC
• Material: Copper
• Reactor Type: Load Type
• Input Voltage: 220 V
• Current: 10-400 A
