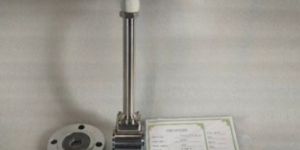

Air Flow Meter Dealers

• Driven Type: Electric
• Automatic Grade: Automatic
• Application: Industrial

Compressed Air flow meter for high flow rates like 200 to 1000cfm.

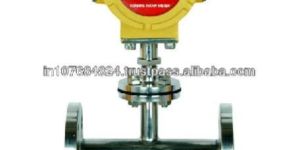

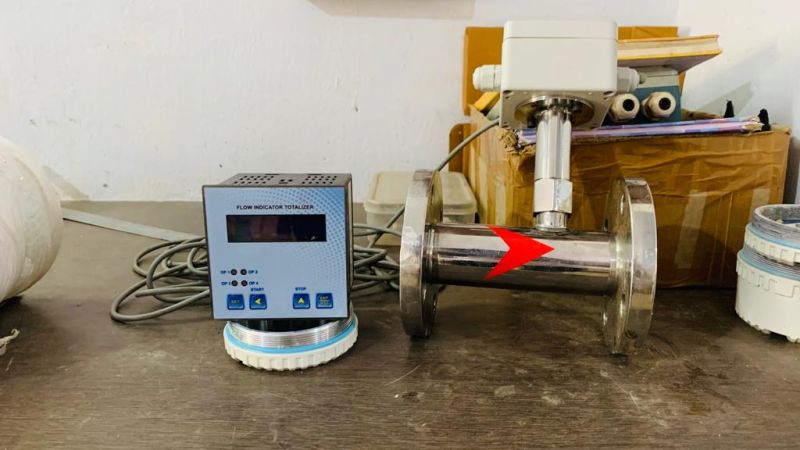

Specifications 1.Accuracy:+/-1.0% 2.Pipe range:DN2-DN300 3.Environmental temperature:-30C to 60C 4.Simple and durable construction Turbine Flow Meters are useful for liquids & gases in general industrial application for measuring flow rate. Turbine Flowmeter (TFM-70 Series)   CBRO Turbine Flow Meters are useful for liquids & gases in general industrial application. They provide excellent performance with quality & reliability. Suitable for as hygienic application. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. The pick -of coil senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal. Summation of the pulsating electrical signal is directly related to the total flow. The frequency is linearly proportional to flow rate which is converted to mA signal by electronic circuitry. Flow rate Indicator / Totalizer / Transmitter and Controllers are available in Local/Remote and Panel Mounted

• Auxiliary Supply: 110, 240 V AC ± 20%, 50 Hz, 24 V DC
• Range: 4 – 20 mA DC

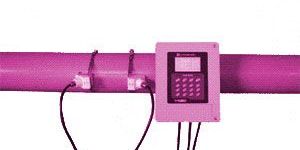

Ultrasonic wall-mounting Clamp-on Flow meter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe.It utilizes best technology in ultrasonic transmissionreceiving, digital signal processing and transit-time measurement. The signal quality tracking and self-adapting technologies allow the system to optimally adapt to different pipe materials automatically.

he thermal principle operates by observing the cooling effect of a gas flow as it passes over a heated transducer. In compressed air flow meter, the temperature sensor monitors the actual air temperature whilst the heater transducer is maintained a constant differential temperature by caring the required current to the heating sensor from electronic in order to maintain the differential temperature. Greater the flow, greater will be cooling effect and current required to maintain the differential temperature. The current produce to maintain this temperature differential is directly proportional to the mass flow rate. Hence there is no need for additional temperature or pressure compensation in the thermal mass flow meter. This makes thermal mass flow meters as a preferred choice for use in compressed air flow monitoring systems.

• Flow Range: 7 - 30000 CFM OR MORE
• Brand Name: Inconel
• Display: Digital
• Application Media: AIR
• Material: SS
• Usage/Application: ANY INDUSTRIES
• Function: VORTEX

Air flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air and other compressed gases in closed conduits. It is best suited for applications where affordability, reliability and ruggedness are of prime concerns. In conventional system of measurement, the differential pressure generated by orifice plate is measured by DP transmitter. The output from DP transmitter after square rooting is accepted as proportional to flow rate. This assumption is true only when the density is constant.

• Saving operating cost by monitoringconsumption and detecting leakage• Convenient operating menu for allparameterization• All required signals integrated - fromanalog output to the totaliser• Ceramic fiow sensor - sensitive androbust at the same time

Our Air Flow Meter have accuracy rate of ±4%. In order to ensure zero defects at buyer's end, we make sure that we conduct stringent quality procedures. With us, one can stay assured about the security of their payments as we follow safe and secure online and offline payment modes. We facilitate our patrons with the methods like bank deposits, cash, electronic funds transfer and various others.

• Steel: 1",2",3",1/2",1/4",4",6"
• Steel: 1",2",3",1/2",1/4",4",6"

within the working range of the meter the rotor spins proportional to the actual velocity of gaseous material flowing. a pick-up coil produces an electrical signal as each blade crosses through its low magnetic or rf field. this signal is amplified and conditioned by a transmitter or fed directly into a ratetotalizer, and represents the actual cubic feet per minute (acfm) flowing through the meter. the k-factor is stenciled on the meter body in pulses per actual cubic feet (pacf). because gases are compressible, most people desire to measure the equivalent amount of gas corrected for the line pressure and temperature to standard cubic feet per minute (scfm at 60â°f, 14.69 psia). if the flow temperature and pressure are relatively constant, then a simple correction can be calculated to shift the k-factor from pacf to pscf and a simple totalizer (measurement systems india make ) may be used. when flow temperature and pressure are not constant, a flow computer. specifications linearity 1 â±1.0%0.5% repeatability 1 â±0.25% maximum over-range 125% of flow rate for intermittent periods frequency output 0 to 1,100 hz voltage output approximately 100 mv@ 100 hz to 1.5 v (rms)@ 1,000 hz. pressure drop 0.5 psi at 100% of flow range pressure rating we manufacture flowmeters for most pressures. installation vertical or horizontal (any direction). materials of construction body: 316 l stainless steel. flanges: 316 stainless steel rotor: 431 stainless steel. rotor shaftbearings: standard: tungsten carbide v-cup cartridge frame retainer: 302 stainless steel cartridge frame: 316 l stainless steel. temperature range:meter with bearing structure of: standard: tungsten carbide: -40â°f to 300â°f (-40â°c to 149â°c). for other temperatures consult factory.

• Display: Digital
• Brand Name: TSI
• Application Media: Air
• Model Name/Number: TSI Airflow Meter
• I Deal In: New Only

• Display: Analog
• Material: Stainless steel & Brass
• Usage/Application: Hospitals
• Flow Media Type: Air
• Flow Range: 150 bar
• Operation Mode: Manual

• Type: Flow Meter
• Material: Plastic
• Application: Industrial, Residential
• Color: Metallic
• Feature: Accuracy
• Operating Temperature: 10-50D/C
• Warrenty: 1 Year

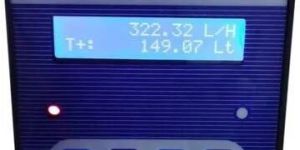

Only quality-tested material is used for preparing the offered lot. As a result of which, we our offerings stand high on the expectations of the clients. Since, we have a widespread supply chain network; we can satisfy buyers by catering to bulk requirements and making delivery within the stipulated time. The offered Air Flow Meter is available with a LED display to display the readings.

• Material: Plastic
• Application: Industrial
• Feature: Accuracy, Digital Water Meter Display
• Driven Type: Electric
• Certificate: CE Certified
• Display: Remote

• Accuracy: ±2%

The AirMon compressed air meter is a highly accurate meter that operates on the Vortex flow metering principle. It’s accuracy of ±2% make it one of the most effective compressed air flow meters in its class. What makes the AirMon unique is that no other flow meter in its class possesses the vital feature of inbuilt Pressure and Temperature Compensation.
