Analog Trainer Dealers

• Country of Origin: India
• Warranty: 2Years

Features: To understand basic theory of digital and analog communication. Design and implementation ability training of analog modulator and demodulator. Design and implementation ability training of digital modulator and demodulator. To understand the applications of balanced modulator circuit.

• Power Supply :: 230 V ±10%, 50/60 Hz
• Power Consumption :: 4 VA approximately
• Audio Oscillator :: With adjustable Amplitude & Frequency (300 Hz - 3.4 KHz)
• Audio Output :: Amplifier with speaker
• Modulators :: Balanced Modulator with Band pass
• Carrier Frequency :: 1 MHz (Crystal controlled)
• Transmitter Amplifier Output :: (Gain adjustable) DSB (1 MHz), SSB (1.445 MHz) connected to Antenna/cable
• Operating Conditions :: 0-40 C, 80% RH

Scientech TechBook 2201 DSB/SSB AM Transmitter is a comprehensive learning solution specifically designed to study basic operation as well as to provide conceptual and step by step understanding of DSB/SSB Amplitude modulation and transmission system through measurement of voltages and observation of waveforms at various test points. Block wise modular organization of circuit function with supporting technical information makes it easy to understand the process of AM generation and transmission. The exercises conceived to provide a practical approach to the subjects enable a deep analysis of the subjects and will guide the students to understand each function.

• Brand Name: Mechanics Optics & Digital Instruments Ltd
• Usage: Laboratory
• Warranty: 1 Year
• Specialities: Durable
• Automation Grade: Manual
• Model: TK 15
• Condition: New
• Power Source: Electrical

Specifications Aesthetically designed injection moulded electronic desk / Master unit carrying useful experiment resources like variable. Power supplies / Status Switches / Indicator probe / Pulsar / Function Generator DPMs etc. Connection through study 4mm Banana Sockets & patch cords. Built in bread board panel with 1280 tie points and 400 distribution points totalling to 1680 points along with 4mm banana sockets for tapping from the trainer +5V, +/-12V/ GND for the circuits to be assembled on bread board using single stand (#22/24) wire.

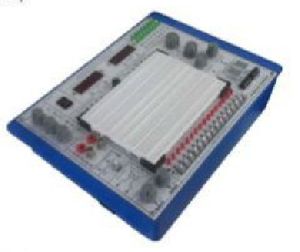

Digital & Analog Trainer kit is a comprehensive and self – contained system suitable for anyone engaged in Analog circuit experiments & digital logic experiments. . All necessary equipments for Analog circuit experiments & digital logic experiments. It is a time and cost saving device for both students and researcher interested in training, developing and testing circuit prototypes. Technical Specification ♦ 10 nos. of TTL compatible logic level inputs ♦ TTL logic selectable by a toggle switch. ♦ Logic HIGH and logic LOW are displayed by dual color LED. ♦ Four crystal generated clock output of 1MHz,1 KHz,10 Hz, and 1Hz. ♦ Facility for signal pulse generation by a pushbutton switch. ♦ Logic probe to check logic LOW, logic HIGH and pulse. ♦ Four seven segment displays with BCD inputs. ♦ Facility of segment control on two displays.

• Color: Black

  Advanced lab trainer for students to perform more than 100 experiments of analog & digital electronics Compatible with optional ready to use experimental modules Glass Epoxy PCB used as front panel & mounted on light weight shock proof Plastic cabinet On board power supplies, Function generator, and other input signals Bread board provided Supplied with connecting wires

 ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT   This kit helps the students to understand the principle of Sampling of Analog signals. By reconstructing the sampled signals and comparing with original signal one can clear his idea about sampling & reconstruction.  Internal sine wave generator of 1KHz (5V P-P). Sampling frequency of 2KHz, 4KHz, 8KHz, 16KHz & 32KHz. Duty ratio of 10%-90% in 10% steps (switchable) Onboard Sample & Hold circuit. Ripple counter generating sampling frequencies of 20Hz to 20KHz. Onboard low pass filters of 2nd order & 4th order. Set of Patch Chord & User Manual. All relevant Tests points are brought out to observe the signals at various points

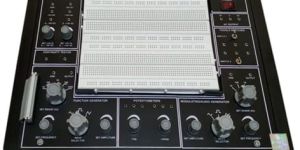

This has on-board Fixed DC Power supply of +5V,+12V,-12V,+15V,-15V/1A, Variable DC Power supply of 0 to +12V DC and 0 to -12V DC, Variable AC 0-12V AC/50Hz power supply, Test Sine wave signal generator variable upto 100KHz and 10V, Digital Volt meter-20V DC for voltage measurement, Components bank (Resistors, Capacitors, Inductors and Potentiometers) on board  and Two Bread Boards to Built any analog digital circuits easily.Objectives : To Study the Analog Circuit Lab Trainer for various inputs and outputs. To study the Power supply section. To Study the Test signal generator section. To study the various components provided on the Board. To assemble the desired Analog circuit on the bread board. To test the assembled circuit. Accessories Included : Set of Patch Cords, Operating Manual.

Advanced lab trainer for students to perform more than 50 experiments of analog electronics Compatible with optional ready to use experimental modules. Glass Epoxy PCB used as front panel of 300mmx220mm & mounted on light weight shock proof plastic cabinet. On board power supplies, Function generator, and other input signals Bread board provided Supplied with connecting wires

HP QuickTest Professional (QTP), an automated functional testing tool that helps testers to perform automated regression testing in order to identify any gaps, errorsdefects in contrary to the actualdesired results of the application under test. Radical Technologies will give you an in-depth understanding on HP QuickTest Professional, its way of usage, record and play back of tests, object repository, actions, checkpoints, sync points, debugging, test results etc. and other related terminologies.

Static Characteristics of SCR, DIAC, TRIAC, MOSFET & IGBT SCR both converter and inverter grades Power rectifier diodes ordinary and fast recovery Triac Power circuit & triggering circuit UJT triggering circuit Single Phase and three phase bridge triggering circuits. (Converter type) Single Phase Mc-Murray inverter power circuit and triggering circuit DC-Chopper power circuit and triggering circuit Single Phase half and fully controlled converter power circuit Three Phase half and fully controlled converter power circuit Isolation units – (a) Pulse amplifier (6 in 1 and 8 in 1); (b) Optocoupler LC commutation units

• Use: To demonstrate the operation and application of a modern LSI digital to analog converter.
• Built in regulated power supply: +5V,+12v,-12v/300 mA.
• Instruction Manual: Step-By-Step detailed instruction manual.
• Dimension: 27cmX 17cm X 10cm
• Input Supply: 230V AC/50 Hz mains operated
• Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
• Weight: 500 Gm.

We are offering analog bread board trainer(abbt) specification: trainer comprises of power supplies inside the trainer • power supplies on boards 0-50v, 250 ma and 0-30v,250ma variable • +15v150ma and +5v150ma fixed supplies provided on board. • 4 nos of variable resistor provided on the board. • one 20 pin vero board on mounted on the board. • one bread board mounted on board. • ac power supply 15-0-15v for rectifier applications various components on the trainer set • 3 pairs of connected 2mm sockets • 4 rectifier diodes • 1 oa79 germanium diode • 3 different values of zener • n different values resistances • n different values capacitors • inductors 1mh, 10mh • thyristor bank • sl100 and sk100 pair • bc547 1nos. • 1 ldr • 1 thermistor • 2 led’s • 1 relay 12v • 2 nos of digital voltmeter and ammeter • one speaker 8e 14w • 1 audio transformer

Code: EEN0004 Analog Lab.  Analog Lab Description The logic trainer is designed for the beginners to enhance the comprehension of analog theory. The design of is easy to operate and easy to understand

Specifications Aesthetically designed injection moulded electronic desk / Master unit carrying useful experiment resources like variable. Power supplies / Status Switches / Indicator probe / Pulsar / Function Generator DPMs etc. Connection through study 4mm Banana Sockets & patch cords. Built in bread board panel with 1280 tie points and 400 distribution points totalling to 1680 points along with 4mm banana sockets for tapping from the trainer +5V, +/-12V/ GND for the circuits to be assembled on bread board using single stand (#22/24) wire.

Features: Internal 300Hz to 3.4KHz Sinewave generator 2 Nos. of Balanced Modulator with band pass filter (1MHz) & 1 No. of balanced modulator (455KHz) Ceramic band pass filter, Carrier Frequency of 1MHz Audio output amplifier with speaker Transmitting output using Telescopic Antenna or Directly using Cord to Receiver.

We are engaged in supplying and exporting of analog communication trainers.Our range comprises ACT 01, 02, 03, 04, 05, 06 & 07 trainers kits. Along with this, we also offer our customers BCT-01 amplitude modulation & demodulation kit and BCT-02 frequency modulation & demodulation kit.

• Specification: 10 nos. of TTL compatible logic level inputs , TTL logic selectable by a toggle switch.

Digital & Analog Trainer kit is a comprehensive and self – contained system suitable for anyone engaged in Analog circuit experiments & digital logic experiments. . All necessary equipments for Analog circuit experiments & digital logic experiments. It is a time and cost saving device for both students and researcher interested in training, developing and testing circuit prototypes.
