Angle Punching Machine Dealers

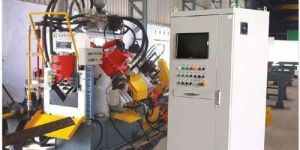

The growth of the steel construction and infrastructure industry, especially in India, has led Electropneumatics to develop specific equipment aimed at meeting the demand of high quality, high volume processing of steel profiles. Our single machines and fully automated lines can cater to the different requirements of marking, punching, cropping, forming, etc. of angles, channels, beams, plates and other such profiles required in the construction of electrical, power transmission and construction towers and other fabrication industries. These are highly productive, sturdy and reliable machines. Some of the products include:CNC Plate and Angle Punching Machines with X-Y Table, CNC Pole Welding Machines.

The growth of the steel construction and infrastructure industry, especially in India, has led Electropneumatics to develop specific equipment aimed at meeting the demand of high quality, high volume processing of steel profiles. Our single machines and fully automated lines can cater to the different requirements of marking, punching, cropping, forming, etc. of angles, channels, beams, plates and other such profiles required in the construction of electrical, power transmission and construction towers and other fabrication industries. These are highly productive, sturdy and reliable machines. Some of the products include:Automatic CNC Angle Marking, Punching and Cropping Machines, CNC Plate and Angle Punching Machines with X-Y Table.

• Material: Mild Steel
• Power: 5.5 kW
• Automation Grade: Fully-automatic
• Voltage: 380V
• Phase: Three Phase
• Angle Of Shear: 7 Degree
• Power Source: Hydraulic

• Range: 2 mm to 25 mm
• Length: 1500 mm to 6000 mm

A hydraulic punching machine is used to cut holes in materials there are multiple type of punching machines used to cut holes on paper, metal sheets, wood and so more. There are some multiple functions like Angle Steel Punching, I-beam Punching, Plate Punching and C-Channel Punching. It includes some other operations, oblong hole punching , slot hole punching, round hole punching and square hole punching.

Standard Supply:   • Main drive Motor • Electric control panel with INCH & SINGLE CYCLE AUTO OPERATION • Stroke adjustment rod with Limit Switch • Punch & Die Adaptor Application   • Sheet Punching. Angle Punching. • Forming, Straitening, • Embossing, Cutting.

Arco Whitney punch press are available in 22 standard models from 5 to 100 tons capacity. (Special Models up to 150 tons can also be made) • Main Frames available in high tensile cast forged steel as per requirement. • Burr and Distortion free holes. • Quiet And Smooth operations • Push Button Foot Switch Controlled start , Stop Reverse and jogging for layout line or marking • Standard Self aligning punches , easy tool changing can be adopted for riveting , notching , staking ,forming etc • Series 701 is ideal for structural sections used in fabrication of transmission towers, bridges etc

• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Electric, Hydraulic, Mechanical, Pneumatic
• Warranty: 1year

We are recognized as an affluent entity, engaged in offering Hydraulic Angle Punching Machine that is widely appreciated by our valuable clients owing to its excellent functionality and high performance. With the aid of modern methodology and using optimum quality component.

• Speciality: • Sheet Punching. Angle Punching., Forming, Straitening,

Main drive Motor Electric control panel with INCH & SINGLE CYCLE AUTO OPERATION Stroke adjustment rod with Limit Switch Punch & Die Adaptor

ash Machine Tools presents Iron Worker, a versatile workshop device that works in multiple ways for varieties of machining requirements. This device is not just confined for shearing, but supports tooling department for other sorts of works including punching, bending, etc. Metal fabrication industries can benefit in several ways by investing in Iron Worker. This equipment is fast and precise in making smooth holes and cuts. The machining is time saving than other conventional machines. For industries that are looking out for a perfect shearing cum bending and punching machine, Iron Worker would be cost effective and long lasting machine option. The SingleDouble Cylinder are well engineered ironworkers built for high power, quality, and reliability. These ironworkers have two separate foot switch, and singleseparate operations can be safely performed. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. The large punching base with the “T-slot” fixing provide a solid base for securing the punching tooling, as well as a wide range of optional and custom designed tooling..

Capacity 50Ton 75 Ton 100 Ton Press Type C Type C Type C Type Max Punching Size 17 MM (10 Thik) 25mm (10 Thik) 25mm (16 Thik) Table Size 300 x 400MM 300 x 500MM 300 x 500MM Working Height 750 MM 750 MM 750 MM Throat Depth 150 MM 250 MM 250 MM Motor Speed 5 H P(1440 RPM) 7.5 H P(1440 RPM) 10H P(1440 RPM) Stroke 30 StrokeMin 25 StrokesMin 22 StrokesMin Type of operation Vertical Vertical Vertical Open Daylight 300 MM 300 MM 300 MM Oil Tank Capacity 100 Ltrs 180 Ltrs 200 Ltrs
