Autocollimator Dealers

• Objective focal length: 220mm
• Clear aperture: 40mm
• Magnification: 11x
• Measuring range axis: 60-0-60 min. in X-Y
• Least Deviation on reticle: 1 minute of arc
• Least Division on micrometer drum: 2" of arc
• Brand Name: BTC Instruments
• Application: Optical workshops, Inspection departments and Quality control labs.

• Country of Origin: Made in India
• Model Name/Number: ELSHADDAI ENGINEERING EQUIPMENTS
• Usage/Application: Laboratory
• Brand Name: ELSHADDAI
• Item Code: ELSHADDAI-MTR-007

• Country of Origin: HARYANA
• Size: Compact Table Model
• Model Number: RSAC-5
• Brand Name: RADICAL
• Wavelength: 220 FOCAL LENGTH

AUTO COLLIMATOR is a sensitive, extremely accurate optical instrument which is precisely used in optical workshops, inspection departments and quality control labs. It is basically a comparator where we compare optical element like slabs and prisms for flatness. It is used for very small angle measurements of the order of minutes. Specifications : - Main Drum Division = 2 second Division on Reticle = 1 minute FL of Objective = 220mm Clear Aperture = 40mm Magnification = 11x Least Division on = 2" of arc Micrometer Drum Built in light source ,With 3 levelling screws in the base and suitable for measuring small angles Widely used in Metrological labs. It work on the principle light fall normally on mirror, the reflected ray comes back along the same path as the incident.

• Country of Origin: India
• Objective Focal Length: 220mm
• Clear Aperture: 40mm
• Magnification: 11x
• Measururing Range Axis: 60-0-60 Min. in X-Y
• Least Deviation in Reticle: 1 Minute of Arc
• Least Dision of Micrometer Drum: 2

ALMICRO AUTOCOLLIMATOR is a sensitive, extremely accurate optical instrument which is precisely used in optical workshops, inspection departments and quality control labs.  It is basically a comparator where we compare optical element like slabs and prisms for flatness. It is used for very small angle measurements of the order of minutes.

• Material: Metal
• Bore Size: 0.6mm
• Application: Industrial
• Surface Finishing: Galvanized
• Outer Diameter: 0-25mm
• Feature: High Dimensional Accuracy, Honing Raceways

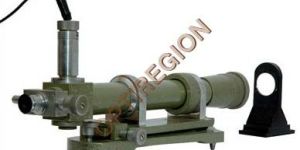

Having come up with Precision Autocollimator, it is equipped with objective focal length of 500 mm, 45mm objective clear aperture, eyepiece magnification of 10x and 20x telescope specification. Manufactured in conformity to the set industry grades, it is available in different customizations according to the needs and demands of our esteemed customers. Its excellent design, seamless finish and low maintenance are available reasonable prices.    Technical Information : Single axis  Dual axes Common  Features of Precision Auto Collimator Objective focal length  - 500 mm Objective clear aperture  - 45 mm Eyepiece magnification  - 10X Telescope specification  - 20X Range of measurements  -  ±20 Working distance up to 5 meters. For full range of measurement  -  ±16 Working distance up to 10 meters. For full range of measurement  - ‚±8 Number of division on micrometer  - 60 Least count of micrometer  - 2'' Precision of setting  - 1'' Accuracy over full range of measurement  - 2''Reflecting Mirror with base   Specification  : Material - Optical glass BSC / BK-7 Front surface coated mirror. Coating material - Al. with protective coat of Sio. Dia. 50 mm; Thickness - 10 mm; Clear aperture - 45 mm. Front surface optically flat; Surface flatness - l/4; Other face - fine ground. Foot span of base - 110 mm; Width - 62 mm . Bottom and sides are optically ground. Mirror is mounted on the base at 90

• Material: Iron, Metal, Stainless Steel
• Certification: ISI Certified, ISO 9001:2008 Certified
• Color: Black, Golden, Grey, Grey-Golden, Metallic, Shiny Silver, Silver
• Surface Finishing: Polished, Power Coated
• Feature: Accuracy Durable, Auto Reverse, Corrosion Resistance, Dimensional, Hardend & Temper, High Quality, High Tensile
• Technics: Black Oxide, Hot Dip Galvanized, White Zinc Plated, Yellow Zinc Plated

Nikon 6D: Autocollimator for measurement of very small angular errors Telescope's magnification: 38x Objective f=700mm; effective aperture: 70mm Measuring range: 30 arcmin Measuring unvertainty: 0.5" arcsec within an area of 5 arcmin 1 arcsec within an area of 30 arcmin Light source: LED

• Type: Autocollimator
• Country of Origin: India

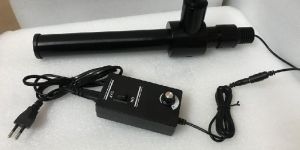

Autocollimator & Accessories

• Material: SS
• Color: WHITE
• Application: Industrial
• Model Number/Name: VT873
• Brand Name: V TECH
• Resolution: 3-0.5 arc secs
• Display: Dgital,LED
• Power Supply: Electric
• Easy Handling: Yes
• Pocket Friendly: Yes
• Colour: Multi
• Usage: Small Angular tilt measurements

Auto collimator is a sensitive, extremely accurate optical instrument which is precisely used in optical workshops, inspection departments and quality control labs. It is basically a comparator where we compare optical element like slabs and prisms for flatness. It is used for very small angle measurements of the order of minutes. Specifications : - main drum division = 2 second division on reticle = 1 minute fl of objective = 220mm clear aperture = 40mm magnification = 11x least division on = 2" of arc micrometer drum built in light source ,with 3 levelling screws in the base and suitable for measuring small angles widely used in metrological labs. It work on the principle light fall normally on mirror, the reflected ray comes back along the same path as the incident.

Specification : Telescope Length - 380 mm, Objective Focal Length - 300 mm, Eyepiece mangnification - 10x, Dimension of Base - 75x250mm, Measuring Range - 25'

The Digital Autocollimator 2000 from Automated Precision Inc. is a high precision, dual axis angle measurement system that combines state-of-the-art photonics and digital imaging technologies to measure the two angular positions relative to a reflective surface.

AUTO COLLIMATOR is a sensitive, extremely accurate optical instrument which is precisely used in optical workshops, inspection departments and quality control labs. It is basically a comparator where we compare optical element like slabs and prisms for flatness. It is used for very small angle measurements of the order of minutes. Specifications : - Main Drum Division = 2 second Division on Reticle = 1 minute FL of Objective = 220mm Clear Aperture = 40mm Magnification = 11x Least Division on = 2" of arc Micrometer Drum Built in light source ,With 3 levelling screws in the base and suitable for measuring small angles Widely used in Metrological labs. It work on the principle light fall normally on mirror, the reflected ray comes back along the same path as the incident.

• Brand Name: Enggific
• Clear Aperture: 25 mm
• Readout: Micrometer
• Resolution: 3 Secs
• Application: Industrial

The Autocollimator, we offer, is used to check flatness or straightness of a finish surface. Our Autocollimator comes with an objective diameter of 40 mm with micrometer head, measuring up to 1 sec. accuracy. We deliver the Autocollimator at the customer’s site within the assigned time. We are a prominent Autocollimator Supplier in India.
