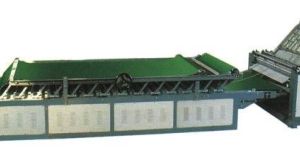

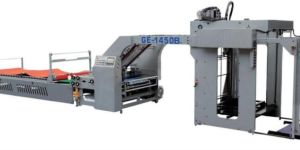

Automatic Flute Laminating Machine Dealers

• Max. Size of Cover Face: 1300 x 1100
• Economic Speed /min: 0 to 100

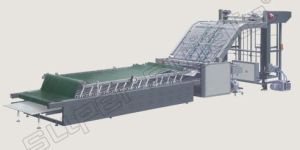

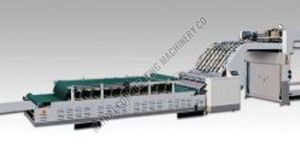

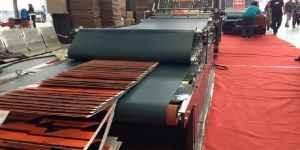

Fully Automatic Flute Lamination Machine Section auto feeding feed paper from top paper stacking position and bottom sheet feeding stacking position. New concept front guage location, position high accuracy, bottom sheet never pull ahead. Automatic glue rotation. One side adjustment of pressure rollers

• Frequency: 50 Hz
• Power: 64 KW
• Usage/Application: Industrial
• Maximum Size: 1100 x 900 mm
• Minimum Size: 350 x 350 mm
• Max Speed: 3600 Sheet/Hour
• Weight: 5500 Kg
• Length: 9.6 x 1.8 x 1.2 meter
• Model Name/Number: SCFL-C17
• Automation Grade: Semi- Automatic
• Brand: Super Cut
• Phase: Three Phase

Major feature: 1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient. 2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed. 3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead. 4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically. 5. Automatic gluing and the glue can be used circulatory, avoid glue waste. 6. Roller design scientifically, avoid glue fly out when the speed is high. 7. Pressure rollers adopt one side adjustment, convenient and fast. 8. Rocker controls wash roller's fluctuation, easy cleaning. 9. Counter designs scientifically, easy recording the amount you have been worked.

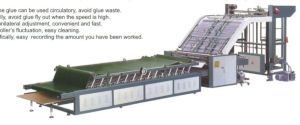

• Type: Automatic Feeder Type Flute Laminating Machine
• Application: Laminating Machinery
• Condition: New
• Automatic Grade: Fully Automatic
• Power: 9-12kw
• Driven Type: Electric
• Country of Origin: India
• Brand Name: Hari Industries
• Brand Name: Hari Packaging Machinery

The vacuum suction-type feeding system can lead the paper accurately into the machine, cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking. The machine operation is stable, surface paper with corrugated paper joint very Accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust. Machine uses touch-screen/PLC/servo motor control system, the circuit system is stable, and can automatically display the failure alarm. Automatic gluing, and the glue can be used circulatory, avoid glue waste. Roller design, and the glue can be used circulatory, avoid glue waste. Pressure rollers adopt unilateral adjustment, convenient and fast. Rocker controls wash roller’s fluctuation, easy cleaning. Counter designs scientifically, easy recording the amount you have been worked.

• Power: 15kw-25kw
• Driven Type: Electric
• Condition: New
• Use: Industrial

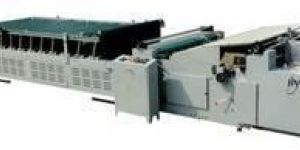

Advantages : Semi-Automatic Flute Laminator designed for high speed production for 03 Ply carton board with precision upto 1 mm and productivity of ~ 3000 Boxes/hour: Lamination Process - Top paper manual feeding and Servo motor driven flute Paper feeding. Glue Settings - Anilox Technology glue application roller for unique glue application. Pressing Zone - Semi-Auto Pressure setting for 03 ply board in pressing Zone. User friendly - Very easy to operate and use.

• Voltage: 420 V
• Power: 12 kW
• Country of Origin: Made in India
• Usage/Application: Paper Industry
• Speed: 6000 Sheet/hour
• Automation Grade: Automatic

• Condition: New
• Warranty: 1 year
• Type: Semi Automatic
• Features: Resistance against rust, Quality tested, Longer working life
• Power Source: Electric
• Usage: Industrial

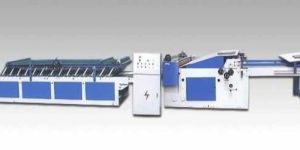

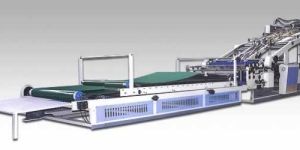

Main characteristics : BZJ-A series semiautomatic laminator , this machine adopt automatic supply the glue by photoelectric check. Main parts and pressure part all use the import speed control system. Work steady and low noise, electrical components use international famous brand, high reliably. Nearly no trouble. BZJ-A series semiautomatic laminator, this machine push paper part. Ensure the body paper never runs forward with upper paper, electro-optical tracking. Auto count, with the characteristics of high products and low consume, beautiful and easy operation, it is your ideal product.

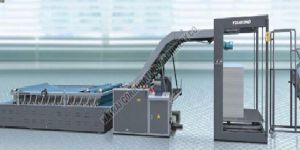

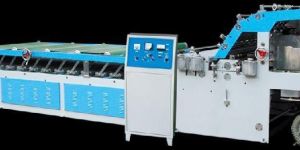

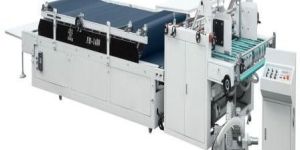

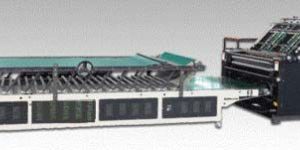

The company is a prominent Semi Automatic Flute Laminating Machine Exporter, Importer, and Supplier in India. TMB-C Series Semi Automatic Flute Laminating Machine uses vacuum-sucking paper conveying type for the bottom paper and top paper is fed manually by hand while the operator is standing at the side of the machine. This type of design of our Semi Automatic Flute Laminating Machine is labor effective with low purchasing and production cost, easy to operate and maintenance. Description The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production costBalance-tested rollers, tight assembling technique makes the machine runs quite stableThe machine adopts automatic glue supply and recyclable glue circulating systemTop or bottom sheet detectors are installed on the machine and the machines will automatically stop while shortage of sheets-either top or bottom one is detected. The electric parts used are all worldwide available brand or well-known Chinese brandAll material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported onesThe bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 150-600 GSM with top paper advance or alignment functionCE certificate availableGluing even : 30-50gsm. Quite cost effective for your production

General features 1. This semi-auto laminator uses is the body paper attracts the floating type to deliver the paper, the surface paper delivers the paper artificially, the ease of operation, the transportation is accurate. The body paper dough making paper uses the photoelectric control, before the special, gauge localization, the localization is accurate, before the body paper does not surpass. 2. This machine press fits uses hangs aerosol press fits. Causes in the cardboard movement the stress to be even, the transportation is steady, production cardboard smooth artistic, the compression shell may the shuttle, suit many kinds of specifications the cardboard productions. 3. The entire machine major component uses the domestic and foreign well-known factories the original installation product, the life is long, the stability is good.

Automatic flute lamination machine can give fast better result with high quality of boards of duplex boxes and kraft boxes wiyh high speed production capacity.

The company stands tall among the reliable Manufacturers, Exporters and Suppliers of Semi Automatic Flute Laminating Machine. The Laminating Machines we make available are accredited for their long functional life, reliable performance and easy maintenance. Courtesy our brilliant logistics network, we are capable of delivering bulk orders of the machines within the stipulated timeframe.   Main Chracteristics : Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam. Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional). Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet. Bottom sheet can be paperboard more than 350gsm,A/B/C/D/E/F corrugated cardboard. Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.  Using hight-precision plastic block device,sace glue.

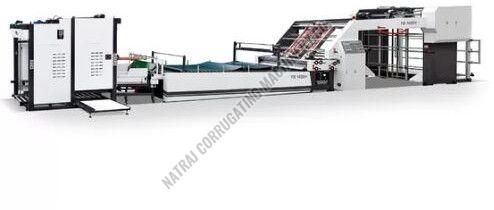

Automatic Flute Laminator designed for Mass production for 03 Ply carton board where offset printing paper is used with precision up to 1 mm and productivity of ~ 5000 Boxes/hour: Auto Feeding: Auto feeder for top paper and Servo motor driven flute Paper feeding. Order Feeding: PLC Touch screen for feeding in the size and the tolerance is 1 mm. Glue Settings: Anilox Technology glue application roller for unique glue application. Auto Pressing Zone: Auto Pressure setting for 03 ply board in pressing Zone. User friendly: Very easy to operate and use.

Bottom Paper Vacuum Feeding/ Manual Feeding Electric Control Positioning of Bottom Paper Panel Flexible Positioning of the Front Facet Automatic and Recyclable Glue Application System High Speed (50-80 Metre/min) Custom made as per required Corrugated Paperboard or Sheet size.

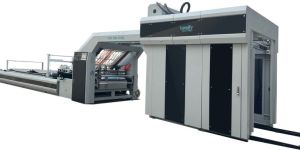

MACHINE IS EQUIPPED WITH AUTOMATIC FEEDING OF TOP & BOTTOM PAPER AT HIGH SPEED WITH HIGH PRECISION & BETTER FINISHING. FRONT LAY REGISTRATION DESIGN COMPLIANT. DOUBLE SERVO MOTORS TO CONTROL BOTTOM SHEETS TO GET THE FRONT LAY IN TIME & WITH ACCURACY.   Appropriate paper: Top sheet 200-450g, Bottom sheet +250g A/B/C/E/F flutes Speed: 5500-6000 sheets / hour Sizes from 1300*1100 to 1600*1400mm. Power requirement: 12kw.   ALSO WITH PLC CONTROL SYSTEM [OPTIONAL]

• Type: 1300
• Max. cove: 1300mmx1100mm
• Min. cove: 350mmx350mm
• Machiner: 0-90m/min
• Electric M: 7kw
• Area: 8mx1.98mm
• Packing size: 1.97mx2.0mx1.0mx   4.58mx1.98mx1.52m
• Weight: 4.5T

Automatic feeding bottom paper, front pushing face paper, it has easy shortcut for feeding paper, lower work intensity. Front orientation bottom paper never leading, suit jointing of paperboard to paperboard, paperboard toA, B, C, D, E style corrugating cardboard. Jointing of bottom paper to face paper can fore-and-aft adjustment, easy opposite joint. Feeding glue system are automatic control by liquid relay, thickness of sub o adjust equality glue, lower glue cost. Electric machine adopt non polar shift, electromagnetism clutch adopt without touch point relay, journey position adopt photo electricity switch detect, electron automatic count and empty sheet photo electricity automatic control.   Technical Specifications

• Type: Automatic Flute Laminating Machine
• Certification: CE Certified
• Application: Laminating Machinery
• Weight: 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg
• Color: Black, Brown, Grey, LIght White, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric, Pneumatic
• Warranty: 1 Year, 2 Years

Performance: 1. Unique front lay with intelligent control system, ensuring accurate registration of laminating. 2. Imported electric components with high quality and almost trouble-free. the machine adopts frequency converter for speed regulating, PLC control and analog-to-digital conversion to guarantee the running precision. 3. A pre-feeding device is provided to feeder, cutting time of stopping machine and improving production efficiency. 4. Suction belts for bottom sheet feeding ensure smooth and continuous delivering. 5. Main motor and feeder adopt double frequency converter for speed regulating and centralized control, which enables sychron lamination. 6. Integrating mechanical and electrical with air, the machine is convenient to operate and adjust. Parameters: Model: CM1300 Max. Size(W×L): 1300×1300mm Min. size(W×L): 420×420mm Suitable paper: Top sheet 200-600gsm, Card Bottom+250gsm, ABCDEF Flute Max.Speed: 100s/min Total power: 15kw Overall dimensions: 14000×2300×2700mm

SPECIFICATIONS Tumup bridge plate is convenient for cleaning, discontinuos wate-circulating system ensures washing cleam. Automatic feeding for bottom sheet manual feeding fortop sheet (feeding from side for top sheet is optional) manual feeding fortop sheet (feeding from side for top sheet is optional) Flexible font register, bottom sheet is not exceeding the top sheet and itis adjustable for the front and rear lamination between bottom sheet and top sheet. Bottom sheet can be paperboard more than 350 gsm, A/B/C/D/E/F corrugated cardboard. Lnedilligent control and compacted energysaving and controlling play from the stack of paper Using height-precision plastic block device sace glue

Suitable for Offset printed board to 2 ply 4 ply pasting. High performance work horse Capable of around the clock productivity. More than 100 installations across India. Several multiple machine users Can also be put to use for board to board pasting..

The company is a prominent Supplier, Exporter and Importer of Semi Automatic Flute Laminating Machine. The range of Semi Automatic Flute Laminating Machine made available by us is designed as per the requirements of various industrial applications. We make Semi Automatic Flute Laminating Machine available at the best prices in the market. This range of Semi Automatic Flute Laminating Machine is dimensionally accurate and appreciated for its sturdy construction.

• Max. Size: 1300×1100mm
• Min. Size: 350×350mm
• Laminate Precision: =+-1.5mm
• Speed: 100m/min
• Total Power: 12Kw
• Length: 12.5×2.15×2.6M
• Total Weight: 6.8T

Functions and features this machine is the fourth product of kick-feeding model automatic flute laminator. main electrical appliance and computer control part are adopt imported brand mode in japan and germany. adopted liquid level control system automatic supply glue and equipped with glue recycling system, the glued quantity can depend on the different requirement of paper adjust and make the glue and coat on the paper. used in printing and packing industry to paste the corrugated paper when the machine is running in the high speed to work normally with a,b,c,d,e,f,n flute. .

Automatic feeding bottom paper, frontage pushing face paper, feeding paper fast and lower work intensity. Localization bottom never go beyond, suitable for laminating the paperboard together and for laminating the 2.paperboard with the A/B/C/D/E corrugated cardboard together. 3.Bottom paper and face paper can fore-and-art adjustment, easy to laminate together. 4.Feeding glue system are automatically controlled by liquid relay, thickness of glue can adjust. Gluing uniformity, lower glue cost. 5.Control panel, electromagnetism clutch without touch point relay, position is monitored by photoelectric switch, digital automatic counter. 6.High precision laminate, the finished products are of smooth surface edge and of high intensity. Whole structure is compact, with beautiful appearances and high work efficiency.
