Barometers Dealers

• Fortin's Barometer: Table Top

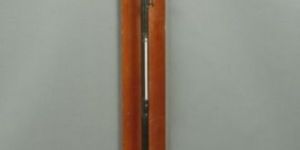

Fortin's Barometer Phy:004  A superior standard mercury barometer suitable for altitudes upto 600 meters. The barometer has a nominal bore of 7mm. graduated scales covering 675 to 810mm.Hg and 26 to 32 inch Hg. The scale of are screw fastened to metal frame at the top of the tube. A vernier reading 0.05mm Hg. and 0.002 inch Hg. provided with an adjustable knob is mounted between the two scales. The reservour has a standard type of adjustment screw and index, and the barometer fitted with - 10 to 50 deg. C thermometer mounted on a polished base.

• size: 100 mm

Barometer Aneroid Demonstration 100 mm dial graduated from 28" to 31" and 940 to 1040 millibars, with an index pointer, demonstration type, in transparent plastic case with pressure pump. For educational demonstration purpose only.

• Country of Origin: India
• Application: Laboratory
• Weight: 100-200gm
• Feature: Accuracy, Durable, Light Weight
• Warranty: 1Year
• Standard Range: Analog

A glass tube of 6mm bore is enclosed in an enameled and lacquered brass case, mounted on a polished wooden board with plates for fixing on wall. Open plate reflectors, ring and screws for vertical adjustments. A dual scale graduated in 25 to 32 inches and 640 to 810mm is read by verniers moving by rack and pinion, reading to 0.002 inch and 0.1mm are enclosed in a glass cylinder. A glass cistern at the lower end of barometer is provided with an ivory point to adjust the level of mercury. A thermometer -10 to 50° C is provided on the wooden board. Supplied without mercury and glass case.

• Features: Easy reading, With built in light for readings at night hours, Venire operating with rack and pinion .
• Item Code: SMT-FBM
• USE: used for the measurement of mercury level

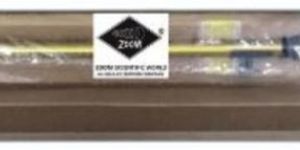

We offer Fortin’s Barometer. For meteorological purposes and whenever the highest accuracy and reliability are required, the atmospheric pressure is measured by the Mercury Barometer. This type of barometer consists of a glass tube filled with mercury under a vacuum and immersed in a mercury cistern; the length of the mercury column is measured against an external metallic tube, graduated in units of pressure. The instrument is fully mechanical and operates independently from any power supply. The Fortin type is particularly designed for land stations.

• Standard Range: 580 to 780 mm Hg.

Barometer to measure atmospheric pressure which is obtain to require in laboratory experiment and more accurate measurment of barometric height.

  For school/college laboratories. Nominal 6 mm bore glass tube. With engine divided dual scales 675 to 820 x 1 mm Hg and 26.5 to 32.5 x 0.05 inch Hg. Verniers reading 0.05 mm and 0.002 inch. Mounted on polished wooden board for wall mounting. Supplied without mercury but with instructions for filling.

We are offering fortin barometer of very high quality supplied without mercury.

• Name: Barometer Aneroid Demonstration

GOOD

• Feature: Precise and accurate,Durable,Cost effective
• Brand Name: TD
• Product Name: Demonstration Aneroid Barometer
• Use: Used to note variations of atmospheric pressure.
• Diameter: 100mm
• Place Of Origin: Ambala Haryana
• Condition: Good

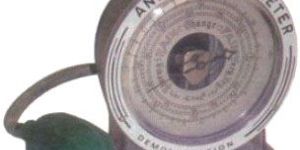

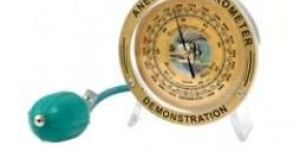

100mm dia dial with movement encased in a transparent acrylic case suitable for full view of the movement allows the action to be demonstrated with the help of a rubber bellow. Complete with bellow.

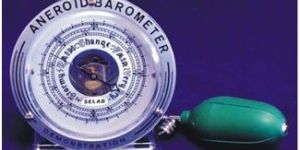

Product Description  Demonstration Aneroid Barometer A circular 10cm dial is graduated. Also marked in inches and mm of mercury. With rubber compression bulb and tubing connection for varying the air pressure arbitrarily to show the effect of increasing or decreasing pressure. Graduated from 960 to1060mbar ´ 1mbar.

100 mm dial graduated from 28" to 31" and 940 to 1040 millibars, with an index pointer, demonstration type, in transparent plastic case with pressure pump. For educational demonstration purpose only.
