Viton Bellow Mechanical Seal
2,000 Per Piece
1 Piece (MOQ)
Mechanical Seals
Get Price Quote
we are the manufacturer & who seal supplier or mechanical seals products in all type.we supplier these qualitative product in all over India & export market competitive praise
Best Deals from Bellow Seal
SRB 20 Rubber Bellow Seal
Get Price Quote
1 Piece (MOQ)
Rubber Bellow Seal SRB 20 Series is a single coil spring rubber bellow seal used for Water and Oil Containing Soft Slurry Applications. This seal is mainly used in waste water treatment plants for sewage application. Seal has self aligning feature which compensates abnormal shaft end play and run out, which leads to improved service life. Elastomeric bellow protects shaft and sleeve from fretting. Seal Components/Face : Carbon / Ceramic Carbon / Silicon Carbide Silicon Carbide / Silicon Carbide Secondary Seal : Nitrile, Viton Metal Parts: SS 304, SS 316 Seal Characteristics : Single Acting Unbalanced Single Helical Coil Spring Independent of Direction of Rotation Torque Transmission by Spring Holder
Metal Bellow Seals
9,400 - 51,000 Per Unit
5 Piece (MOQ)

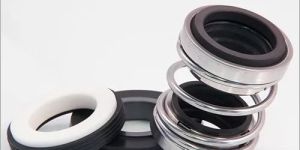

Rubber Bellow Mechanical Seal
850 Per Piece
50 Piece (MOQ)
The offered Rubber Bellow Mechanical Seal is manufactured with the use of premium quality raw materials and cutting-edge technology. Available in different diameters, this seal is used for the prevention of fluid loss in hydraulic systems and machines. Our offered seal is examined on different measures of quality to assure their flawlessness. We put forward this Rubber Bellow Mechanical Seal at highly competitive prices for the clients.
Teflon Bellow Seal
9,000 - 15,000 Per Set
1 SET (MOQ)
We offer Teflon Bellow Seal. The most versatile range of seals for handling acids. It is unrivalled in its ability to withstand corrosive fluids and is highly resistant to oxidising and reducing agents. That's because it is made out of chemically inert materials like PTFE, GFT, Ceramic, Carbon, Silicon Carbide, Hastelloy 'C' which come in contact with the acids during the operation and perform reliably under all, even extreme corrosive conditions. Salient Features The hydraulically balanced and flexible bellow accomodates shaft run-out and seal hang-up. These seals are also compactly designed for easy installation and virtually nil maintenance. The multiple springs with bellow provide uniform pressure all over the seal face to ensure effective sealing.
E1100 Rubber Bellow Seal
1,500 - 3,000 Per Unit
5 Unit (MOQ)
Designed for demanding applications, the Type 1100 mechanical seal is a compact, unitized, single-spring elastomer bellows seal that offers maximum durability and performance. Details: Cost-effective seal common to many process pumps Bellows design helps compensate for face wear Bi-directional Multiple face and elastomer choices
Metal Bellow Seals
250 Per Piece
51 Piece (MOQ)
Rubber Bellow Unbalanced Seal
3,500 Per Piece
10 Piece (MOQ)
Teflon Bellow Seal
Get Price Quote
The company is the known teflon bellow seals manufacturer, exporter and supplier in india. Our teflon bellow seals are suitable for applications that include highly corrosive chemicals like acid, salt, alkalis etc present. The teflon bellow seals, offered by us, are known for their attributes, like highly balanced, chemically resistant, corrosion resistant, etc. description : teflon bellow seals are mounted outside and to prevent corrosion, when these encounter fluid, their components are prepared with chemically inert material like ptfe, ceramic, silicon carbide. The hardware is made with haste-alloy-c, alloy-20 etc. applications : fertilizerspesticidepharmaceuticalschemical processingwhere special and heavy-duty seals are required
Metal Bellow Cartridge Seals
Get Price Quote
Ptfe Teflon Bellow Mechanical Seal
100 - 1,000 Per Piece
1 Piece (MOQ)
Mechanical Seals
Get Price Quote
10 Piece (MOQ)
Teflon Bellow Seals
9,000 Per
1 Piece (MOQ)
ME-31 Rubber Bellow Seal
500 - 5,000 Per Piece
1 Piece (MOQ)
Mechanical Seals
Get Price Quote
Our range of seals includes the following version : - * Rubber Bellow Seals for water application. * Single Spring and Multiple-spring Mechanical seal with various Face combination like carbon, Silicon Carbide, Tungsten Carbide, Ceramic Stellite Ni-Resist etc. * Teflon Bellow Seals for acid applications. * Cartridge Seals for pumps, Reactions vessels, Agitators and Mixers.
Rubber Bellow Mechanical Seal
1,000 - 5,000 Per Piece
1 Piece (MOQ)

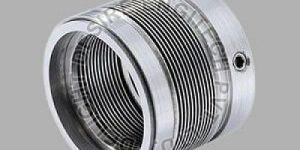

Metal Bellow Mechanical Seal
6,000 Per Piece
10 Piece (MOQ)
Metal Bellow our DM91 & DM96 Group is widely used in Refinery, High temperature and highly Corrosive media, Petrochemical, Industrial Application, Chemical, Thermic Fluid, etc. . .
PS213 Elastomer Bellows Seals
Get Price Quote
10 Piece (MOQ)
Materials Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1) Seat: Silicon carbide (eSic-Q7,Q1) Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4) Metal parts: CrNiMo steel (G), Hastelloy® (M) Recommended Applications Fresh water supply Building services engineering Waste water technology Food technology Sugar production Pulp and paper industry Oil industry Petrochemical industry Chemical industry Water, waste water, slurries (up to 5 % by weight) Pulp (up to 4 % otro) Latex Dairies, beverages Sulfide slurries Chemicals Oils Chemical standard pumps Helical screw pumps Stock pumps Circulating pumps Submersible pumps Water and waste water pumps
Rubber Bellow Seal
550 - 1,250 Per Piece
1 Piece (MOQ)
Rubber Bellow Mechanical Seal
1,000 - 1,500 Per Piece
Metal Bellow Seals
6,000 Per Set
1 Set (MOQ)
PTFE Bellow Seals
5,000 Per Set
1 Set(s) (MOQ)
Series Meqe202 & Meqe203 Are External Mounted Seal Designed For Extremely Corrosive Application Such As Acids, Salts, Organic Compounds And Reducing Agents. All Materials Coming In Contact With The Liquid Are Made Of Chemically Inert Material. Metallic Components Are Isolated From The Liquid.Series Meqe202 : Seal Faces Not Replaceable. Glass Field Ptfe Face Is Composite Molded With Flexible Ptfe Bellow. Series Meqe203 : Seal Faces Are Replaceable And Can Be Supplied With Hard Materials Suitable For Abrasive Services.Seal Characteristics Single Seal Independent On Direction Of Rotation Outside Mounted Applications Extremely Corrosive Application
Metal Bellow Balanced Seal with Grafoil Packing
5,000 - 20,000 Per piece
10 Piece (MOQ)
Mechanical Seals
Get Price Quote
Mechanical Seals of the HBM1 are accord with the standard of DIN24960, single face, balanced and metal bellows seal, which can be rotated at will, the rotating O ring and flexible carbon ring without compensation function, then the movement of bellow without resistance, to be suitable for high temperature, high viscosity mediums. Sub-materials of friction and auxiliary materials should be selected according to operation condition. Our Mechanical Seals can be obtained at economical prices. Applications Steel industry Mining Petrochemical industry Refining Fertilizer industry
Single Spring Bellow Type Seal (LIE/705)
Get Price Quote
Single Spring Bellow Type Seal (LIE/705): It is elastomer bellow seal has been designed for general sealing purpose which included easy installation of seal. Rubber bellow provides a high degree of axial flexibility to compensate for lack of concentricity of the shaft and misalignment and wear due to thrust movement of the shaft. the seal can be use regardless of direction of rotation since the driving torque is not transmitted through the coil spring. The required driving torque is enhanced through the unique rubber bellow which fits on the shaft through the interference fit between the collar, rubber bellow and shaft. It is used for oil pumps, hot and cold water pumps, refrigeration compressors, fuel injection pumps, cooling tower pumps Etc.
Rubber Bellow Unbalanced Seal
1,100 - 2,000 Per Piece
10 Piece (MOQ)
Metal Bellow Seals
8,000 - 16,000 Per piece
5 Piece (MOQ)
METAL BELLOW SEALS Metal bellow Seal is inherently balanced mechanical seal. These seals are independent of direction of rotation. The unique feature of this type of seal is that there are no dynamic 'O' rings and therefore it will never hang-up or damage the shaft and sleeve. It can handle corrosive as well as abrasive & viscous media. These seals have self-cleaning & no clogging construction. With selection of special bellow material it can be used in highly corrosive media. Industrial Application:: Chemical, Power Plant, Refinery, Petrochemicals, Pharmaceuticals. Face Materials: Tungsten Carbide, Carbon, Silicon Carbide. Metal Component: S.S 304, S.S 316, Hastelloy C, AM350. Secondary Seal: Grafoil, Aflas, Kalrez, PTFE. Operating Limits: Pressure : 25 bar Temperature : -40˚C to 220˚C Speed : 20 m/s
Metal Bellow Seal With Grafoil Packing
Get Price Quote
100 Piece (MOQ)
M.O.C of Secondary Seal According to Fluid & Temp. Various Hard & Soft Faces As Per Liquid. *Also Available Seal A) Metal Below Seal With ‘O’Ring B) Metal Below Seal With Grafoil Packing (Sleeve Type) C) Metal Below Seal With Grafoil Packing (Below as Stationery)
Metal Bellow Seal
Get Price Quote
10 Piece(s) (MOQ)
