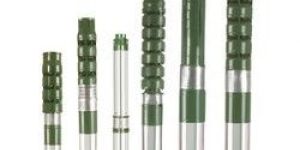

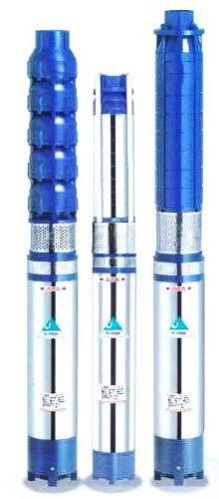

Borewell Pump Set Dealers

In order to meet urgent and voluminous requirements of the customers, we have installed all the in-house facility at our premises. Laced with modern facilities, it helps us in securing the product line from factors like, moisture, dust, sunlight, etc. We are capable of delivering the orders on time and at any desired Karnal(India) as we are supported by up-to-the-minute facilities.   Details Product Code : BSP 17 Brand Name : SINGLA Applications: Domestic and municipal water supply Rural water supply Irrigation Sprinkler System Pressure boosting units and fire fighting system Industrial and mining application Fountains Ponds and Gardens Salient Features: More longevity High Operating efficiency Easy to dismantle and repair Rigid construction Highly durable NEMA mounting available on request Pumped Liquids:Clean, thin non-aggressive, nonexplosive, clear, cold, fresh water without abrasives.

• Discharge Range: 25 - 80 lpm
• Power Range: 0.5 HP - 1.5 HP
• Version: 220-240V, 50 Hz, A.C.
• Method of Starting: Capacitor start and capacitor run (CSCR) in water filled Capacitor start and run (CSR) in oil filled
• Speed: 2880 rpm.
• Head Range: 12 - 83 mtr.
• Outlet size: 25 & 32 mm
• Degree of Protection: IP 68
• Maximum Outer diameter: 76 mm.
• Duty: S1 (Continuous)
• Mounting Standard: NEMA / Key way

• diameter: 98 mm

Manufactured by stainless steel fabricated technology, pumps are energy efficient and cost efficient, light weight easy for handling, life longevity, corrosion free. Pump shaft using Duplex steel for high wear resistance. Fully fabricated S.S.-304 pump set is with quality level as per international standard and the same quality is supply in domestic market. OSWAL submersible pumps & motors are well known for its quality, Reliability & excellence for all type of service purpose. OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts.

We are the leading manufacturers, exporters and supplier of this products.

Fret not! We are flexible enough in delivering the products safely and this is done using the exceptional packaging material. We keep in mind the packaging guidelines to make sure that the products are safe from external destructive factors. We have online payment processing system to avoid security issues. In order to make it more reliable, we have maintained payment logs accessible for the convenience of our customers.

Domestic use, Irrigation of farms, Agriculture use, Submerged pump in Fountains, Wells, Sumps and Water tanks.High quality Electrical grade Stamping used as Motor Core.

• Type: Borewell
• Certification: CE Certified
• Application: Industrial
• Theory: Centrifugal Pump
• Pressure: High Pressure
• Warranty: 1 Year

Compact structure, small volume, beautiful outlook. The lower barycenter of the vertical structure which coincides with the center of the pump feet strengthens the stability of running and the duration. Easy to mount. Because of the same apertures of both inlet and outlet which also locate on the same central line, the pump can be directly mounted on any part of the pipeline just as a valve. The motor is covered with a rainproof cap so that operation can be done outdoors. Mounting feet are equipped with the pump so that it can be stably mounted. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump, extending the duration and ensuring the operation place clean and tidy. Easy to maintain. Not necessary to remove the pipeline for check-out and maintenance, only to take out the nuts on the pump lid, the motor and the driving components. The pump, according to the operation condition of the worksite, may be vertically, horizontally etc. multiways mounted and also according to the requirements for the flow and stroke, mounted in parallel andor in series to increase the needed flow and stroke.

• Power: 150mm = 2.2 kW – 15 kW (3 HP to 20 HP)
• Application: Mining applications
• Place of Origin: India

Motor 1. Totally enclosed, water filled, squirrel cage, 2 pole (3000 rpm syn speed). 2. Three piece construction with centre s.s - ease in rewinding and longer life 3. Special water resistant pvc insulated copper wire 4. Specially designed thrust bearing - lower power consumption 5. Epoxy coating treatment to all ferrous parts of the motor - rust prevention & longer life 6. Specially designed water filled and water lubricated motor 7. Sand fighter seals to avoid sand entry 8. Dynamically balanced rotor - vibration free, longer life and better efficiency 9. Energy efficient - saves power and electricity usage pump 1. Multi stage centrifugal pump with radial mix flow type impeller design 2. Suitable for normal sandy water application 3. Dynamically balanced impellers with pump shaft - better efficiency & performance 4. Non return valve fitted to discharge outlet to prevent backflow 5. Stainless steel pump shaft - rust prevention and longer life 6. S s impellers - better efficiency and longer life

• Features: Light weight and compact , Consumes low electricity and Robust structure

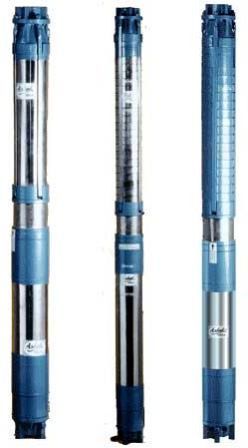

We are known in the industry for providing quality approved and highly reliable Borewell Submersible Pump Set to the customers. The Borewell Submersible Pump Set is highly demanded by customers for its hassle free performance and reliable operations. We test this machine at many levels for its quality assurance.

We are instrumental in offering our esteemed clients a wide range of efficient Borewell Submersible Pump Sets. Our Borewell Submersible Pump Sets have a number of applications and offer unmatched performance. These Borewell Submersible Pump Sets have striking features which makes it easy to use and maintain them. Our Borewell Submersible Pump Sets can be obtained at reasonable prices. Applications General : Ideal use for Domestic and Community water supply High rise buildings, Housing complexes, Bunglows, etc.Industrial : Where small water discharge required at high pressure, like Dairy industries or low pressure high discharge in industries, Cooling water circulating systems, Air conditioning installations, Fountains, Mining industries, etc.Irrigation : Drip, Sprinkler and Open irrigation, Gardening, Seed farms, Nurseries, etc. Specialty Trouble free reliable operationS.S. and high grade engineering plastic components resist corrosion and abrasionHigh operating efficiencyCan handle up thrust loadsPrecise parts for longer lifeEasily dismantled and repairedWater cooledWater lubricated wet type motorSimple constructionDesigned for wide voltage fluctuations Operating Limits and Specifications Nominal Diameter96 mm. (4")Power Range0.37 kw to 1.5 kw, Single phase0.75 kw to 3.7 kw, Three phaseSpeed2800 RPMFlow Rate (LPS)0.25 - 4.5Total Head Range250 mtrs.Nominal Outlet sizes25 mm. (1"), 32 mm. (1.25"), 40 mm.(1.5"), and 50 mm. (2").Version50 Hz., 200 - 240 V A.C., Single phase50 Hz., 380 - 415 V A.C., Three phaseMaximum Outer Diameter96 mm.Type of DutyS1 (continuous)Maximum Starts per Hour6 timesMethod of StartingCapacitor Start and Capacitor Run (CSCR), Permanent Split Capacitor (CSR) for Single phase and Direct On Line (DOL), for Three phaseCable ConnectionPermanently connected and sealed PVC insulated 3 core flat cable. Materials of Construction( Pump ) Discharge HeadClosed Graded Cast IronCheck ValueNitrile Rubber BallDiffuser ShellS.S. 304 / 410ImpellerPolycarbonate glass filledDiffuserPolycarbonate glass filledSuction Inter-connectorClosed Grain Graded Cast IronInlet ScreenS.S.Pump ShaftS.S. 410 / 431Cable GuardS.S. 410CouplingS.S. 410 Materials of Construction( Motor ) Upper and Lower HousingsClosed Grain Graded Cast IronStator ShellStainless Steel / M.S.ShaftS.S. 410Journal BushLeaded Bronze (LTB - 4)Thrust AssemblyG.M. and Fibre / S.S. and Teflon / S.S. and Carbon Warranty All products carry a 12 month's warranty from the date of purchase against manufacturing defectsBefore comissioning of pumpset, please go through and follow up the instructions of our Operator's Instructions Manual Book carefully Note : In view of continuous developments, the informations / descriptions / specifications / illustrations given are subject to change without notice.

SALIENT FEATURES Low noise operation and low maintenance Better efficiency by high discharge and low power consumption Good resistance against sand and silt Light weight and compact design Built-in NRV valve for protection against sand and water hammering Available in NEMA standard SS splined shaft construction Clean and spatter –proof Impeller Blade weld assembly provides smooth flow of fluid

6" submersible pumps, but that is just a small part of the complete wide range of submersible pumps available to our professional dealer. Flotech Engineering. Flotech has a wide range of 6" borehole submersible pumps that suit various kinds of user requirements. Flotech's 6" Borehole submersible pumps suitable for 6" or larger boreholes. Superior hydraulic design of impeller and diffuser make these pumps are most efficient. Utilization of top class material allow pumps to be reliable, long lasting and increases ites wear resistance towards sand. State of the art manufacturing process ensures optimum and consistent, quality of these... Click to read full details about V6 Submersible Pumps by Flotech Pumps

• Power: Electric
• Application: Rural water supply
• Theory: Jet Pump
• Fuel: Diesel
• Place of Origin: Haryana, India
• Usage: Water
• Brand Name: FARMBURG AGRO
• Port: icd tkd delhi
• Packaging Details: as customer requirement

• Range: 60 M3/Hour

Submersible Borewell pumps are suitable for open wells. Pioneered with advanced engineering practices and state of the art manufacturing process, Falcon FCH series pumps are best in their class. Unmatched design and top class performance sets them apart while low maintenance issues and energy efficiency add on to their list of capabilities.

• Country of Origin: Made in India
• Brand: Lubi
• Material: SS
• Flow Range: 4.7 m3/h
• Head Range: 85 m
• Power Rating: 0.75 - 1.10 kW
• Speed: 2900 RPM

Motor Designed for wide voltage fluctuation Water lubricated bearings Smooth and noiseless operation Light weight and easy to install Stainless steel Motor body and shaft Can be easily dismantled & repaired Dynamically balanced rotating part like rotor and impeller ensures long life Highly durable water cooled rewindable motor Low frictions Carbon Thrust Bearings

• Specifications: V7
• Series: OSP 70 & 90
• Power Range: 3.0 -5O HP in 3 phase
• Version: 350-440V - A.C 50 Hz —3 Phase
• Method of stariing: DOL/Star Delta in 3 Phase
• Speed: 2880 rpm
• Discharge Range lpm: 1100-1400
• Head Ran  e in meters   : 10-100
• Outlet size: 100 mm
• Degree of Protection: IP 68
• Max outer diameter: 157 mm
• Duty: S1
• Standard as per: NEMA
• Material of Construction: NRV Hauslng
• Stainless Steel: Valve Sheet
• NBR + 55-304: Impeller
• Stainless Steel: Diffuser
• Stainless Steel: Pump  Shaft
• Stainless Steel: Suction inter Connector
• Stainless Steel: Coupling
• Stainless Steel:
