Bow Spring Centralizer Dealers

• Shape: Round
• Thickness: 0-5mm
• Feature: Light Weight, Non Breakable
• Condition: New
• Sizes: 2 7/8" to 30". Any special sizes or combination can available on request.
• Surface Finished: Polished
• Usage: Industrial

• Brand Name: Wellcare
• Size: 4.5"-20"
• Condition: New
• Customization: New

Centralizers with turbo-fins attached to each bow spring called asTurbolizer are designed to create localized turbulent fluid flow at the point of instalation. The turbofins divert the fluid flow to more evenly distributing the cement around the casing. All welded and nonwelded bowspring centralizers are available in the most common hole/casing sizes. Available in the size range from 4 1/2 ” up to  20”,   this  sturdy device induces a spiral  flow pattern in the slurry thereby increasing displacement efficiency.  Fitted   with specially designed   multidirection turbo fins, made of alloy steel in annealed state. This device improves the cleaning action of drilling fluids, distributes  the cement slurry into wellbore irregularities and minimizes channeling.

• Type: Bow Spring Centralizer
• Shape: Round
• Application: Casing Pipe, Downhole
• Feature: Flexible, Non Breakable
• Condition: New
• Country of Origin: India

Used in vertical, deviated and horizontal wells Flexible and High restoring force Developed to have good stand-off Available in 4-1/2″ to 20 ” sizes. Any special sizes or combination can be made available on request.

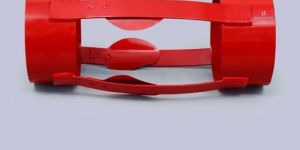

Turbolizer Bow Spring Centralizers can be used in wells which help in generating turbulence in Cementing slurry during pumping operations. The turbo fins are specially made of high tensile steel In this construction the bows of the Centralizers are welded onto the End Collars thus making it a Hinged Turbolizer along with a Welded Construction. Using a Tubolizer Bow Spring Centralizer is a smart option over a regular bow spring centralizer which most operators prefer for better centralizers and greater cement bond. The Bows of these Centralizers are heat treated in special furnace which gives it a peculiar ‘bow spring’ action. The Heat Treated bows enables these centralizer to provide best centralization as well as help in faster running of casing. The steel of these bows is a "special" made by combination or different metals to provide one of the best tensile strength as well as the "spring back" bow spring action. In this type of Centralizers the End Collars have hinges which makes it in two halves. This enables them to be assembled at site.  The bows are locked to the End Collars via a special locking mechanism. These centralizers can be shipped in half thus reducing the freight cost.

We are offering hinged non weld bow spring centralizer. Crimson offers a complete range of non weld bow spring centralizers which are designed and manufactured as per api spec 10d. Non weld bow centralizers are used to position the casing in the centre of the wellbore in vertical, deviated as well as horizontal wells. the non weld bow centralizers combine the highest non weld centralizer restoring force with the lowest starting force. High quality bows made of special alloy steel with uniform hardness provide optimum performance. The bows with extended profile prevent them from hitting against casing collars. The bows are available in a range to accommodate any well profile. Hinge locking pins are of high strength steel for maximum structural robustness . bows are then flattened several times on a special machine to get permanent setting. Bows can be configured for any hole size from choice of five standard bow heights for optimum starting and restoring forces. non weld design features self-locking of lips for holding bows to end collars . Centralizers undergo a special process of rust prevention before powder coating. the non weld bow spring centralizers are available in sizes 4½" to 24". recommended for use with all standard casing grades.

Stammford’s Non Welded Bow Spring Centralizers are made under state of art Engineering Techniques and rugged quality system. They are developed to exceed API 10D specification for used under most demanding condition. These Centralizers are designed for High Restoring Force and Low Starting & Running Force for centralizing the casing pipe in Vertical, Horizontal and Deviated well.Premium quality Bows are made of special Double Rolled Alloy Steel and hot formed in totally controlled Heat Treatment Plant to achieve the uniform hardness all over and good spring action. End Collars are designed with self-locking action, which are easy to assemble, time saver and having strong grip. The five standard sizes Bows can configure to any hole dia. These Bows with extended profile prevent them from hitting against casing collars. These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust and then coated with special Polyester Powder.These can be shipped in half assembled condition for economical in shipping and storage costs. These are available in 4 1/2" to 20 " sizes. Any special sizes or combination can be made available on request.

Hinged Non-Weld Bow Spring Centralizer Designed for high restoring force combined with low starting force for centralizing the casing pipe in vertical, deviated and horizontal wells. High performance characteristics are combined with easy field assembly Bow springs are of high quality alloy steel, hot bent to shape using dies and then heat treated under controlled temp time cycles for consistent spring characteristics. Collars are of widened design for greater frame strength and to prevent bows hitting casing. Integral hinges are designed to wrap to the inside and are with eight sections and seven shear points for minimum disorientation even under severe stress. Hinge locking pins are of high strength steel for maximum structural strength. Bows can be configured for any hole dia from choice of five standard bow heights for optimum starting and restoring forces. Compatibility of the bows with various end collar sizes reduces inventory requirements and provides tremendous flexibility of casing and hole size combinations. . They are available in 2 78” to 20 ” sizes. Any special sizes or combination can available on request.

SledgeHammer's Non Welded Bow Spring Centralizers are made under state of art Engineering Techniques and rugged quality system. They are developed to exceed API 10D specification for used under most demanding condition. These Centralizers are designed for High Restoring Force and Low Starting & Running Force for centralizing the casing pipe in Vertical, Horizontal and Deviated well.Premium quality Bows are made of special Double Rolled Alloy Steel and hot formed in totally controlled Heat Treatment Plant to achieve the uniform hardness all over and good spring action. End Collars are designed with self-locking action, which are easy to assemble, time saver and having strong grip. The five standard sizes Bows can configure to any hole dia. These Bows with extended profile prevent them from hitting against casing collars. These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust and then coated with special Polyester Powder.

sledgehammer's non welded bow spring centralizers are made under state of art engineering techniques and rugged quality system. They are developed to exceed api 10d specification for used under most demanding condition. These centralizers are designed for high restoring force and low starting & running force for centralizing the casing pipe in vertical, horizontal and deviated well.     premium quality bows are made of special double rolled alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over and good spring action. End collars are designed with self-locking action, which are easy to assemble, time saver and having strong grip. The five standard sizes bows can configure to any hole dia. These bows with extended profile prevent them from hitting against casing collars. These centralizers undergo a special iron phosphate coating process to prevent from rust and then coated with special polyester powder.   these can be shipped in half assembled condition for economical in shipping and storage costs. These are available in 4 1/2" to 20 " sizes. Any special sizes or combination can be made available on request.

Bow spring centralizer is deigned for primary cementing, applied in vertical, deviated and horizontal wells where low starting force as high restoring force. It is used to keep casing in the center of wellbore and reduce friction between casing and well bore. Bow spring centralizer consists of several metal strips shaped like a hunting bow and attached to a tool or to the outside of casing. It is a critical step in quality cementing as the lack of proper centralization can lead to severe cementing problems including lack of zonal isolation and improper casing support.

Oilmec Slip-on welded centralizers are manufactured with solid end rings that can be easily slipped on the casing OD during installation. Oilmec Slip-on welded centralizers, available in slip-on, are designed for high restoring force combined with low starting force for centralizing the casing pipe. High performance characteristics are combined with easy field assembly. Bow springs are manufactured of high quality alloy steel, hot bent to shape using dyes and then heat treated under controlled temp and time cycles for consistent spring characteristics to ensure a crack free weld with a minimum amount of distortion and maximum amount of rigidity. Collars are made of widened design for greater frame strength and to prevent from Rust then coated with special Polyester PowderThey are available in all sizes ranging from 4 ½ “ to 20 ”.

HINGE TYPE WELDED SPRING BOW CENTRALIZER More Restoring force as compare to Non Weld Spring Bow Centralizer. Centralizers spring bow have strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes. Integral hinge folded on the inside stay intact even under extreme stress. End Collars are designed with a Reinforcing Rib stamped into the End Collar to give maximum structural toughness. Available Size: 4-1/2? to 20?. (Any special sizes or combination can available on request). These are generally shipped in half assembled condition for economy in shipping and storage costs.

CRIMSON Hinged Welded bow spring centralizer is designed with very low starting and running force while giving the substantial restoring force. These centralizers are designed to exceed the performance requirements of API Specification 10D for both starting and restoring forces. High quality Bows made of special alloy steel with uniform hardness provide optimum performance. The bows with extended profile prevent them from hitting against casing collars. The centralizers have spring Bows strongly welded onto the outside of the end collars under required temperature and condition with correct grade electrode. Design and processing features for hinges, hinge pins , bow springs are similar as non weld bow spring centralizers. Centralizers undergo a special process of rust prevention before powder coating.The Hinged Welded Bow spring centralizers are available in sizes 4�" to 20".

Oilmec is the profound organization involved in manufacturing and exporting of high quality bow spring centralizer in india.

Hinged Non Welded Bow Spring Centralizer, Hinged Spiral Nail Stop Collar

Bow Spring Centralizer, oil field equipment, Casing Centralizer

MI 1112 Bow Spring Centralizer, cementing plug, Casing Centralizer

Bow Spring Centralizers

Non Weld Spring Bow Centralizer, Hinged With Spiral Nails Stop Collar
