Bridge Bearings Dealers

• Material: IRon

• Usage: Industrial
• Chemical Resistant: No
• Operating Temperature: 55

We provide a range of Bridge Bearings that transmits the loads and forces acting on or from the superstructure to the substructure underneath in a safe manner, while providing for free translation and rotation of the structure supported by the bearing. Bridge Bearings are thus, the devices provided in between the substructure and the superstructure to control the interaction of these two. We provide Bridge Bearings at the best prices in the market. Our range of Bridge Bearings is durable and cost effective, Construction : A shallow steel cylinder is inserted with a thinner, neat fitting, disc of Elastomer which has a recess for Brass Sealing Rings. A steel Piston is then inserted into the steel cylinder and bears against the Elastomeric disc. The resulting assembly is frequently perceived as being similar to that of a hydraulic fluid sealed within the cylinder and the piston arrangement but is free to rotate about any horizontal axis with minimum resistance which is a highly desirable feature of Bridge Bearings. By keeping rotational resistance to a minimum, a uniform distribution of load into the structure is ensured. Specialties of our Bridge Bearings : Compact Multi directional rotation Unlimited translation movement capacity Complex load & movement combination No elastic counter stroke

The Elastomeric Bridge Bearings, developed by us, are reinforced bearing manufactured from synthetic chloroprene rubber (CR) or natural rubber (NR). These bearings can absorb vertical loads, horizontal movements and rotations around all axes. We are one of the most prominent Govt Approved Elastomeric Bridge Bearings Manufacturers, based in India. We use well proven production processes as recommended by IRC part II and by International codes that allow to use only high quality raw materials. Thereby, we can guarantee a long life-span without the need for maintenance. Our technically advanced bearings comprise of vulcanised elastomeric sheets that are reinforced by two or more Steel Sheets. The vulcanised reinforcing layers of highly tensile steel sheeting fully encompasses in Elastomer, which ensure absolute complete freedom from maintenance and corrosion. Application Elastomeric bearings are used mainly for bridges and buildings. Elastomeric bearings can absorb horizontal movements in every direction and rotational movements around every axis through elastic deformation, thereby allowing forces to be transferred safely from one component to another.

• Color: STANDARD
• Brand Name: ASPLBB
• Material: Steel
• Usage: Bridge
• Surface Finishing: Color Coated
• Size: AS PER DRAWING
• Feature: Corrosion Resistance

• Weight: 30 kgs
• Material: Rubber
• Color: Black
• Thickness: 96 mm
• Shape: Square round
• Type of Bearing: Elastomeric
• Usage/Application: for bridge or building
• Length: 1-6 Feet
• Bearing Type: Elastomeric

Elastomeric Bridge Bearings are designed to transform the movement and rotation of bridge structure into elasticity and minimizes the secondary stress generated in bridge because of the layered rubber sheets reinforced by metal plates. These bearings are designed to accommodate vertical, longitudinal, horizontal and transverse loads movements and rotation of the superstructure caused by thermal effect, traffic loads, structural load, wind load, seismic load. These bearings effectively release the stress on the bridge and have excellent rotation in all the directions and movements. Elastomeric Bridge Bearings with simple reinforcement are made up of multiple elastomer layers separated by reinforcing steel plates moulded on the actual layers, and can be manufactured in a rectangular or circular shape to meet individual engineering requirements.

Spherical bearing, also called spherical bridge bearing spherical bearing also can be divided into three types: fixed spherical bearing, guided spherical bearing and free sliding spherical bearing. With high strengthened steel body, spherical bearing is especially designed for high vertical, horizontal and lateral loads and where large rotational structural displacements need to be accommodated.

• Weight: 15 Kgs
• Material: Mild Steel
• Color: Black
• Type of Bearing: Elastomeric
• Dimension: 1000X300X32
• Usage/Application: Road
• Part Number: 2
• Brand: RT

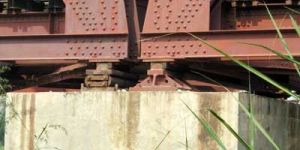

These bearings are rugged & robust which provide a very long life and safety to the structure. This bearing consists of one or more rollers of steel along with a rocker arrangement which permits a longitudinal and rotational movement.

• Material: Natural Rubber
• Shape: Square
• Color: Black, Silver
• Condition: New
• Application: Bridge Uses
• Surface Finishing: Non Polished
• Feature: Advanced Quality, Highly Functional, Optimum Finish, Perfect Strength, Precise Design, Strong

• Brand Name: Saradhi
• Material: Rubber
• Thickness: 1-2 Inch
• Length: 5=6 Inch
• Application: Industrial
• Grade: Commercial Grade

We are offering elastomeric bridge bearing.

The elastomeric bridge bearings, developed by us, are reinforced bearing manufactured from synthetic chloroprene rubber (cr) or natural rubber (nr). These bearings can absorb vertical loads, horizontal movements and rotations around all axes. We are one of the most prominent govt approved elastomeric bridge bearings manufacturers, based in india. We use well proven production processes as recommended by irc part ii and by international codes that allow to use only high quality raw materials. Thereby, we can guarantee a long life-span without the need for maintenance. Our technically advanced bearings comprise of vulcanised elastomeric sheets that are reinforced by two or more steel sheets. The vulcanised reinforcing layers of highly tensile steel sheeting fully encompasses in elastomer, which ensure absolute complete freedom from maintenance and corrosion. application elastomeric bearings are used mainly for bridges and buildings. Elastomeric bearings can absorb horizontal movements in every direction and rotational movements around every axis through elastic deformation, thereby allowing forces to be transferred safely from one component to another.

• Tensile Strength: 17MPa
• Color: Black
• Country of Origin: Made in India
• Usage/Application: Bridge Bearing
• Type of Bearing: Bridge Bearing
• Surface Finishing: Smooth

• Brand Name: DEEVIN

We are offering bridge bearing. bridge bearings are devices for transferring loads and movements from the deck to the substructure and foundations. In highway bridge bearings movements are accommodated by the basic mechanisms of internal deformation (elastomeric), sliding (ptfe), or rolling. A large variety of bearings have evolved using various combinations of these mechanisms. 1. elastomeric the elastomeric bearing allows the deck to translate and rotate, but also resists loads in the longitudinal, transverse and vertical directions. Loads are developed, and movement is accommodated by distorting the elastomeric pad. 2. 2. Plane sliding sliding bearings usually consist of a low friction polymer, polytetrafluoroethylene (ptfe), sliding against a metal plate. This bearing does not accommodate rotational movement in the longitudinal or transverse directions and only resists loads in the vertical direction. Longitudinal or transverse loads can be accommodated by providing mechanical keys. The keys resist movement, and loads in a direction perpendicular to the keyway. 3. roller large longitudinal movements can be accommodated by these bearings, but vertical loads only can generally be resisted.

• Specialities: Long service life , Customized size , Easy installation .
• Design Load: 10 Mpa
• Shear Modulus: 0.9 +/- 0.18 Mpa
• Adhesion Strength: 7 kN/m
• Max Ash Content: 5%
• Max Change in Hardness: (+)5 IRHD
• Max Change in Tensile Strength: (-) 15 %

• Type: Bridge Bearings
• Material: Chrome Steel, Metal, Stainless Steel
• Shape: Square
• Color: Black, Shiny-silver, Silver
• Application: Bridge Uses
• Surface Finishing: Non Polished, Polished
• Feature: Advanced Quality, Highly Functional, Optimum Finish, Perfect Strength, Precise Design
• Lubrication: Grease, Oil

We are the main supplier of this product.

Kanta Flex’s elastomeric bridge bearings with simple reinforcement are made up of multiple elastomer layers separated by reinforcing steel plates moulded on the actual layers, and can be manufactured in a rectangular or circular shape to meet individual engineering requirements.
