Button Snap Pull Tester Dealers

The assessment of snap attachment strength is an important criterion especially in the design and manufacturer of garments for infants and children wear. The measurement of an uniform force applied to the snap attachment shall be recorded by means of a force- measuring device. Once the appropriate force is registered on the Imada Scale, a stopclock is used for recording set period of time.

• Type: Button Snap Pull Tester
• Brand Name: IKON INDUSTRIES
• Application: Industrial Use
• Color: Grey
• Condition: New
• Automatic Grade: MANUAL
• Display Type: Analog
• Material: MILD STEEL
• Model Number/Name: IK/BSPT/01

Button snap pull tester used to determine the pulling strength of any type of button & snaps used in garments • Latest model with modern aesthetics. • With maximum capacity 30Kgf & Least Count 250Gms. • Four different types of jaws supplied to grip different type of buttons & snaps. • Pull & Push type dial gives maximum accuracy. • Protective goggle is provided for safety. • Supplied with all accessories along with 15lbs calibration weight to calibrate the instrument. • Supplied with inspection & calibration certificates. • Weight: 25 Kg. (55 lbs) • Dimension: Length Depth Height 220 mm 285 mm 665 mm. 9 Inch 11 Inch 26 Inch

• Color: Black, Blue
• Application: Garments
• Feature: Attractive Look, Fine Quality, Good Quality, Perfect Finish, Perfect Finishing
• Type: Leather Button
• Country of Origin: India
• Material: MS
• Finishing: Polished
• Shape: Square
• Pattern: Check
• Packaging Type: Paper Box

• Type: Automatic
• Machine Weight: 50 kg. (Approx)
• Sensitivity: 10 gm
• Capacity: 30 kg
• Size: 91X43X32 cm
• Strength: 2.2 n/mm2

We have hired team of professionals who make sure that the material, required for manufacturing products, is of high quality standards and sourced from the trusted places only. The range we offer to the customers are stringently packed and delivered as per the customers' requirement and convenience.   Details : ESPM GS IEC IAS

The assessment of snap attachment strength is an important criterion especially in the design and manufacturer of garments of infants' and children wear. The measurement of an uniform force applied to the snap attachment shall be recorded by means of a force-measuring device (in this case a Calibrated Imada Push /Pull Scale is utilized). Once the appropriate force is registered on the Imada Scale, a stop clock is used for recording a set period of time.   To define the garments manufacturer responsibilities and duties to ensure that snaps are applied appropriately to all garments. To prevent separation between the snap and the garment, which represents a dangerous situation If the loose snap is swallowed.   Scope This test method cover an uniform force required to pull a snap attachment perpendicular to the garment The snap attachment is not forced to separate from the garment. This method is required attachment of snaps to specimens using specifications provided by the producers of the snaps. This test method is used to establish correlation to wear conditions and for comparing different brands and types of snap fasteners.   Related Standards ASTM Designation :- D4846 88 ASTM Designation :- D1776ASTM P579.96 Standard Test Method for Resistance to Unsnapping of Stap Fasteners Consumer Products SafetyCommission

• Type: Button Snap Pull Tester
• Application: Control Panels
• Color: Available in Many Colors
• Frequency: 45Hz
• Automatic Grade: Automatic
• Power Source: Electric
• Feature: Easy To Use, Proper Working
• Operating Current: Double Phase

We are a prominent Button Snap Pull Tester Manufacturer, Exporter and Supplier. Used to determine holding strength between button/snap and fabrics/garments, our Button Snap Pull Tester is supplied with self-calibration weight of 5.0 Kg. Fabricated with imported push pull gauge of IMADA Japan, Button Snap Pull Tester can measure up to 25 mm dia. Button. Our Button Snap Pull Tester is designed with Dial Gauge that displays the result in Kg. Also, Button Snap Pull Tester is provided with a Lower Grasp Button Accessories Kit. Technical Specification : Capacity 30 kg with least count of 250gms 3 Nos. of Grips supplied for all types of button/snaps All grips are made of Stainless Steel GRIP-1 : Three Pronged Grip for testing four-hole buttons and jeans buttons GRIP-2 : Upper Universal Grip for testing female part of snap & male part of Stud GRIP-3 : Upper Stud Grip for testing male part of baby snaps

• Type: Button Snap Pull Tester
• Certification: ISI Certified, ISO 9001:2008 Certified
• Color: Blue and Grey
• Feature: Easy To Use, Proper Working, Superior Finish
• Condition: New
• Warrenty: Lifetime Buyback Warranty
• Brand Name: Paramount
• Country of Origin: India

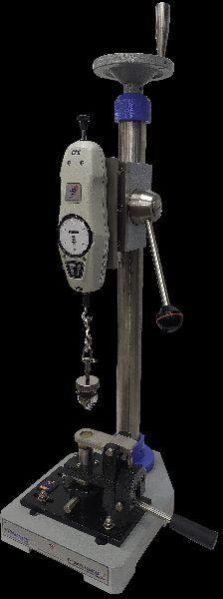

Button Snap Tester is used for the assessment of snap buttons, rivets etc. attachment strength is an important criterion especially in the design and manufacturer of garments for infants’ and children wear. The measurement of a uniform force applied to the snap attachment shall be recorded by means of a force measuring device. Once the appropriate force is registered on the Imada Scale, a stop clock is used for recording a set period of time. Paramount Button Snap Pull Tester i9™ consists of upper jaws and a fixed lower jaw. The Button / Snap is held in the fixed lower jaw and the same is pulled by the upper jaw. By turning the top flywheel, the operator can apply a specific force and holding force or the breaking strength can be recorded by Pull & push type of dial Gauge. Specially designed handle bar provides the pulling force while testing. The lower jaw is adjustable to grip the fabric precisely. The instrument is finished beautifully in cream paint and aesthetic & ergonomically designed to make it a world class testing equipment.

Headquartered in Delhi(India), we are a renowned name presenting a huge gamut of products. Being a quality-conscious firm, we consider all the stated quality norms for ensuring that optimum quality products reach the buyers.   Features : Robust construction Superior functionality Accurate results Technical Specifications : Capacity - 50 kg Digital Display - 01No. Least Count of 100 gms 4nos of Grips supplied for all types of button/snap All grips are made of Stainless Stell Grip-1 - Three Pronged Grip for Testing 4 holes button amd jeans Button Grip-2 - Upper universal Grip For testing female part of snap & male part Grip-3 - Upper Stud Grip for testing male part of baby snaps Can be measured up to 25 mm dia. Button or as per your requirement. Other Details : Minimum Order Quantity - 1 Piece Approx. Price - Rs 55,000 / Piece

• Measuring Capacity: 30 Kg.
• Sensitivity: 250 gm
• Max. Jaw Separation: 210 mm
• Dimensions: 276 (W) x 424 (D) x 646 (H) mm
• Weight: 27.5 K
• Warranty: 1 Year

‘S.K’ Button Snap Pull Tester’ is an user friendly equipment to test ‘SNAP STRENGTH’ of buttons/rivets/joints to ensure that it meets design tolerance and safety levels, particularly in baby clothing.The equipment comprises of- IMADA Push-Pull force gauge of 30 Kgf. Vertical stand to hold the gauge with arrangement to change the position of gauge. Base which houses the frame to grip the attachment STANDARD : ASTM Designation: D4846 88 Standard Test Method for Resistance to Unsnapping of Snap Fasteners CFR Part: 1500 . 50 53 Consumer Products Safety Commission. ASTM Designation: D1776ASTM PS79-96

Raw material that is sourced from the reliable places is used as input in the production procedure. In order to make high quality range of products, we check it for quality prior to sourcing. This is due to our modern logistic facilities that we are able to meet the delivery deadlines with ease.

• • Force Rating : 0.01 to 50.00 kg: • Suitable to grip buttons from 5mm to 25 mm
• • Size & Weight : 12" x 12" x 30", 30 Kg: • Force measurement accuracy : ±0.5% of FSD
• • Force Resolution : 0.01 Kg: • Grips : 3 Size Button Pull Strength, Neck Stretch

Features  IMADA Push- Pull force gauge of 50 kgf.                                                                                                                                                                           Vertical stand to hold the gauge with arrangement to change the position of gauge. Base which house the frame to grip the attachment. Button Pull Fixture    - Connected with force gauge.

• Country of Origin: India
• Type: Button Snap Pull Tester
• Certification: ISO 9001:2008 Certified
• Application: Industrial Use
• Color: White
• Feature: Easy To Use, Proper Working, Superior Finish
• Condition: New
• Power Source: Electric
• Operating Current: Single Phase
• Warrenty: 1year
• Puncture Voltage: 220V

• Brand Name: PARAMOUNT

Button Snap Pull Tester i2 ™ To determine the pulling strength of any type of button and snaps used in garments with maximum capacity 30 kg & least count 250 gm. 4 different types of jaws with calibration weight & all accessories as per American (GAP) & European (H&M) standards. Optional: Jaws Vice for different types of button, snaps, zipper, studs, hooks etc. Weight: 25 kg (55 lb) Dimensions: Length Depth Height 220 mm 285 mm 665 mm 9 Inch 11 Inch 26 Inch International standards: ASTM S 963, 16 CFR-1500│GAP│H&M

• Features: Accurate results,Easy to operate ,Low maintenance
• Use: Used to determine the holding or breaking strength of button Snap

• Capacity: 30 kg with least count of 250gms
• Weight: 5.0 Kg

Button Snap Pull Tester Manufacturer, Exporter and Supplier. Used to determine holding strength between buttonsnap and fabricsgarments, our Button Snap Pull Tester is supplied with self-calibration weight of 5.0 Kg. Fabricated with imported push pull gauge of ‘IMADA’ Japan, Button Snap Pull Tester can measure up to 25 mm dia. Button. Our Button Snap Pull Tester is designed with Dial Gauge that displays the result in Kg. Also, Button Snap Pull Tester is provided with a Lower Grasp Button Accessories Kit.

Amith garment services are leading manufacturers of button snap pull testers in bangalore, india. Our company button impact testers are mainly used to evaluate the durability and integrity of a button.
