Cable Blowing Machine Dealers

cable blowing machine

Get Price Quote

• Diameter: 0 up to 25mm
• Speed: 0 – 90 m/min

The Cable blowing machine comprising of an air box, Cable pusher and Hydraulic Power Pack has been designed to provide an effective and safe method of fiber optic cable installation. The system installs fiber optic cable of 8 – 32 mm overall diameter at up to 90mmin into pre-installed ducts, employing the viscous drag compressed air principle. The compressed air is fed into the duct via a venturi principle, and the hydraulically powered cable feed system controls the fiber optic cable. The optical fiber cable blowing system comes mounted on a light weight Frame for ease of site maneuverability and is powered by a hydraulic supply system. The unit is supplied with a 1-12”BSP for connecting air supply hose (not supplied). The air supply hose should be 25mm (min) bore or more. Adjustable speed control for drive belts (Through Speed control valve mounted on Pusher unit & Pressure Regulator Valve mounted on Power Pack).

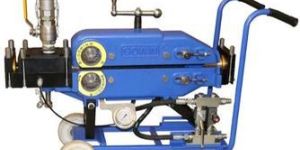

Fiber optic Cable Blowing Machine - FiberJet

280,000 - 650,000 Per each

1 Unit (MOQ)

• Country of Origin: India
• Type: Cable blowing machine
• Thickness: 4.5-5mm, 5.5-6mm, 6.5-7mm, 7.5-8mm, 8.5-9mm, 9.5-10mm, 11mm - 27mm
• Certification: ISO 9001:2008
• Application: Industrial
• Color: Grey
• Feature: Crack Free, Durable, Quality Assured
• Voltage: Not applicable
• Power: Not applicable
• Inner Material: Aluminium / MS
• Outer Material: Aluminium / MS
•    Cable Size:    8 mm – 27 mm
•    Duct Size:    20 mm – 63 mm
•    Pushing Force:    0 – 650 N
•    Max Speed:    100 Meters / Minute
•    Max Blowing Length :    Up to 2,200 Meter in single short
•    Hydraulic Pressure:    75 Bar
•    Engine Speed:    3600 RPM

cable blowing machine

181,000 Per Piece

• Power: 1-3kw
• Automation Grade: Manual,Semi-Automatic
• Warranty: 1 Year
• Phase: 1Phase
• Capacity: 8 to 21mm
• Design: Standard
• Power Consumption: 7.5 HP
• Machine Type: Semi-Automatic
• Model Number: CBM 288

OFC Cable Blowing Machine

Get Price Quote

• Warranty: 1 year
• Usage/Application: Fiber optic cable installation
• Capacity: 35 L
• Machine Type: Hydraulic
• Model Name/Number: ST-CBM
• Operating Pressure: 100 Bar
• Duct size: 20 - 50 mm O.D PLB
• Air Hose Bore: 25 mm (1") or more
• Pushing Speed: 0 - 90 m/min
• Pushing Force: 0 - 100 kg
• Cable size: 10 - 22 mm OD

cable blowing machine

90,000 Per Units

• Phase: Single Phase
• Warranty: 1 Year
• Voltage: 280 V
• Automation Grade: Semi Automatic
• Country of Origin: Made in India
• Usage/Application: Industrial
• Frequency: 50-60 Hz
• Maximum Speed: 60 m/min
• Maximum Air Pressure: 12 Bar
• Material: Mild Steel
• Finish: Color Coated
• Power Source: Electric
• Maximum Cable Diameter: 32 mm
• Motor Power: 1.5 kW

Optic Cable Blowing Machine

Get Price Quote

• Brand Name: GOWIN
• Packaging Details: WOODEN PALLET PACKING WITH DUST / WATER PROOF POLYTHENE COVERED
• CABLE SPEED /LENGTH MEASUREMENTS: ENCODING/ DIGITAL DISPLAY
• MAXIMUM WATER PRESSURE: 25 KG/CM2
• ENGINE: HONDA GX 270 PETROL ENGINE
• Supply Ability: 20 Unit/Units per Month
• ,AXIMUM AIR PRESSURE: 12 KG/CM2
• POWER PACK: BOSCH HYDRA PUMP
• Port: CHENNAI
• BODY FINISH: POWDER COATING
• Model Number: GOWIN 1025

cable blowing machine

220,000 Per Set

OFC Cable Blowing Machine.

cable blowing machine

Get Price Quote

Cable blowing machine can blow OFC in PLB ducts 40 mm Dia to 50 mm dia at an velocity of 70 meters per minute and machine can accommodate cable size 14 mm dia to 25 mm dia of any configuration either armored or unarmored, machine is run by air drive system powered Ingersoll Rand and machine weighs only 38 kgs. It is very easy to lift from one work point to other point easily, operations of machine is very simple requires only two lever control and can be handled by semi-skilled person. We have sold so many machines in India, Middle East countries, African and Srilanka. Duct Collate size: multi collate sizes for 32mm, 40mm and 50mm in combined pack. The machine also comes with only 40 mm duct collate and 50 mm duct collate.

cable blowing machine

Get Price Quote

Optical Fibre cable blowing machine can blow OFC in PLB ducts 40 mm Dia to 50 mm dia at an velocity of 70 meters per minute and machine can accommodate cable size 14 mm dia to 25 mm dia of any configuration either armored or unarmored, machine is run by air drive system powered Ingersoll Rand and machine weighs only 38 kgs. It is very easy to lift from one work point to other point easily, operations of machine is very simple requires only two lever control and can be handled by semi-skilled person. We have sold so many machines in India, Middle East countries, African and Srilanka. Duct Collate size: multi collate sizes for 32mm, 40mm and 50mm in combined pack. The machine also comes with only 40 mm duct collate and 50 mm duct collate..

cable blowing machine

Get Price Quote

Cable blowing equipment from AMROCK is ideal for last mile fiber installations. The Fiber Optic Cable Blower is designed to protect the cable while installing it quickly and efficiently. A Micro DuctFiber Blower is also available for micro fiber installations.

Pneumatic Cable Blowing Machine

Get Price Quote

1 Set (MOQ)

• Color: Black
• Cable Size: 05mm To 22mm
• Air Consumption: 8 - 9 (cfm)
• Nozzle Size: 1 mm
• Body Material: Mild Steel
• Usage/Application: Blowing

floor sweeper machines and cable blowing machine.

Get Price Quote

floor sweeper machines and cable blowing machine., Road Sweeper Machine

cable blowing machine

Get Price Quote

cable blowing machine, digital transmission analyzer

cable blowing machine

Get Price Quote

cable blowing machine, Cutter Grinder, grinder tool, Milling Machine

optical fiber cable blowing machines

Get Price Quote

optical fiber cable blowing machines, ofc blowing machines

fiber optic cable blowing machine

Get Price Quote

fiber optic cable blowing machine, Air Lock Duct Push Fit Coupler

Optical Fiber Cable Blowing Machine

Get Price Quote

Optical Fiber Cable Blowing Machine, Cement Brick Plant

cable blowing machine

Get Price Quote

cable blowing machine, cable installation products

Fiber Cable Blowing Machine

Get Price Quote

Fiber Cable Blowing Machine, hdd machine, Telephones & Accessories

Fiber Cable Blowing Machine

Get Price Quote

Fiber Cable Blowing Machine
