Cable Locator Dealers

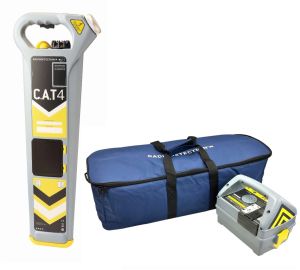

Consists of a transmitter and a receiver Used to detect or trace conductors and to find short faults in them. The signal generated by the transmitter is made to a modulated current, generating an electromagnetic field around a conductor. This electro magnetic field induces a voltage within the receiving coil. The induced voltage is amplified, decoded and converted to the original signal by the received and finally displayed on screen. It is used for finding  conductors  in  walls, conductor interruptions, short-circuits in conductors Conductor tracing in the soil Detecting fuses and assigning current circuits Tracing sockets and distribution sockets having accidentally been covered by plastering Detecting interruptions and short-circuits in floor heating Tracing metallic water and heating piping All application areas (both,voltage-free and live) are performed without usin any additional instruments Transmitter display indicates the transmission level,the transmission code, as well as the foreign voltage Receiver display indicates the reception level,the transmission code,as well as the mains voltage detection Automatic and manual sensitivity adjustment Acoustic reception signal may be switched off Auto-Power-Off function Backlight Additional lighting function when working under bad lighting conditions Additional transmitters are available to extend or distinguish several signals

• Type: Cable Fault Locators
• Application: Industrial Use
• Feature: Easy To Use
• Condition: New
• Power Source: Electric
• Country of Origin: India

Digital Cable Locator and Combined with Cable Fault locator .

• Application: Power sector,Telecom sector

• Brand Name: Megger
• Usage: Industrial
• Model Number/Name: SFX 12 and 16
• Frequency: 50/60 Hz
• Features: High surge energy for effective pinpoint locatin
• Output Voltage: 15-25 kV

The rising demand for electrical energy increases the importance and priorities of uninterrupted services to customers. Thus, faults in power distribution networks have to be quickly detected, located and repaired. We offer Pan India 24 x 7 timely service for underground cables of up to 33 KV working voltage all over India from its nearest located branch. Our wide range of quality services include Underground cable fault location, Hi Pot Testing, Cable route tracing, power cable fault locator, and pipe & cable detector to accomplish the needs of all kinds of industries

• Country of Origin: India
• Operating Temperature: 0o C to 55o C
• Power Supply: 230V AC, +/10 %, 50 Hz , Single Phase
• Output Voltage: 08 Kv Dc Continuously Variable
• Output Energy: 500/1000 Joules
• Impulse Operation: Auto & Manual
• Impulse Sequence in Auto Mode: 4 Sec , 6 Sec
• Indication: ON/OFF indication
• Storage Temperature: 0o C to 60o C
• Weight: 60 kg Approx

Utility : Detection of buried and surface laid cables in moist and moist soil conditions and in both conductive and non conductive (inductive) mode . It has many varied applications, encompassing Excavators, Plumbers, Electricians, Drainage, Irrigators, Telecoms & Energy Authorities. Transmitter which is the small box that induces a signal into the Pipe or Cable and the Receiver that picks up the signal from the Pipe or Cable. The Receiver is held by the operator and it shows him by means of an LCD screen that he is directly over the cable, he can also push a button and it will give him an electronic depth reading of the Pipe or Cable. By using this highly advanced technological product , the Buried Line Locator simplifies Underground Pipe & Cable Tracing, Locating & Fault Finding, making it easy to operate - even for the novice. The unit’s Transmitter uses low current output and a specifically tuned frequency to ensure against disturbing lines with equipment connected. The low power requirement also allows both the Transmitter and Receiver to operate on standard “AA” size batteries.     Technical Specifications:   ----------------------------------------------------------------------------------------------------------------------------------------------- Basically the locator set is made up of 2 separate units. Frequency range :    Multi-frequency ranging from  50 Hz to 85 KHz approx. Detection range  :    Length - Minimum detection of 50 meter long insulated  wire.                                     Depth – from 20 cm to 15 feet  ( above 4 meters )  in moist soil conditions Total  Weight of equipment :   less than 3 kgs Power source :  Battery Operated for  approx 11  hrs continuous operations.  Works on AA batteries. Alarm Display :  Audio(with and with out head phone), Adjustable volume, Visual  (  LED ,  LCD  )  for utmost accuracy Sensitivity settings :   Variable Power Control And Other Display  : On/off                                                                 Sensitivity display                                                                 Low Battery display                                                                 Auto diagnostic display for non-functioning of the unit. Carrying Case :    Light weight, rugged, securing the unit safe during  frequent transportation and easy to carry Operating  Temperature :  -25 degree  to  60  degree C Safety :   Compliant to  international human safety norms

• Condition: New
• Accuracy: ±5%

The BAUR titron is a new automatic cable test van designed for cable fault location and cable testing. The new generation of the high-performance cable test van is based on state-of-the-art technology and provides effi cient, safe and reliable cable fault location and cable testing.

• Type: Cable Locator
• Color: Grey, Sky Blue
• Feature: Easy To Use, Four Times Stronger, Proper Working, Water Proof
• Condition: New
• Frequency: 60 Hz
• Warranty: 2years
• Country of Origin: USA
• Packaging Details: Carton Box

Underground power cable fault locator suitable to locate U/G power cable faults form 440 volts to 400KV. Cable fault locator (Surge generator) has been primarily designed to produce high voltage surges for pre-location of under ground power cable fault in combination with Reflectometer T-510.

 we represent Kehui who are expertise in fault location in various application and they manufacture innovative products pioneer in Fault location. Kindly let me know if you need more information on these and would like to have any discussion on it.   Kehui SOLUTIONS:    Underground Cable Solutions: 1. Under Ground Cable Fault locators – MV & LV. 2. Cable Sheath Fault Locators 3. Cable and Pipe locators 4. Cable identifiers 5. Insulation analyzer 6. Cable Test Vans Substation & Overhead Line Solutions: 1. DC Earth/Battery Ground Fault Locator (24v – 240V DC system) 2. Fault Passage Indicators (distribution line fault indicator and locator) 3. Overhead Transmission Line Fault Locator, GPS synchronizers etc.  4. GPS Systems 5. Fault Recorders and Communicators 6. Distribution Automation etc.   Switched Reluctance Motors: Range from 5kW to 500kW

Cable Fault Pre-locator is used to pre-locate short circuit, open circuit cable faults distance in TDR mode in power transmission & distribution / telecom network companies or any metallic cables. Key Features TDR mode Measurement maximum 8 km in selectable ranges. Portable design and easy to use. Menu driven operation. Tests any type of telecom, coaxial, network or power metallic cables. Comparison between healthy with faulty cables. Use of high speed Micro-controller. Automatic selection of Range, VOP and Gain in Auto mode. Automatic and Manual testing mode. Fully English Menu is easy to master and use. Color LCD Display Six function keys and simple operation. Pulse reflection testing (TDR) can test broken/open, short type of faults in all metallic cables. USB Pen drive, it is easy to upload memory data to computer. Rechargeable lithium battery with intelligent charger Continued 8 hours operating time on internal battery. Small size, light weight and Palm-held unbreakable ABS plastic housing. Rugged construction and easy to carry on site.

• Feature: Low cost - Increase productivity by equipping more technicians with their own TDRs.

A complete range of Cable Fault Locating Equipment for LV & HV Cables in Power Plants, Heavy Industry & Distribution Systems . Occurrence of cable fault can not be avoided due to many factors. Long outage of a cable from service results in heavy loss of revenue to the power distribution company, production loss to industries as well as unpleasant condition to general public. This requires an efficient instrument capable of locating the fault in minimum possible time and restoring the supply.

We are the leading supplier of the underground cable or pipe detection equipment's, which has very important roll due to urbanization, smart city projects which are all the way, now people dig and get shocked heavily and died also because of high tension line inside the road.

• Brand Name: TCC
• Fault Distance Range: 240M, 480M, 1000M, 2000M, 4000M, 8000 M
• Measurement Mode: TDR (Time domain Reflectometer)
• Fault Measurement Accuracy: 1meter
• Pulse Width: 40ns---10us
• Pulse Amplitude: 0-30v adjustment adaptive
• Cable Constant (VOP) range: 100-300
• Impedance matching: Automatic
• Gain adjustment: Automatic and manual
• Testing accuracy: +/- 1%×cable length
• Measurement dead zone: 0 Meter
• Output Impedance: 25-120Ù adaptive
• Sampling Speed: 100 MHz
• Memory Location: U-disk
• Serial port for PC / Printer: USB
• Resolution: 1 Meter
• Gain Range Control: 1-99
• Display Readout: Color LCD and 480*280
• Power Supply: 7.4v rechargeable Li-ion battery
• Charging time: 3 hours
• Continued operating time: 8 hours
• Charging Voltage: 230V+/-10%, 50Hz. Single Phase
• Storage Temperature: -15 Deg C
• Working Temperature: -15 Deg C
• Weight: 1.1 Kg
• Dimension: 212 (L) × 170 (W) × 90 (H) mm
• Usage: Industrial
• Model: TCC 100
• Material: ABS
• Features: Measurement maximum 8 km
• Item Code: TCC100

We are offering cable fault locator etc.intercable fos p-line series have been developed for all cable measuring tasks in low and medium voltage networks. Individual variants of the inter-cable fos p-line series have been selected in cooperation with the users and their requirements related to practice. The proven prelocation method based on art (arc reflection technique) surging has been integrated for the prelocation of high impedance cable faults.

• Color: Grey
• Condition: New
• Power Source: Battery
• Automation Grade: Automatic
• Feature: Easy To Use
• Operating Temperature: High Temperature
• Type: Underground Cable Fault Locator
• Warranty: 5years
• Country of Origin: India

We are pioneers in the manufacturing since 2011 and only one to offer unprecedented warranty of 5 years on our products    A) Underground Live Cable Locator, Pacetrace P700  a) It is the most simplest ever, b) It is the ONLY ONE to have a penetration of 5 metres of underground depth c) Without any fancy and hence complicated features like transmitter and receiver for which we have to find the starting  point of the cable(which is not possible to find generally) to transmit and receive the signal. d) The decibel of the buzz depends upon the magnitude of current. More the current, shriller is the buzz. e) Unlike the above you can start detecting the cable from any point in the middle of the road. You need not search for the  starting point. Just walk with the Locator ON moving right and left; if you hear the beep, the cable lies just under the sensor.  Is it not simple? It is as easy as walk in the park. Easy to operate and easier to maintain. It has zero maintenance! It can map underground cable network in factory premises without any excavation; which will be useful for laying new  cable underground safely in future.

• Length of the cable: from 1 meter to 25 km
• from 1 meter to 25 km: LT and HT of various gauges
• Power supply: Rechargeable Batteries
• Weight: Approx 18 kgs
• Accuracy: 99%

• Size: 720mm X 280mm X 65mm
• Weight: 2.65 Kg
• Locate Accuracy: Better than 10% of Depth
• Depth Accuracy: +-5% @ 1m
• Depth Resolution: 0.1m(0.4”)
• Current Measurement: 0.1mA to 100mA

• Brand Name: Fastball
• Color: Multicolor
• Condition: New
• Power Source: Battery
• Automation Grade: Automatic
• Application: Industrial Use, Fiber fault locator
• Feature: Easy To Use
• Operating Temperature: High Temperature
• Type: Cable Fault Locators
• Frequency: 10mw
• Country of Origin: India

We are one of the respected names engaged in the process of supplying quality Cable Pipe Fault Locator at nominal rates. We are well supported by a team of experienced personnel who take care of the storage facility ensuring zero damage to the products till the final dispatch of the orders. Features: Advanced technology Precision made Long life & sturdy

• Brand Name: C.Scope
• Usage/Application: Telecom and oil/gas utility environments.
• Depth Range: Max 2 m - 9.99 m
• Battery Type: 8 X AA (LR6)
• Operating Time: 40 Hours + Spare Battery Holder
• Size: 720 mm X 280 mm X 65 mm
• Weight: 2.65 Kg
• Locate Accuracy: Better than 10% of Depth
• Depth Accuracy: +/- 5% @ 1m
• Depth Resolution: 0.1 m (0.4")
• Current Measurement: 0.1 mA to 100 mA
• Frequency Range: 512Hz,640Hz,8kHz,33kHz,131kHz
• Memory: 2 GB
• Display Type: LCD Display
• Sensitivity: 5mA,25 microA,5 microA,100 microA
