High Voltage Cable Dealers

We are one of the leading manufacturers of teflon cables, silicone rubber cables, EPR rubber cables, high temperature wires and cables. We manufacture all types of high temperature cables and high voltage rubber cables ( Upto - 11 Kv ), as per customer specifications.

We are supplier of high voltage cables, control cable, lt cable, ab cable, differential cable of all type, xlpe, arroumad and un aroumad.

We provide superior quality PTFE Insulated High Voltage Cables. Our range of PTFE Insulated High Voltage Cables is available up to 50 KV/DC. Finished from high quality material, our PTFE Insulated High Voltage Cables are strong and safe in use. PTFE Insulated High Voltage Cables have excellent corona resistant power. Features Inert to fungus and mold growthSuitable for very wide frequency range (DC to above 10000MHz)Excellent flex file and unaffected by outdoor exposure unlimited period

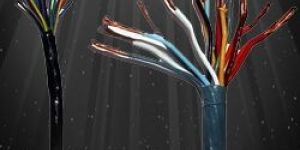

We manufacture High Voltage Resistant Corona Cables which is basically a PTFE based cable with unique additive. This silicon based additive fill cavities of PTFE insulation and increases the life of cable in presence of Corona. It has an excellent thermal stability. Specifications :- Material: PTFE Temperature Range: 30 °C to 180 °C

• Color: Black
• Voltage: 220V
• Conductor Material: Aluminum, Copper, Heavy Duty Steel
• Insulation Material: Pvc
• Specification: Heat Resistant, High Voltage, Insulation Material PE
• Standard: AISI, ASTM, BS

• Item Code: 8544
• Voltage : 1.1KVA - 33KVA

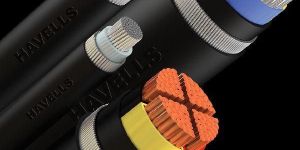

• Brand: HAVELLS and GLOSTER
• Cable Type: ARMOURED and NON ARMOURED
• Nominal Cross Sectional Area: 2.5SQMM - 300SQMM
• Number Of Core: 1 CORE - 4 CORE

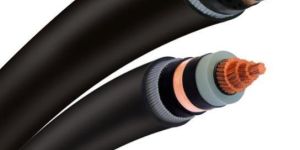

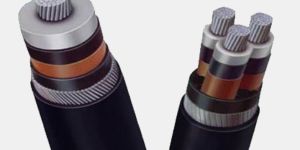

High Tension XLPE Cables up to 33KV as per IS-7098 (Part ||)   Copper / Aluminium Earth / Unearth Screened / Unscreened Capacity Single Core up to 1000 Sqmm, Multi core up to 400 Sqmm

• Country of Origin: India
• Type: High Voltage Cable
• Voltage: 220V
• Conductor Material: Copper

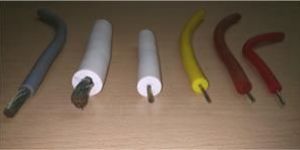

• Insulation Material: Silicone Rubber
• Brand Name: Bhuwal Cable
• Features: Excellent Conductor Wires, Highly Flexible, Light Weight
• Temperature: -60
• Production Capacity: 100,000 Meters

• Application: Electrical Use
• Color: Available in Different Colors
• Conductor Material: Aluminum
• Insulation Material: PVC
• Application: Industrial
• Features: Longer Life Even At High Voltage, Free from Aging and Cracks Due to Mechanical Stress.

As demand for power has been increasing and power transmission requires higher capacity, super-high voltage underground power cables are necessary to ensure reliability and safety of power transmission as well as a more pleasant urban appearance. XLPE insulation cables are becoming increasingly popular since they are easy to handle, can be easily connected and repaired, and have excellent electrical characteristics.

• Conductor size: AWG 28 to AWG 10
• CR insulation thickness: 0.5 - 2.5 mm ( X 2 CR to X 10 CR)

The size and weight of electronic and electrical equipment has drastically reduced overs years, requiring smaller and smaller high voltage interconnections in such professional equipment and devices. The reduced life of insulating materials under corona imposes limitations on miniaturisation and choice of materials. Long life at high temperatures and voltages with significantly smaller diameters and weights HVCR cables are free from ageing, tracking and mechanical stress-cracking failures. GARG designs permit much higher CW and even higher PeakImpulse power rating. In some recent tests on long samples of AWG 181930 X 10 CR, rated at 16 KV AC36 KV DC, repeated application of HV DC of 140 KV did not cause any breakdown

• Country of Origin: India
• Certification: ISI Certified, ISO 9001:2008
• Application: Control Panels, Industrial Use, Power Grade
• Color: Green, Grey, Light Green, Sky Blue, White
• Feature: Easy To Install, Electrical Porcelain, Four Times Stronger, Proper Working, Sturdy Construction, Superior Finish, Water Proof
• Condition: New
• Frequency: 50hz, 60hz
• Phase: AC Single Phase, AC Three Phase, DC
• Temperature: High Temperature
• Brand Name: Allwyn
• Rated Voltage: 11000

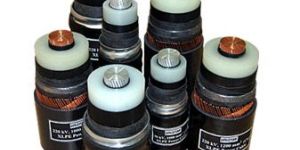

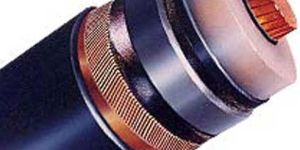

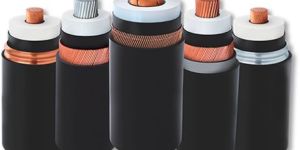

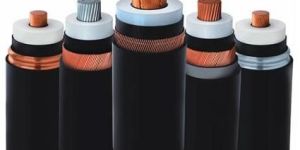

Extra High Voltage (EHV) power cable is a major back bone of the electric system. The reliability and safety of the electric power transmission system essentially depend upon the quality of the cable. Traditionally Paper Oil Insulation systems have been used in High voltage transmission cables. However, since the advent of synthetic polymer, polyethylene (PE) and cross-linked polyethylene (XLPE) have been used as an insulation material. In most countries the use of polyethylene have been limited to the cross-linked version (XLPE) due to major advantage XLPE has over PE in that it enables the cables to be operated at a higher temperature and results in higher current carrying capacity. Cross-linked polyethylene is also considered to be the material of choice due to its ease of processing and handling as compared to paperoil. In addition, the low dielectric losses of cross-linked polyethylene which become increasingly important with increase in voltage as well as high intrinsic electrical strength makes it the favored material for the range of extra-high-voltage applications. These cables can be designed to meet requirements of international standards such as IEC, ICEA, UL, DIN, VDE, ASNZS, TIS, IS as well as other standards specified by customers.

• Brand Name: Unistar
• Country of Origin: Made in India
• Number Of Core: 3 Core
• Conductor Stranding: Standard
• Nominal Voltage: 11, 22, 33
• Standards Applicable: IS – 7098 (Part-2), IEC – 60502, BS – 6622.

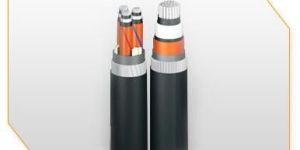

HT Power Cables HT Power Cables with PVC or XLPE insulation of voltage grade upto 3.3 kv conforming TO VARIOUS Indian and International Standard Specifications. HT XLPE cable i.e. cross linked poly-ethylene insulated cables which offer on extra ordinary strength to with stand high voltages are used as HT (High tension cables) for underground voltage transmission systems these cables have in place of overhead transmission. These XLPE insulated cables have better electrical, mechanical thermal properties along with its light weight features. The general construction details are demonstrated in the following tables.
