Calibration Block Dealers

10 Step Block Magnesium (Inch Version) 10 Step Block Magnesium (Inch Version) 10 Step Calibration Block Inch Version: 3/4" square steps at thicknesses of 0.100" to 1.000" in .100" increments Inch Step Face: 3/4" x 3/4"

paut-mini phased array ultrasonic testing calibration standard block ndt calibration blocks.dimensions: l x w x t (10” x 1” x 1.5”) 250mm x 25mm x 38mm. description: paut-mini phased array ultrasonic testing calibration standard block ndt calibration blocks. geometry: four holes altogether, each measuring 3/64" in diameter, are drilled into the block's 1.000" width an placed.200,.400,.600,.700,.800,.900, 1.100, and.300" from the corresponding scanning surface. material : carbon steel,stainless steel,titanium,aluminum,alloy steel.

• Brand: Gamma Solutions
• Packaging Type: Box
• Size: 440 x 225 x 140 mm
• Weight: 7 Kg
• Features: Premium quality, Accurate dimension, Anti-corrosive

UT Calibration Blocks or ultrasonic calibration blocks are widely used in the calibration process. These UT Calibration Blocks are made using ultrasonically tested materials and appreciated for attributes like sturdy construction, corrosion resistance, excellent finish, etc. We provide UT Calibration Blocks in different sizes and in secured wooden box.

• Dimensions: 75mm x 43mm x 12.5mm.

• Material: SS
• Color: Silver
• Country of Origin: Made in India
• Product Type: Calibration Block
• Brand Name: Vibrant
• Model Name/Number: VNSPL/DAC
• Thickness: 12.5 mm
• Diameter: 50.0 mm

• Brand Name: Kirti NDT

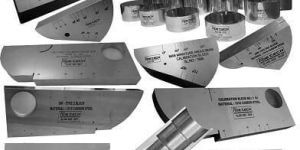

we offer a complete range of standard & custom ultrasonic reference standards (also referred to as test blocks or calibration blocks) all the reference standards are made from metal stocks that have been ultrasonically tested prior to fabrication.   we manufacture following blocks v1/a2 calibration block carbon carbon steel/stainless steel/aluminum etc. v2/a4 calibration block carbon steel/stainless steel/aluminum etc step-wedge block carbon steel/stainless steel/aluminum etc astm non piping dac block carbon steel/stainless steel/aluminum etc aws dsc block carbon steel/stainless steel/aluminum etc aws/ansi ds calibration block carbon steel/stainless steel/aluminum etc aws/atme164 dc block carbon steel/stainless steel/aluminum etc aws resolution block (rc) carbon steel/stainless steel/aluminum etc aws sensitivity block(sc) carbon steel/stainless steel/aluminum etc phased array type a carbon steel/stainless steel/aluminum etc phased array type b carbon steel/stainless steel/aluminum etc iow beam profile block (a5) carbon steel/stainless steel/aluminum etc v3 test block carbon steel/stainless steel/aluminum etc astm distance amplitude set block carbon steel/stainless steel/aluminum etc astm area amplitude set block carbon steel/stainless steel/aluminum etc any standard/customized block carbon steel/stainless steel/aluminum etc..

• Material: Stainless Steel
• Length: 10 Inch
• Surface Finishing: Polished
• Thickness: 2 mm

Calibration BlocksCalibration Block V1 allows to: determine the insertion point of ultrasonic oscillations and distance from the piezoceramic plate to the probe housing with accuracy ± 0,5mm; define the angle of input the ultrasonic oscillations with accuracy ±1 angle degree; define the uncontrollable (dead) zone (for steel) straight beam ultrasonic piezoelectric transducers; determine the linearity scanning ultrasonic flaw horizontally; configure the speed and sensitivity of the scan of straight beam, angle beam and dual element piezoelectric transducers.  Calibration Block V2 allows to: calibrate the scanning of flaw detectors through the expansion velocity of ultrasonic waves, working with straight beam piezoelectric transducers; calibrate the scanning of flaw detectors through the expansion velocity of ultrasonic waves, working with angle beam piezoelectric transducers; set a conditional sensitivity of ultrasonic flaw detectors with straight beam and angle beam piezoelectric transducers; determine the output point of ultrasonic oscillations and distance from the piezoceramic plate to the probe housing; define the angle of input the ultrasonic oscillations into steel. Advantages High quality Competitive price SpecificationsSpecifications of Calibration Block V1 Sample is made from low carbon fine-grained steel with a small damping coefficient. Expansion velocity of longitudinal ultrasonic oscillations in the calibration block at the frequency 5.0 MHz and at the temperature of 20(± 5) °C is 5920(± 30) m/s. Expansion velocity of longitudinal ultrasonic oscillations in the insertion material into calibration block at the frequency 5.0 MHz and at the temperature +20(± 5) °C is 2670(±100) m/s. The geometrical dimensions of the sample corresponds to ISO 2400, DIN 54120, BS 2704.  Specifications of Calibration Block V2 Expansion velocity of transversal ultrasonic oscillations in the calibration block at the frequency 5.0 MHz and at the temperature 20(± 5) °C is 5920(± 30) m/s. Expansion velocity of transversal ultrasonic oscillations in the insertion material into calibration block at the frequency 5.0 MHz and at the temperature of 20(± 5) °C is 3255(±15) m/s.

• Brand Name: R&S
• Frequency range: 30 MHz to 1000 MHz
• Maximum cable diameter: 20 mm

• Brand Name: ODAK
• Material: CARBON STEEL
• Dimension: 150 mm x 100mmx 25mm
• Length: 150 mm
• Shape: REC
• Thickness: 25 mm

• Material: Steel
• Application: Industrial
• Feature: High Accuracy
• Color: Grey
• Brand Name: Radent
• Size: 12.5X43X75mm

We offer these Calibration Blocks for measuring specification of various metallic and non metallic tools under various parameters and are available in various specifications that meets International Quality Standards that are used for various kinds of engineering applications.

Calibration Block, Frequency Response Analyzer, Gm Counter

NDT Calibration Blocks, Airport Assistance Equipments

Calibration Block, Radiography LED Film Viewer, Ultrasonic Probe

ASME Sec. V Basic Calibration Block, Lead lined Apron
