Calibration Management Software provided with existing transmitters, sensor details and calibration procedure for readymade use of supplied system in full flange.Automated Calibration of Pressure & Temperature by Pressure Controller and Dry Block Temperature bath in two identical Test bench system.Mounting of existing old calibration equipment in one Test bench.Two separate data base in calibration management software for ISO and NON-ISO instrument’s calibration data records.IS Documenting Calibrator for field Calibration and report generation in Calibration software which is located at NON-IS Instrumentation laboratory area.Ready the Calibration Management Software with existing data, for immediate use of installed systemMounting of variety of existing old Calibration equipment of different makes in one Test bench.Integrate interface of Multifunction Calibrator, Pressure controller, Temperature Dry Block and Calibration Management software in standalone Test bench for automated paperless calibration.

We can develop calibration test bench for your sensor or devices with customized report for analysis voltage sensor, current sensor, pressure sensor, temperature sensor, flow sensor, level sensor, acoustic sensor.

We are one of the fast growing specialists in manufacturing of calibration instruments, Test Benches & Software. Following are the range of products we manufacture.

• Country of Origin: India
• Type: Benches
• Material: Aliminum, Steel, Wooden
• Shape: Rectangular
• Certification: ISO 9001:2008
• Application: industry for calibration purpose
• Color: Blue, Brown
• Feature: Eco Friednly
• Condition: New
• Appearance: Modern
• Surface Finishing: Polished

The Main purpose of this panel is to Test Instrument like single phase three phase motor, thyristorstransformers, various parameters like current, voltage, resistances etc.Acting as a 24 Vdc power supply, DOL(direct online starter) starter, star delta starter, Radical calibrator, multimeter, variac, 110V DC supply,  etcC To Test 3 phase and single phase motor in DOL and Star Delta mode Soldiering and Desoldering 3 phase and single phase variac to vary voltage for testing of thyristors and transformers. Digital Multimeter Source Meter 24V dc power supply

Nagman offer these Systems – optionally – with their powerful & unique Calibration Management Software – Calman Plus –  interfacing / integrating the various Modules & enabling perform Calibration Routines Semi-automatically / Automatically. Advanced Version of CMS for uplinking to customer SAP System also available. More than 1500 Systems are proving their mettle in industries & Projects Worldwide, thro’ continued good performance. Eco-Frame : Basic / Economy Version – High quality / Heavy Duty (& Powder coated) 40 mm square tube fabricated 4 or 5 legged Frame construction

The ‘Calibration Standard’ of the Test Bench is “Bell Prover”, which is considered a Primary (Calibration) Standard to Test & Calibrate Domestic Gas Meters (& Gas Meters used in Hotels/Restaurants etc.). The device is ideal for OEMs, Calibration Laboratories & Calibration Service Providers. The Test Bench, with 2 Sizes of Bell Prover (20L & 100L)will effectively cover Very Low (Qmin – typically 0.016 m3/h (0.27 LPM)) to Maximum (Qmax – 6 m3/h (100 LPM)) Flow Rates. Available Accuracies : 0.2% & 0.5% F.S. Upto 4 Gas Meters can be connected (inserted) during a campaign. Facility provided for continuously monitoring Differential Pressures (DP) across each Meter as well as upstream & downstream Line Pressures & Line Temperatures. Line Pressures are regulated typically around 500Pa. All the testing procedures are controlled by the PC and run automatically, the Test Results can be saved, printed. Simple/Basic, Manual/Semi-Automatic Test Bench Models are also available. Test Bench frame is made of Industrial Aluminium with perfect outlook and strong structure.   GASCAL Series A Boon for Calibration of Domestic Gas Meters – OEMs, Hotels, Hospitals & R&D Institutions. Flow Rates : 0.018 to 6 Cu.M/Hour Suitable for Gas Meter Sizes : G1.6, G2.5, G4, G6 Bell Prover : Capacity 20/100/200 Litres Accuracy : ±0.2% & ±0.5% (Traceable to ISO/IEC 17025 Accredited Laboratory). Upstream/Downstream Pressure & Temperature Measurement D.P. Gauges (for measurement of pressure loss) : 0 to 1.0 Inch of Water (0 to 250 Pa) Meter Clamping : Pneumatic Simultaneous Calibration of multiple Meters (Provision to mount 2/4/6/8 Meters) Consult us for higher capacity Bell Provers for Calibration of Industrial / Bulk Meters.

System Controls offers a complete range of Test Benches for Aircraft components, measurement and calibration applications in the industry where the tasks are fulfilled in a laboratory. We strongly believe that each clients is unique, with unique applications, unique challenges & which require a unique solutions. Each Test Bench is also unique, dedicated to your requirements & expectations with unrivalled quality, setting the benchmark in the market of test, measurement and calibration test benches.Test benches refer to an environment in which the product under development is tested using software and hardware tools. The suite of testing tools is often designed specifically for product under test. The software may need to be modified slightly in some cases to work with testbench but careful coding can ensure that the changes can be undone easily and without introducing bugs. We offer different types of test benches like Rate Table, Airdata Test System etc. Our company is a prominent company that offers Test Benches which is of top class quality. Our products are basically used in testing for Industrial Product Design. Our testing benches have extremely simple features such that even a layman can use it with the same ease as an expert.

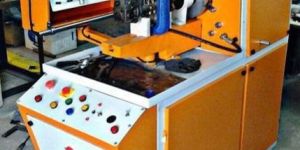

Our streamlined inventory system and capacious warehouse assist us in meeting the bulk requirements of the customers. Also, we ensure year round availability of the products. Raw materials are the essential bottleneck assets that are highly important for the production of the finished goods. Thus, we stringently check the inputs before procurement. 5 hp three phase variable drive test bench With injector, booster pressure gauge mpc valve and also with compressor. 12/24 vlt attachment and all standard tools attachments.

The orifice assembly or the flow control element, valve, is calibrated under fluid mechanics standards of ISO 5167 and IEC 60534 standards. The process and the procedure of the measuring flow calibration of the device and the design is as per the international standards applicable for volumetric and gravimetric conditions. The flow calibration bench for upto 12” size, is applicable for pressure 2 rating upto 3 kg cm g and for all ambient conditions. The testing media is water. The calibration unit is under free length or straight length as per the ISO standards for mounting in such conditions applicable for orifice assemblies with water as media and with calculated beta value to decide the free length for calibration of sensors. For valves, the condition is kept at ambient conditions with water and based on IEC 60534 standard the flow coefficient value of the valve is matched with desired flow rate applicable under differential pressure conditions, under applicable and available free or straight lengths. The bench gets the water from an underground tank with an overall capacity of m3 which is having a magnetic level gauge mounted to check the level of water. The level in turn helps to clear the pressure applicable under the centrifugal pump which is mounted to the side to generate the desired and the requisite pressure for the flow assembly, either valve or orifice.

• Power: 0-125V DC/ 0-10A

This ESD workbench consists of 0-125V DC 0-10A supply integrated into ESD cockpit, Digital Multimeter, Calibrator and Three Phase Calibrator integrated in 19’’ cabinet. In this case provision for 3 parallel outputs for Calibrator has been made in 19’’ cabinet. This system also consists of RGB LED lighting, power sockets and three phase safety and socket module.

Calibration Test Bench can provide the platform for a complete calibration program. It enables a company to implement a universal test system that is designed for flexibility and wide workload. The pre-fitted modules provide precision and performance for their dedicated usage.Calibration Test Bench is use to measure & Test include electrical, pressure, temperature, loop and frequency.

Meters under testing: 1P2W Testing mode: active power, reactive power, cross connected reactive power With current output switch, can calibrate 2 element meter With MSVT, can test single-phase meters with closed links between the current and voltage measuring circuits (I-P links) Simultaneously measure meters with same specification but different meter constants Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.
