Cap Elevator Dealers

• Size: 2000
• Model Number: DP1012
• Brand Name: DP
• Material: SS
• Shape: Horizontal
• Application: Packaging
• Shelf Life: 20
• Customization: Available
• Lead Time: 10 days
• Packaging Size: 2.5x1x1m
• Automation Grade: Semi

System suitable for feeding Cap at higher speed without any stoppage. System can be supplied with any type of Capping Machine for continues operation. Operator can feed the Caps to the Hopper fitted on machine at Ground Level and System transfer the Cap using Pocket type Belt system at required interval to any Capping Machine continuously for trouble free non-stop operation. Machine is synchronized with Single Head and Multihead Capping Machines. Suitable for all types of bottles or Jar Caps

• Type: Elevator
• Shape: Rectangular
• Application: Complex, Malls, Office
• Color: Available in Many Colors
• Voltage: 220V
• Automatic Grade: Semi Automatic
• Driven Type: Electric
• Feature: Best Quality
• Warranty: 2years
• Lift Height: 10feet, 8feet, 9feet

Elevator suitable for automatic feeding of caps to Cap Feeder of Screw Capping Machine. Cap elevator picks-up caps from hopper placed at the ground level.

• HOPPER DIMENSIONS: 990 X 610 X 750MM (LXWXH)
• BODY DIMENSIONS: 2800 X 150MM X H= ADJUSTED WITH WORKING HEIGHT
• ELECTRICALS: 3PH 0.5 H.P GEARED MOTOR

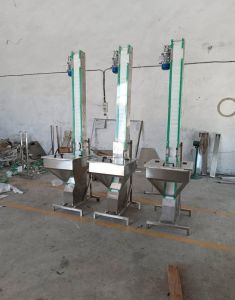

Cap Elevator is basically a clitted belt conveyor erected at an angle for loading of caps into the Hopper bowl to ensure automatic nonstop operation of capping machine. Caps are first fed in bulk quantity in the hopper in the machine.

Features . Elevator suitable for automatic feeding of caps to Cap Feeder of Screw Capping Machine. . Cap Elevator is provided with a photo sensor to regulate the cap flow rate. . Cap elevator picks-up caps from hopper placed at the ground level.

HC Cap Sorting Elevators :The Cap/bottle caps Sorting Elevator is our most common and economical Sorting System capable handling a wide variety of flat caps up to 110mm. Correctly positioned caps are carried up the universal. HC Cap Sorting Elevator can also be upgraded to handle caps larger than 110mm.   Technical Details : 1) 304/316 S. S Construction2) Universal cleated belt accommodates a wide variety of flat caps3) Sensor controlled cap by demand4) Knob adjustments of cap delivery system up to 110mm caps5) Inclination range from 0 to 20 degree6) 304SS Bulk Hopper7) Bonfigoli gear box motor8) Speed controlled by Delta Make VFD9) Also available for oversized, large caps   Special Features : • Feed Rate : Several versions for up to 1000 caps per minute  (depending on cap size)• Capacity : 8000 to 10000 caps • Discharge height as per request. • Continuous running • Belt: Modular Belt or PVC belt. • Clear covers on hopper and conveyor. • Options available for electrical control. • Exit on right or left side. • Option for easy cap size change

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,Other
• Application Industries: Warehouses,Distribution Centers,Factories
• Floor Area: W 500mm x L 1800mm x H 1800mm
• Material: Stainless Steel
• Power Source: Electric
• Motor Speed: 72 RPM
• Storage Capacity: 10000 Pieces
• Motor Power: 0.5 Hp

• Power: upto 2.0 H.P
• Power Supply: 50 Hz

The Automatic Bottle and Cap Elevator System is suitable for feeding uninterrupted continues supply of Cap or Bottle to any Powder or Liquid Filling Machine Unscrambler hopper. System suitable for feeding Cap at higher speed without any stoppage. System can be supplied with any type of Capping Machine for continues operation. Operator can feed the Caps to the Hopper fitted on machine at Ground Level and System transfer the Cap using Pocket type Belt system at required interval to any Capping Machine continuously for trouble free non-stop operation.

Cap Elevator, pharmaceutical cap elevator, industrial cap elevator, ELEVATOR

We offer aluminium rollon cap elevator. The system is made of s.s. 304 material with 4 mm thick transparent polycarbonate covers having conveyor belt of pvc coated food grade quality with clits at equal distance. it is the only system developed and designed with 90° vertical conveying column by which caps ( p.p. Caps , aluminum and other non metallic caps ) are being conveyed vertically up to the desired height and later on the same can be conveyed horizontally by horizontal conveyor extension up to the desired length. due to its vertical design lot of space can be saved compare to inclined conveyors ( normally available in the market) and also doesn’t obstruct in departmental and internal movement of the personals in bottling hall hence it adds beauty to the plant.
