Capacitance Decade Box Dealers

• Tolerance: ±2%

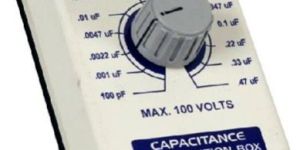

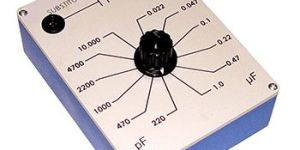

Capacitance Substitution Box With rotary switch and a pair of 4 mm socket terminals. contains twelve standard preferred value non-polarised capacitors from 100 pF to 0.47 μF. Tolerance ±2%. Values are 100 pF, 220 pF, 470 pF, 1nF, 2.2 nF, 4.7 nF, 10 nF, 22 nF, 47 nF, 0.1 μF, 0.22 μF and 0.47 μF.

High quality standard laboratory tool to fulfill the requirement of different values of standard capacitance. Each dial consisting of 10 steps.

Our Decade Capacitance Boxes is preferred for its efficiency and accuracy. Our team members and quality auditors keep regular checks on the quality of products and thus, even the raw material used is tested under vigil supervision to ensure better quality products. Be cash payment or bank transfer, we are capable of making transactions using them all. Worry not! We have organized and maintained database to keep a stern check on the transactions made.

DESCRIPTION : Comprising 12 non-polarised and capacitors ranging from complete 100pF to 0.47F(470 F) using standard preferred values, in step ratios of approximately 1:2 Selection is by means of a rotary switch and external connection is via a pair of 4mm sockets. All capacitors are of ± 2% tolerance,250VD.C.Working with values as follows: 100pF,001 F,0022 F, .0047F,.01 F,.022 F, .033F,.047 F, .1F, .22 F, .33F,.47 F

100pF to 10μF 1% Accuracy In-line readout Colour coded digits Safety terminals Bi-polar working Supplied with protective cover

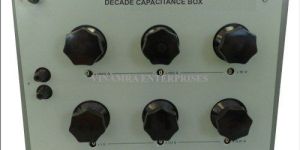

Decade Capacitance Box  5 DAIL   TECHNICAL SPECIFICATIONS:   ·   Capacitance box contains 6 dials for each Capacitance value between 100pF to 10uF. ·   Capacitance box contains each capacitor of 25V with 1% tolerance. ·   Each resistance will be selected by band switch and after each step Capacitance will be added to previous one. ·   One pointer knob is mounted on band switch for selection and to point capacitance value on trainer. ·   Can be find any value of Capacitance between 100Pf  to 10uF. SALIENT FEATURES: ·   Front panel built with high class insulated Bakelite sheet with Sticker well printed circuits and symbols. ·   Instruction manual. ·   Instrument Fitted in Metal Box. ·   Instrument Dimensions: 18’’x4’’ ·   Connections are brought out through 4mm banana terminals.

• Accuracy: +/-3%
• Multiplier: x0.01, x 0.001, x1 mfd
• Maximum Input Voltage: 400v P/P
• Zero Capacitance: Less than 20pF
• Total capacitance range: 111.111 micro F
• Stability: 100 ppm

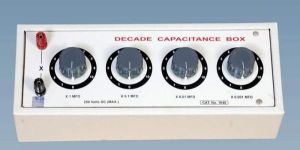

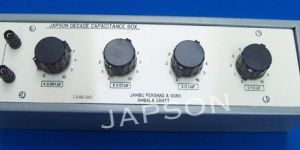

4 Dials , Standard RangeX .001, .01, .1 & 1 MFD      Range .001 MFD  to 11.11 MFD, 250V Max.  All are polyester capacitorsAccuracy  +  1 %

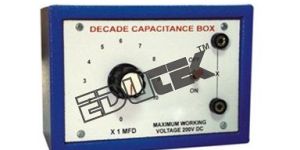

Decade Capacitance Box ABBOMEDTM High quality standard laboratory tool to fulfill the requirement of different values of standard capacitance. Each dial consisting of 10 steps.

• Capacitance Range: 10pH to 111.1111uH
• Capacitance: Bipolar Metalised Polyester
• Accuracy: < 100nF, ±5%, and >100nF ±2%
• Range Selection: By Rotary Switches
• Maximum Voltage: 500 Volt
• Residual Inducatance: <150pf

• Box : Plastic: 14 x 10.5cm (L x W) approx.

Decade capacitance allows easy selection of capacitance of values in ten equal steps. The device is housed in a plastic box with 4mm safety sockets. Capacitor rating 350V DC.

Useful as an oscillator element, wave shaping and resonance experiments, bridge experiments. Designed with pot core stability for standard laboratory use.

• Box Type: Capacitance Decade Box
• Usage/Application: Electrical Laboratory
• Accuracy: +/- 1%
• Total Value: 100 pF to 1000 uF
• Max DC Voltage: 400 V
• Dielectric: Polystyrene
• Features: Rigid design,High accuracy,Not require any maintenance

• Voltage: 250 volts

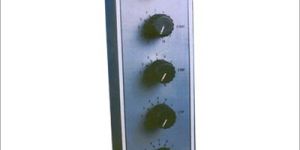

CAPACITANCE BOX Fitted in compact metal case, single dial, and knob. Connections through 4 mm socket terminals Accuracy + 2%. Maximum voltage 250 volts d.c.

Use of Capacitance Decade Box: A decade Box is a test equipment which uses resistors, capacitance or inductors to get the specific electrical values. Technical Specifications : Range : 100pF to 11,111µF ( 100pF per step ) Accuracy : 5% capacitors used throughout With five decades of capacitance Voltage limit : 50V DC, non-polarized capacitors Internal residual capacitance : 50pF Accurate and reliable performance Slide switches to allow the user to simply add or subtract for desired value Terminals with multi way binding posts, one to switch shield case ABS plastic housing case, rugged components

• Material: Aluminum, Brass, Metal
• Certification: CE Certified, ISO 9001:2008
• Application: Electronic Use
• Voltage: 110V, 220V
• Display Type: Analog, Digital
• Phase: Single Phase, Three Phase

Consist of 12 capacitors ranging from 100 pF to 0.47 microfarad (standard capacitors) selectable by rotary switch. Fitted inside a wooden box, well polished, and outside connection by a pair of 4mm sockets. Capacitance values are 100pf, 200 pF, 470 pF, 1, 2.2, 4.7, 10, 22 and 47nf and 0.1, 0.22, 0.47 Microfarads, Accuracy ± 3%, 250V DC.

Capacitance decade box a wide spectrum of different levels of Educational Institutions and also the reliable manufacturer,

Comprising 12 non-polarised capacitors ranging from 100pF to 0.47µF (470µF) using standard preferred values, in step ratios of approximately 1:2 Selection is by means of a rotary switch and external connection is via a pair of 4mm sockets. All capacitors are of + 2% tolerance, 250V d.c. Working with values as follows : 100pF, .001µF, .0022µF, .0047µF, .01µF, .022µF, .033µF,.047µF, .1µF, .22µF, .33µF, .47µF.
