Carbon Electrodes Dealers

We are offering carbon electrodes. Abbomedtm newly designed holder which can hold different type of electrodes. Complete assembly can be put on the top of the vessel jar.

• Material: Carbon
• Length: 0-250mm
• Application: Welding Purpose
• Weight: 100-200gm
• Finishing: Polished
• Feature: Proper Working, Temperature Maintained

We are engaged in manufacturing and supplying of a varied range of Gouging Carbon Electrodes, which is designed with utmost precision for close tolerance metal removal. In addition, these electrodes are also used in scarfing application to produce a rectangular groove. Our clients can avail these Gouging Carbon Electrodes as per their exclusive requirements in standard export packing.

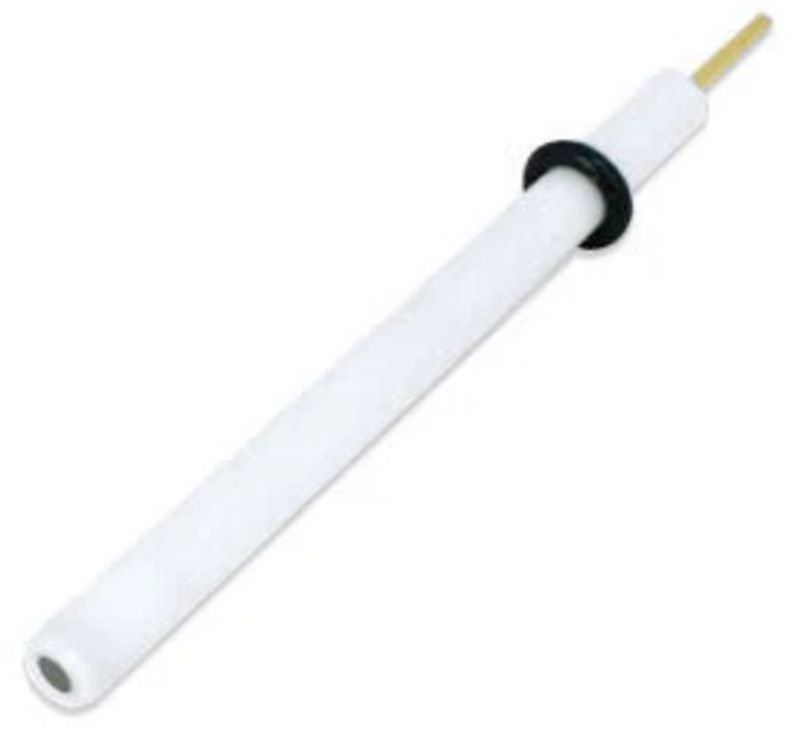

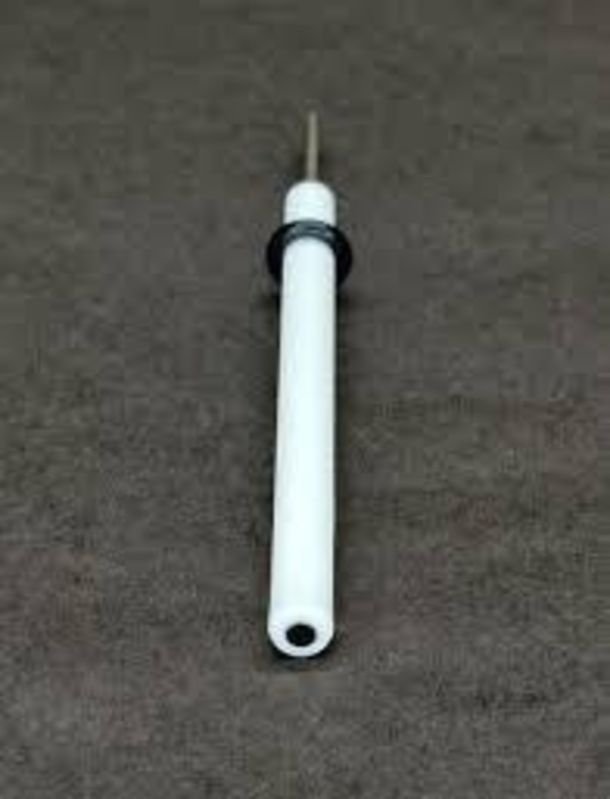

• Material: Glassy Carbon, Platinum, Gold, etc
• Diameter: 1-5mm
• Application: Electrochemistry
• Electrode Type: Working Electrode

• Dia. 10.0 x L 305mm: 200-250 Amps
• Dia. 13.0 x L 305mm: 400-450 Amps
• Dia. 16.0 x L 305mm: 550-600 Amps

Excellent for request groove broad but shallow etc. for special sites. As well as combined features of round & flat electrodes. With the round side to work, they can be used as general purpose electrodes. With the flat side to the work, they can scarf or skim metal easily.

Electrode Pair, Carbon, Spare[carbon Elect] for Use with Hoffman Electrolysis Apparatus Described Above. Size (l X D), 100 X 5mm. Inserted in a Rubber Stopper with Insulated Lead Wire.

Carbon Electrode, Mounted (361) Newly mounted holder which can hold different type of electrodes. Complete assembly can be put on the top of the vessel/jar.

  Application Description and applications Cellulosic coated deep penetration electrode for welding of pipes and pipelines, in all positions using conventional and stove pipe techniques. It is characterized by a penetrating, forceful and spray type arc. Excellent arc striking and re-striking. It is suitable for welding root passes, fill and cover passes.   Unique Feature Excellent all position electrode.  Best suitable for pipeline welding. Excellent mechanical properties in class.

The air carbon arc process is flexible, efficient, and cost effective on practically any metal; carbon steel, stainless steel and other ferrous alloys; gray, malleable and ductile cast iron; aluminum; nickel; copper alloys and other nonferrous metals. Single-phase machines with low open-circuit voltage may not work for air carbon arc gouging (CAC-A). However, any three-phase welding power source of sufficient capacity may be used for air carbon arc gouging. The arc voltage used in air carbon arc gouging and cutting ranges from a low of 35 to a high of 56 volts; thus the open-circuit voltage should be at least 60 volts. The actual arc voltage is governed by arc length and the type of gouging. For most applications CAC-A is used with DCEP (reverse polarity). The electrode should extend at most 7 inches from the gouging torch with the air jet between the electrode and workpiece.
