Cast Iron Angle Plate Dealers

We are offering cast iron box angle plate. Gmt cast iron box angle plates conform to is 6232:1971 and are offered in two grades, grade-i and grade-ii.they are manufactured in different sizes to meet a wide range of requirements. gmt box angle plates are made of heavy duty close grained cast iron is 210,grade 20 and hardness is guaranteed to be above 180-bhn.they are artificially seasoned as recommended in is 6232:1971. gmt box angle plates are provided with suitable number of t-slots on working surfaces to facilitate clamping. T-slot dimensions conform to is 2013:1962.

Made By : Luthra Made In : Indian   Made Generally as per Is:6232-1971, made from good quality close grained with high Density  Alloyed Cast Iron Castings conforming to Grade FG-220 of IS:210, Stress Relieved Hand Scraped Surface. Precision Box Angle Plates as per IS-6985-73 on request

• Country of Origin: India
• Material: Cast Iron
• Shape: Rectangular
• Certification: ISI Certified
• Application: Industrial
• Color: Grey
• Finishing: Polished
• Brand Name: GRE
• Size: 600x400X450 mm
• Angular Measure: 60 Degree
• Weight: 5 Kg

The dimensional accuracy of our Cast Iron Angle Plates enables them to serve for longer durations. In order to make hassle free transactions, we have adopted an online payment procedure that ensures immediate transfer of money and confidentiality of clients' information. Quality raw materials have been used for the production of our entire range. As a dependable name, we procure these raw materials only from trustworthy sources present in the market.

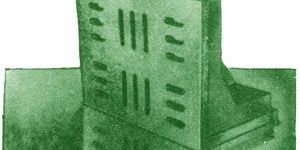

'TOOLFAST' C. I. Angle Plate-Slotted is made out of high quality seasoned casting having precision ground outside faces & ends. Machined slots for clamping on both faces.>> Accuracy in parallelism & squareness within ± 0.01mm per 200 mm length.>> Inspection certificate is furnished.

SizesL x B x H:400 x 400 x 63, 1000 x 630 x 150, 2000 x 1000 x 200, Grade 0 um :4.5, 7, 9, 9.5, Grade 1 um"9, 12, 14, 16, 19.

• Material: Metal
• Shape: Square
• Type: Angle Plate

'TOOLFAST' C. I. Angle Plate-Slotted is made out of high quality seasoned casting having precision ground outside faces & ends. Machined slots for clamping on both faces.

We make available premium grade Cast Iron Angle Plates in varying sizes and dimensions. Keeping the globally accepted packaging norms in consideration, we make certain that the packaging is done under the strict supervision of experts and professionals. Over the years, we have become a primary choice of the buyers sine our product is qualitative and deliveries are time bound.

• Features: Perfect size, Accurately devised, Highly reliable .

We are offering cast iron angle plates

We make available premium grade Cast Iron Angle Plates in varying sizes and dimensions. Keeping the globally accepted packaging norms in consideration, we make certain that the packaging is done under the strict supervision of experts and professionals. Over the years, we have become a primary choice of the buyers sine our product is qualitative and deliveries are time bound.

manufacturing and exporting a wide range of box angle plate that are widely used for various industrial applications in India. Knowing the diversified industrial demands our professionals work hard in producing these equipments in high quality. We manufacture this box angle plate using graded Cast Iron that is suitably stress relieved and hand scraped to accuracy as per IS:2554-1963. The box angle plate offered by us are available with elongated slots on 4 faces and T slot on Top face as per the application level. Widely used for Inspection, clamping and machining of components these box angle plates can serve various industrial applications to a greater extent.

JASH Cast Iron Box Angle Plate serves as a versatile tool for layout machine set – ups, tooling and inspection. They can also be used as right angles and squares. A job can be fixed with one of its faces and rotated in five positions without the need for repositioning or disturbing accuracy. They can easily be made into special fixtures by providing tenons, pins or stops. Matched pairs can be used as Parallels and Height Blocks. Salient Features Made generally as per IS: 6232. Made from close grained plain cast iron conforming to grade FG 220 of IS 210 (equivalent to GG20 / FT20 / 30-A). Higher grades also offered on request. Castings stress relieved to relieve internal stresses. Offered in two grades of accuracies – Grades -1 & 2 in standard sizes as stated in table. Hand - scraped surface finish for Grade 1 accuracies. Hand scraped / ground finish for Grade 2 accuracies. Machined T-Slots on one face and cored as – cast slots on four opposite faces provided to facilitate clamping. Can be offered in matched pairs, upon request at extra cost. Precision Box Angle Plates to IS: 6985 having tolerances approximately half of those mentioned in table made upon request. Other sizes as per customer's specific requirement also offered, upon special request.

• Material: Cast Iron
• Country of Origin: Made in India
• Corrosion Resistance: Yes
• Tensile Strength: 350 MPa
• Hardness: 70 HRC
• Elongation: 20 %

• Brand Name: Samrat
• Material: Cast Iron
• Feature: High Tensile Strength
• Corrosion Resistance: Yes
• Uses: Engineering Industries

• SIZE MM: 88 X 75 X 63, 112 X 88 X 75, 150 X 125 X 112, 175 X 138 X 112 200 X 150 X 125, 225 X 175 X 150, 250 X 200 X 150, 300 X 225 X 200

Cast Iron Angle Plate is an accessory needed with surface plates for measurement purposes. The two surfaces of it are perpendicular to each other. It is available in various designs. Box squares are also sometimes used in place of angle plates. It is made of cast iron and its surfaces are scraped.
