Ceiling Fan Stator Winding Machine Dealers

Winding all types of ceiling fans.Table fans coils. Small.moter coils etc.Working on electricity and inverter.easy to operate. Smooth working. User friendly.auto stop . Auto reverse. Makes all small types of coils also.

We are offering plate top ceiling fan stator winding machine

• Type: electric Cum Hand Driven
• Brand Name: AMT
• Color: RED / Siemens Grey / Yellow
• Condition: NEW
• Driven Type: Electric AC
• Country of Origin: India

Electrically driven ceiling fan rewinding machine, table top model, supplied complete with set of dies, electronic panel, fan data chart, hand rewinding handle [ in case of power failure].

Our fast and modern transit facilities enable us to deliver the orders within the stipulated time frame. The raw material that is used for manufacturing superior grade products is sourced from the reliable places after complete quality confirmation.Features : Armature Attachment Max core die 65mm Max core die 80mm The machines accommodate all mixer, sewing machines, Tullu pump and portable tool armatures. Technical Specification : Variable up-to 1200 rpm. 230 VAC single phases, 50 cycles. Permanent Magnet D.C Motor Variable Speed Drive Associated control switches, lamps and fuses.

• Type: Fan Coil Winding Machine
• Weight: 100-1000kg
• Color: Grey, Light White, White, Light Green
• Voltage: 110V, 220V
• Condition: New, Used
• Application: Fan Coil Winding
• Warranty: 1year, 2years

• Driven Type: Electric
• Color: Blue
• Power: 1-3kw
• Certification: CE Certified
• Warranty: 1 Year
• Country of Origin: India
• Material: Stainless Steel
• Finishing: Polished
• Usage: Industrial
• Phase: Single Phase

• Material: MS
• Application: Cieling fan coil winding
• Brand Name: Indian machine Mart
• Power Source: AC,220v.AC Single Phase 50 Hz
• Automation Grade: Semi-Automatic
• Guarantee: 1

• Brand Name: B.S.E.AIRCON
• Material: Cast Iron
• Condition: New
• Power: 1-3kw
• Pressure: Low Pressure
• Specialities: Rust Proof, Long Life, High Performance
• Type: CEILING FAN RE-WINDING MACHINE
• After-Sales Service Provided: Any Time Defective Parts Replace By Currier Service, And After Warranty Any Parts Any Time Availabl
• Model Number: TIO-CO
• Installation: EASY

• Country of Origin: India
• Warranty: 1 Year
• Material: Mild Steel
• Operating Mode: Automatic
• Shape: Rectangular
• Corrosion Resistance: No
• Certification: ISO 9001:2008 Certified
• Machine Structure: Horizontal
• Condition: New
• Driven Type: Electric
• Phase: Single Phase
• Packaging Type: Carton Box, Wooden Box
• Pressure: Medium Pressure

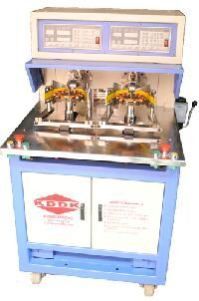

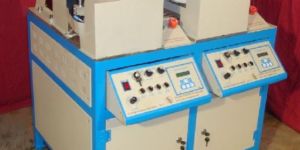

Hand Operated Ceiling Fan Stator Winding Machine MD039 This is high productivity machine ideally suited for production of ceiling fan stators. The machine consist of two winding heads mounted on a table. One head winds the main set of coils while other winds the actually sets set of coils. The winding heads are designed as per your stator. The wire is guided through highly polished ceramic tensions and guides. The stator is indexed manually with a ratchet arrangement.

• Speed: 3200 rpm max (Auxiliary and main winding).
• . No of memory: 19 programs non volatile.

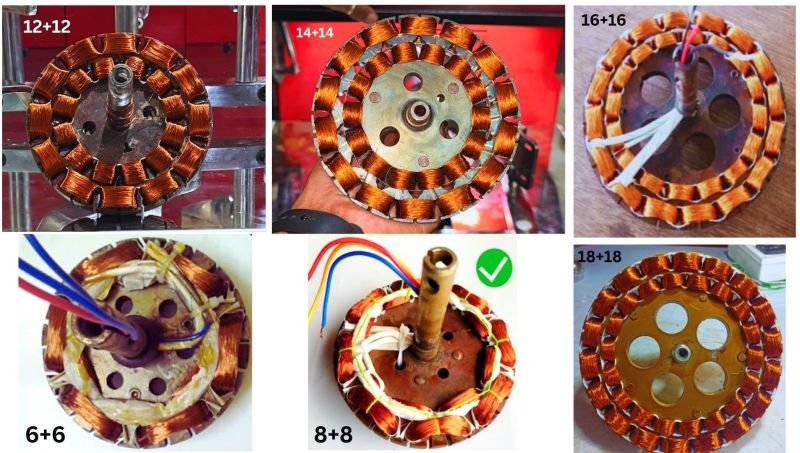

Standard accessories : Wire cut detect sensor, copper spool holder , wire Tensioner, wire jump preventer.Power fail : Detects(No copper wastage), umber of poles : 12,14,16,18 poles.

This is high productivity machine ideally suited for production of ceiling fan stators. The machine consist of two winding heads mounted on a table. One head winds the main set of coils while other winds the actually sets set of coils. The winding heads are designed as per your stator. The wire is guided through highly polished ceramic tensions and guides. The stator is indexed manually with a ratchet arrangement. The main drive is given by a 0.5 HP 3 phase motor ( one for each spindle) which allows a maximum winding speed of 2000 RPM. The no of turns winding direction is controlled with a preset electronic counter. The machine is rugged and easy to operate with minimum maintenance.

We use quality-approved raw materials as inputs for the production of our finished goods. The selection procedure of the raw materials is conducted by our expert quality auditors. We are reckoned as the noted Supplier of Single Head Ceiling Fan Stator Winding Machine as we are capable of meeting the exact requirements of the buyers.Specifications : Fan size -  20 slot – 48 slot Speed -  1400 RPM Production -  10-12 minutes for 1 stator Easy to operate work on electricity 220 volt ac / inverter Makes all types of small coils also   Additional Information : Item Code -  ALPC22 Pay Mode Terms -  Other Port of Dispatch -  By transport /railway Production Capacity -  30 to 35 pc per day Delivery Time -  7 to 8 working days Packaging Details -  Packed in 2 wooden case with tight fitting with nuts & bolts. Features : Low maintenance Less power consumption Reliable operations Heavy Duty Silent Operation Work on single phase/three phase Power - 280 watts AC

• Material: Mild Steel
• Driven Type: Electric
• Power: 1-3kw
• Specialities: Rust Proof, Long Life, High Performance, Easy To Operate

• Wire Size: SWG 37- SWG 29
• Max. speed: 10-4500 RPM

We manufacture and supply extreme quality Ceiling Fan Winding Machine Dual Drive that is available in different specifications. We are renowned in many electrical products manufacturing industries for providing high tensile strength & excellent functioning Winding Machine. We do complete quality checking of these Winding Machines at various levels of production as to ensure exact specification and high durability with robust performance.

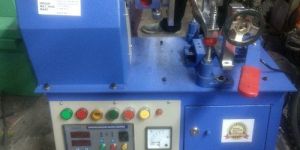

We are the Manufacturer, Exporter and Supplier of highly efficient Ceiling Fan Winding Machine. These Ceiling Fan Winding Machines can easily and efficiently work on 500 W Inverter while providing a smooth operation. The Ceiling Fan Winding Machine provided by us comprised of sturdy parts that are highly resistant to corrosion thus ensures longer service life. These Ceiling Fan Winding Machines can be easily customized as per the client’s requirements. Benefits Smooth in Operation Preset Digital Counting Meter Can Work on 500 W Inverter Attributes High performance Sturdier built Flawless design structure Quality-approved
