Ceramic Fiber Board Dealers

• Size: 600 X 400 X 10/5 Mm
• Thickness: 10-15mm, 15-20mm
• Color: White
• Country of Origin: India
• Brand Name: Signature
• Thermal Conductivity: 0.132
• Usage: Thermal Insulation Coatings, High Temperature Insulating Material, Building, Metallurgical Machinery
• Temperature Classification: 1260 Deg C 1140 Deg. C

Product Description: Refractory textiles products include the yarn rope ,cloth , belt , twisted rope and cover pipe , coating knitting and other technical textiles , it's made from ceramic fiber , non -alkali expanding fiber glass and so on . which is widely used in the fields of heatproof , heat insulation and sealing . Main Properties:   Product Property Heat insulation Low thermal conductivity Excellent tensile property High working temperature Excellent electrical insulating performance Excellent acid, oil, water vapor resistant   Product type 1260/1400 1260/1400 Product name Ceramic fiber cloth Ceramic fiber strip Density 400—550 550---630 550 Specification 3000*1000/1500*2---10 3000*(20---150)*(2---10) Product name Ceramic fiber round rope Ceramic fiber twisted rope Ceramic fiber square rope Ceramic Fiber Sleeving Density 500--600 500--600 500--600 300--500 Specification Φ6---100 6*6---100*100 According to the order Other Details: Item Code: DSZ0406 Pay Mode Terms: L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Bank Transfer), Other Port of Dispatch: Ahmedabad, Gujarat, India Production Capacity: 500 kg per Day Delivery Time: 1 - 2 Day Only Packaging Details: 30 Kg OR 50 Kg per Roll Weight. 100% Dust Free Packing. Every Bag wills Are At Best Quality Packing. Per Roll will Be Pack in a Plastic Packaging. Thickness, weight & Meter Detail Be on an Each & Every Rolls.

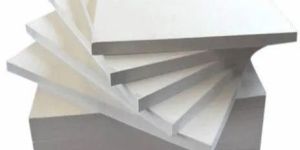

• Size: 1Mtr x 0.5Mtr
• Thickness: 25MM/ 50 MM
• Feature: Fine Finished, Good Quality
• Country of Origin: India
• Density: 320kg/m3
• Dimensions: 1m x 0.5m
• Thermal Conductivity (w/mK) at mean temp of 550 deg C: 0.12

Application:- Combustion chambers of Boilers & Heaters Hot face lining for furnaces & kilns Backup insulation to castable & bricks Ladle covers, Aluminium through lines, Trough covers, Expansion joints, Hot gas duct lining, Riser sleeves, Crucibles, Launders, Tap out cones, Sight holes. Type:  - GRADE 1260 C Regular Temp. - GRADE 1300 C Regular Temp. - GRADE 1425 C High Temp.

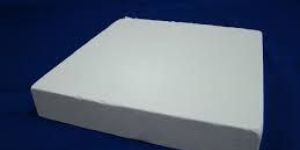

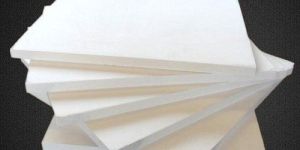

• Type: Ceramic Fiber Board

wedge alsi boards are high quality ceramic fiber boards processed by wet vacuum forming process. The strength of this kind of product is higher than that of ceramic fiber blanket and vacuum forming felt. It is suitable for the high temperature field where the product has steel strength requirements. ​ features & benefits • high thermal shock resistance • heat resistance • low thermal conductivity • excellent chemical stability • non-wetting to molten aluminium • low heat storage • easy to cut and machine   applications • industrial furnace lining • high temperature pipes heat preserve • heat resistant sealing gasket • glass tank furnace side wall • power boiler and nuclear heat insulation • ceramics kilns thermal insulation • high temperature filter materials

• Material: Ceramic Fibre
• Frame Material: Ceramic
• Color: White
• Thickness: 15 Mm
• Application: School
• Brand Name: Madras Asbestos Stores
• Input Method: Marker

Ceramic Fiber Board manufactured by us is well-recognized in Indian market, as well as in international market. Ceramic Fiber Board is aluminosilicate based refractory fiber, white and odorless. Ceramic Fiber Board resists high temperature and is lightweight with very low thermal conductivity. Ceramic Fiber Board provides excellent insulation at high temperature, and resists corrosive chemicals, such as commonly used acids & alkalis.

• Material: Ceramic, Fiber
• Thickness: 10-15mm
• Application: Making Writing Boards
• Color: White
• Feature: Durable, Good Quality

Ceramic Fiber Boards are manufactured from mixture of refractory fibers, special minerals & binders which have low organic & inorganic content. The mixture is vacuum processed into boards which imparts good mechanical strength even at high temperature.   Characteristics – Low Shrinkage value High Mechanical Strength Low thermal conductivity Resist to thermal shock Unaffected, even when directly in contact with the flow of AI & other non – ferrous metals. Short heating & cooling time Asbestos Free   Applicability – Hot face lining of kiln Back up insulation of bricks & cast able lining Back lining for ladle cover Furnace door insulation Damper Sheet

• Material: Fiber
• Shape: Rectangular, Square
• Color: White
• Feature: Crack Proof, Fine Finished
• Application: Making Writing Boards
• Country of Origin: India

• Size: 20x50inch, 22x55inch
• Type: Ceramic Fiber Board
• Material: Ceramic, Fiber
• Shape: Rectangular
• Application: Making Writing Boards
• Thickness: 10-15mm, 15-20mm
• Color: White
• Frame Material: Plastic

Vacuum Ceramic Fiber Boards formed ceramic board and shapes are rigid products made from Ceramic Fiber which is mixed with organic and inorganic binders with or without mineral fillers. The key feature of this Heat Insulation Board is that it contains no asbestos element but has high strength due to long resilient filament structure and binder system. This gives it very high insulating value, makes it resilient and chemical resistant. It is unaffected by water/chemical spillage and its physical properties are restored on drying.Features : Low thermal conductivity Resistance to thermal shock Greater mechanical strength Even density, thickness Can withstand gas flow velocity of 30 m/sec Applications : Hot face lining for furnaces & kilns. Combustion chambers of boilers & heaters. Backup insulation to castable & bricks. Ladle covers, Aluminum through lines, Trough covers, Expansion joints, Hot gas duct lining, Riser sleeves, Crucibles, Launders, Tap out cones, Sight holes etc.

We have a team of warehousing professionals who hold in-depth knowledge and domain expertise. This unit assists us in entertaining urgent and massive requirements at a time. Offering Ceramic Fiber Board, we are eminent Suppliers catering efficiently to the demands of the customers.

• Moisture Content: Max: 9% and variable on atmospheric humidity
• Density range: 800 - 1000 kg m3
• Thickness tolerance:   Between Panels
• +/- 0.125mm:   Within Panels
• +/- 0.125mm:   Modulus of rupture
• 28.9 N/mm2:   Modulus of elasticity
• 2900 - 3300 N/mm2:   Internal bond
• 0.90 N/mm2:   Linear expansion
• < 0.33%: Screw Holding
•   Face: 1800 N
•   Core: 1000 N
•   Formaldehyde emissions: < 0.1 ppm\r\n Compliant CARB PII TPC 1

• Country of Origin: India

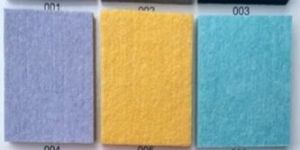

• Size: 1220mm x 2440mm x 9mm
• Material: Polyester Fibre
• Shape: Rectangular
• Thickness: 10-15mm
• Color: Available in Many Colors
• Brand Name: HS Acoustics
• Finish: Matte
• Usage/Application: Sound Absorbers

• Type: Ceramic Fiber Board
• Shape: Rectangular
• Thickness: 15-20mm, 20-25mm, 25-30mm, 5-10mm
• Color: White
• Feature: Durable, Easy To Fit, Eco Friendly
• Condition: New
• Country of Origin: India
• Length: 1000X500 mm

Ceramic fiber boards that are made using fibers and binders offer high degree of thermal insulation and hence find use in applications involving high temperatures. These boards are so good at absorbing thermal shocks and chemical shocks that they can be used in direct contact with flames. Galaxy Enterprise is manufacturers of ceramic fiber boards that find applications in many industries. We are one of the largest ceramic fiber board manufacturers and exporters in India and abroad market. Our products are loved by clients because of their low thermal conductivity and great resistance to thermal and acid shocks.

• Material: Ceramic Fiber
• Color: White
• Shape: Rectangle
• Country of Origin: Made in India
• Thickness: 12mm,25mm,50mm,75mm
• Size: 1000 mm x 500 mm
• Density: 320 - 380 Kg/m3
• Max Withstanding Temperature: 1260 degree Celsius

• Type: Board
• Brand Name: ShreeCera
• Thickness: 10 mm
• Length: 1000 mm x 500 mm
• Country of Origin: India

ShreeCera Vacuum formed Ceramic Boards and Shapes are rigid products made from Ceramic Fiber which is mixed with organic and inorganic binders with or without mineral fillers. The key feature of this product is that it contains no asbestos element and high strength due to long resilient filament structure and binder system. This gives it very high insulating value, makes it resilient and chemical resistant. Given prices are approx. And shall be changed as per the product physical and technical properties.

Shree Cera  -   Vacuum Ceramic Fiber Boards formed ceramic board and shapes are rigid products made from Ceramic Fiber which is mixed with organic and inorganic binders with or without mineral fillers. The key feature of this Heat Insulation Board is that it contains no asbestos element but has high strength due to long resilient filament structure and binder system. This gives it very high insulating value, makes it resilient and chemical resistant. It is unaffected by water/chemical spillage and its physical properties are restored on drying. Features: Low thermal conductivity Resistance to thermal shock Greater mechanical strength Even density, thickness Can withstand gas flow velocity of 30 m/sec Applications: Hot face lining for furnaces & kilns Combustion chambers of boilers & heaters Backup insulation to castable & bricks Ladle covers, Aluminum through lines, Trough covers, Expansion joints, Hot gas duct lining, Riser sleeves, Crucibles, Launders, Tap out cones, Sight holes etc.

Ceramic Fibre Board is rigid self supporting insulating product manufactured from Refractory fibres. High Temperature Ceramic Fibre Board is designed for use in application conditions requiring superior insulating properties combined with high rigidity and mechanical strength. Additionally, we are counted as one amidst the supreme Rigid Ceramic Fibre Board Exporters from India. Features Excellent insulating performance Excellent thermal stability Low heat storage Resistance to thermal shock Good machinabilityApplications Back up insulation in refractory construction High temperature ceramic kiln & cars Hot face lining material in furnace building Back up insulation in steel ladles Back up insulation in Glass melting furnace Molten aluminium handling applications

• Material: Ceramic Fiber
• Thickness: 10 mm, 12.5 mm, 25 mm, 38 mm, 50 mm
• Size: 500 mm x 1000 mm
• Max Withstanding Temperature: 1425 Deg. Cel.
• Is It Foldable: Non Foldable
• Usage/Application: Backup linings
• Width: 500 mm and 600 mm
•  :

We are offering ceramic fiber board.features excellent insulating performance excellent thermal stability low heat storage resistance to thermal shock good machinability description ceramic fibre boards are rigid self supporting insulating product manufactured from refractory fibres. Ceramic fibre boards are designed for use in application conditions requiring superior insulating properties combined with high rigidity and mechanical strength
