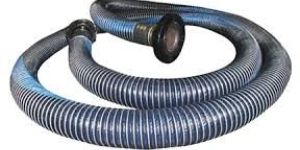

Chemical Hoses Dealers

• Reinforcement: One High Tensile Brass Coated Steel Wire Braid.
• Application: Designed for a Wide Range of Chemicals,Acids,Alkalies & Alcoholic Materials
• Lining: Synthetic Rubber Compound.
• Cover: Synthetic Rubber Compound with Heat,Abrasion,Ageing,Weather & Ozone Resistance
• Standard: Super Exceed is 7654(type-ii)specification

We bring forth our premium grade PVC Nylon Braided Hose for Chemicals & Pesticides. Manufactured using the finest grade PVC material, this PVC Nylon Braided Hose is resistant to chemicals, light acids, oils and alkalis. Available Sizes 5mm TO 50mm (As per size range enclosed) Colors Available Crystal Clear NaturalWater TransparentSparkling Colors & Opaques

We are one of the most distinguished providers of premium array of Chemical Hose. Our hoses are in high demand because of their long service life and cost-efficiency. The hoses offered by us are widely used across various production houses for conveying numerous chemicals like mineral acids, alkalis, solution of inorganic salts and alcoholic material.

• Type: Flexible
• Material: Rubber
• Shape: Round
• Color: Black
• Finishing: Polished
• Usage: Industrial Use

Our entire range is made to go through a string of quality regulatory processes to make sure they are according to industry standards. We make smooth and on-time deliveries of the product range that we keep safe in our capacious inventory.

Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 212oF and 250 psi, Series 3100, Our hose is designed for transfer of high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals used in applications to 200oF and 750 psi, Series 7108.

Buyers are free to place bulk as well as urgent orders with us and we ensure timely delivery of the same. We can carry out excellent supply chain management, as we have an ultramodern warehouse and the latest inventory control systems. Both help us meet bulk requirements and save us from stock out situations. Application : Designed to handle a wide range of chemicals, acid, alkalies and alcoholic materials during production and transfer operations Features : Sturdiness Weather resistant Impact resistance

HEAVY DUTY-GPG Standard Duty Multichem PTFE Chemical hoses are designed for handling wide range of aggressive chemicals, solvents and acids including chloride and fluoride compounds. PTFE inner layers and other special barrier layers assure maximum product life in application and clean transfer are critical. Electrical continuity is achieved by two wires bonded to end fittings, this helps dissipate accumulated charges to avoid static flash. APPLICATION The COMPOHOSE™ assembly are recommended and designed for in plant transfers. Tank to process Chemical Handling, Storage tank transfer & Rail Wagon loading and unloading of many Aggressive Chemicals, solvents and acids including chloride and fluoride compounds. The spiral wound Stainless Steel 304 / 316 inner wire and Galvanized iron outer wire for providing strength and the flexibility to maintain hose integrity under stress and strain. COMPLIANCE Standard Duty Multichem PTFE Dock Chemical composite hoses are manufactured in accordance to EN13765/2010 Type2. PRODUCT HANDLE Very Aggressive or corrosive acid and alkalis, MTBE, Chlorinated hydrocarbons, aromatic fuels, alcohols where PTFE lining is mandatory. FEATURES 1. Complete product compatibility for safe handling of all types very aggressive Chemicals, solvent, and acids including chloride and fluoride compounds. 2. PTFE Liner with polypropylene and polyester barrier layers for maximum chemical resistance. 3. Tough PVC outer cover resists to dragging, wear, abrasion, UV and ozone resistance having maximum durability and safety. 4. Choice of Galvanized Iron / Stainless Steel 304 / 316 outer wire for maximum durability depending on external environment. 5. Double end to end electrical continuity prevents static electricity build up and internal arcing. 6. Suitable for 0.9 Bar Vacuum rating. CONSTRUCTION INNER WIRE : Stainless Steel 304 / 316 or PVDF Coated OUTER WIRE : High tensile strength galvanized steel or Stainless Steel 304 / 316 CARCASS : Multiple layers of PTFE, polypropylene fabric, film and polyester barrier layers COVER: Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE: -30°C to +100°C FOR CHEMICAL HOSE: Please refer chemical resistance compatibility chart END FITTING: As per client requirement which will be externally crimped or swaged

• Temperature: Up to 60 C.

Application: Transfer of acids and chemicals through pumping, suction and discharge. Construction: TUBE: Acid & chemical resistant synthetic rubber compound. Reinforcement: Layers of high synthetic textile impregnated with elastomeric material with steel wire helix.

Assistance of diligent professionals and modern packaging facility give our clients and us a win-win situation at the time of tailored packaging requirements. We are situated in Kolkata(India) and we have a well-developed network that assists us in reaching any destination. Features : QA tested Made with genuine material Available in standard sizes

Recommended for use in steel mills, thermal plants and heavy engineering industries for conveying saturated steam at a specified pressure. Application : for conveying alunm loquor, caustic soda, lime solution, methyle alocohol, ethyl alochol, butyl alcohol, zinc choride , isobutanol, hydrochloric acid, dimethyl sulphate, dilute sulphuric acid, carbon disulphate and ohter chemicals in fertklizer and process industries.

• Brand Name: Diamond Rubber Industries
• Country of Origin: India
• Reinforcement: High Tensile Synthetic Textile Cord with Steel Helix and 2 Cross Anti Static Wire
• Temperature Range: -20°C to + 120°C
• Tube: White Colour, Synthetic Rubber with Xlpe Liner
• Cover: EPDM, wrapped type, abrasion and weather resistant
• Application: Excellent in Handling Petroleum Based Products, Hydrocarbon Solvents, Oxidising Chemicals
• Material of End connection: MS, Carbon Steel, brass, SS 304 SS304L SS316L SS321
• Type of End Connections: threaded Type BSP, BSPT, NPT, NPTF, METRIC, SAE, JIC. Flange ; As per BS, ASA, DIN, Slipon, RTJ
• End Fittings Manufactured: Mild Steel, Stainless Steel or Brass. These are fitted on Hose depending upon hose type
