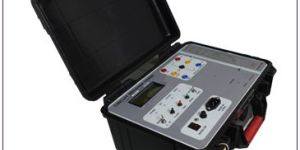

Circuit Breaker Timer Dealers

• Voltage: 220V,220V
• Warranty: 1Year,1Year
• Brand Name: Motwane
• Power Source: Electric
• Display: Digital

• Dimensions: 13" x 9" x 6" approx.

C B TIMER is a very compact and portable instrument which compromises of three nos. Programmable Time Interval Meters with necessary terminals, switches, indicators and miniature relays housed in a sunmica laminated wooden box. Two pairs of terminal are provided for DC supply (Input) and TripClose coils while three pairs of terminals for three “CONTACTS” (viz. Mainresistor auxiliary) of the Circuit Breakers. The CB Timer operates on 230 V AC mains supply. The T.I. Meters automatically record the tripclose timing of each of the contacts, with memory retention of 10 years.Time Interval Meters: 4 digit, auto ranging (programmable),Range: 0.0001 to 9999 Secs.Accuracy: 0.05%.

• 3 Pole: Semi Automatic

The Circuit Breaker Timer instrument utilizes the latest improvements for safe and fast testing, with unique technical capabilities. Sophisticated design ensures efficient and reliable operations in high-voltage substations and industrial environments.

• Application: Industrial
• Power: Mains / Battery operated
• Brand: Prestige Electronics
• Model no: TIM-10-P / TIM-10-P-B
• Measurement range: Upto 999.9 msec
• Resolution: 0.1 milli second
• Accuracy: 0.05 % +/- 3 counts
• Display type: 4 line backlight LCD display
• Poles: 3
• Coil voltage: 24V to 220 AC/DC
• Computer Interface: Yes
• Memory storage: 2500 readings

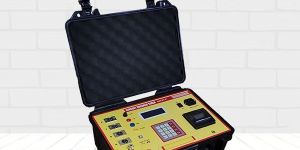

A circuit breaker timing test is the process of measuring the mechanical operating times with the goal of verifying, analyzing and validating the correct function of the circuit breaker. MCBT-P Motwane’s Circuit Breaker Timer kit designed to measure Close, Open & Close-Open timing with bounce of Circuit Breakers upto 220KV ratings. The USB interface provided for data transfer & report generation along with internal memory of 100 results. Inbuilt Printer facility for onsite report. The MCBT-P is battery operated, lightweight, rugged & portable for field operations. FEATURES : 3 / 4 pole measurement simultaneously C, O, C-O with bounce time measurement Mains cum Battery operation Timer range: 0 to 9999.9mSec Resolution: 0.1ms Built-in Thermal Printer Internal memory for 100 records USB interface for data transfer & report Compact and lightweight SUPPLIED Standard Accessories Test Lead Set  - 10Meter long Control Cable  - 5Meter long Earthing Cable  - 5Meter long Mains Cord Optional Accessories Thermal Paper Roll * 1 No Software CD & USB Cable Instruction Manual

• Brand Name: Diamond dss
• Condition: New
• Optional Accessories: Cro Function Generator
• Usage: Laboratory, Hospital
• Power Source: Electric
• Display: Digital

Name of Experiment : To study the IC 555 as a Monostable ( One-shot) Mutivibrator To Study the IC 555 as an Astable ( Free-Running) Mutivibrator To Study the IC 555 as an Bistable Mutivibrator   Power Supplies : DC Power Supply IC Regulated +15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are : Passive Components are mounted on board behind the panels are Resistance capacitors ic Ne555 variable Resistor 10k pulsar Switch Output Performance Approximate : Frequency range of Astable Mulltivibrator - 600 Hz to 3.2 KHz Frequency range of Bistable Mulltivibrator - 350 Hz to 1 KHz Salient Features : Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols. Fuse for Short Circuit protection Instruction manual. Connections are brought out through 2mm Colored Sockets. Patch Cords 2mm. The trainer is housed in ABS Plastic cabinet. Size of the trainer set 10”x12”

• Feature: 0 To 9999.9 MSec,Resolution : 0.1 MS,User Selectable 3/4 Pole Measurement,Compact And Light Weight Instrument. Compact And Light Weight Instrument.
• APPLICATION FIELD: Railway Substation,Indore Breakers Of Private Companies And Metro Substation, Suitable For Indoor /
• STANDARD ACCESSORIES: Leads Set,Mains Cord,User Manual

Circuit Breaker Timer: A Reliable Solution For Managing Electrical Circuits The Circuit Breaker Timer is a cutting-edge device designed to enhance electrical safety and efficiency in both residential and commercial settings. With its innovative features, this timer ensures precise control over circuit breaker activation and deactivation, thereby preventing electrical overloads, short circuits, and potential hazards. Whether you're a homeowner seeking to safeguard your property or a facility manager aiming to optimize energy consumption, our Circuit Breaker Timer offers a reliable solution for managing electrical circuits effectively. SB Electrotech is considered among the leading Circuit Breaker Timer manufacturers in India offering the best quality products. Equipped with advanced timing functionalities, the Circuit Breaker Timer allows users to program specific schedules for turning circuits on and off automatically. This feature not only streamlines routine operations but also contributes to energy conservation by eliminating unnecessary power consumption during inactive periods. Additionally, the timer’s user-friendly interface and intuitive controls make it easy to set up and customize according to individual preferences. Furthermore, its compatibility with a wide range of circuit breaker models ensures versatility and adaptability across various electrical systems. We are the top Circuit Breaker Timer Suppliers In India and by investing in this product, users can enjoy peace of mind knowing that their electrical infrastructure is optimized for safety, efficiency, and convenience.

• Feature: Low maintenance,Inbuilt real time clock,Housed in rugged case
• Brand Name: Scope
• Dimension: 430 x 345 x 160 mm
• Instrument Weight: 6 kg
• Memory: 50 test results
• PC Connectivity: USB port
• Power Supply: 230 V AC

• Power: Mains / Battery Operated
• Application: Industrial
• Brand Name: Prestige Electronics
• Voltage: 24V to 220 AC/DC
• Computer Interface: Yes
• Memory storage: 2500 readings
• Poles: 3
• Accuracy: 0.05 % +/- 3 counts
• Model no: TIM-10-P / TIM-10-P-B
• Measurement range: Upto 999.9 msec
• Resolution: 0.1 milli second
• Display type: 4 line backlight LCD display

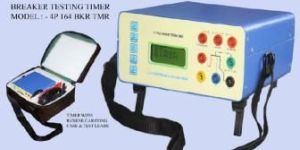

Circuit Breaker Testing Timer, Relay Test Set
