CNC Threading Machine Dealers

• Material: Metal
• Driven Type: Electric
• Color: White
• Automatic Grade: Automatic
• Power: 1-3kw
• Application: Industrial
• Type: Pvc Pipe Threading Machine
• Phase: Single

• Automatic Grade: Automatic, Semi Automatic
• Rated Power: 6-9kw
• Driven Type: Electric, Mechanical, Pneumatic
• Warranty: 1year
• Country of Origin: India
• Brand Name: Perforrmer
• Material: Ms /cassting

We hold expertise in providing a comprehensive range of CNC threading Machine for Column & Casing Pipes-up to 8 inches. It is semi automated and specially designed for socket (up to 6") machining (CNC turning center with LM guide ways /Hardened guide ways bore with manual chuck) Apart from this, our range of Machine for Column & Casing Pipes-up to 8 inches is also available with different sizes of bore in accordance with the clients' requirements i.e. 47 / 68 / 91 / 117 / 125 / 140 / 170 / 200 mm.

• Weight: 1000-2000kg
• Color: Grey
• Condition: New
• Automatic Grade: Semi Automatic
• Warranty: 1year

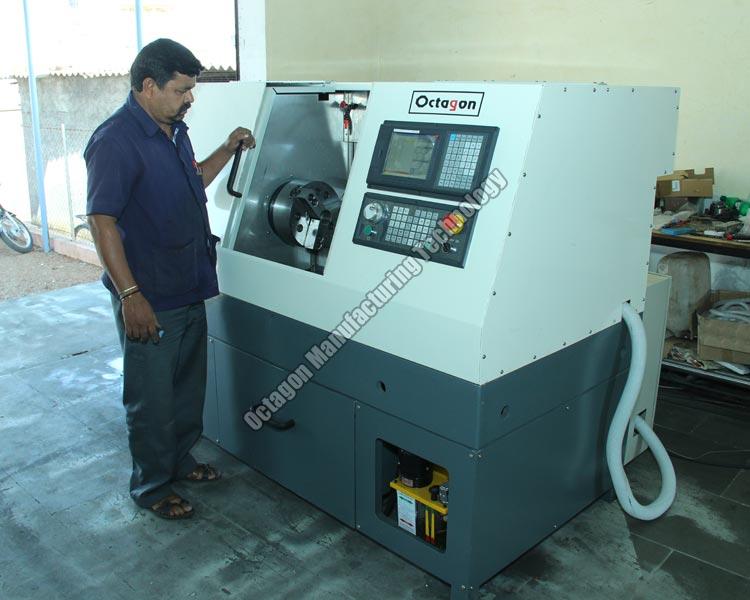

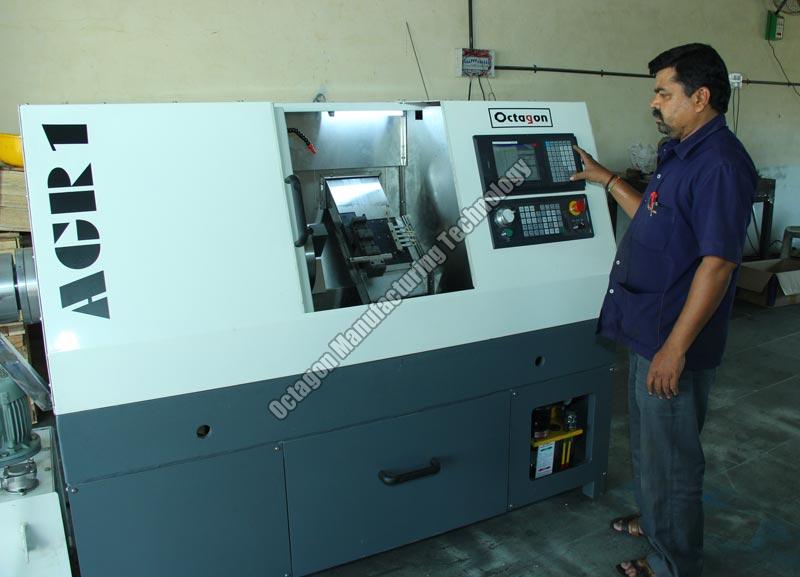

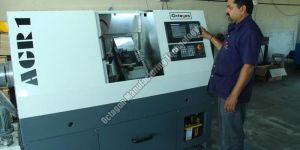

We are offering cnc pvc pipe threading machine. Generally pvc pipe threading are done by threading dies and taps which are highly expansive and needs special operator to do. Our machine does the threading by single point tool. Due to single point contact it make the whole concept highly economical and accurate. Mass production can be achieved which bring down the machining cost drastically lower. Both internal as well as external threading can be performed on same machine with very minor changes in jigs. This change does not require any skill operator. A not skill worker will do all the need full work for this operation. This pvc pipe threading machines can perform both types of thread profile i.e. "v" as well as square threads. On this pipe threading machine you can do grooving for "o" ring and turning operation at same time. This machine can do threading easily on pvc, brass and alluminium pipes. On this machine taper threading is also possible with some changes of jigs.

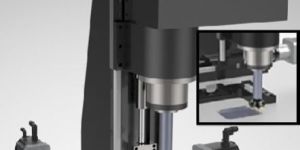

An unique, portable, multipurpose, CNC VMC with amazing, multipurpose capabilities. Produces drilled holes, square & round bores, threads on ID & OD, mills and other operations with speed & accuracy. Can be used as a regular VMC for small batch production and also as a table top, portable machine Can be mounted in vertical or horizontal position. Affordable, faster delivery CAPACITY: Drilling capacity: upto Ø24 mm steel Thread Milling: upto Ø300 on OD & Ø220 on OD through helical interpolation. Tapping: M20 through tapping attachment Milling: Ø63 mm cutter x 1.5 mm depth of cut Weight of the machine: 500 kgs in CI body/320 kg in aluminum Weight of the Electrical panel & Console: 150 kgs THREE LINEAR AXES (X, Y & Z AXES): Stroke Length: 300 mm for longitudinal (X) & cross (Y) axes & 400 mm for Vertical (Z) axis. Guideway: LM Guides & Blocks Feed Rate: 30 to 6000 mm per minute Feedback: Motor encoder Ball screw: C3 class, ground, preloaded Positioning Accuracy: ±10?m for 300 mm. Repeatability: 10?m Protection: Wipers for slide cover SPINDLE HEAD & SPINDLE DRIVE: Tool clamping taper of spindle ISO-40 Tool Locking system Through Manual Draw bar clamping Capacity of tool holder max Ø63 mm cutter Spindle Bearings: Match pair angular contact bearings, lubricated for life with special imported grease Spindle speeds 500 – 2800 RPM Spindle drive Timer belt driven. Main Spindle motor rating: 5 HP, VFD controlled AC induction motor

Technical Specifications Machine Particulars No. of Size HT- 1 5060 HT- 2 7090 Strike of Tracing Slide In mm 60 90 Minimum Centre Height from Top of Cross Slide In mm 135 140 Max. Dia of Round Master In mm 90 90 Max. Length of Master In mm 300 300 Hydraulic Working Pressure In Kg cm² 12 15 Pump Output In Lt Min. 6 8 Power Pack In H.P. 2 2 Threading 1 Pitch to 2 Pitch

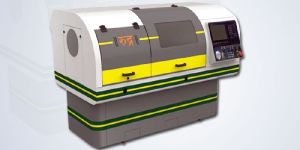

CNC PVC Pipe Threading Machine that Deliver While Rudra is better known for conventional PVC Pipe Threading Machines, our CNC Pipe Threading Machine products deserves your attention. We've approached the design and development of our CNC Pipe Threading Machine in the same methodical, user- centric way we develop our Threading technologies. Bottom line: each feature of our CNC Pipe Threading Machine is designed to maximize productivity because our primary goal is to deliver manufacturing technology that helps our customers to increase profitability. All features have a measurable benefit Each feature we integrate into our machine must give our customers a benefit that is measurable—reduce redundancy, decrease programming time, optimize machining time, improve finishing of end product.Easy to learn. Easy to use. We have the most intuitive user interface and logical software in the industry, which means less training time. We invented conversational programming and have continually led the industry to advance control technology so the technology helps machinists be more productive   A Growing Line of CNC Pipe Threading Machines. We have a Pipe Threading Machine to fit your design needs and your budget— whether you own a small job shop, you're a tier one supplier, you supervise a tool room at a large company, or you're a startup pursuing a dream. All of our Pipe Threading Machine are designed for speed and manufacturing flexibility to support a wide range of requirements.Due to Rudra's culture of innovation and fiscal discipline, we have been able to invest in the expansion of our Pipe Threading Machine. All of our Pipe Threading Machine are equipped with the world's most powerful control. If you don't have a Rudra Pipe Threading Machine on your shop floor, give us another look. We have a Machine that will make your operation more productive and profitable.

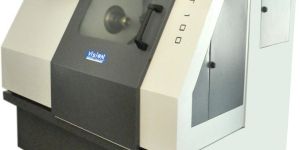

We are offering cnc threading machine. We bring to our customers a revolutionary range of turning & threading machines. These superior quality machines are ideal for both small and big diameter jobs, while ensuring enhanced tool-life. Turning threading features: machine is used for turning,facing,parting,threading,taper turning,chamfering and grooving material. pneumatic clamping with collet or chuck. developed software as per indian market requirement high production rate. it can operate by unskilled persion. user friendly operations. low maintenance cost. easy to service. run on very high speed fpga based motion control card highlights: high efficiency. accuracy: the min error of 0.01mm. automatism and convenience: simple software hardware installation, operate the manufacturing process by pressing touch screen button.

cnc threading machine, automatic slotting machines

CNC Turning Threading Machine is used for turning,facing,parting,threading,taper turning,chamfering and grooving material.

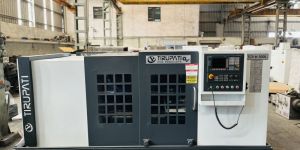

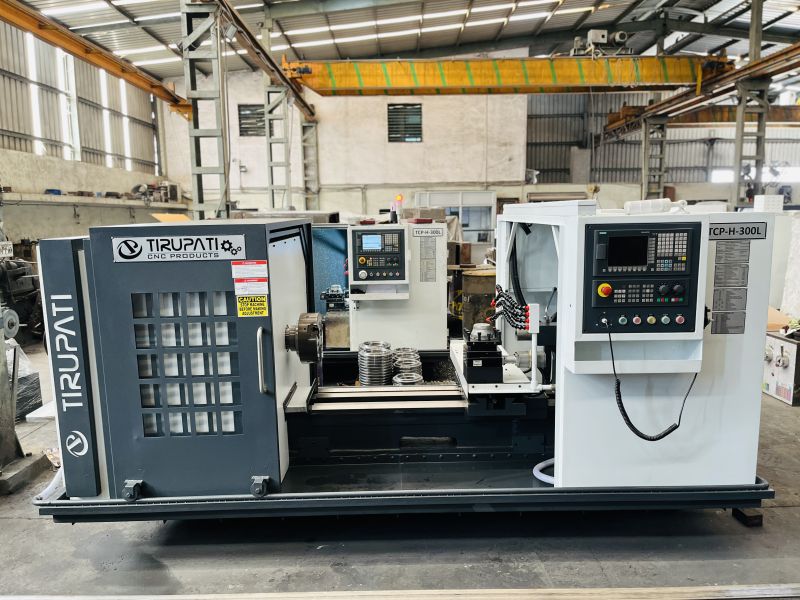

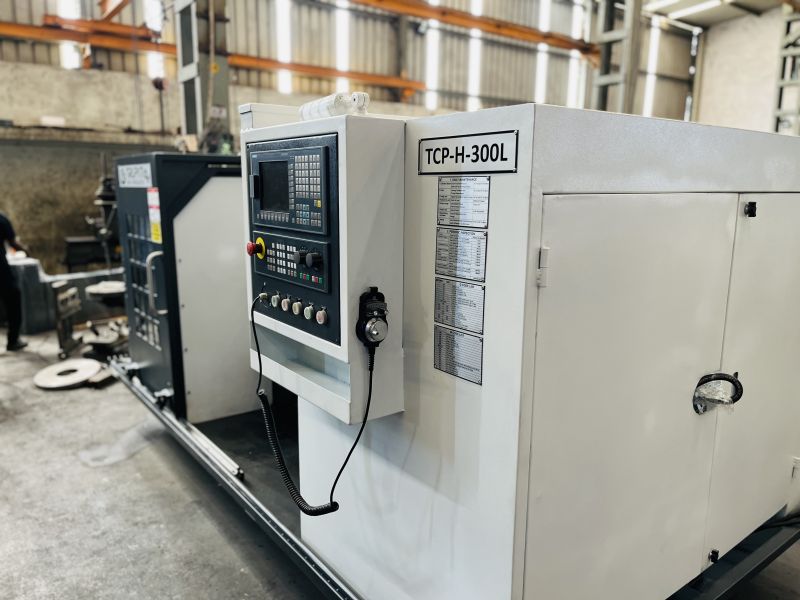

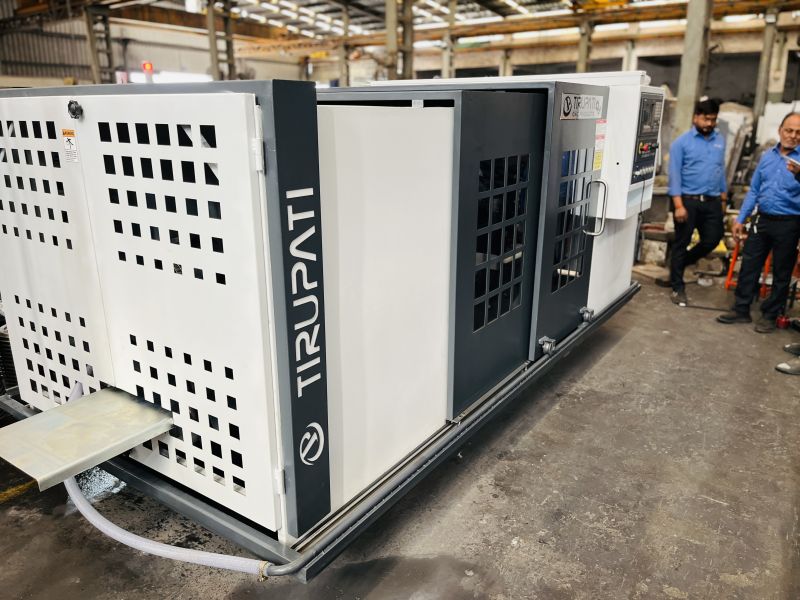

cnc pipe threading lathe machine
