Collecting Electrode Dealers

• Size: 10inch, 11inch, 12inch, 8inch, 9inch
• Material: Metal, Steel
• Thickness: 0-5micron, 10-15micron, 15-20micron, 5-10micron
• Grade: ASTM
• Condition: New
• Surface Finishing: Polished

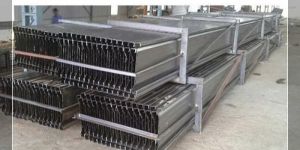

Collecting Plates are the collection surface made of sheet metal on which the particulate matter is collected after being negatively charged within the gas passage of the ESP. Designs of the plates vary from manufacturer to manufacturer. These plates are secured to the ESP shell at ground potential and serve as the positive anode of the gas passage. We are the Manufacturer & Supplier of Collecting Plates/Electrodes for all most all ESPs.

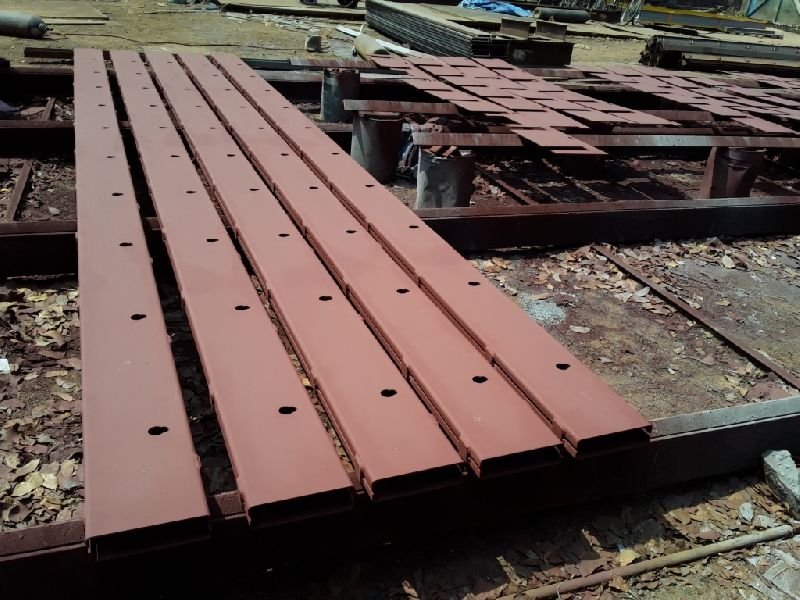

Manufactured from Cold rolled steel strip, these ESP Collecting Plates are used in receiving as well as retaining precipitated particles. These ESP Collecting Plates are designed to perfection to meet specific requirements of the clients. Besides, the ESP Collecting Plates are composed of Baffle plates that shield the particles from gas, rapper beams, and spacer bars that helps in keeping these plates aligned to each other. Dimensions Available 400 mm to 750 mm width5 meters to 15 meters length Ideally Used With ALSTOMBHELACCTharmaxHIMENVIRO VTCORPETS- ELEXENVIROCARE

• Type: Collecting Electrode
• Color: red
• Color: red
• Color: red

Collecting Plates / Electrodes are manufactured in our groups’ facility. In house engineering and design, and a dedicated quality assurance staff ensures that you receive the most durable & precision made Collecting Electrodes to suit all most all styles of Electrostatic Precipitators. We, at NTNN, offer Collecting Plates in thickness of 1.25 to 1.6 mm, to different profiles and in lengths up to 16.5 meters.

Electrostatic Precipitator Collecting Electrode, Collecting Plate Parts and Spares for any OEM Design, ESP Spares, ESP Parts Mevadhashma offers Collecting Plates / Electrodes are manufactured in our associate's facility.   Collecting Electrode used In big industrial processes where gas streams have to be smooth for electrostatic charging of particles and subsequent collection of the charged material onto collection surfaces in the gas stream. Collecting Electrodes form passages center of which discharge electrodes are suspended.   Collecting Electrodes are shaped to provide quiescent zones to prevent the collected dust from being entrained by the gas stream. Collecting Electrode guarantees a very even gas distribution with a low pressure loss and minimum expenditure on material.

To deliver the utmost product range in terms of quality, we do strict quality checks before the dispatch. The raw material that is used for manufacturing superior grade products is sourced from the reliable places after complete quality confirmation.   Details : We have dedicated facility to manufacture the collecting electrodes in Eastern India and can supply all profiles in large quantities.

• Type: Collecting Electrode
• Material: Stainless Steel
• Thickness: 0-5mm
• Certification: ISI Certified
• Length: 500-750mm.
• Application: ESP
• Weight: 50-100gm
• Feature: Temperature Maintained
• Condition: New
• Finishing: Polished
• Current Type: AC
• Country of Origin: India
• Thickness: ANY
• Product Name: CE PLATE
• Usage: ESP

The basic principle of electrostatic precipitation involves the movement of charged particles from the gas stream to a grounded surface, known as a collecting plate. Collected materials accumulate on the collecting plate surface and are periodically removed by Rappers. The design characteristics of the collecting plate are important for efficiency and long-term reliable operation. We offer ESP Collecting Electrodes like thermax, Alstom, Botliboi, VT corp, ETS Elex, ACC, etc with sheet thickness ranging from 1.25 to 1.5. Attributes : Light weight Low maintenance Resistance against corrosion Easy to install

The company is reckoned as one of the leading Suppliers of the advanced Collecting Electrodes in India. Our Collecting Electrodes are highly acclaimed by the widely spread clients, owing to its excellent efficiency and long working life. The Collecting Electrodes can be availed at reasonable prices from us. Description :The fundamental principle of electrostatic precipitation involves the movement of charged particles from the gas stream to a grounded surface, known as a collecting plate. Materials accumulate on the collecting plateâ��s surface. This collected material is periodically removed by the rappers.

• Material: Mild Steel and Stainless Steel
• Brand Name: Patil Engineers & Contractors
• Country of Origin: Made in India
• SS Grade: SS304
• Power Source: Electricity
• Sheet Thickness: 1.2 mm to 2 mm

Collecting Electrodes are the collection surface made of sheet metal on which the particulate mater is collected after being negatively charged within the gas passage of the ESP. Designs of the plates vary from manufacturer to manufacturer. These plates are secured to the ESP shell at ground potential and serve as the positive anode of the gas passage. Collecting Electrodes manufactured by Helios undergo a stringent quality control system which ensures straightness throughout the length of the plates. The finished plates are packed in steel crates for a damage free transit and handling.

Collecting Electrodes are the collection surface made of sheet metal on which the particulate mater is collected after being negatively charged within the gas passage of the ESP. Designs of the plates vary from manufacturer to manufacturer. These plates are secured to the ESP shell at ground potential and serve as the positive anode of the gas passage. General details of the Collecting Plates are given below: - Raw Material: Normally the Collecting Plates are made of Carbon Steel. However, for some applications where carbon steel made plates are corroded regularly, these are manufactured with stainless steel or an alloy steel. Sheet Thickness: The thickness of the collecting plates range from 0.5 to 2.0mm. Spacing: The spacing between the plates vary for different designs of ESP. For example, ESPs with wire type of emitting electrodes, plates are spaced from 150 to 300mm apart. High-efficiency ESPs (using wires) has spacing of 200 to 230 mm. ESPs usingrigid-frame or plate type discharge electrodes have a spacing of 300 to 400 mm betwee the plates. Height: Collecting Plates are normally 6 to 14M high.

In big industrial processes where gas streams have to be smooth, collecting electrodes are used for electrostatic charging of particles and subsequent collection of the charged material onto collection surfaces in the gas stream. Collecting Electrodes form passages center of which discharge electrodes are suspended.Collecting Electrodes are shaped to provide quiescent zones to prevent the collected dust from being entrained by the gas stream. Collecting Electrode guarantees a very even gas distribution wth a low pressure loss and minimum expenditure on material.The air is also cleaned due to collection of solid articles or liquid droplets from gas streams.

Collecting Electrodes are utilized for electrostatic charging of particulates as well as collection of charged material on collection surfaces of gas stream. These Dust Collecting Electrodes have acquired applications in industrial processes wherein gas stream are expected to be smooth. Industrial Collecting Electrodes ensures even distribution of gas with minimal pressure loss and low material expenditure. We provide availability of Collecting Electrodes at the most nominal prices. We are counted as one of the famed Industrial Collecting Electrodes Suppliers from India.

In Flakt type ESP’s, Collecting Electrodes are mostly of 400 mm, 500 mm & 735 mm width, as per the profile shown on this page. “Air Systems” manufacturers all the 3 types of Collecting Electrodes for Flakt type of Electrostatic Precipitators.

• Material: Aluminum
• Type: Electrodes
• Brand Name: VPM
• Features: Reduced re-entrainment, Optimal corona handling, Longer functional life
• Power Source: Electricity
• Sheet Thickness: 0.5 to 2.0 mm

We offer Collecting Electrode. Seeing the emerging pollution along with increasing power demands in India, Government of India has decided to set up nuclear power plants in India. Thus, installations of ESPs( Electro-Static-Precipitators) has been made a compulsion for the manufacturers of power plant boilers and equipments. In the manufacture of these ESP bodies, are used a few set of cold roll formed Metal sections like the dust collecting electrode, discharge electrode, Suspension electrode, etc. Thus VALSONS has entered into manufacturing of ESP profile forming machines which complies of high tech fully automatic machine of cassette designs, high speed presses, servo feeders, etc to give a high speed production line.

The Collecting Electrodes, delivered by us, are reckoned for their make and long service life. It is due to our guarantee of providing damage-free products to the clients; we are highly in demand amongst the buyers. Our packaging experts keep a stringent check on the entire packing procedure ensuring the same. We have trustworthy and well-organized shipping facilities available, along with this, we keep a record of the same as well, and this increases our efficiency and gains the trust of the customers.
