Control System Trainer Dealers

• Electric Supply: 1φ 230 V AC, 50 Hz.
• System Dimensions: 6 Ft. (L) x 2.5 Ft. (W) x 5.5 Ft. (H)
• Clean, Dry & Dust Free Compressed Air Supply: 2.1 Kg/cm3

Being a quality-conscious firm, we make sure that the offered lot is prepared using the world-class raw material and modern work methods. Also, we source it from the certified vendors. Payment for orders can be done by offline or online modes, according to suitability of clients. We will make sure any method agreed on by you and the company will be safe and secure.

This set up is designed to study the time response of simulated linear systems. The present set up has straightforward building blocks of simulated process & signal sources. A cathode ray oscilloscope (dual trace is best option) is the only other apparatus required to carried out the most experiments.

• Brand Name: ADTRON
• Usage/Application: Laboratory
• Model Name/Number: 4041
• Minimum Order Quantity: 1 Piece

Now a days, Electronics products are an inseparable part of our life. Be it home, office or on move, we are always surrounded by electronics systems. From home appliances like television, washing machine or workplace gadgets like printers, elevators to automobiles or automatic traffic control systems, all work on using electronics components,embedded systems programming, PCB design etc.

• Usage: Laboratory and Industrial
• Power Supply (V): 220 V
• Power consumption: 3.6 Watts (Approx)
• Fuse: 1.5 amps
• Frequency: 50 Hz

We offer Linear System Simulator useful for control labs. The set-up offered is a variable configuration simulated system designed for time domain studies of both open loop and closed loop systems. Selection at block diagram level eliminates the need to bother about the details of electronic circuitry and its assembly. The simulator shown includes transfer functions of the form 1/s and 1/(sT+1), a calibrated variable gain K and an error detector. >>Highlights Time domain study of a Linear System Op-amp simulated system for greater accuracy Flexible systems configuration Additional experiments may be performed >>Experiments Open and closed loop step response of First Order type-0 system for various values of gain Open and closed loop step response of Second Order type-0 and type-1 systems Response of third order system Steady-State errors for closed loop configuration through triangular wave input. The number of experiments possible on the unit is not limited to those suggested above. >>Features and Specifications Simulated first, second and third order system of type-0 and type-1 Calibrated variable gain amplifier (Resolution 1:1000) Built-in signal sources: Square wave and Triangular Frequency: 45-90Hz Amplitude: 0-2.5V approximately Trigger output for perfectly steady display on CRO Uncommitted amplifier for phase adjustment Provision for disturbance inputs Complete in all respect, except a measuring CRO

Features: Simulated blocks like dead time (transportation lag), integrator, time constant, error detector and gain. PID Controller Prop: Band 5% to 50% (Gain 2-20), Integral time: 10msec-100msec, Derivative time : 2-200msec Built-in signal sources Value of -1V to +1V, Square wave & Triangular of 1V p-p (min) at 40Hz, Built-in 3 ½ digit DVM for DC measurements

The technical knowledge and practices that CRISC evaluates and promotes are the building blocks of victory in the field, After qualifying this certification, a professional can be hired as a senior IT auditor, security engineer architect, IT security analyst, or information assurance program manager. The CRISC is designed for professionals who have three years of experience in professional-level risk control and management. To get the CRISC credential, a professional must: Concur to abide by the CRISC Continuing Education Policy Pass the CRISC exam Stick to the ISACA Code of Professional Ethics.

• Frequency: 100 Hz Fixed
• Amplitude: 1 Vpp.

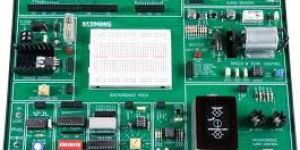

Basic Control System Trainer is a very versatile and useful trainer kit for the control laboratory for all engineering, polytechnic and vocational courses. It provides with in depth knowledge of the basics of control systems like open loop, closed loop, Ist, IInd and IIIrd order systems active and passive, Type 0, 1, and 2 control systems. Practical and Theoretical concepts can be verified for all types of control systems. The unit is housed in an elegantly designed metal cabinet with a well spread circuit layout on the front panel. A comprehensive Instruction Manual complete with Theory and Operation details is provided. These are some of the salient features of the Basic Control System Trainer.

• Brand Name: TAGLab

We are offering basic feedback control system. Electronic simulation principle & working of a basic feed control system charging of a capacitor with constant current used as process variable ip command, disturbing error signal & timer with relay.

• Type: Portable
• Certification: CE Certified
• Color: Black
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1 Year

Nvis 3000A Control System Lab exposes students & industry professional to study the fundamentals of Control System. Studies include how one device can be used to manage, command, direct, or regulate the behavior of other System Open Loop & Close Loop Control.   Details : Nvis 3000A has various parts like temperature sensor, light sensor, DC motor, servo Motor, LED lamps, IR sensor, relay SPST, relay DPDT, debounce switch, LED bar, buzzer etc., which can be used for the study of control system. A process can be controlled using P, PI & PID system There are   wide range of experiments that can be performed on the control system lab platform. Nvis 3000A Control System Lab is also compatible with Nvis 630 Data Acquisition System. Nvis 630 DAQ is very useful for sensing and controlling analog and digital signals of any process. It makes easy and interesting to interface real-world signals with PC/Laptop through USB bus. For ease of connection, it has screw terminals.   Product Features : Open Loop System Close Loop System On board Temperature Sensor and heater Feedback concept P, PI & PID System using software External DC Motor with encoder On board LED lamp and Light Sensor On board Buzzer for Alarm On board Infrared Sensor On board Relay interface On board LED bar display On board Servo Motor DC Motor speed V/F, F/V & V/I conversion Breadboard for circuit design

We give you training across the sectors of physical security, fire safety, electronic security, retail and many more. Our vocational training is outcome based and oriented to help you learn and earn, shape your careers with the right blend of knowledge, skills and attitudes to perform in the practical world.

• Brand Name: Logsun Systems
• Power: 3 to 3.6 Watts
• Usage: Laboratory
• Speed: 2V/ 1000 rpm approximately
• Model: LGS DCSVC
• Motor Voltage: 12V

Code: EEZ0011 Chilled Water Refrigerating System Control Trainer. Chilled Water Refrigerating System Control Trainer ManufacturerChilled Water Refrigerating System Control TrainerFeatured    It is convenient for learning since the commonly-used control components of chilled water unit were placed on the panel layout.    Three-phase motor is used in place of compressor. The learner can go forward their hands-on practicing step by step from basics like interlocking circuit, motor start-up and control circuit of forward / reverse rotation, to the advanced one such as the complete control circuit of reciprocating / screw type chilled water unit, etc..    The used pressure component is triggered by direct vapor-pressurizing so the system can close to the real one. On the contrary, the traditional components used for teaching of the past that have to be actuated by bolt or screwdriver can be discarded.    The input vapor-pressure, which is divided into 3 mimic pressures like low- pressure, high-pressure and oil pressure, can be used and adjusted separately so the learner would have clearer understanding of functionality of each component accordingly.    The E.O.C.R is equipped

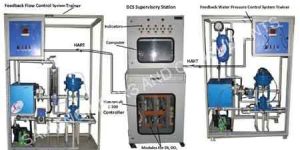

Distributed Control System Trainer is equipment that is designed for studying the principle of Distributed control system used in Industrial Environments. Various software like SCADA, interfacing package, PLC Hybrid Controller Honeywell C 300 DCS Master Controller based data logging and Distributed Control facility; are used to bring the overall idea of its use. Master Controller available is required for Data, Send Receive commands to remotely placed controllers.

• Motor: DC 70 W
• Encoder: DC 1,000P/R
• Gross Weight: Less Then 20 Kg
• System Weight: Less Then 10 Kg
• Gear Ratio: 1:4
• Potentiometer: Linearity +- 1.5 %

We offer Potentiometric Error Detector useful for control labs. All feedback control systems operate from the error signal which is generated by a comparison of the reference and the output. Error detectors perform the crucial task of comparing the reference and output signals. The present set-up is designed to study the important characteristics of a 2-potentiometer angular position error detector. These include (i) linearity, (ii) sensitivity and (iii) maximum angle of rotation. Good quality wire wound servo potentiometers with full 360 degree rotation have been used for this purpose. Accurately marked dials with least count of 1degree are fixed on the shafts for position indication. The error voltage is read on a built-in 3.5 digit DVM. An I.C. regulated internal reference voltage is available for d.c. studies. When used with an a.c. reference, the unit also demonstrates the phase reversal of the error signal which is important in applications involving a 2-phase servomotor as actuator. Highlights >>High quality servo potentiometers >>360 degree Mechanical, 355 degree Electrical span >>DC and AC operation >>3.5 Digital Panel Meter for all measurements Experiments >>Linearity study of the error detector >>Determination of error detector gain >>Use of a.c. supply for the error detector-introduction to the phase reversal of error signal Features and Specifications >>High quality servo-potentiometers of 360 degree shaft rotation >>Requires an external CRO for a.c. studies >>Built-in signal and power sources >>3.5 digit DVM for measurements The experiment is complete in all respect, except a CRO.

• Brand Name: Xeltronix
• Model Name/Number: XL-501

Nvis 3000A Control System Lab exposes students & industry professional to study the fundamentals of Control System. Studies include how one device can be used to manage, command, direct, or regulate the behavior of other System Open Loop & Close Loop Control.
