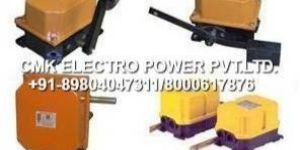

Crane Limit Switches Dealers

• Brand Name: Telemecanique
• Material: Aluminium
• Switch Type: Rotary Gear
• Voltage: 220/ 225 V
• Usage/Application: Tower Crane
• Size/Dimension: 113, 146, 160, 1210, 1274 mm
• Current: 15 A

• Country of Origin: India
• Type: Crane Limit Switches
• Material: Steel industrial grade
• Certification: ISO 9001:2008 Certified
• Application: Vibrating Levelling
• Voltage: 230VAC
• Frequency: 50HZ
• Power: 10-15Amp
• Temperature: 0Dig C To + 60Dig C
• Hole Diameter: 20-40mm
• Setting Range: 0-1500pF
• Brand Name: novel

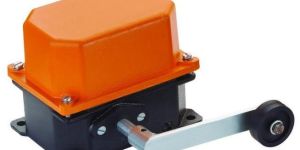

Lever Limit Switch For EOT Crane

• Brand Name: saras
• Material: Plastic
• Color: Orange
• Condition: New
• Type: Crane Limit Switches
• Warranty: 12 Month
• Country of Origin: India

The rotary limit switches are used to limit the end positions of the blade pitch, set pre-warning points and give precise position signals. These real-time position signals of the blade pitch enable the entire system to optimize the power output.

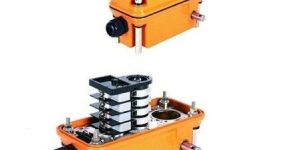

Rotary geared type Limit Switch is basically consists of heavy duty worm gear drive. The worm gear unit is built in a cast housing fitted on main body of Limit Switch. The cam shaft which extends from behind the gear in to housing, accommodates the cams adjustable actuators which are fitted on the cams. These actuators strikes the contact finger of respective contacts Function : Limit Switch is to stop the mechanism of drive at the extreme clock wise anti clock wise position. These Rotary Limit Switches are particularly suited for use on reversing drives such as Electric Hoists, Winches, Over Head Cranes, Traversers etc.

• Material: Abs
• Switch Type: Push Button Switch
• Brand Name: MME
• Item Dimensions LxWxH: 15 x 12 x 12 Centimeters
• Actuator Type: Push Button

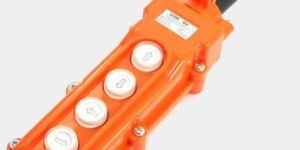

• Features: Up, Down, East, West, 4 Pushbuttons, Momentary Contact, Abs Housing, Rainproof. Ideal Pendant Control Station for Hoist and Crane
• Package Content: 1 X Hoist Pushbutton Switch,1 X Jointing Sleeve
• Net weight: 272G
• Jointing Sleeve Size: 13 X 2.7cm / 5.1″ X 1.1″(l*d)
• Overall Size (approx.): 19 X 6.5 X 5 Cm / 7.5″ X 2.6″ X 2″ (l*w*t)

• Country of Origin: India
• Type: Crane Limit Switches
• Brand Name: SR HEAVY EQUIPMENT
• Certification: MSME
• Application: Limit Switch
• Voltage: GND
• Power: 5-10Amp, 10-15Amp
• Condition: New
• After-Sales Service Provided: Yes
• Material: MS material
• Switch Type: Limit Switch
• Suitable For: Crane
• Display Type: Limit Switch
• Brand Name: sr heavy equipment
• Warranty: 1 year
• Color: black and yellow

• Voltage: 415 V AC
• COLOR: ORANGE / BLACK
• RATTING: 10 AMP

Application: The new range of limit switches has been designed and manufactured according to safety standard are suitable for use on reversing drives such as hoists, cranes, winches and rolling mills etc. Design: The driving motion is transmitted by worm gear. All gears and hubs are made of low wear thermoplastic. The rotational movements are transmitted to switches by adjustable cams. Driving cams: Each lever has a single micrometric resister screw.This screw exclusively works on its own combined lever, excluding any mechanical contact with any other next to it. The regulation is easily made by use of screwdriver on a register screw. The special friction system assures a rapid and precise adjustment. Technical Data: Body Material : Black Nylon Cover Material Yellow : Impact proof thermoplastic Protection Degree : IP-55 Mounting Position : Any Gear Ratios :1:12.5, 1:25, 1:50, 1:100, 1:200 & 1:400 Drive : Worm Drive Cable Entries : 2, 3/4" Conduit Maximum Rotation Speed :1200 rpm Contact Material : Double break silver cadmium Wire Connection : Screw terminal Rated Voltage Insulation : 500 V.A.C. Thermal Test Current : 10 Amps.

• Country of Origin: India
• Material: Metal & Plastic

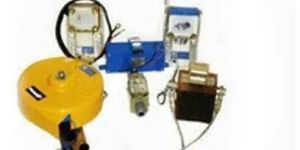

• Application: Hydra Crane
• Frequency: 50HZ
• Temperature: 0Dig C To + 60Dig C
• Features: Longer service life, Shock proof, Unmatched quality, Easy to install

• Brand Name: Powermech,Speedocontrols and Equivalent to other Brand is also Offered
• Warranty: One Year for Manufacturing Defect Only
• Country of Origin: Made in India
• Application: EOT Crane Hoisting
• Rated Current: 40 Amps
• Power/Voltage: 415 Volts
• Degree Of Protection: IP 41
• Enclosure: Sheet (Metal) Steel
• Application/Usage: EOT Crane, Hoist, Gantry Crane, Overhead Crane

Specifications: Sheet Steel (Metal) Enclosure, IP-41, 10A / 40A). (Also available in Aluminium Die Cast, Degree of Protection: IP-55 IS: 13947 Part 1 Mounting Position: Floor Mounting Cable Entries: Twin BS conduit No. of Contact: 2 / 4 Contact: Silver-cadmium Wire Connection: Screwed Terminals.

We are offering a wide range of crane limit switches. Our crane limit switches are very durable and less price. Our complete product range is manufactured using the best grade raw material and sophisticated technology in accordance with the set industry norms. specifications: max. Voltage: 250vac operating temperature: -25-80c max. Current: 10a,40a

• Country of Origin: Made in India
• Material: PVC
• Brand Name: DIPTY
• Switch Type: SHOCK PROOF
• Usage/Application: CRANES

• Type: Crane Limit Switches
• Certification: CE Certified, ISO 9001:2008 Certified
• Application: Industrial use
• Voltage: 230VAC
• Frequency: 50HZ
• Condition: New
• Power Source: Hydraulic

We would like to introduce ourselves as a prominent enterprise in the domain of manufacturing and supplying of premium quality Crane Limit Switch. Generally used in heavy duty cranes and wagon shunting, the offered limit switch is used on the crane trolley to control over travel of the crane hook when lifting. Under the guidance of the practiced professionals, this limit switch is designed using supreme quality components and with the help of the latest technology. We provide this limit switch to our esteemed clients at reasonable price. Features: Robust construction Automatically reset system Power resistors

Protocontrol offers heavy duty limit switch for use in eoc cranes. These switches give position feedback by operation of contact. The application includes position sensing of crane, stacker reclaimer, loader etc. The robust design makes its use on heavy machinery. these switches have been developed to meet the requirement of ‘extra heavy duty’ service as found in cranes, in mining, foundries, steel plants etc. Where limit switches have to withstand high electrical and mechanical wear. The roller limit switch is used on cranes, stackers and reclaimers to sense position end of travel etc. The heavy duty roller and actuation mechanism makes it immune for impact of these machinery. The bodies and covers are fabricated out of thick cast iron/ al enclosures, which are resistant against corrosion and rough handling. two types of actuation mechanism are offered 1) stay put type where the switch remains in actuated position and same gets reset only when the lever is pushed back by operating mechanism.2. Spring return type where the roller regains its position when the operating mechanism goes away. following models are available “ hdls 101: heavy duty limit switch with 1 no + 1 nc contact hdls 202: heavy duty limit switch with 2 no + 2 nc contact all above switch are field mounting having ip 65 enclosure, available in various enclosures materials to suite site conditions: c: cast aluminum, d: corrosion resistance dmc / frp, ci: cast iron, f: flameproof optional accessories: ts: with terminal strip inside the switch jb: with separate junction box with terminal strip for ease of termination cg: cable gland bp: base plate various other options are available. Please visit website to download catalogue.

• Material: Steel
• Feature: High tolerance,Corrosion resistance,Durability
• Applications: Cranes and Loaders
• Usages: Industrial, Commercial
• Types: Rotary Geared Limit Switch, Lever Type Shunt Limit Switch, Counter Weight Type Limit Switch
• Technology Used: Cutting - Edge Technology
• Finishing: Polished
