Crgo Transformer Lamination Core Dealers

• Country of Origin: India
• Type: Transformer Laminations
• Shape: Coil, EI Lamination, Steel Coil, Steel Plate, TL Lamination
• Certification: CE Certified, ISO 9001:2008

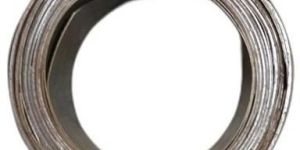

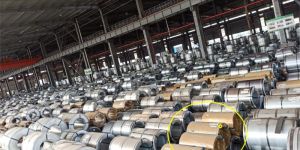

The manufacturing of wound cores is a specialized process, which requires a high degree of precision. These cores are manufactured from selected coils of CRGO electrical steel to yield closely controlled electro-magnetic characteristics and dimensional accuracy.

• Country of Origin: India
• Type: Crgo Transformer Lamination Core
• Material: CRGO
• Shape: Coil, EI Lamination, TL Lamination
• Thickness: 0.10-0.50mm

Crgo lamination completely different type of assembly designed crgo screb assembly core -10,16,25,50,63 100,250,500kva etc.

• Thickness: 2 mm
• Shape: Round
• Material: CRGO
• Usage/Application: Transformer

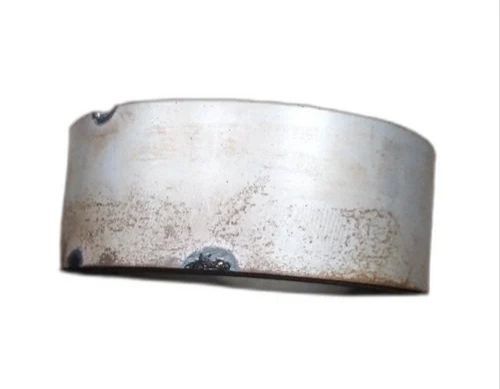

• Core Type: Ring Core Type
• Tolerance: 0.10 mm

• Material: CRNGO Steel
• Thickness: 0.25 mm
• Usage: Power Transformer
• Product Type: Electrical Industry

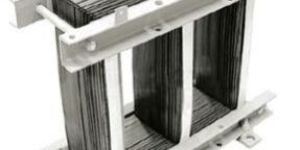

Premier Core Industries manufactures the following products : We manufacture Transformer Core Laminations for Power and Distrubution Transformer ranging from 10 KVA to 200000 KVA from Cold Rolled Grain Oriented (CRGO) steel in grades M2, M3, M4, M5, M6 and also the Hi-B CRGO grades of ZH, ZDKH, ZDMH, ORSI-H, TCH-O, TCH-1 etc. For more technical details on the various grades of CRGO steel, We are able to deliver CRGO Transformer Lamination Cores as leg or sheet packet, according to your packing requirements, inside of wooden box or on the pallets.

• Shape: TL Lamination
• Color: Grey
• Surface Treatment: Coated, Inorganic
• Application: Coke Coils, Industrial Magnet, Industrial Transformer, Power Supply Transformer
• Thickness: 0.1-0.10mm
• Phase: Single Phase, Three Phase

• Shape: EI Lamination

Thickness =       .23,     .27,      .30,      .35

• Material: Iron
• Thickness: 0.10-0.50mm
• Application: Industrial Transformer
• Color: Silver
• Phase: Single Phase
• Condition: New
• Quality: Finest
• Width: 1000 mm

• width: 1000 mm

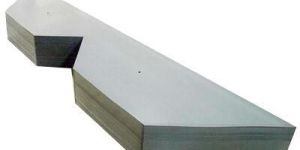

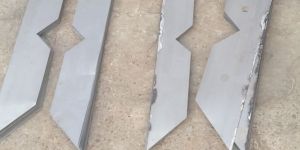

Transformer core lamination for Power & Distribution transformers is manufactured from various grades of Cold Rolled Grain Oriented ( CRGO ) steel. Lamination in various shapes & sizes are slit and cut to required accurate geometrical shapes with 90° & 45° cutting systems. The manufacturing of Cold Rolled Grain Oriented CRGO Quality Lamination involves a high degree precision engineering. Transformer lamination can be of various sizes for single or three-phase transformers, made with overlap joints or step lap joints (Cross/Longitudinal). They are cut, punched and V-notched in order to fit in a particular transformer. Cutting, Punching and Notching of different shapes of sheets are possible in width up to 1000 mm and length up to 5500 mm.

• Material: CRGO
• Usage: Transformer
• Core Type: Ring Core Type
• Diameter: 35 mm
• Width: 15 mm

• Capacity: 4000 M.T. / Anum.

Transformer core lamination for Power & Distribution transformer is manufactured from various grades of Cold Rolled Grain Oriented (CRGO) steel. Lamination in various shapes & sizes are slit and cut to required accurate geometrical shapes with 90° & 45° cutting systems. The manufacturing of Transformer Lamination involves a high degree of precision engineering.

Every type of steel has "grains" which consist of "domains". These "domains" are nothing but electrical charges oriented in any random direction. Therefore if a transformer were to be made of Mild Steel used as core material, the core loss would be approx. 16 to 17 wkg at 1.5T50Hz and the size of the transformer would be approx. 18 to 20 times the size of a transformer manufactured with GO steels.

Crgo transformer lamination core to Customer specification for single phase and three phase distribution transformer applications By using Metglas® amorphous metal. Epoxy coating is applied to the some parts of the cores in order to get mechanical rigidity. And finally we can get the 80% lower No load losses as compare to CRGO Lamination.
