Dart Impact Tester Dealers

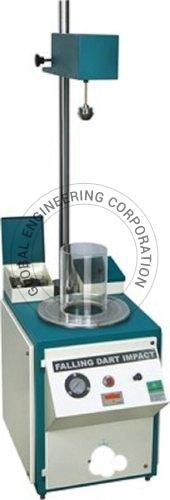

Presto’s Dart Impact Tester is used to determine the impact of load on a plastic film under specific conditions to analyze the effect of a free falling dart. A load of falling dart damages the plastic film under specified conditions. The testing instrument is widely used in plastic industries for judging the strength and stability of the plastic films and similar products. Dart Impact is also known as impact failure load of plastic films is described as the load of the hemispherical shaped dart, falling on the plastic sheet or film held in a suitable clamp from a particular height, which causes the collapse of 50% of samples tested. Dart Impact Tester is a very beneficial tool for clearly controlling peak and normal strength characteristics to speed up the additives and production settings and adjustments, research and development of sheet and film materials. PRESTO Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films, flexible films, sheets and similar other products. Works according to both Method-A and Method-B of test standard. Presto’s Dart Impact Tester is a method to evaluate the strength or toughness of a plastic film. The test comprises of dart configuration and drop height with a different weight of the dart. Test results can be used as a quality control evaluation and also for end use assessments. The dart is designed in a hemispherical form that can be dropped from uneven heights. It is held by  a electromagnetic dart holder which released by pressing a button from varying heights. A user can set the height of the dart manually. The result can be viewed from the digital panel.     The machine is designed and built on a rigid metal base plate. It has strong electromagnetic dart holders. The dart is released at the press of a button. It provides fast, reliable and accurate measurements from uneven heights. The instrument is supplied with a conformance certificate traceable to NABL and Instruction Manual. The machine is finished with Blue and Autumn Gray combination painting with bright chrome plating to provide a rust resistant finish. Electromagnetic Hold and release mechanism for dart Inbuilt Digital counter for counting number of falls during single test operation Circular annular clamping devices for zero slippage Shielding structure to prevent dart from falling out after bouncing from sample Strong base plate with rugged structure Clamping Shield height adjustable collar Standard: IS 2508:1984(R2003), ASTM D1709-16A.

• Automation Grade: Manual
• Voltage: 230 V
• Phase: Single Phase
• Product Type: Impact Testing Machine
• Brand: Stech
• Warranty: 1 Year
• Country of Origin: Made in India
• Power Source: Electric
• Feature: 50 Hz

With characteristics like unmatched standard and superior grade, our range of product is the finest one obtainable in Ahmedabad(India). We have substantial warehouse that is well-equipped with the cutting-edge technologies and upgraded machines; thus, we are capable of entertaining the voluminous requirements with super ease.

• Test rang method A: 50
• Test rang Method B: 300
• Accuracy: 0.1g
• Specimen Size: > 150 mm x 150 mm
• Net weight: 70kg

Myq Falling Dart Impact Tester is designed to measure impact resistance property of plastic films, sheeting, paper and foils. It is based on free falling dart method and equipped wtih LCD display.Properties - Impact Applications - Plastic Films, Paper and paperboard, foilsMethod - Free Falling Dart MethodStandards - ASTM D1709, ISO 7765-1-1988, JIS K7124-1, GB/T 9639.1-2008Features Two methods (A&B) in one instrument Windows menu interface and touch screen Pneumatic specimen clamping Graphic display of testing process Pedal switch Built-in observation light RS232 micro printer Intelligent data sharing system

• Brand Name: IDEAL LAB
• Power: 230 VOLT
• Application: PACKAGING INDUSTRIES
• Application: POLY FILM TESTING
• Certificate: NABL

AS PER ASTM 1709

An equipment to test the quality of film laminate in respect of its resistance to rupture due to sudden Impact.

BMC-B1 is designed for determination of mechanical properties of packaging materials such as plastic films, laminates and paper by a free falling dart from a certain height. This instrument is designed according to ASTM D1709 with method A & B.   PrincipleBefore starting the test, choose test method, and estimate an initial mass and Δm. Start the test. If the first specimen fails, decrease the mass of the falling dart by Δm. If the first specimen is not a failure, increase the mass of the falling dart by Δm. Continue the test according to this rule. In brief, increase or decrease by Δm according to whether the former specimen is a failure or not. After 20 specimens, calculate the total number of failed specimens N. If N equals to 10, the test is over. If N is less than 10, add specimens and continue to test until N equals to 10. If N is greater than 10, add specimen and continue the test until the number of non-failure specimens reaches 10. Then the tester calculates the test results automatically according to specific formulas.   Features: Basic Applications     Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food package and heavy packages Impact resistance test of aluminum foils and aluminum plastic composite films Impact resistance test of paper and paper board Extended Applications     Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.

For the convenience of the clients, we have adopted both online and offline payment modes of transaction. In addition to this, we guarantee transparency and confidentiality in both. To ensure maximum quality retention, we package our products in industrial-grade packaging materials that can brave mechanical damages and logistical jostling. Additionally, they are labeled to impart product information.   USP HEXA PLAST provides impact tester for different plastic films, sheets, decorative laminates, corrugated roofing sheets etc. with range of Darts & selectable facility of height of fall with low efforts. HEXA PLAST provides two different Electromagnetic system for light & heavy dart respectively which would help in selection of dart with smallest possible dart to heaviest one. HEXA PLAST gives high – tech vacuum pump with gauge and clamping system to clamp the film tightly. We also provides Digital Counter for counting Number.

The Free Falling Dart Impact Tester is used for PVC pipes, PVC ducting pipes & HDPE pipes as per IS & DOT specifications.The impact properities of the polymetric materials are directly related to the overall toughness of the materual. Toughness is defined as the ability of the polymer to absorb applied energy. The area under the stress-strain curve isdirectly proportional to thetoughness of a material. Impact strength is a measurement of toughness. The higher the impact strength of a material the higher the toughness and vice-versa. Impact resistance is the ability of a material to resist breaking under a shock loading or the ability to resist the fracture under stress applied at high speed.

• Brand Name: Paramount
• Certification: ISO 9001:2008 Certified
• Specialities: High Performance
• Color: Blue and Grey
• Condition: New
• Country of Origin: India
• Warrenty: Lifetime Buyback Warranty

Dart impact Master is a widely used instrument in different packaging industries where it is used for testing the strength of the plastic films and is best for testing the ability of the film to withstand the various forces levied on it. The instrument is provided with an electromagnetic dart hold/release mechanism to avoid any type of interference in force exertion The electromagnetic mechanism can hold a weight of up to 2 kg. The instrument is also provided with a digital counter that is helpful in determining the numbers of falls performed in a single test. The dual clamping device provided with the machine is best for providing wrinkle free clamping of the test specimen. Along with that there is a shielding device provided with the machine to prevent the dart from bouncing back out of the machine upon impact. Paramount Dart Impact Tester i9™ (Digital) is a Next Generation Equipment that is designed for providing optimum performance. Plastic films are widely used for various purposes in different industries. The biggest use of these plastic films is in the packaging industry. The dart impact test method is one of the Prime tests that is used for testing the strength of the films and their ability to bear impact from a freely falling dart.

• Features: 2 test methods of A & B and automatic determination of testing status, Electromagnetic suspension and automatic release of the falling dart reduce the errors caused by manual operation
• Benefits: High accuracy, Easy interpretation, Versatile applications
• Method A or Method B is optional: Method A: 50∼2000g, Method B: 300∼2000g
• 0.1g (0.1J): ASTM D1709

• Material: Mild Steel
• Diameter: Method a 38 Mm, Method B - 50.8 Mm Plus Minus 0.13 Mm
• Color: Multicolor
• Size: 415 X 500 X 2153 Mm
• Features: Electromagnetic Hold and Release Mechanism for Dart, Single Push Button Operation, Strong Base Plate
• Specification: Elegant Design and Attractively Powder Coated Paint, Shock Absorbers, Built-in Vacuum Pump
• Quality: Optimum Quality

Deepak Free Falling Dart Impact Tester is used for PVC pipes, PVC ducting pipes & HDPE pipe as per IS, DIN, ASTM, BS, DOT specifications. The impact properties of the polymeric materials are directly related to the overall toughness is defined as the ability of the polymer to absorb applied energy. The area under the stress-strain curve is directly proportional to the toughness of a material. Impact strength is a measurement of toughness. The higher the impact strength of a material the higher the toughness and vice-versa. Impact resistance is the ability of a material to resist breaking under a shock loading or the ability to resist the fracture under stress applied at high speed. The pipe shall be placed on 'v' block in a such way that one of the marked lines is upper most. The stricker shall be allowed to fall manually/chain drive motorized system. Specimens: 200 ± 10 mm long pipe shall be cut from the complete section. Each specimen shall be cut clean & gauge to the axis of the pipe. FEATURES Drop height up to 2 mtrs. Drop height controlled manually/motorised. Pipe diameter can be tested up to 315 mm in manual version, where as up to 450/630 mm in motorised version. Falling weight: 250 gms, 500 gms, 1 kg, 10 kg or as per the requirement of various standards.

• Length: 350 mm
• Width: 450 mm
• Height: 1650 mm

  The Dart Impact Tester is used to determine mechanical properties of packaging material such as Plastic Films,Laminates and Paper. Dart Impact Tester The Dart Impact Tester determine the energy that causes packaging material to fail under specified conditions of impact of a free-falling dart. This energy is expressed in terms of the weight (mass) of the dart falling from a specified height which would result in 50 % failure of specimens tested.   Dart Assembly:   Steel Shaft Tip: 6.4 mm OD x 12.7 mm Long   Hemispherical Head: 38.1 mm ? (Diameter) Additional Stainless Steel Masses/Weights:   24 Pcs of 15.0 g ±0.1 g   05 Pcs of 15.0 g ±0.1 g Technical Specification:   Dart Drop Height - Available upto 1524 mm   Specimen Holder: Manual Clamp   An Electro-Mechanical Mechanism for releasing the dart   Power: AC 220 V 50Hz 1 Ph   Test Range: 5 gms to 2000 gms Machine Dimension:

Utilizing on-board microprocessor technology, the Ray-Ran Microprocessor Controlled Falling Dart Impact Tester has taken falling dart testing machines to an advanced level at an affordable price. Built with operator simplicity in mind, its ease of operation and high accuracy makes it ideal for product development and quality control within production, research and development labs and teaching institutions.   Complying with the ASTM D 1709 Method A & B.     TECHNICAL SPECIFICATION: ·         Advanced dedicated microprocessor control, ·         Touch membrane Alpha / Numeric keypad ·         Easy to read liquid crystal display, ·         Sequence logic menu auto prompt selection ·         RS232 interface connector ·         Ethernet Interface connector for LAN Networking ·         Self-calibration procedure. ·         Photo electric cell technology ·         Variable drop height adjustment as standard 660mm – 1500mm ·         Pneumatic clamping system ·         Constant sample tension for repeatability ·         Solenoid actuated dart release mechanism with audible pre-warning ·         Dart return shoot ·         38.1mm (1 ½”) and 50.8mm (2”) spherical darts as standard ·         Binary weight set supplied as standard ·         Electrical interlock safety guard ·         Tabular and graphical statistical analysis ·         Techni-Test PC software ·         Product User Manual ·         CE declaration certificate ·         Traceable Calibration Certificate

• Weight: 2Kg

Dart Impact is also known as impact failure load of plastic films is described as the load of the hemispherical shaped dart, falling on the plastic sheet or film held in a suitable clamp from a particular height, which causes the collapse of 50% of samples tested. Dart Impact Tester is a very beneficial tool for clearly controlling peak and normal strength characteristics to speed up the additives and production settings and adjustments, research and development of sheet and film materials.

• Material: Mild Steel
• Driven Type: Electric
• Power: 1-3kw
• Usage: Impact Loading
• Inside diameter of clamp: 127mm
• Counter: Digital
• Electrical Requirement: Single Phase 220 V AC
• Features: Built on a rigid metallic base, Strong base plate with rugged structure
• MODEL: PDI-350

The Presto Dart Impact Tester is used for determining the impact of a free falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder. The Presto Dart Impact Tester is used for determining the impact of a free falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder. The dart is released from the holder at the press of a button. It can be dropped from variable heights.The Presto Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films and similar other products. Presto Dart Impact Tester has been built on a rigid metallic base. It is highly recommended for evaluating the impact resistance and impact failure load of polyethylene films under specified conditions. PRESTO Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films, flexible films, sheets and similar other products. Works according to both Method-A and Method-B of test standard. The equipment has been given an autumn gray, and blue combination finish and the chrome/zinc plating ensures resistance to corrosion. The instrument comes complete with an instruction manual, electric wiring diagram and a calibration certificate traceable to NABL approved labs. Plastic films are used in a variety of applications, such as packaging and automotive components. However, plastic films can be damaged by dart impact forces. Therefore, it is important for the packaging manufacturers to conduct the dart impact test on them and test the product quality. Presto being the leading manufacturer of dart impact testers will ensure that your plastic films and other related materials can easily be tested against dart impact forces. This high-quality lab testing instrument is widely used in the packaging industry in order to test the puncture-resistant properties of plastic films and other related materials. By conducting dart impact tests on the materials, manufacturers can easily ensure that the right quality of product will be delivered to the customers. This drop impact tester has been designed in accordance with industry standards that include IS 2508:1984(R2003), and ASTM D1709-16A. With its electromagnetic dart hold/release mechanism, one can easily test the dart impact resistance strength of the products with ease. This lab testing instrument has been built on a rigid metallic base with a strong electromagnetic dart holder. Users can easily conduct the dart impact test on the materials and get reliable and accurate testing results. With its clamping shield height adjustable collar feature, the users can easily adjust the height of the clamp and conduct this quality test on the materials with ease. Presto offers the best dart impact tester price to our clients and ensures that users can accurately conduct this quality test and deliver quality products to the customers. Purchase a Dart Impact Tester directly from Presto, the premier manufacturer of impact testing equipment. Buy now at a competitive price from a leading supplier.
