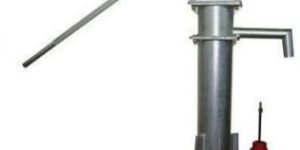

Deepwell Hand Pump Dealers

In order to meet the exact requirements of our valuable clients, we are providing them a wide range of Extra Deep Well Hand Pump. Our provided hand pump is perfectly manufactured making use of the optimum grade raw material and contemporary technology in conformity with the industry set norms. Sturdy construction, easy operation and dimensional accuracy are its best features. In addition to this, it can be availed from us at industry leading prices.

Deepwell Hand Pump the Malawi Treadle Pumps is a high capacity Treadle pump designed to lift water from shallow wells & surface sources. It can be operated by either one person standing on the wooden treadles or 2 persons standing on opposite sides of the Handle Assembly.

• Country of Origin: India
• Type: Deepwell Hand Pump
• Material: Degchun Metal
• Certification: ISI Certified

We are one of the foremost hand pump exporters and suppliers. We strictly use state-of-the-art technology in the manufacturing of our superlative products. We provide hand water pump, deep well hand pump, hand pump etc., at the most genuine price. hand pumps (deepwell & shallow well) india mark ii india mark iii india mark ii extra deepwell afridev (as per skat rev.1, rev.2, rev.3, rev.4) ss / ms/ frp tools (installation & maintenance tools for  above pumps) spare ( for above pumps) u3 modified ruwatsan ii other modified hand pumps as per the specific requirement of the buyer cylinder assembly ss / cast iron / upvc riser pipes ss / gi / upvc connecting rods

• Type: Hand Pumps, Water Hand Pumps
• Material: Stainless Steel
• Certification: CE Certified, ISO 9001:2008
• Application: Ground Water
• Weight: 30-40kg
• Color: Brown, Grey
• Condition: New
• Automatic Grade: Manual

The deep well hand pump can be installed in bore wells of a diameter of minimum 125mm and the internal diameter of the underground cylinder ranges from 60-65mm. the stroke length ranges from 120-130mm. these hand pumps give a water discharge of 12-15 liters per minute of 40 strokes, and an average of 900-960 liters per hour. The maximum depth of operation of these hand pumps is 30 meters. These pumps are self-priming and do not require routinely maintenance. Also, they are available in different grades and dimensions, which can be customized as per the client requires. This pump has excellent “community management potential” and can be easily installed and repaired by a village caretaker or women, making it popular with small communities. The above ground parts of the pump can be locally manufactured, but the rest of the components require a high degree of manufacturing quality, which is not available around the globe. So in some countries, these components need to be imported. However, imported components require strict quality control and check to increase the lifetime of the hand pump, and considerably reduce wear and tear of parts and disuse due to corrosion.

Static water level depth 40 90 mtr Stroke Length 100 mm ± 4 mm Discharge Minimum 300 ml per stroke or 12 Liter /40 stroke completed in 1 minute Bore well Casing Size 100 NB to 150 NB Cylinder - Cast Iron or Stainless Steel or UPVC Rising Main Size 32 NB MS GI Riser Pipe or 40 NB UPVC with 3 piece Coupler or 40 NB UPVC Pipe with SS Nipple and Socket in 3 meter length Above Ground Structure (Pump Stand, Head, Handle, Water Tank etc. -( Mild Steel with hot dip galvanized) Connecting Rod - Mild Steel or Stainless Steel in 3 meter length

We are the leading manufacturers, exporters and supplier of this products.

• Stroke Length: 100 mm ± 4 mm

Static water level depth 40 90 mtr, Stroke Length 100 mm ± 4 mm, Discharge Minimum 300 ml per stroke or 12 Liter 40 stroke completed in 1 minute, Bore well Casing Size 100 NB to 150 NB, Cylinder - Cast Iron or Stainless Steel or UPVC, Rising Main Size 32 NB MS GI Riser Pipe or 40 NB UPVC with 3 piece Coupler or 40 NB UPVC Pipe with SS Nipple and Socket in 3 meter length, Above Ground Structure (Pump Stand, Head, Handle, Water Tank etc. -( Mild Steel with hot dip galvanized), Connecting Rod - Mild Steel or Stainless Steel in 3 meter length

• Type: Extra Deep Well Hand Pump
• Certification: ISI Certified, ISO 9001:2008
• Application: Ground Water

They are suitable for static water levels varying between 50 and 90 metres where placement of cylinders can be upto 85 metres. The inner diameter of the borewell, where these pumps are installed, should not be less than 100 mm. There is no change in the pump head assembly as compared to the India Mark II Handpump except that the bracket opening is made to suite 40 mm square handle bar.Rising Main Size 32 NB MS GI Riser Pipe or Ø 38 mm SS Pipe or 40 NB UPVC Pipe with Coupler or 40 NB UPVC with SS Socket and Nipple.

• Automatic Grade: Manual
• Operating Depth: 20-45 mtr
• Riser Pipes: 32 mm
• Min Flow Rate: 900 lph
• Bore Sleeve Diameter: 63.5 mm
• Connecting Rod Material: SS

• Country of Origin: India
• Type: Deepwell Hand Pump
• Material: Mild Steel
• Application: Ground Water
• Weight: As Per Model
• Color: Nature
• Condition: New
• Brand Name: HIND

Hand Pump Head Assembly Complete With Handle Stand and Water Tank Assembly Hot Dip Galvanized Superior Quality

A true VLOM Concept (village level operations & maintenance) hand pump with minimal maintenance as per the latest SKAT specifications. This pump is used in several countries of Asia & Africa. Suitable for lifting water from depths of 10m to 45m.These feature makes the Afridev Hand pump a user friendly hand pump & easy to install & maintains.(The above ground mechanism) fully fabricated steel structure duly hot dip galvanized with conical flange and rubber grommet for better gripping of UPVC rising main.

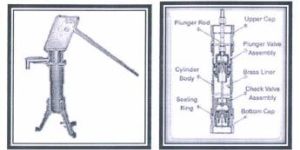

India mark-II Extra Deepwell handpumps are manufactured as per Bureau of Indian standards specs: viz. 13287/92 capable of lifting water upto 90 meters setting depth. These pumps are suitable for lifting water from depths of upto 90 meters. Heavier handle with a T-bar and additional weight ensures reduced pumping efforts. Even a teenage child or a woman can easily operate the pump. There is a similarity in component with India Mark II., And can components be interchanged. Both steel & stainless steel rods are available but stainless steel rods are recommended as per IS:1573 (steel rods are electro galvanized). Raiser Pipe-32mm N.B.G.I pipe of medium class solid coupler is recommended for coupling. Stand Assembly is available in a) Telescopic Stand Assembly b) Standard Stand Assembly Telescopic assembly is suitable/recommended for casing pipes with nominal bore 150mm. Standard stand assembly is recommended for casing pipes having nominal bore 100mm-125mm.   AFRIDEV Handpump AFRIDEV Pump has all the features of VLOM Handpump. AFRIDEV pump has been designed taking into consideration the maintenance problems faced by the rural/unskilled operators. AFRIDEV Pump can be handled even by woman easily Salient Features Non corrosive below ground components capable of working in corrosive water sources. UPVC Riser Pipe, Cylinder, Plunger & Foot Valves are light weight and inexpensive. 10mm dia, Three meter long Connecting Rod with forged eye & hook at either sides for interlocking easily, without the use of any tools. Fulcrum & Rod hanger pins are supported on special grade plastic Bush Bearings, easily replaceable. Adjustable Handle to suit installations with different bore depths. Rubber centralisers are provided to each connecting rod to prevent internal damage to UPVC pipes, due to abrasion. India Mark-III Handpump UMP-VLOM India Mark III Handp UMP-VLOM mp UMP-VLOM Hand pump is the outcome of extensive R & D based on the Village Level Operation and Maintenance concept, promoted by UNICEF, UNDP, WORLD BANK and other International Donor Agencies. VLOM Pumps can be easily maintained by villagers with minimum Handling/Maintenance skills. India Mark II cylinder assembly modified to have open-top cap to suit 65/50mm N.B., G I riser pipe. Upper valve and Lower valve assemblies extractable without removing riser pipe and cylinder body. Suitable for setting upto 33 Mtrs.

Deep well Hand pump as per Bureau of Indian Standard Specifications IS-9301: 1990 with 63.5mm dia cast iron brass sleeved cylinder assembly, Deep well Hand pump as per Bureau of Indian Standard Specifications IS-13056: 1991 r Bureau of Indian Standard Specifications IS-13056: 1991 – Amendment 6, with 50mm dia cast iron brass sleeved open top cylinder assembly with extractable plunger and foot valves assemblies.

These pumps are suitable for lifting water from depths of upto 90 meters. Heavier handle with a T-bar and additional weight ensures reduced pumping efforts. Even a teenage child or a woman can easily operate the pump. There is a similarity in component with India Mark-II, And can components be interchanged. Both steel & Stainless steel rods are available but stainless steel rods are recommended as per 15:1573 (steel rods are electro galvanized).
