Deflection Grilles Dealers

• Material: Aluminum
• Shape: Rectangular
• Surface Treatment: Powder Coated
• Brand: Nuveq
• Technique: Hot Rolled

• Double Deflection Air Grille: Aluminum Grilles Manufacturers

Double Deflection Air Grille Introduction: Double Deflection grilles are suitable for well, ceiling and duct applications. Grilles vanes in double deflection are individually adjustable. Grilles can also be supplied with non-standard framesboarders as per the customer requirements. Fixings: Countersunk screw holes through flange concealed finings-see optional extras. Technical Data: All single and double deflection blades are fitted through nylon bearings, which ensure that the blades remain firm once set in position and also removes the possibility of noise created at higher velocity through the grille. Sizing monogram is opposite. Packaging: Each grille is individually wrapped to ensure the product reaches you in perfect condition. Optional Extras: Non standard sizes available on request Painting to any BS or RAL color of your choice. FXSD-Fixed blade (45° single reflection), single deflection CF-Concealed spring fixings. Features The blades are fixed by wire and adjustable from 0-180 degree, giving required controllable airflow direction. Choice of Vertical or Horizontal front blades fitted to customer requirements. Anodized or powder coated white, colour RAL 9010, 9016, other colours on request. Frame is curved. Fixing with SFR or visible screws mounting. Material Used In Manufacturing: Extruded Aluminium SectionsM.S. Sheets. Finishes: Eproxy Polyster Powder Coated (Broken off WhitePure WhiteIvory) Natural Anodised Other powder coating finishes available on request. Border and blades are anodized, aluminum Painted Finish-to any RAL or BS color.

Application:     Air supply or air return in Air-conditioning, ventilating and heating systems. Mounting:     Overlapped in sidewall or in false ceiling by means of hidden fixing systems. Implementation:     Extruded aluminium construction. Frame with flat frontal face and inner netting grille of 13mm x 13mm made of aluminium. Provides maximum air flow and very low noise level as the grille's free area is >90% of the nominal area. Standard Sizes:     Available in all standard sizes up to 1200 x 600 mm. Standard Finishes:     Natural aluminium, anodized or powder coated in standard RAL white colours

• Country of Origin: India
• Size: Standard
• Type: Deflection Grilles
• Color: Off-white
• Condition: New

• Size: Standard
• Type: Single Deflection
• Material: Metal
• Shape: Rectangle
• Color: Off-white
• Surface Treatment: Coated

Double deflection grilles are suitable for well,ceiling and duct applications.grilles vanes in double deflection are individually adjustable.grilles can also be supplied with non-standard framesboarders as per the customer requirements.

Double Deflection Grilles is made available for supplying air in locations with side-wall. The aerofoil shapes louver of Double Deflection Grilles in horizontal and vertical directions is designed to reduce minor problems of air motion by vane adjustments. Blade damper in opposed form is installed behind the Double Deflection Grilles can be used for air balancing by adjust air volume.

Extruded aluminum construction,Single row of individually adjustable horizontal face bars,Pivoted bars for easy positive setting,Without damper or with multi-shutter valve opposed-blade damper White finish

DOUBLE DEFLECTION GRILLES   We are a reputed organization, engaged in manufacturing, supplying and exporting best-in-class Double Deflection Grilles. These grilles are manufactured by our trained professionals using modern machines and techniques. The offered grilles are installed in air conditioning units to provide cool air and maintain the humidity of building. In order to meet the different needs of our clients, we are able to offer these Double Deflection Grilles in many sizes and specifications.   Features  Sturdy construction  Durable  High performance

• Standard Finishes: Natural anodized & Powder coated

We are instrumental in offering double deflection grills that are extensively used in varied industries and are appreciated for their excellent durability. These are available in multitude of sizes, dimensions and finishes to meet the varied requirements of our clients. Our team of qualified quality controllers also tests these grills on various parameters to ensure their compatibility for duct ceiling & side wall applications. Manufactured in high quality aluminium extrusion profiles Grilles are suitable for duct ceiling, and side wall application Horizontal and vertical deflection blades are adjustable by manually Designed with nylon bushes for efficient and smooth operation With or without opposite blade damper.

• Material: Aluminum
• Louver Type: Adjustable
• Size: Variable
• Brand: SK
• Usage/Application: Commercial
• Surface Treatment: Coated

Most desirable for supply air in wall locations. With aerofoil shape louvers i8n both horizontal and vertical directions, minor air motion problems can be quickly corrected by adjusting the vanes. An opposed blade damper installed behind the grill is used for adjusting air volumes during air balancing. Choice of horizontal louvers in front and vertical at the back or vice versa available.

Adjust Vanes. Opposed Blade Volume Control Dampers Installed Behind The Grille to Adjust Volume of Air For Air Balancing. G.I.M.S.Aluminum Construction. Available in Various Colours to suit The Interiors.

Most desirable for supply air in side-wall locations. With aerofoil shape louvers in both horizontal and vertical direction, minor air motion problems can be quickly corrected by adjusting the vanes. An opposed blade damper installed behind the grille is used for adjusting air volumes during air balancing. Choice of horizontal louvers in front and vertical at the back or vice versa available.

Application Air supply or air return in Air-conditioning, Ventilating and Heating systems. Mounting Overlapped in sidewall or in false ceiling by means of hidden fixing systems. Implementation Extruded aluminium construction. Frames with flat frontal face of 20 mm or 30 mm and individually adjustable blades to regulate the throw of air in the pitch of 20 mm gap. Available in front horizontal back side vertical bars, both side adjustable louvers. Front horizontal with fixed bars and rear vertical with adjustable blades also available. For single deflection grille blades available horizontally or vertically in front side only. All standard or non standard sizes, with or without collar dampers can be made. Standard Finishes Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Aerofoil louvers with 0 degree, 15 degree, 30 degree and 45 degree deflections. Suitable for side wall, floor, sill and ceiling mountings. Types Single deflection - Horizontal or vertical deflection. Double deflection - Front Horizontal / Vertical adjustable bars, Rear Horizontal / Vertical adjustable bars   Material Extruded aluminium, mild steel or stainless steel. Finish Powder coated, anodized, emulsion painted, primer coated.

• Material: Aluminum
• Louver Type: Adjustable
• Open Style: Swing
• Usage/Application: Industrial
• Opening Pattern: Horizontal
• Brand: Greencon
• Surface Treatment: Coated

Double Deflection grilles are suitable for well,ceiling and duct applications.Grilles vanes in double deflection are individually adjustable.Grilles can also be supplied with non-standard frames/boarders as per the customer requirements.   Fixings:- Countersunk screw holes through flange Concealed finings - see optional extras Technical Data:- All single and double deflection blades are fitted through nylon bearings, which ensure that the blades remain firm once set in position and also removes the possibility of noise created at higher velocity through the grille. - Sizing monogram is opposite Packaging:- Each grille is individually wrapped to ensure the product reaches you in perfect condition. Optional Extras:- Non standard sizes available on request Painting to any BS or RAL color of your choice .FX/SD - Fixed blade (45° single reflection), single deflectionCF - Concealed spring fixings. Features The blades are fixed by wire and adjustable from 0-180 degree,giving required controllable airflow direction. Choice of Vertical or Horizontal front blades fitted to customers' requirements. Anodized or powder coated white , colour RAL 9010, 9016, other colours on request. Frame is curved. Fixing with SFR or visible screws mounting. Material Used In Manufacturing Extruded Aluminium Sections/M.S. Sheets. Finishes EPROXY POLYESTER POWDER COATED(Broken off White/Pure White/Ivory) Natural Anodised Other powder coating finishes available on request. Border and blades are anodized, aluminum Painted Finish- to any RAL or BS color.

Manufactured in high quality aluminium extrusion profiles.  Grilles are suitable for duct ceiling, and side wall application.  Horizontal deflection blades are adjustable by manually.  Designed with nylon bushes for efficient and smooth operation.  With or without opposite blade damper. Standard Finish: Natural anodized & Powder coated.

• Material: Fiberglass, FRP
• Features: Water Proof, Tamper Proof
• Technique: Cold Rolled
• Surface Treatment: Coated

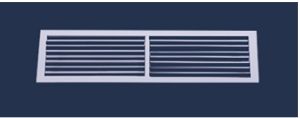

Our clients can avail Single Deflection Grills that are manufactured using high grade raw material, which is stringently tested before using the same for the manufacturing process. These are highly suitable for duct ceiling, and side wall applications as the grills are highly durable and are available at the competitive prices.   Configuration • Manufactured in high quality aluminium extrusion profiles• Grilles are suitable for duct ceiling, and side wall application• Horizontal deflection blades are adjustable by manually• Designed with nylon bushes for efficient and smooth operation• With or without opposite blade damper• Standard Finish: Natural anodized & Powder coated Standard Finishes: Our single deflection grilles can be availed in natural anodized and powder coated finishes

• Material: Steel
• Usage/Application: HVAC Airconditioning
• Shape: Rectangular
• Color: Broken Off White
• Brand: Aarkays

Adjust Vanes. Opposed Blade Volume Control Dampers Installed Behind The Grille to Adjust Volume of Air For Air Balancing. G.I./M.S./Aluminum Construction. Available in Various Colours to suit The Interiors.

We are main supplier of this product.

• Material: Aluminum
• Usage/Application: Industrial, Commercial, Hotel, Civil, Mall
• Size: Any customized

• Feature: Aluminium construction Aerofoil shaped louvers Individually adjustable blades Fixed horizontal blade as option

Most desirable for supply air in side-wall locations. With aerofoil sharpe louvers in both horizontal and vertical directions, minor air motion problems can be quickly corrected by adjusting the vanes. An opposed blade damper installed behind the grille is used for adjusting air volumes during air blancing. Choice of horizontal louvers in front and vertical at the back or vice versa available.

• Material: Aluminum
• Surface Treatment: Galvanised
• Shape: Rectangular, Square
• Technique: Hot Rolled
• Packaging Type: box
• Dimension/Size: As per requirement
