Demonstration Meter Dealers

• Brand Name: OM

We are offering interscale demonstration meter, basic movement : 5ma - 100mv f.s.d. Scale length : 200mm approx dimensions : 300x150x300mm weight : 2 kg. Approx. Different interchangable scales as per customer s requirement can be supplied.

Alpha chem is manufactures,exporter & suppliers interscale demonstration meter. Interscale demonstration meter : complete assembly fitted in tough, plastic frame with transparent front and back windows. Moving coil type with accuracy of ± 2. 5%. 8asic sensitivity of meter calibrated a 5ma, 100mv fsd. The meter is useful for demonstrating the working principle of ac or dc ammeters, voltmeters and galvanometers, using the various interchangeable plastic scales. Overall size 300 x 1 50 x 300mm. Basic movement : 5ma - 100mv f.s.d. Scale length : 200mm approx dimensions : 300x150x300mm weight : 2 kg. Approx.

AMMETERS   Dual Scale, Moving coil for DC measurements. Any range 2.5/5, 1.5/3, 5/10Amps.Ammeters     DEMONSTRATION METER   In a rectangular transparent plastic case, provides clear view into the working of meter. Moving coil type, can be supplied as ammeter, voltmeter or galvanometer. 4mm terminals.Galvanometer, 30-0-30Voltmeter, 0 to 5, 10, 50, 250 V Ammeter, 0 to 1, 1.5, 3, 5A.

• Country of Origin: India
• Accuracy: ±2.5% F.S.D
• Scale Length: 200 mm approx
• Overall Size: 115 x 115 x 175mm Approx
• Basic Movement: 5mA-100mV F.S.D
• Dimensions: 300x150x300 mm
• Feature: High performance

• Brand: MEMCO
• Phase: Single Phase
• Material: MS
• Packaging Type: Box
• Power Source: Battery
• Battery Life: 40 hours
• Frequency: 30 - 300 Hz

• range: 50-0-50 mV d.c

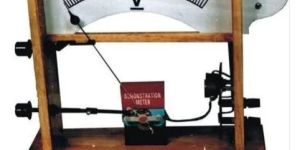

Demonstration Meter A versatile instrument and demonstration meter that can be converted to an a.c., or d.c. voltmeter or ammeter with selection of various ranges for each mode.With a high quality moving coil, spring controlled movement with full scale deflection of 5 mA or 100 mV d.c. The long pointer has a spade end and is clearly visible from a distance. Fitted in case with glass front and back. The instrument can be used with different dials to give different voltage and current ranges.

Used for varied physical applications, the interscale demonstration meter provided by us is highly appreciated for its accuracy. Ensuring easy installation of transformer the demonstration table top meter available with us is widely recommended by our customers all over the world. We are considered as the famed demonstration meter exporter from India. Salient features Developed for classroom demonstration of the constructional features of permanent magnet moving coil type meters. Movement with spring control and magnetic damping Housed in a tough plastic frame with transparent front and back windows. Accuracy ± 2.5%. Basic sensitivity calibrated at 5mA, 100mV FSD Useful for demonstrating the working principle of AC or DC ammeters, voltmeters and galvanometers. Interchangeable plastic scales are available separately. Overall size 300x150x300mm approx.

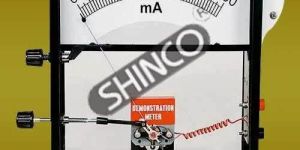

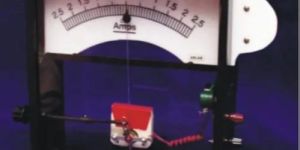

Product Description Demonstration Meter, Interchangeable Scale Ideal for class-room or group demonstration. Moving coil type, 30´15´30cm, with spring control and magnetic damping. Basic movement of meter calibrated to 5mA, 100mV. Long, pointer needle, with thick arrow-head for clear visibility from a distance, moves on hardened and polished steel pivots and jeweled bearings. Mounted in sturdy, plastic frame with transparent front & back windows. One side of frame has color-coded, 4mm socket terminals for electrical connection, and a slot for inserting or removing scales; other side has zero-adjustment knob, and knob for locking pointer needle. Interchangeable scales of different ranges (center zero as well as left zero) for measuring AC & DC voltage and current values. Scales are printed on both sides facilitating group observation. Complete plastic body.

• Feature: High-grade moving-coil galvanometer Robust,plastic case,Zero adjustment,Easy installation.
• Condition: Good
• Application: General Electrical applications,Physics Laboratories,Universities.
• Product Name: Demonstration Meter
• Dimensions: 320x140x305mm
• Power: A.C. or D.C. Voltmeter or Ammeter
• Brand Name: TD
• Place Of Origin: Ambala Haryana

We offer our clientele, Demonstration Meter. The Demonstration Meter be converted to an A.C. or D.C. Voltmeter or Ammeter, with selection of ranges for each mode of operation by using one of a series of interchangeable dials. These dials fit through a slot at the side of the case. The dimensions of the Demonstration Meter are 320x140x305mm high approximately. Features : High-grade moving-coil galvanometerRobust, plastic caseZero adjustmentEasy installation Applications : General Electrical applicationsPhysics LaboratoriesUniversities

Demonstration Meter In a rectangular transparent plastic case, provides clear view into the working of meter. Moving coil type, can be supplied as ammeter, voltmeter or galvanometer 4 mm. terminals. Galvanometer Voltmeter Ammeter 30 0 30 0 to 5, 10, 50, 250V 0 to 1, 1.5, 3, 5A

• Model: ALABS-A77-006
• Categories: Analog and Digital Meters
• Type: Vertical
• Accuracy: ± 2.5FSD
• Scale Length: 80mm (Approx)
• Overall Size: 115 x 115 x 175mm Approx
• Stand: Wooden with sunmica pasted

NAUGRALABS LABORATORY PRODUCT NAME: DEMONSTRATION HORIZONTAL METER FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-080010 Description and Specification for Lab Tenders Demonstration Horizontal Meter.  Demonstration Horizontal Meter Horizontal type in transparent case and bakelite base, it is very useful instrument for demonstration. Accuracy : ±2.5 F.S.D Scale Length : 85 mm approx Overall Size : 140x140x45.  Test Measuring Instruments Lab equipment manufacturers,exporters and Test Measuring Instruments Lab suppliers

• range: 50-0-50 mV d.c.

DEMONSTRATION METER A demonstration meter and may be converted to an a.c. or d.c. Voltmeter and ammeter with selection of various ranges for each mode. With a high quality moving coil, spring controlled movement with full scale deflection of 5 mA or 100 mV d.c The long pointer has a spade end and is clearly visible from a distance. Fitted in case with glass front and back. The instrument can be used with different dials to give different voltage and current ranges. All dials are interchangeable and each has a plug coupler to fit the instrument. The coupler connects appropriate resistors, shunts, or rectifiers to convert the instrument to the scales have clear bold figures and are marked on both sides to enable the lecturer also to observe the reading from the back of the instrument. A zero adjuster allows the instrument to be used for centre zero dials. One dial of range 50-0-50 mV d.c. is supplied with the instrument.

• Feature: High performance,Great strength, Corrosion resistance .
• Item Code: 3031-00

The Demonstration Meter manufactured by us is Ideal for classroom or group demonstration. The Demonstration Meter comes with a moving coil type, 30´15´30cm, with spring control and magnetic damping. Basic movement of meter calibrated to 5mA, 100mV. Long, pointer needle, with thick arrowhead for clear visibility from a distance, moves on hardened and polished steel pivots and jeweled bearings. It is mounted in sturdy, plastic frame with transparent front & back windows. One side of frame has color-coded, 4mm socket terminals for electrical connection and a slot for inserting or removing scales; other side has zero-adjustment knob, and knob for locking pointer needle. Interchangeable scales of different ranges (center zero as well as left zero) for measuring AC & DC voltage and current values. Scales are printed on both sides facilitating group observation. Features Complete plastic bodyzero-adjustment knob

• SKU: GP0843B

A plastic panel 313x117mm with sealed moulded box at one end which contains the shunt or voltage multiplier appropriate to the scale. AC or DC Current: 0-50 mA

• Model: PHY-009
• Use: schools and colleges
