Desiccant Dryers Dealers

• Type: Desiccant Air Dryers, All type of air dryers
• Application: Vapor Removing
• Weight: As per the size of unit
• Color: Grey
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic, Semi Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1yrs
• Country of Origin: India
• Brand Name: Mercon
• Shape: Un even

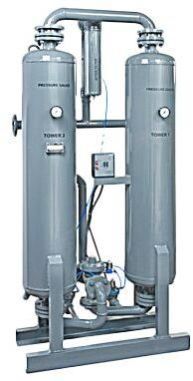

How does it workRegenerative desiccant dryers normally are of twin tower construction. One tower dries theairtrom the compressor while the desiccant in the othertower is being regenerated afterthepressure in the tower has been reduced to atmospheric pressure. Regeneration can beaccomplished using a time cycle or on demand by measuring the temperature or humidity inthe desiccant towers or by measuring the dew point ofthe air leaving the on-line tower.In the heatless regenerative desiccanttype, no internal or external heaters are used. Purgeair requirement can range up to 18% otthe total air-flow. The typical regenerative desiccantdryer at 1000 psig has a pressure dew point rating of-40°F but dew points down to -100F can be obtained. Advantages of Regenerative Desiccant Type Dryers include : Very tow dew points can be achieved without potentiai freeze-up. Moderate cost of operation forthe dew points achieved. Low maintenance costs. Heatless type can be designed to operate pneumaticallv for remote, mobile or hazardous locations.

In Desiccant Air Dyers, the compressed air is passed through a pressure vessel filled with an adsorbent media such as activated alumina, molecular sieve or other desiccant material. Two vessels with desiccant are used. The desiccant can bring the dew point of the air down to -40 degrees Celsius or below. This means that the air will not condense water until it is cooled to -40 degrees Celsius. Wet air enters the vessel through a pre-filter to remove any oil and other contaminants which protects desiccant’s long life. Pre-filtered air enters into adsorption tower through solenoid valves controlled by an electronic timer. In practice two vessels are used; one vessel is drying the air, while in the other the moisture absorbed by the adsorbent in the vessel is being regenerated. After a pre-determined period of time the switching of the vessels takes place with the help of the electronic timer. The other absorber tower undergoes regeneration with a portion of dry air exits from adsorption tower. This regenerated air is purged out of the system. Features & Advantages Low Maintenance Cost No heater Required Electronic Timer for Reliable and Continuous operation Fully automatic Wall mountable models also available

• Certification: ISO 9001-2008 Certified
• Application: Vapor Removing
• Color: Enamel Blue
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric
• Warranty: 1yrs
• Country of Origin: India
• Brand Name: Drytech Engineers
• Brand Name: Drytech

• Country of Origin: India
• Voltage: 220V
• Condition: New
• Material: Metal
• Power Source: Electric
• Warranty: 1 Year
• Phase: Three Phase

Features Fully automatic PLC based units with remote operation and data logging facilities Highest full and part load energy efficiencies, through single and multiple refrigeration circuits Stepless capacity control from 25% to 100% adapting precisely to varying process loads The latest most efficient and highly reliable screw compressors from Europe Electronic expansion valves for increased efficiency and precise temperature control

• Application: Vapor Removing
• Voltage: 110V, 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1yrs

With years of experience in this field, we have become a prominent Manufacturer, Exporter, Importer and Supplier of Desiccant Air Dryer. Widely demanded in different industries for various applications, our Heatless Air Dryers are available in varied technical specifications to meet the buyer’s demands. Long lifespan and durability make these Desiccant Air Dryers high in demand among the global buyers. For purchasing Desiccant Air Dryers at fair market prices, approach us!   Description : The company proudly introduces itself as a prominent Manufacturer, Exporter, and Supplier of Heatless Air Dryer. Designed to perfection, our Heatless Air Dryers are extensively used in different industries for diverse purposes. Appreciated for high performance and longer working life, the Heatless Air Dryers offered by us are very effective and durable at the same time. Further, the clients can obtain from us, these Heatless Air Dryers in varied specifications as per their requirements. Working : The Heatless Air Dryer Offered by us comes with three stage pre filtration system i.e. Pre Filter, Oil Removal Filter (before the dryer) and Post Filter (after the dryer).  Pre Filter removes all dust, dirt, pipe scale, rust upto 10 micron and Oil Removal Filter removes oil contents from compressed air line upto 0.05 PPM & also remove dust particles upto 0.01 micron. Thus, this prevents the dust from entering the Drying Towers as their entry into the tower would result in the desiccant getting spoilt and ineffective. This comprises of two adsorbed towers filled with desiccant. At a time one tower supplies dry air and other goes into regeneration through 3 way valves and microprocessor controller automatic cycling for towers. Heartless type air dryer pressure dew point is – 40 oC and -70oC (water content 0.0028 g/m3) and the quality of air is 1+. The post filter ensures that desiccant dust, if any, generated due to attrition is prevented form carry over. Applications : Food & Beverage industry Pharmaceutical industry Painting industry Automobile industry Defense sector Chemical industry Refineries Laboratories Gas industry Printing industry Also Required For : CNS & Laser Machines Instrumentation Air Tools

• Voltage: 220V
• Power Source: Electric
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Motor Power: 0-3Hp
• Configuration: Portable
• Flow Rating: 0-100Cfm

Application Pneumatic tools Industries Garage Automobile Service stations Spray Painting Packaging Industry Tyre Inflation

• Type: Air Compressor Dryer System
• Color: Light White
• Condition: New
• Driven Type: Electric
• Warranty: 1yrs
• Installation/After Sales Service Available: Yes
• Spares: Yes

Series A_TV and A_RS.

• Frequency: 50 Hz
• Phase: 3 Phase
• Maximum Inlet Pressure: 150 psig (10.3 barg)
• Desiccant Type: Activated alumina
• Capacity Range: 400-2100 cfm (11.3-59.5 m3/min)
• Pressure Dew Point: -40 Degree F to -100 Degree F (-40 to -70 Degree C)
• Available Voltage: 400 V, 460 V
• Maximum Inlet Temperature: 122 Degree F (50 Degree C)
• FEATURES: High Quality Air. Easy to Maintain. Reliable Operation. Reduced Energy Use. Smart Control. Easy to use.

• Capacity: 20 cfm to 500 cfm
• Drying Capacity: 0-20 cfm
• Dryer Horse Power: 1 HP
• Maximum Pressure: 4 bar
• Automatic Grade: Automatic
• Features: Simple operation, Easy to maintain, No need of heater or cooler
• Outlet Pressure Dew Point: -40 C
• Inlet oil Content: +0.1ppm
• Inlet Temperature: +38 C
• Pressure Loss: 0.02 MPa
• Max Temperature: 40 degree
• Design: Standard

Desiccant Air Dryer that we offer comes with pre-filter, oil remover filter, after filter, bypass line fully assembled and supplied as a single system on a common base frame. It is known for emitting oil and moisture free compressed air with a dew point of -40° C. Reusable ceramic filter elements with 5 micron rating are used in pre filter and after filter of our Desiccant Air Dryer. It is made available in 20 to 2000 CFM at 12 kg/cm working pressure. Buyers can also obtain high pressure models of Desiccant Air Dryer from us.

• Application: Industrial
• Material: Metal
• Color: White and Grey

The packaging process commences under the vigil eye of the management and expert packaging material. They ensure that only experts certified packaging material is used to evade loss during transit. We have developed a large storage facility that is equipped with modern facilities for loading and unloading goods. Also, it assist us in meeting bulk requirements at a time.

• Desiccant Material: Silica Gel
• Dryer Technology: Dessicant
• Bowl Size: 6.7 lb
• Maximum Pressure: 250 psi
• Application: Dry Air
• Drying Capacity: 21 - 50 cfm
• Application: Dry Air
• Air Inlet Temperature: 120 F

Being a renowned name in this business, we are engaged in importing, exporting & supplying quality range of Desiccant Air Dryer to our customers. It is used to purify moisture, dust & oil from air. This is very useful product to manage air pollution caused due to many factors including industrial pollution mainly. This Air dryer is made under the strict supervision of our skilled professionals by using advance technological standards as per the set industrial rules by the government. So to lower industrial pollution & higher industrial growth choose our desiccant air dryer.

• Brand Name: AEPL,AEPL
• Usage: Industrial
• Country of Origin: India
• Heating Media: Electric
• I Deal In: New Only
• Air Capacity: 500 to 5000 NM3/hr .
• Dew Point: Up to (-) 40 DegreeC

The No Purge Loss Type Air Dryer and easy to get desired dew point by removing moisture from compressed air. Excellent in desiccant drying Minimum Energy Loss Very Economical Zero purge loss ADP (-) 40°C can be easily achieved

MVS Engineering is one of the oldest air dryer manufacturers in India. We are able to deliver custom built solutions in accordance with our customers’ exacting requirements.We offer air dryers ranging from flows as low as 1 nm3hr to very high flows up to 10,000 nm3hr.

Heatless Desiccant Dryers different other applications of gas andor air dryers involve the use of Heatless Compressed Air andor Gas Dryer systems. High Pressure Gas and Air Drying Systems also involve the use of these compressed air and gas dryers in many of their applications.

Delpet Compressed Air Dryers are specially designed for PET Bottle manufacturing process. Compressed air is used to blow the bottles/containers to the desired shape and size. SPECIAL FEATURES Wide range of 4 Standard models with capacities from 34.7 m3/hr. To 104 m3/hr. higher capacities are available on request Atmospheric dew point achievable (-) 40°C and below Electronic controls/solid state timers for automatic and reliable operation Low power consumption Equipped with muffler on purge air outlet to reduce noise level Specially graded desiccant DelsorbTM 10 for optimum performance and long life
