Detuned Filter Reactor Dealers

• Brand Name: Circulator
• Certification: ISI Certified
• Application: Panels
• Frequency: 50hz, 60hz
• Automatic Grade: Automatic
• Warranty: 1yr

Three Phase, Iron Core Reactor with Air Gaps, Poly Gap (R) Core DesignComplete Unit Vacuum – Overpressure Impregnated with Temperature Class H Resin and cured in an Oven Distortion

• System Voltage: 440 V, 550 V, 690

Specially Designed Bobbins for efficient Cooling Multiple Conductors for better Heat dissipation Vacuum Pressure Impregnated for better penetration Multiple Air Gaps to avoid Flux Fringing Mechanically Sturdy Design To Withstand Vibrations Thermal Switch embedded To Withstand Vibrations Thermal Switch embedded in winding for over temperature Protection Low Noise

• Aluminium foil: high conductivity low loss

Application:-Power Factor correction Panels(In series with Capacitors) Purpose:-To avoid resonance by connecting Capacitors Range:-0.5-200KVAR Percentage Impedance:-5.6, 7, 14% Detuning Frequency:-210, 189, 134Hz Standard:-IS 5553,IEC 60076-6, IEC/EN61558-2-20 Linearity:-140-210% Insulation Class:-F/H Voltage:-110-660V Phase:-1/3 Frequency:-50/60Hz Conductor Material:-Al/Cu(Foil & Conductor) Lamination:-CRNO/CRGO

Harmonic Filtering Solutions All Products Detuned Copper Reactor Detuned Copper Reactor Detuned Aluminium Reactor Active Harmonic Filter The increasing use of modern power electronic apparatus (drives, uninterruptible power supplies, etc.) produces nonlinear current and thus loads the network with harmonics. The capacitance of the power capacitor forms a resonant circuit in conjunction with the feeding transformer. Experience shows that the self-resonant frequency of this circuit is typically between 250 and 500 Hz, i.e. in the region of the 5th and 7th harmonics. Typical loads requiring harmonic filtering include 6 pulse drives (AC DC), 3 phase UPS, frequency converters

Detuned Filter Reactor Features :- Available as 7% (189 Hz) & 14% (133 Hz) detuned filters Copper & Aluminium wound reactors Very low operating losses - 3 to 5 W kVAr High linearity - 1.8 times the rated current Low noise Auto-thermal cut-off.

Detuned Filter Reactor offered find use in power factor correction units and are installed in series with capacitor banks which helps in safeguarding the system from issues of over current during switching on capacitor banks and overload of capacitor banks due to harmonic resonance. Apart from this, it helps in providing adequate safety from overheating to utility transmission cables and distribution transformers. Some of its features include providing safeguard from sudden and unwanted triggering of protective devices, issues of utility voltage waveform distortion. The equipment also provides safety from interferences on data transmission systems as well as unexplainable faults occurring in electronic boards.

We offer detuned filter reactor technical details of passive filters • standards : iec 60076-6, is 5553 • description : three phase, dry type • rated voltage : 440v, 50 hz • de-tuning factor (p) : 5.67% (210 hz), 7% (189 hz), 14% (134 hz) • insulation class : f h • inductance tolerance : +- 3% • fundamental current (max) : 1.06 x in (rated capacitor current) • duty cycle (irms) : 100% • limit of linearity : ≥ 0.95 x ln • insulation level : 1.1 kv • cooling : natural • degree of protection : ip00 • thermal protection : micro switch 240v ac (nc) • winding material : copper • core : high grade crgo • application : indoor • ambient temperature : 40 deg.c • relative humidity in operation : 20% - 80 %.

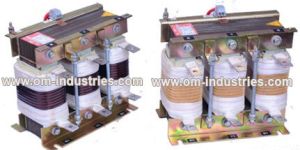

APPLICATIONS : Power Factor Panels, Furnace Panels, UPS, Fluroscent Lamps Om make reactors are designed to meet specific design criteria such as Q factor, inductance tolerances etc. series line reactors shall be designed for harmonic filtering service and for slowing the rate of rapid current charges. The reactors shall be UL component - recognized and shall be built to comply to UL 508 construction shall be of copper wire - wound on magnetic steel cores. Series line reactors shall be sized appropriately for the total connected load. Design maximum temperature rise for reactors shall be 115°c on bobbin wound and 155°c on form wound devices at rated circuit. Non-linear equipment generate harmonic as multiples of a fundamental frequency such as AC/DC motor speed controllers, are furnaces compact fluorescent lamps, uninterruptible power sources. As a result of this fact besides the fundamental frequency, 3rd, 5th, 7th, 9th, 13th, harmonic are generated. Specification of Harmonic filter Reactor (Detuned Reactor) Operating Voltage: 3 x 415/440V Supply Frequency: 50/60Hz Filtering Detuning Factor: 5.69%, 7%, 14% corresponding to tuning frequencies of 210Hz, 189Hz, and 134 Hz for the base of 50Hz. Tolerance of Inductance: ± 5% High Linearity: 1.8In (180% ) Over Load Capability: 150 % for 10 minute of Rated current & 200 % 10 Second of Rated current High Voltage Test: 4 KVA Temperature rise: 110° < maximum on full Load Maximum Audible Level at Two (2) Meters : Line / Load Application 76 dBa Standard: IS-5553-/EN-61558-2-20/IEC-60076-6 'CE' approved. PRODUCT RANGE : 5KVAr to 100 KVAr(Copper/Aluminum)

We offer precisely designed Detuned Filter Reactor known for its outstanding quality. Our Detuned Filter Reactors are demanded in detuned power factor correction units. These Detuned Filter Reactors are manufactured under ISO 9000 quality management and in compliance with European standards. Our Detuned Filter Reactor is CEM marked and are available at any resonant frequency. Technical Specifications : Harmonic loads according to EN 61558 2-20U1=_6 x UNU3=%0.5x UNU5=%5 x UNU7=%5 x UNCE sign and compatibility with EN 61558 2 - 20 Features : Single or three phase, high permeable iron core, air gapped designHigh quality Copper or Aluminium windingsThermal switch for overload protectionTerminal block, bar or cable connection depending on current value

• Features: Compact sizes, Easy to install , Reliable performance ,Splendid quality, Longer service life
• Material: Copper, Aluminium

A consumer whose load includes a high proportion of variable speed motor drives andor other harmonic generating loads may require a detuned capacitor system. This would perform the function of power factor improvement whilst preventing any amplification of harmonic currents and voltages caused by resonance between capacitors and inductances in the mains.

• Features: Longer service life, Easy maintenance, Robust design.
• Use: Used with 12-pulse systems and other transformer and rectifier configuration.

• Voltage: 3KV,6KV,10KV
• Cooling:  natural cooling
• RATED KVAR: 75-1500 KVAR
• Detuning Factor: 7.00%
• impregnation: Polyester resin,class F
• winding material:  Copper /Aluminium
• design: SINGLE phase, iron core multiple air gap

• Material: Copper
• Voltage: 440V
• Ambient Temperature: 10 Degree To 60 Degree C
• Country of Origin: Made in India
• Phase: 3Phase
• Usage/Application: Industrial
• De Tuning Factor: 7%
• Input Frequency: 50/60 Hz

DETUNED REACTORS Since 5 decades, TS International is a well recognized company for detuned reactors manufacturers in Bangalore. Detuned reactors are specific three phase inductors dedicated to attenuating the amplification of harmonics on highly polluted networks and to protecting the different components of the installation. These are used in series with capacitor banks in power factor correction units.   By using these types of detuned reactors it is possible to avoid following negative effects on system. Choosing the correct detuned filter reactor and capacitor value on detuned power factor correction systems is very important. To obtain optimum performance form a detuned power factor correction system following criteria must be controlled and met during the pairing of the reactors and capacitors.   We have built an enviable reputation for outstanding quality detuned reactors to diminish or eliminate the harmonic that are present in the electrical system. We manufacture detuned reactor in tune with the international standards. Today, TS International is recognized as one of the leading manufacturers of detuned reactors in Bangalore, India.   Applications: In Bangalore, we have well-equipped manufacturing unit with modern processing and quality testing facilities. Our thorough understanding of different applications of detuned reactors enables us to manufacture to any specification you may require and hence we are noted as the best detuned reactor manufacturers in Bangalore, India.   Better impedance behaviour of mains supply. Protection of capacitors against harmonics and improvement of systems power factor Protection of switchgear and contactors used in capacitor panels.   Technical Data Specification :   IS-5553-1990/IEC – 60289 (1988)   Range :   Output up to 100KVAR   Filter factor 7%,14%   Rated voltage -440V.550V.690V   Type :   Detuned, copper wound-iron core dry type    Features: Detuned reactors are widely utilized across a broad range of sectors and are highly appreciated for their precise fabrication, sturdiness, robust construction, reliability, longer service life and superior performance.    Linearity more than 160%.  For Triplen and Non-Triplen Harmonic suppression though PF Capacitors.   Copper wound reactors with 150% continuous RMS rating with 100% current THD-F factor.  Line Voltage for series combination of Reactor & capacitors : 380V, 415V, 433V, 440V , 690V AC.50Hz   Current : Continuous RMS value: 150% of the rated current.   Winding : Electrolytic grade copper winding.  Operating ambient temperature -10 to +50 Deg C.  Supply frequency : 47Hz to 53Hz.  Coil wound with multiple conductor to reduce skin effect.  Gives harmonic free supply to your equipment's :  Mechanical sturdy design to withstand vibrations keep low noise level and.   ensure performance guarantee.   Noise level less than 60dB at rated load.

• Material: Copper
• Voltage: 480V
• Frequency: 50Hz
• Ambient Temperature: 40 deg C
• Usage/Application: Industrial
• Phase: Three Phase
• Weight: 17.5kg
• Input Frequency: 50 / 60 Hz
• Minimum Order Quantity: 1 Piece

• Voltage: 415 V
• Material: Copper Wound with CRGO laminations
• Frequency: 50Hz
• Linearity: 190%
• Insulation Class: F
• Size: 300x200x350mm
• Filtering factor: 7%
• Detuning Freq: 189Hz
• Dielectric Strength: 3kV/min

ACE detuned reactors are high quality reactors designed to be used in detuned power factor correction. ACE has a standard range of reactors with P=7% which means a resonance frequency of 189Hz for 50Hz networks or 227Hz for 60H networks.
