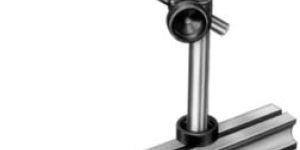

Dial Indicator Stand Dealers

This tool is useful for testing spindle run out of machine tools, lathe work etc. It is well adapted for inspection of the parallelism of surfaces. The indicator can be swiveled in all directions. The base is of steel and provided With T slots for convenience in clamping. The surfaces of the base are accurately ground. New clamping system ensures quicker rigid clamping even with moderate tightening. The holder for the dial indicator is equipped with fine adjustment device permitting vibration free adjustment to zero.

• Height of Column (mm): 300
• Base Size (mm): 250 L x 45 W

HEAVY DUTY DIAL INDICATOR STAND Column can move to & fro to full base length. Fine adjustment for accurate setting. Both faces of base can be used.

• used as holding device for dial indicator. • heavy & rigid construction. • column can move to & fro to full base length. • fine adjustment for accurate setting. • both faces of base can be used. Cat no. Base size (mm) height of column (mm) max. Horizontal ext. (mm) ul - 50301 250 l x 45 w 300 350 ul - 50302 300 l x 100 w 300 350 ul - 50303 300 l x 100 w 500 350 ul - 50304 350 l x 100 w 800 350

Features:- Used as holding device for dial indicator. heavy & rigid construction. Column can move to & fro to full base length. Fine adjustment for accurate setting. Both faces of base can be used.

• Brand Name: jafuji
• Country of Origin: Made in India
• Model Name/Number: 1020
• Usage/Application: industrial
• Weight: 7.8kg

• Brand Name: Unity
• Material: Stainless Steel
• Vertical Travel of Holder: 150mm
• Fine Adjustment Range: 2mm
• Minimum Order Quantity: 1 Piece

• Clamping stem diameter: 8mm
• Maximum working height: 130mm
• Fine adjusting range: 1mm

These dial Gauge Stands and Transfer Stands consists of a very stable, cast iron base and an upright column with a mounting bracket that features fine adjustment. The serrated anvil prevents the work piece from sticking to it. This rugged transfer stand provides a rigid, stable base with complete and constant accuracy. It is an Unique stand for sensitive dial test indicators to accurately transfer height settings from standard gauges and gauge blocks. This is a very versatile stand. easily adapts to thickness gauges and COMPARATOR work. It is compact and has sturdy cast iron base. The rugged bracket holds Dial Indicator firmly in place. It can also mount DIGIMATIC Indicator and Linear gauges with fine adjustment range of 1mm for zero settings. Optional interchangeable anvils are also available
