Dielectric Test Sets Dealers

• Condition: New
• Product Code: ODTS
• MOQ: One Sets
• Packaging Details: Box Packaging

We bring forth technically advanced Oil Dielectric Test Set for our clients. This Oil Dielectric Test Set measures the Di-electric strength of the oil. Our Oil Dielectric Test Set has two high voltage coils with starting winding at earth potential. Our Oil Dielectric Test Set is meant for testing duty only. This Oil Dielectric Test Set tests transformer oil as per IS specification about transformer oil and electrode shape. Types Of Testing Motorized Oil Test set with Manual / Auto stirring Manual Oil Test Semi Automatic Oil Test Set   Technical Details Step Up Transformer A double wound secondary Epoxy molded Air cooled / oil cooled transformer is used to boost the voltage to required voltage. Voltage Control A step less auto-transformer (Variac) is used for controlling the output from zero to maximum. Input Voltage 220/230 V single phase Output Voltage 0-50 KV, 0-60 KV, & 0-100 KV Capacity 0.5 KVA to 1 KVA Metering Voltmeter is provided on LT side, calliberated to indicate the secondary output voltage Electrode Suitable size of electrode with adjustable gap is provided Potection (a) The unit consists of fast acting DC relay provided on HT side to cut off the HT supply in case of flash. (b) Zero start interlocking is provided Test Cup A test cup of suitable size made of transparent thermoplastic Control (a) Potentiometer for output Voltage Setting. (b) Switch for manual and auto use. (c) Push button to increase or decrease voltage manually in case of manual position. Protection The design of the unit is such that it can withstand 20 percent overloading for short durations without any damage. Each unit consists of minimum-maximum range indicator, motor movement control Micro switch at the end of the range and oil Inlet & Outlet valve, oil level indicator, lifting arrangement for whole unit and transformer only, cooling radiator as per the capacity requirement. Optional Ampere meters, On-Off/switches Fuse, change over switch, under over voltage protection & indication with or without tripping, Arrangement, single phase protection. with or without contractor.

• Country of Origin: India
• Feature: Easy To Install, Electrical Porcelain, Four Times Stronger
• Condition: New
• Frequency: 0-50Hz
• Tensile Strength: 0-5Mpa
• Warrenty: 1yr
• Automation Grade: Automatic

• Certification: ISI Certified
• Feature: Easy To Install, Electrical Porcelain, Four Times Stronger, Proper Working, Sturdy Construction, Superior Finish
• Frequency: 0-50Hz
• Tensile Strength: 0-5Mpa, 10-15Mpa, 5-10Mpa
• Cooling System: Air Cooling, Oil Cooling
• Country of Origin: India
• Warrenty: 2yrs
• Production Power: 0-3kw, 3-6kw, 6-9kw, 9-12kw
• Weight: 50-100 Kilograms (kg)

HV DC Set for checking the quality of electrical power cable, motors, switchgear, Insulator,Available Three range 70-120-160KV DC in Digital and Analog Models.(User can set test voltage to intermediate values as required),Voltage apply between Negative polarity to ground to assure reliability,Zero start InterlocK for high Voltage output,Lightest weight available in air insulated high voltage model,Advanced performance with long-term reliability provided by filtered half wave rectification,Full circuit breaker protection against internal damage by overload, surges, or test sample breakdown,Connection for external permissive and safety interlock,Output current overload relay,Strip Chart Recorder for monitoring leakage current during the unit under test. (Optionally Available).

• Frequency: 50/60 Hz
• Brand Name: Phenix
• Rate Of Rise: 500/2000/3000 Volts per Second
• Input Voltage: 120-230 V
• Current: 5 A
• Output Voltage: 0-60 kV at 500 VA
• Maximum Voltage To Earth: 30000 V
• Length: 540 mm
• Width: 426 mm
• Height: 350 mm
• Weight: 23 Kgs

• Features: Oil testing upto 100 kV, Testing of insulation, measuring leakage current, Selection of tripping range

Dielectric Test Sets, Oxygen Index Detector

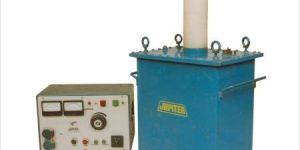

AC Dielectric Test Set, Recurrent Impulse Generator
