Front mount differential pressure gauge the series s1000 front mount differential pressure gauge makes panel mounting quick and easy. The s1000 is a diaphragm operated gauge for measuring positive, negative, or differential pressure. The s1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The series s1000 front mount differential pressure gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the series s1000 differential pressure gauge, the gauge is based on the same rugged design as the s2000, which allows for years of trouble free operation. Pressure limits: -20” hg to 15 psi (-0.677 bar to 1.034 bar) media compatibility: air and compatible gasses accuracy: +- 2% full scale (+- 3% on -0 and +- 4% on -00) throughout range at 70°f (21°c) temperature ranges: 20° to 140°f (-7° to 60°c) housing material: die cast aluminum case with abs flange and acrylic cover process connection: duplicate high and low recessed, push on connections for 316” tubing – one pair side and one pair back weight: 1 lb 2 oz (510 g) accessories: 2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing agency approvals: rohs, ce

We are offering differential pressure gauge is produced using optimal quality material. Our extensive range of differential pressure gauge is well appreciated for its reliability and high efficiency among the clients across the globe. Used for : all gaseous and liquid media that will not obstruct the pressure systemensuring flow protection in heat transfer oil plants according to din 32 727 and in hot-water apparatus according to vdtüv note of instructions "flow 100" special features : differential pressure measuring ranges from 0 … 250 mbar to 0 … 6 barhigh working pressure (static pressure) up to 25 barone or two adjustable micros witches respectivelyhigh repeatability of the switch pointstype approval to ensure flow protection in accordance with din 32 727 reg.-no.: 1b0162000, and also as flow control in steam boilers in accordance with v d tüvnote of instructions "flow 100", component sign number tüv . Sw . 00- 030 click here for more information

• Accuracy: 2.5% of FS. (For ascending order)
• Ambient temperature: Max. 65°C
• Process temperature: Max. 80°C
• Case: AISI 304 SS
• Body: AISI 316 SS
• Protection: IP 65
• Dial: Aluminum, black Colored, Fixed
• Window: Plain Glass

Special Features : Simple and compact design. High operating pressure up to 400 bars. (700 bar on Request) Over pressure safe from either side to maximum working pressure. Indicating mechanism isolated form pressue chamber. Suitable for Air/ Gas medi. Application : Filters Hydraulic systems Water treatment plants Chemcial plants Natural gas processing Heat exchanger Gasoling /diesel engine filters Pumps Valves Compressors

• Connection: 1/4” NPT-F (Optional Male)
• Accuracy: + / - 2% FSD (Ascending)
• Ranges: Various DP ranges from 15 mmwc upto 7 bar.
• We can also offer Compound ranges in series DGC 300 and series MAGNETIC:
• Dial sizes: Various options like 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia.
• Working Pressure: Various options up to 100 bar
• Porting: Options like In - Line. Back or, Bottom
• Calibration: Non-Linear, spread over 65 degrees to 75 degrees Arc.
• Sensing Element: Small Convoluted Diaphragm
• Wetted parts: Aluminium, Brass, SS 316, Industrial Plastic, Buna N, Viton
• Max. working Temp: Max. 80 degree C if Buna N is used and can be max. 200 degree C if Viton is used.
• Enclosure: IP 65

• Certification: CE Certified
• Connection: 1/4” NPT - F (Optional BSP)
• Dial Size: Various Options like 2”, 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” Dia.
• Accuracy: + / - 2% FSD (Ascending)
• Used For: These Gauges are Suitable for Non-magnetic Fluids Only
• Model: 200 DPG
• Range: Various Ranges from 0.25 to 10 Bar
• Working Pressure: High static pressure - 100 Kg/cm2
• Porting: Options like - In–Line, Back or, Bottom
• Calibration: Non-Linear, spread over 65 degrees to 75 degrees Arc.
• Sensing Element: Piston
• Wetted Parts: Aluminium, Brass, SS 316, Buna N, Viton
• Max. Working Temp.: Max. 80 degree C if Buna N is used, it can be max. 200 degree C if Viton is used.
• Enclosure: IP 65

We are one step ahead of our competitors in manufacturing and supplying a wide range of low cost sensocon differential pressure gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter status, duct static, pressure clean room pressure, building pressure,fan and blower pressure. specifications: accuracy 2% mounts in industry type : arrow indicator die cast aluminum housing standard holes temperature : 20 to 140 f

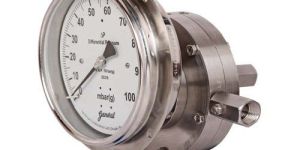

The differential pressure gauges are forged by Hitech into a steel body with or without the coating of Teflon. They have high resistance to heat and pressure and therefore used to detect pressures.

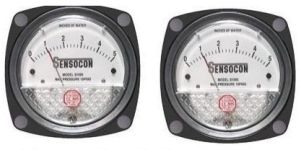

Front Mount Differential Pressure Gauge The Series S1000 Front Mount Differential Pressure Gauge makes panel mounting quick and easy. The S1000 is a diaphragm operated gauge for measuring positive, negative, or differential pressure. The S1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The Series S1000 Front Mount Differential Pressure Gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the Series S1000 Differential Pressure Gauge, the gauge is based on the same rugged design as the S2000, which allows for years of trouble free operation. Pressure Limits: -20” Hg to 15 PSI (-0.677 bar to 1.034 bar) Media Compatibility: Air and compatible gasses Accuracy: +- 2% full scale (+- 3% on -0 and +- 4% on -00) throughout range at 70°F (21°C) Temperature Ranges: 20° to 140°F (-7° to 60°C) Housing Material: Die cast aluminum case with ABS flange and acrylic cover Process Connection: Duplicate high and low recessed, push on connections for 316” tubing – one pair side and one pair back Weight: 1 lb 2 oz (510 g) Accessories: 2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing Agency Approvals: RoHS, CE

• Scale Range: 0..to. 0.6 to 420 kg/cm2
• Thread Connection: 1/4", 3/8", ½ ", BSP & NPT and M-20
• Nominal Size (mm): 100, 150
• Accuracy in FSD: 1.6%
• Mounting of Gauge: Bottom, Surface
• Case and Bezel: SS 304
• Pressure Elements: Diaphragm
• Diaphragm: Yes
• Wetted Parts: SS 304 & SS 316
• Static Pressure: Over loadable up to 60 to 600 kg/cm2 depending the Pressure Range
• Optional: Liquid Filled, Electric Contact and Flanged Connection

• Brand Name: Tufit
• Accuracy:: ±1% of fsd
• Dial size:: 2½"
• Minimum Order Quantity: 1 Piece

• Accuracy: ± 2% or 2.5% of FSR

Differential Pressure Instrument measures the difference in pressure at two Pressure zones in a system. Model GP-200 indicates the resultant differential Pressure [DP] directly on a single Gauge dial. This can also be equipped with ‘Switch Actuation’ mechanism, as an important additional feature.

For gases and Liquid media, filter control system and differential flow measurement. Differential Gauges are used to measure pressure difference from two different ports and indicate the pressure difference on the dial.   How to Order / Inquiry: Please advise the below Dial Size Connection Mounting Pressure range Application media Or Any other special requirement   Application: Differential Gauge can be used for measurement of tank level, detection of filter clogging, measurement of flow.

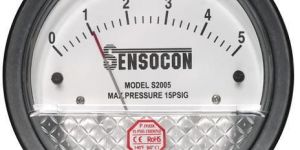

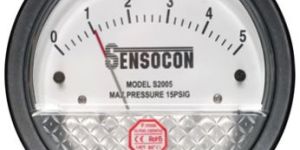

• Brand: Sensocon
• Model Name/Number: S2005
• Weight: 510 g
• Housing Material: Die cast aluminum case and bezel,with acrylic cover
• Media Compatibility: Air and compatible gases
• Pressure Limits: -0.677 bar to 1.034 bar
• Temperature Ranges: -7 to 60 Degree C

We have created repute as Single Diaphragm Differential Pressure Gauges Manufacturer and Supplier in Maharashtra (India). The Micro Single Diaphragm Differential Pressure Gauges, offered by us are suitable for corrosive environment and gaseous media. Single Diaphragm Differential Pressure Gauges can be availed in required specifications from us. Application : Air, Gas & Filter Application Optional Features D P with Electrical contact available on requestPressure equalizing valve available on requestSurface & Pipe Mounting on request.

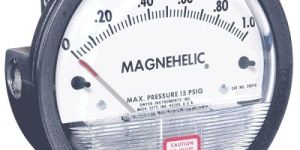

• Type: Magnehelic
• Material: Metal
• Color: Black & White
• Shape: Round

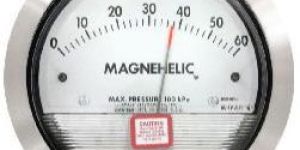

Mounting - A single case size is used for most models of Magnehelic® gages. They can be flush or surface mounted with standard hardware supplied. Although calibrated for vertical position, many ranges above may be used at any angle by simply rezeroing. However, for maximum accuracy, they must be calibrated in the same position in which they are used. These characteristics make Magnehelic® gages ideal for both stationary and portable applications. A 4-9/16 hole is required for flush panel mounting. Complete mounting and connection fittings, plus instructions,are furnished with each instrumentSpecifications : Service : Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi. Wetted Materials : Consult factory. Housing : Die cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168 hour salt spray corrosion test. Accuracy : ±2% of FS (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C). Pressure Limits : -20 in Hg to 15 psig† (-0.677 to 1.034 bar); MP option: 35 psig (2.41 bar); HP option: 80 psig (5.52 bar). Overpressure - Relief plug opens at approximately 25 psig (1.72 bar), standard gages only Temperature Limits - 20 to 140°F* (-6.67 to 60°C). -20°F (-28°C) with low temperature option. Size - 4 (101.6 mm) diameter dial face. Mounting Orientation - Diaphragm in vertical position. Consult factory for other position orientations. Process Connections : 1/8 female NPT duplicate high and low pressure taps - one pair side and one pair back. Weight : 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g). Standard Accessories : Two 1/8 NPT plugs for duplicate pressure taps, two 1/8 pipe thread to rubber tubing adapter, and three flush mounting adapters with screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.) Agency Approval : RoHS. Note : -SP models not RoHS approved.

• Brand Name: BIOBASE
• Material: die-casting aluminum
• Country of Origin: CHINA
• Model Number: BK-2000

Features Model BK-2000 Ambient temperature -20~80� Rated pressure -68~103Kpa Accuracy �2% 3% 4% at 21� Overpressure 172KPa Surface diameter 120mm Shell material die-casting aluminum Range 30Pa-80KPa Measured media Non-corrosive gas or air

• Material: Steel
• Connection: Bottom Connection
• Brand Name: Omicron

We offer Diaphragm Differential Pressure Gauge (dgc 400). Highly efficient and functional, diaphragm differential pressure gauges with magnetic coupling is provided by us in the market for the esteemed clients. We procure ce certified diaphragm differential pressure gauges for reliable vendors that make us assure a superior range. These diaphragm differential pressure gauges provided by us are suitable mainly for non-magnetic fluids.

• Material: Stainless Steel
• Shape: Round
• Color: Silver
• Display Type: Analog
• Diameter: 20-40mm
• Application: Liquid Pressure
• Feature: Accuracy, Robust Construction

• Brand Name: Sensocon USA
• Measuring Range(mm): Sz 5000
• Model No.: Sz 5000
• Minimum Order Quantity: 1 Number
