Digital Manometers Dealers

Ideal for calibration of differential pressure transmitters,differential pressure gauge, level transmitters, flow transmitters, magnahelic gauge, etc. PRODUCT FEATURES MEASUREMENTS: Electrical measurements of mA & Volts Peak pressure measurements (High & Low peak) PRESSURE SWITCH TEST FACILITY: Opening and closing pressures are easily identified by display hold while opening and closing contact DISPLAY: Large backlit alpha numeric display with 2 lines (one line Pressure and second line for electrical measurement) . ‘Auto OFF’function for longer battery life KEYPAD: Feather Touch keypad for easy operation. Dedicated ZERO key for Zeroing before test PUMP: Screw pump to build pressure

We are offering digital manometer.

• Material: Plastic
• Application: Industrial Use
• Color: Grey, Yellow
• Feature: Accuracy, Measure Fast Reading
• Display Type: Digital
• Automatic Grade: Automatic

We are offering digital manometer available in a wide variety of measurement ranges. Pressure as low as 200 pa to as high as 20 mpa. The proof pressure for the differential pressure model is 10 times higher than the full scale. The pressure transducer adopted for the gauge pressure models is made of anti-corrosive diaphragm which gives fast response. Analog output comes as a standard feature. Dm-3501b comes with a window comparator feature. Traceable to the japanese national standard

• Material: ABS PLASTIC

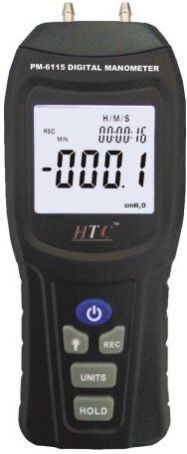

• Brand Name: HTC
• Measuring Range: +- 5 psi (+-138.3 inH2O)
• Accuracy: 0.3% FS
• Resolution: 0.001 psi
• Usage/Application: Industrial
• Features : Larger Dual LCD with backlight, Data Hold, Max / Min / Avg value with relative time stamp, Optional USB software, Zero Adjust, Offset and DIF function, Low battery indication and Auto Power Off.

DIGITAL MANMETER KELLER LEO2 Model : LEO2 Temperature : 0 to 50°C Range : -1 to 700 bar Battery Life : 1000 hours Accuracy : ± 0.1% of F.S Output : NIL Description : LEO 2 is a compact, micro-processor (ìP) controlled, highly accurate and versatile pressure measuring instrument with digital indication. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests. Its characteristics are stored in the instruments internal EEPROM. The ìP of the LEO 2 reads the characteristic values and calculates therefrom the pressure to an accuracy of < 0,1 %FS at room temperature. The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.- pressure since the last RESET. LEO 2 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the Max.- and Min.-value. Specifications : Pressure Range : -1…3 bar Resolution : 1 mbar Overpressure : 10 bar Number of Digits : 5 Digit Accuracy RT (room temperature) * : < 0,1 %FS Total Error Band (0…50 °C) * : < 0,2 %FS Storage- Operating Temperature : -20…70 °C 0…50 °C Compensated Temperature Range : 0…50 °C Supply : 3 V battery, type CR 2430 Battery Life : 1’000 hours continuous operation Pressure Connection : 716”-20 UNF (adapter G 14” included) Protection, CEI 529 : IP 65 Diameter x Height x Depth : 59 x 95 x 32 mm Weight : 125 g

• Type: Digital Manometers
• Material: Consult Factory.
• Diameter: 80-100mm
• Application: Industrial Use
• Color: Black
• Condition: New
• Display Type: Digital
• Automatic Grade: Automatic
• Pressure: 0-5000psi, 10000-15000psi, 15000-20000psi, 5000-10000psi
• Feature: Accuracy, Easy To Fit, Measure Fast Reading, Perfect Strength, Robust Construction, Rust Proof
• Brand Name: Dwyer
• Application: Series 476A Single Pressure & Series 478A Digital Manometer
• Range: Digital, 4 Digit LCD (.425

• Display: Backlit LCD Dual Display
• Features: Low Battery Indication, Under Range and Over Range Indication, Fast Response Time, Battery Operated, With RS-232 PC Interface Facility, High Accuracy of 0.3%
• Measuring Range: 0 - 5 PSI

• Features: Available in different size, Safe in use, Perfect quality

• Display: 2 lines, LCD technology.
• Connection: 6.2 mm barbed connectors
• Brand Name: KIMO
• Keypad: Metal-coated with 5 keys
• Conformity: electromagnetical compatibility (NF EN 61326-1 guideline)
• Power supply.: 1 alcaline battery 9V 6LR61
• Operating temperature: from 0 to 50°C
• Storage temperature: from -20 to +80°C
• Auto shut-off: .adjustable from 0 to 120 min
• Weight: 190g
• Languages: French, english
• Display Size: 50 x 34.9 mm.
• Power Supply: 9 V battery
• Operating Temperature: 0 to 50 DegreeC
• Storage Temperature: -20 to +80 DegreeC

• Brand Name: Esha
• Feature: Accuracy, Easy To Fit
• Type: Digital Manometers
• Range: 50-0-50 MMHG , 100-0-100 MMHG, 150-0-150 MMHG
• Brand Name: Esha
• Model: ESHA/HVM/100/86
• Construction: Used to Measure Vacuum of Lost Stage Available with Catch Pof Ond Isolation Valve.

• Feature:
• Display: Dual display
• FUNCTIONS: MM-45
• Accuracy: ±0.3%FSO
• Repeatability: ±0.2%(Max± 0.5%FSO)
• Linearity/Hysteresis: ±0.29% FSO
• Pressure Range: 10Psi
• Units & Range & Resolution: mbar（±137.8）、mmHg（±103.4）、cmH20（±140.6）：0.1 inH20（±55.4）、kPa（±13.79）、ozin2（32）: 0.01 psi(±2.000), inHg（±0.407）、kgcm（0.14）、bar（0.
• Storage Condition: -1ºC-60ºC
• Low battery indicated: √
• Backlight: √
• Data hold: √
• MAX/MIN/AVG: √
• Auto power off: √
• Overload indication: ERR1 or ERR2
• Error.1: Over range Indicator
• Error.2: Under range Indicator
• Error.3: Differential Pressure value is over range
• Error.4: Differential Pressure value is below range
• Power: 9V(6F22)
• Net Product Weight: 340g
• Accessories: Carrying Pouch, Tubes, Battery

• Display: Dual LCD
• Features: Gauge/differential pressure, 11 selectable units of measurement, Data hold and backlit, auto power off, low battery indication, High accuracy and sensitivity
• Accuracy: + 0.3% FSO (25 º C)
• Repeatability: +0.2% (Max+/-0.5%FSO)
• Linearity/Hysteresis: +0.29% FSO
• Maximum Pressure: 150psi
• Response Time: 0.5Second.s Typical
• Low Range Indicator: Err.1.
• Under Range Indicator: Err.2.
• Operating Conditions: 32 º F to 122 º CF(0 to 50 º C).
• Storage Conditions: 14 º F to 140 º F (-1 to 60 º CC).
