Direction Sensor Dealers

• Type: Wind Sensor
• Application: Industrial
• Condition: New

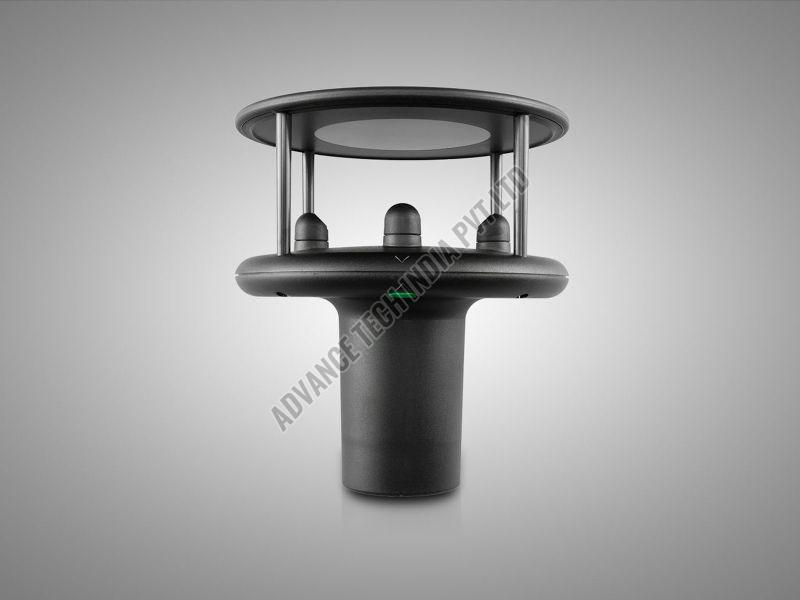

This is a low-cost anemometer, which utilises proven ultrasonic technology to provide wind speed and direction data via one serial or two analogue outputs. To confirm correct operation, outputs are transmitted together with an instrument status code. With a robust, corrosion-free polycarbonate housing, this small, lightweight wind sensor is recommended for use in harsh environmental conditions and is particularly suited to marine & offshore (ships, data buoys) and land based installations. The WindSon has no moving parts, offering maintenance-free operation in a wide range of applications.

Our Speed and Direction Sensor is known for its work efficiency and service life. We have become a preferred choice of the patrons owing to our timeliness and client centric approach. Ours is a well-established firm, located in Coimbatore(India) and associated with leading names to fulfill varied demands of the buyers.

We are leading dealer and distributor of electronic speed and position sensors in Noida, Greater Noida and Ghaziabad. We offers electronic speed and position sensors designed for enhanced reliability and an extended life. it uses multiple technologies to detect a change in magnetic field and create an electronic signal for control system interface. These technologies offer the ability to detect speed, direction, or position of a moving ferrous metal or magnetic target. Sensing is accomplished without contacting the target, and there are no moving parts. This eliminates mechanical wear of the sensor or target. Speed Sensors with Hall effect technology full fills a wide array of applications due to a Hall effect sensor's ability to detect a magnetic target's zero speed and direction change and produce a digital output compatible with computers, motion control devices, position monitors and digital to analog converters. Zero speed Hall effect magnetic sensors are used in industrial applications to determine shaft or gear speed or direction by detecting fluctuations in the magnetic field.Hall effect sensor applications for zero speed to 25 kHz detection of targets such as fine gears, and the change in target direction. Hall effect sensors are used as vehicle speed sensors, wheel speed sensors and ABS brake systems. Additional applications are turbines and as vehicle transmission speed sensors. The zero speed Hall effect magnetic sensors are used in speed applications and digital devices which switch from logic state 0 to logic 1 in the presence of a magnetic field of 50 gauss.

The Model 020C Wind Direction Sensor provides azimuth data for use in micrometeorological measurements related to operational studies and research. This sensor is especially useful when a low starting threshold, a high damping ratio or a short delay distance is required. (For example, in making Paquill determinations or for use with sigma computers, both a high damping ratio and a short delay distance are mandatory performance criteria.) The 020C Wind Direction Sensor is presently employed in continuous service in environments ranging from Antarctic cold to arid desert regions And also we provide wind direction sensor under different models for different environments Model 020c - Antarctic cold to arid desert regionsModel 023 - Adverse environmental conditions.Model 024A - Meteorological environments. And our products includes WIND SENSOR 034A & 034B AIR TEMPERATUE SENSORS VERTICAL WIND SPEED SENSORS SOLID STATE WIND SENSOR RADIATION SHIELD SENSORS SOLAR RADIATION SENSORS

• Material: Plastic
• Power: 0-5Amp
• Voltage: 3.3V DC
• Operating Temperature: -20 To 60 C
• Weight: 230
• Country of Origin: India
• Usage/Application: Meteorology, Agriculture
• Brand: AETHER Techno Solutions Pvt. Ltd.
• Warranty: 12 months
• Color: Black

The company has gained the trust of the clients as one of the noteworthy Manufacturers, Suppliers and Exporters of the best quality Wind Direction Sensor. Our Wind Direction Sensor is made as per the set industrial standards. Our quality checkers perform various tests on Wind Direction Sensor to gain maximum customer satisfaction.Wind Direction Sensor Model - QE – 002 Wind Direction Sensor : Wind Vane. Sensing : Vane coupled to linear endless potentiometer. Starting threshold :  Better than 0.5 meters/sec. Range : 0 to 357 degrees (3 degrees electrical gap in the Potentiometer Output :  0 to 5 kilo-ohm resistance (0 to 357 degrees). Resolution :  1 degree. Accuracy : +/ 3 degrees. Operating Temperature : 40 to + 60 degree Celsius Construction of sensor body : Brass housing, stainless steel shaft and aluminum vane Principle Of OperationQE-002 wind vane is a counter balanced, low threshold wind vane. A Linear, wire wound endless potentiometer is coupled to the vane by an SS shaft. As the vane turns, it rotates a stainless steel shaft which is coupled to the potentiometer. This potentiometer has excellent linearity, very low starting torque.The north of the wind vane is marked on its body. This line is to be aligned with actual North with the help of prismatic compass, at the time of installation. Sensor gives minimum resistance at North (i.e., 0 degree approximately 20 ohms). The resistance output linearly proportional to the position of the wind vane.

• Material: ABS and Aluminium
• Usage/Application: Industrial
• Brand Name: Sensing Automations
• Number Of Pin: 4 Pin
• Packaging Type: Box

The KDS-131 Sensor measures  wind speed and direction. It computes instantaneous & average wind speed and two-dimensional direction in the horizontal plane at the level of installation. The sensor uses non-contact sensing technology for both speed and direction. It is designed for long-term outdoor deployment in varying weather conditions.   Features Optical speed sensing, magnetic direction sensing Accurate time base and ratiometric acquisition Vector averaging for direction Vector and scalar averaging for speed Automatic internal electronics calibration Multi-point individual sensor calibration Digital and analog output options Durable, weather-proof Low maintenance Wind Speed: Range: 0.4 ms-1 to 65 ms-1 Accuracy: +/- 0.35 m s-1 (2 m s-1 to 35 m s-1) Resolution: 0.01 m s-1 Output Units: m s-1, f s-1, knots, kmph, mph Threshold: 0.2 m s-1 to 0.4 ms-1 Calibration Traceability Offered: IMD Wind Direction: Range: 0° to 360°  Accuracy: +/-5° Resolution: 0.1° Output Units: Degrees, Radians, % of 360° Calibration Traceability Offered: IMD

Direction sensor is displayed using two, 3 digit LED arrays to display current wind speed and maximum or minimum gust data; and a double ring of 36 LEDs indicate current and average wind direction.

We are one of the manufacturers and supplier Wind Direction Sensor. These give the accurate reading Wind Direction Sensors are considered to be one of the best option available in entire marketplace. After connected both of the wind sensor with data Logger.We can create theAutomatic Wind Monitoring System

• Range: 0 – 60 m/sec
• Range: 0 – 360°

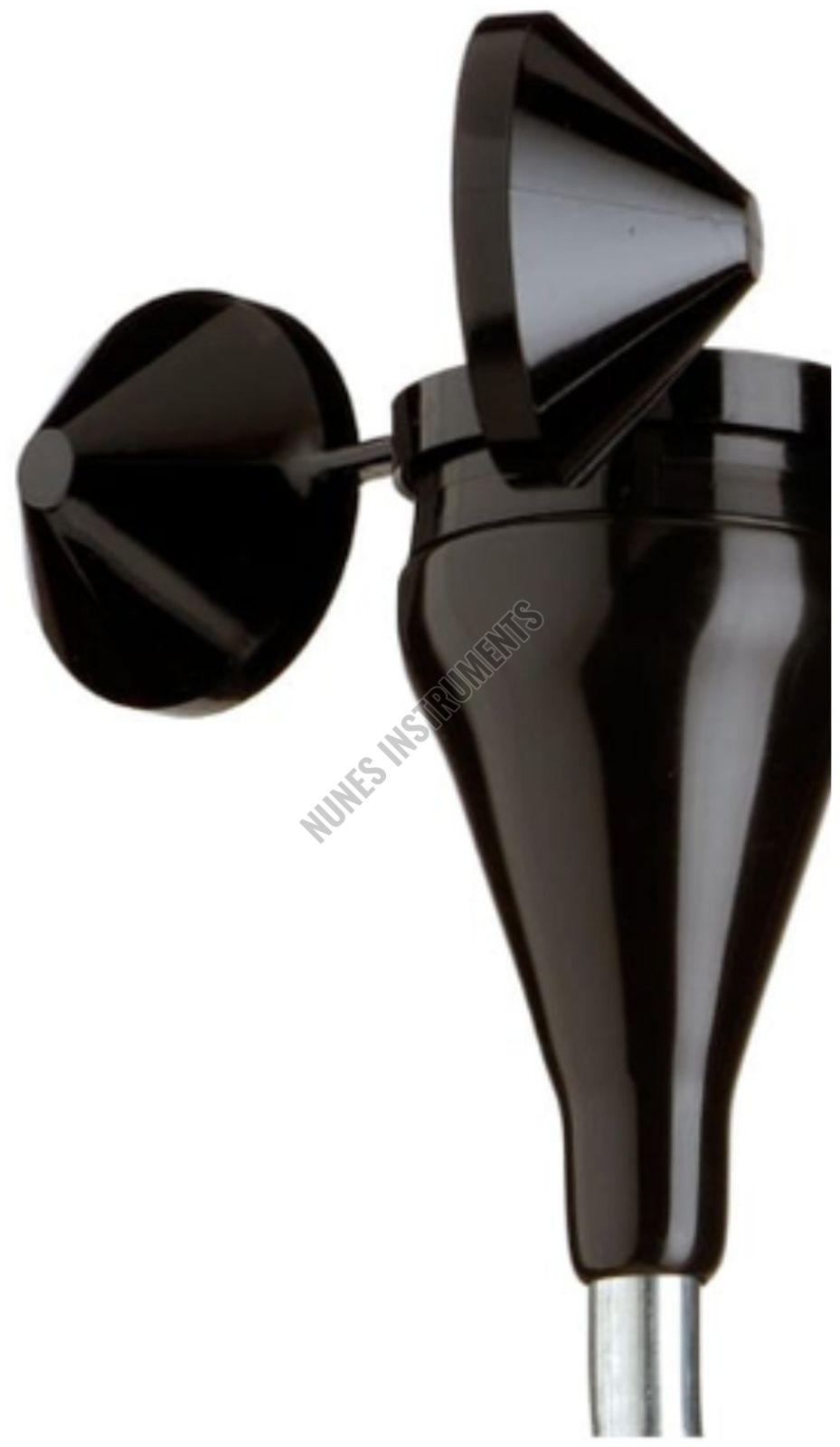

• Speed Sensor: Cup type Anemometer
• Sensing: Optical – Chopper wheel
• Starting Threshold: -< 0.3 m/ sec
• Accuracy: 2.00%
• Direction Sensor: Wind Vane
• Sensing: Contactless Magnetic
• Accuracy: +/- 1°
• Output: 0–20 mAmp / 4-20 mAmp / RS 232 / RS 485 / Pulse Output
• Radius of Assembly: 135mm
• Height: 400mm
• Cup Material: Stainless Steel / Aluminum
• Sensor Body: Aluminum/ Brass / Stainless Steel

• Material: UV-resistant ABS
• Accuracy: ±3 Deg C
• Wind Direction: Wind vane potentiometer Type
• Range: 0- 360 Deg
• Pot Range: 20 Kohms

1. Voltage output Ex: 0 to 5V or 0 to 10VDC2. Curent Output: 4 to 20mA DC3. Modbus Output

Product Description We are engaged in offering a qualitative range of Wind Direction Recorder that continuously records the graphic of the direction of wind. Furthermore, these recorders can easily be connected in parallel along with digital display units and Munro dial indicators.

EQ – FST202 Wind Direction Sensor is based on Hall Effect. The cup turns round once be blown. The wind direction variable transfer into relative signal output. The base is made of high strength alloy and finish by surface treatment and is featured with water proof, corrosion resisting. It can be used in harsh environment. High – Performance digital circuit is built in FST Wind direction sensors. It carefully designed the working condition of RFI & EMI resistance and the surge voltage. It is featured with strong RFI & EMI resistance, wide power range and polarity protection, meeting ICE. CE (EMC) requirement. It can meet demands of working aloft, construction machinery, port operation, wind power generation system. Features :  • Excellent Resistance against impact, overload, shock and erosion• Small and Exquisite, Easy to take, Simple to install• Alloy Material Finish, Reasonable Structure design and nice outlook quality Applications :  • Working Aloft Testing and Control• Engineering Machine Testing and Control• Weather Station and Environment Protection Testing and Control• Port and wharf Environment Testing and Control

A sensor for measuring average wind direction in a sampling interval. It is designed to be used with Aanderaa Sensor Scanning Units, Data loggers or display units.This sensor consists of a light wind vane pivoted on top of a housing. Inside the housing a compass is magnetically coupled to the vane. The wind direction sensor can be mounted directly on the Sensor Arm of the Automatic Weather Station 2700 or Road Weather station 4030. It may also be mounted on different types of sensor brackets from Aanderaa Instruments and on a 25mm O.D. vertical aluminum tube. When installed on brackets or tubes, the sensor must then be connected to the Sensor Scanning or Display Unit by a separate cable.

Wind Direction Sensor that we offer is manufactured in compliance with the set industry standards. We are one of the pioneering Manufacturers, Exporters, and Suppliers of Wind Direction Sensor from Uttarakhand. The Wind Direction Sensor offered by us is known for its dimensional accuracy, accurate results, and durability. Our Wind Direction Sensor is well-tested and therefore, is safe to use. Features : Zero dead band. Many potentiometer wind vanes have a dead spot of several degrees. This device has no dead band at all.Near-zero friction. Since the magnet is not in contact with the Hall sensor, there is no friction from the sensor.Virtually infinite life. Unlike pote ntiometers that wear out, the magnetic Hall sensor is non-contacting and should theoretically last forever. Specifications : Range : Full 360 degrees , zero deadbandAccuracy : +/-0.3 to 0.5% of signal rangeResolution : 12 bit or 0.025 degrees Applications : Windrose assessmentMeteorological studies Cable length : 1.5m (extendable at extra cost) Input : 5 VDC, 10-28 VDC, 30-60 VDC Output : Ratio-metric : 5% to 95% of 5V inputVoltage : 0 to 1, 2.5, 5, 10 VCurrent : 4-20mA, 0-20mARS485-MODBUSRS232-ASCII Dimensions : Directional Vane approximately 8 inchesOverall height 205mm with aluminum mounting bracket Material : Vane :one piece injection-molded black polycarbonateBody : housing is black ABS plasticShaft : beryllium copper, fully hardenedBearing : modified Teflon, self-lubricating
